Olympus BX60F5 Microscope Lab Research Fluorescence Imaging Optics
Olympus
Details
-
CategoryMicroscope / Imager
-
Dimension20.0in x 13.0in x 27.0in
-

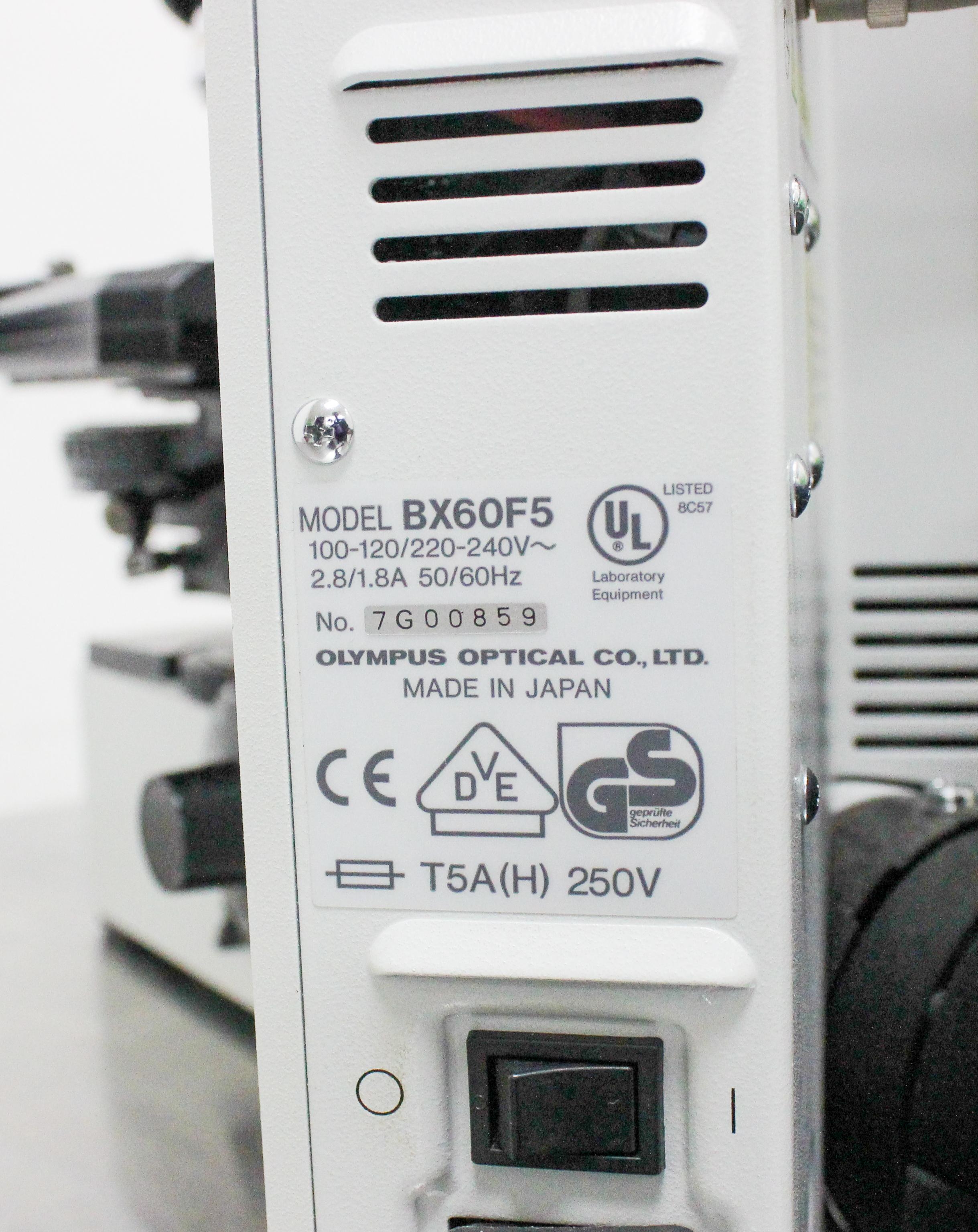

Serial7G00859
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

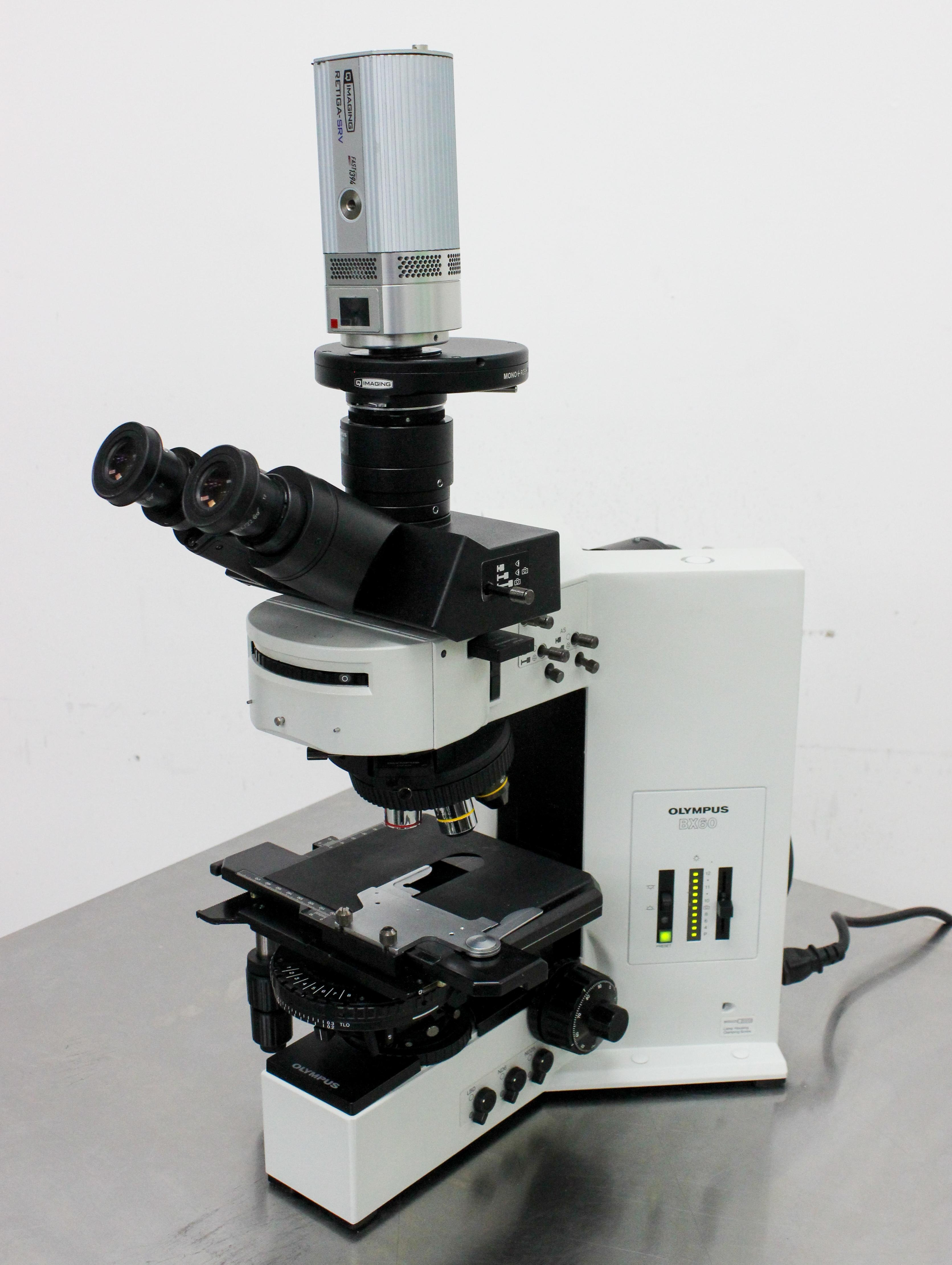

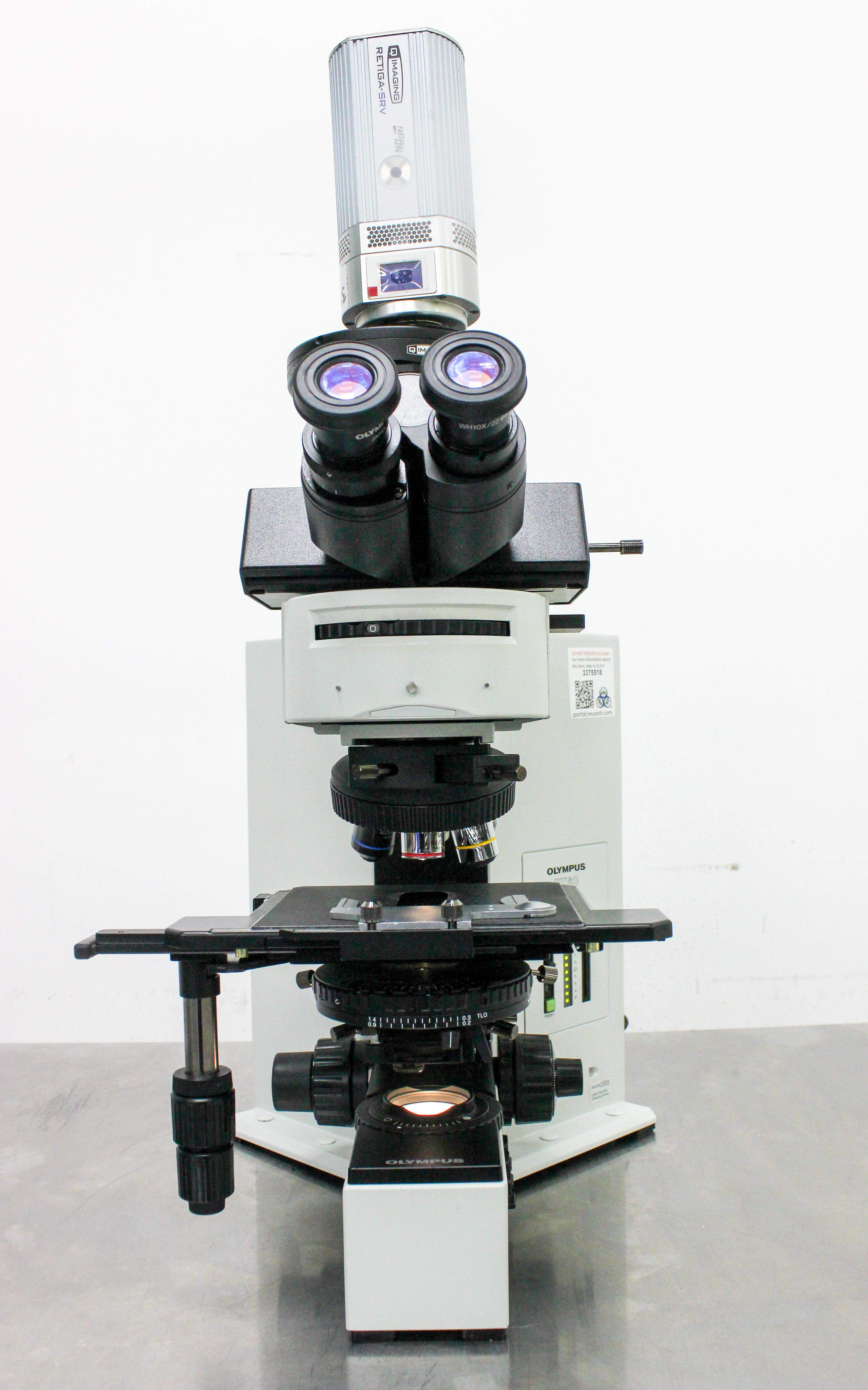

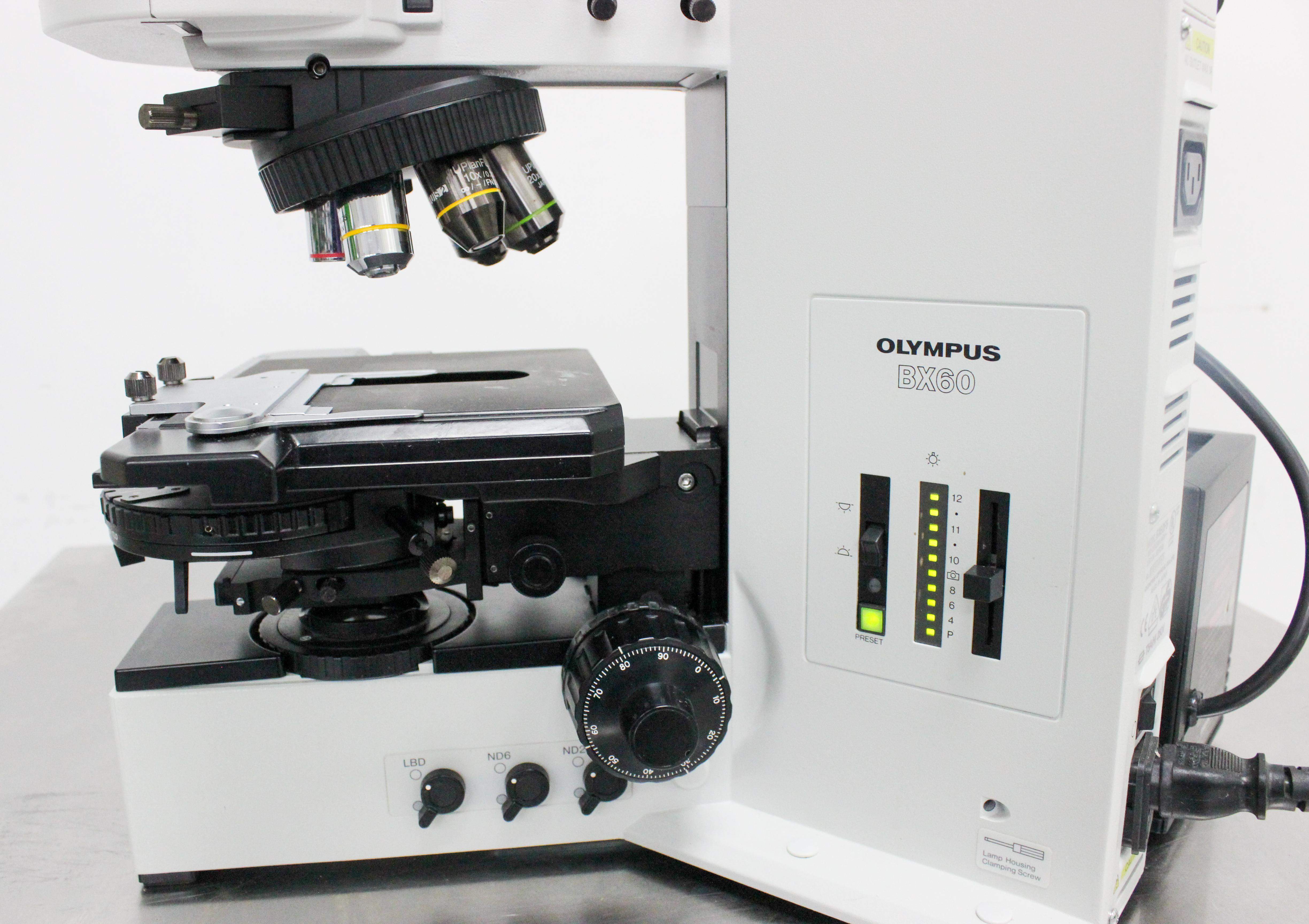

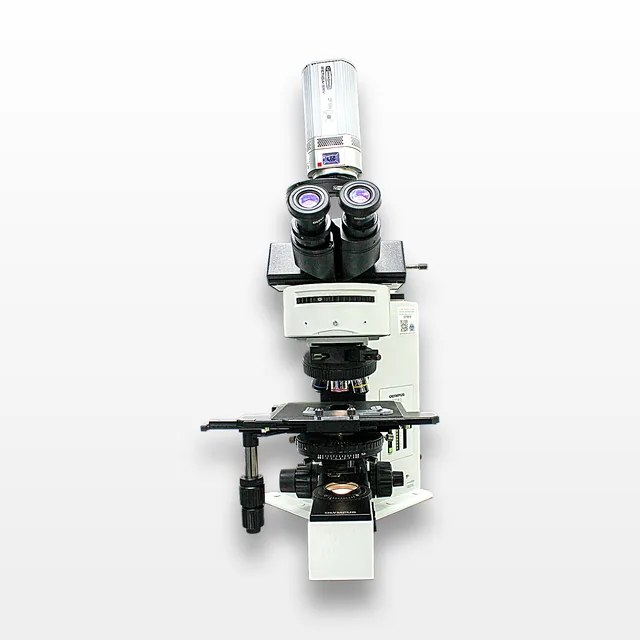

The Olympus BX60F5 Microscope, originating from Japan, is a preowned research-grade microscope utilized for advanced biological and clinical applications. It features Olympus’ UIS2 infinity-corrected optics for high-quality imaging with superb sharpness and color fidelity. The BX60F5 is equipped with a 5-position fluorescence turret, enhancing its adaptability for multi-channel fluorescence microscopy. With its ergonomic design and advanced focusing system, it supports long laboratory sessions while offering precise focus control. Compatible with a range of imaging techniques, including phase contrast and DIC, and adaptable to digital cameras, the BX60F5 is ideal for high-resolution biological research. The microscope includes objectives for brightfield and fluorescence use but does not include an illuminator. Please note, the equipment powers on and passes basic tests, but has not been fully tested for functionality.
Technician comment

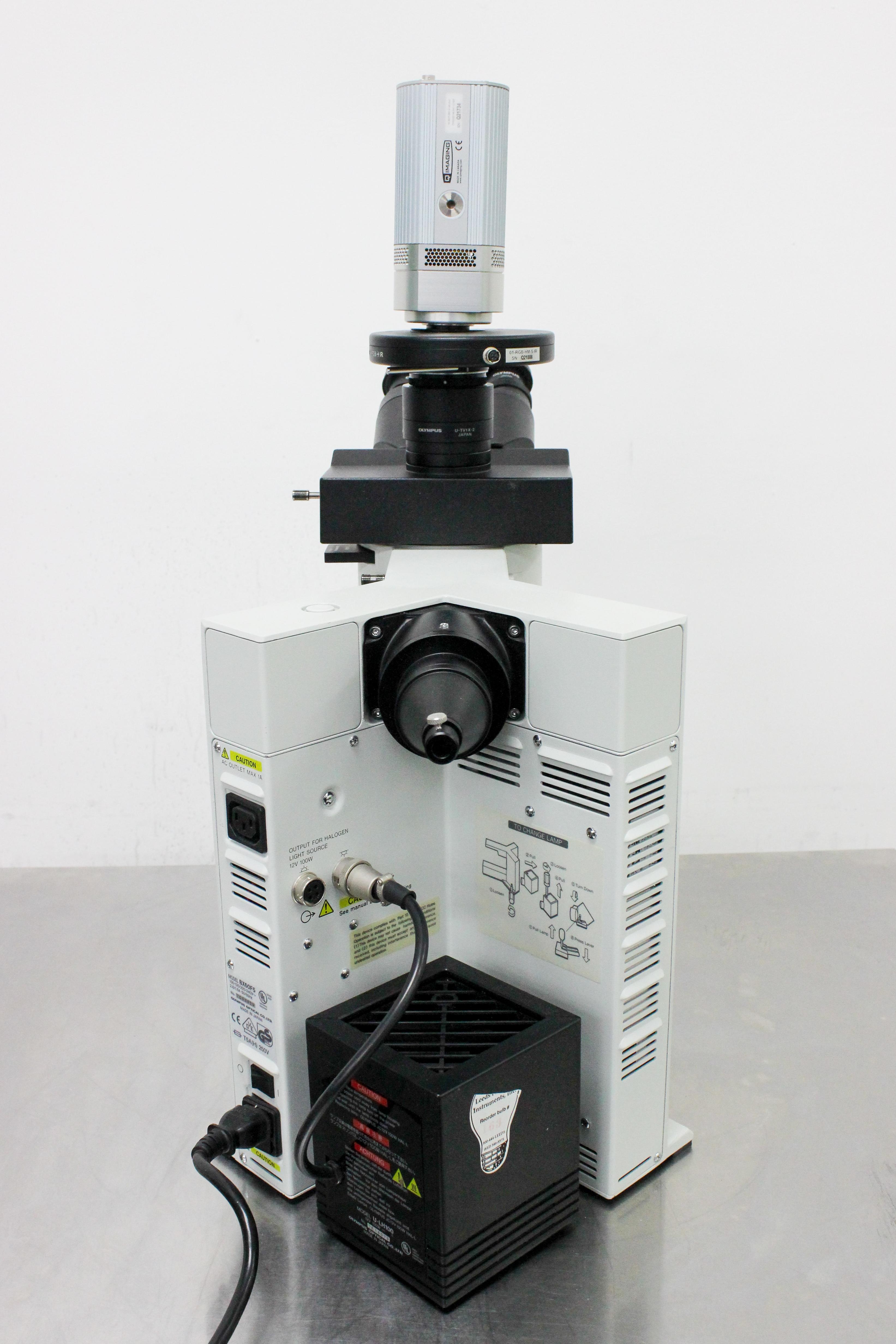

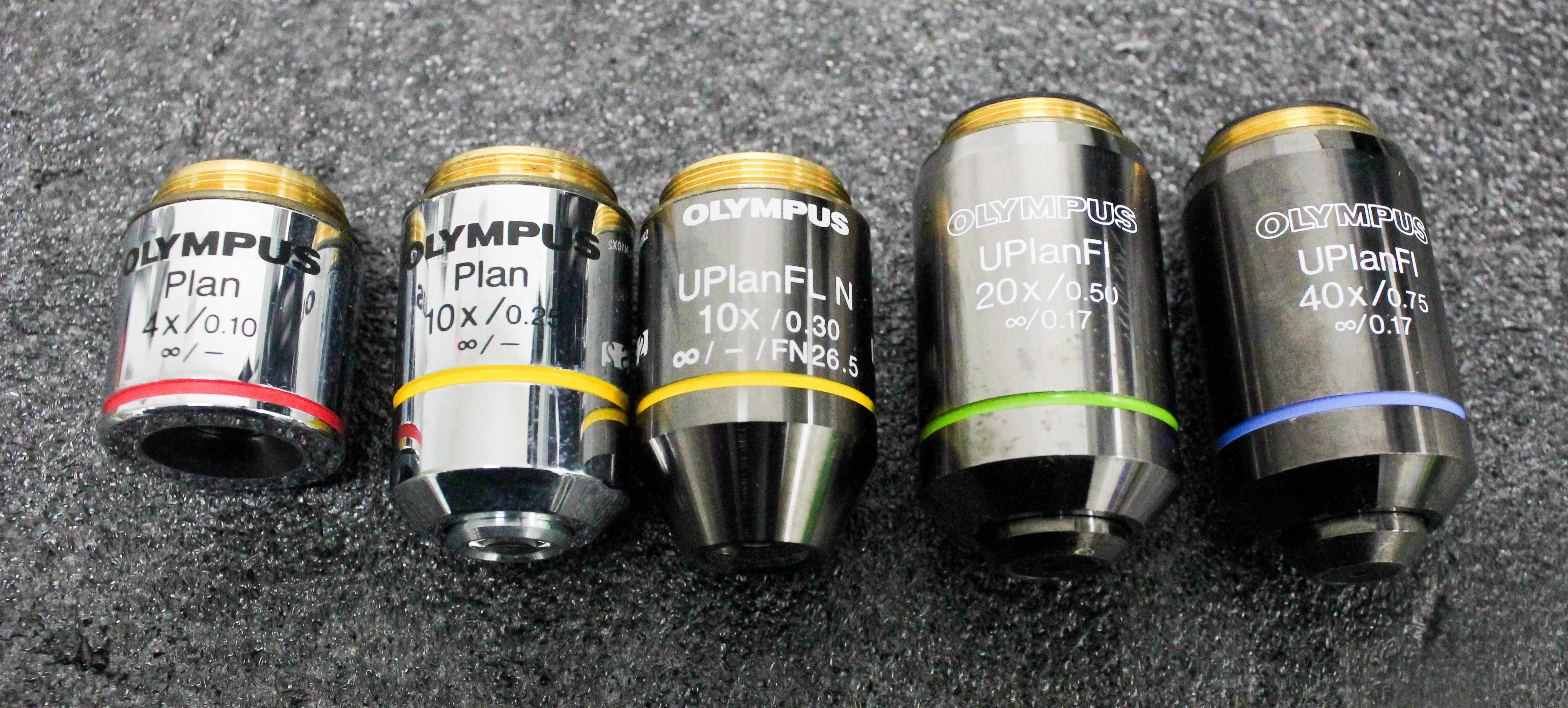

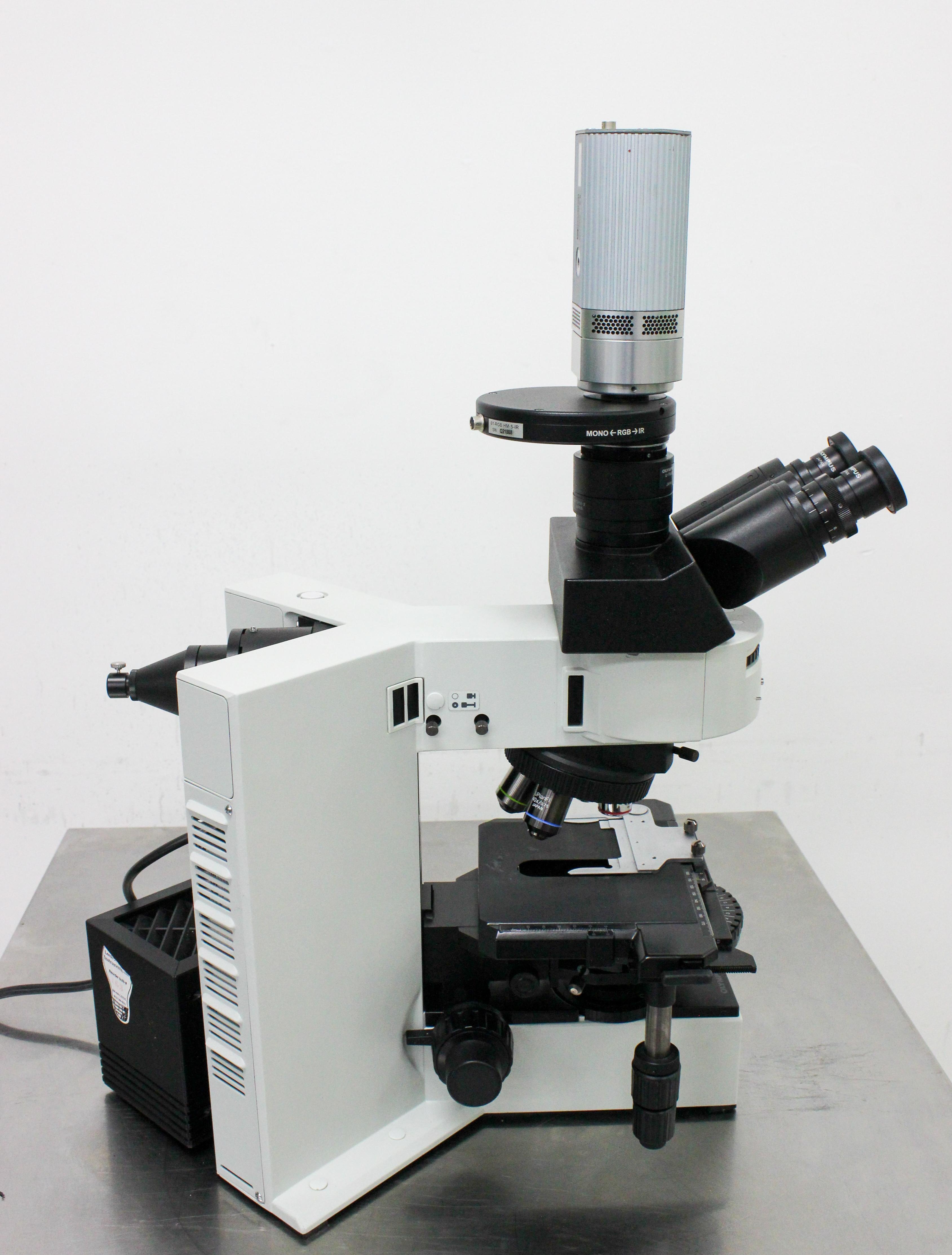

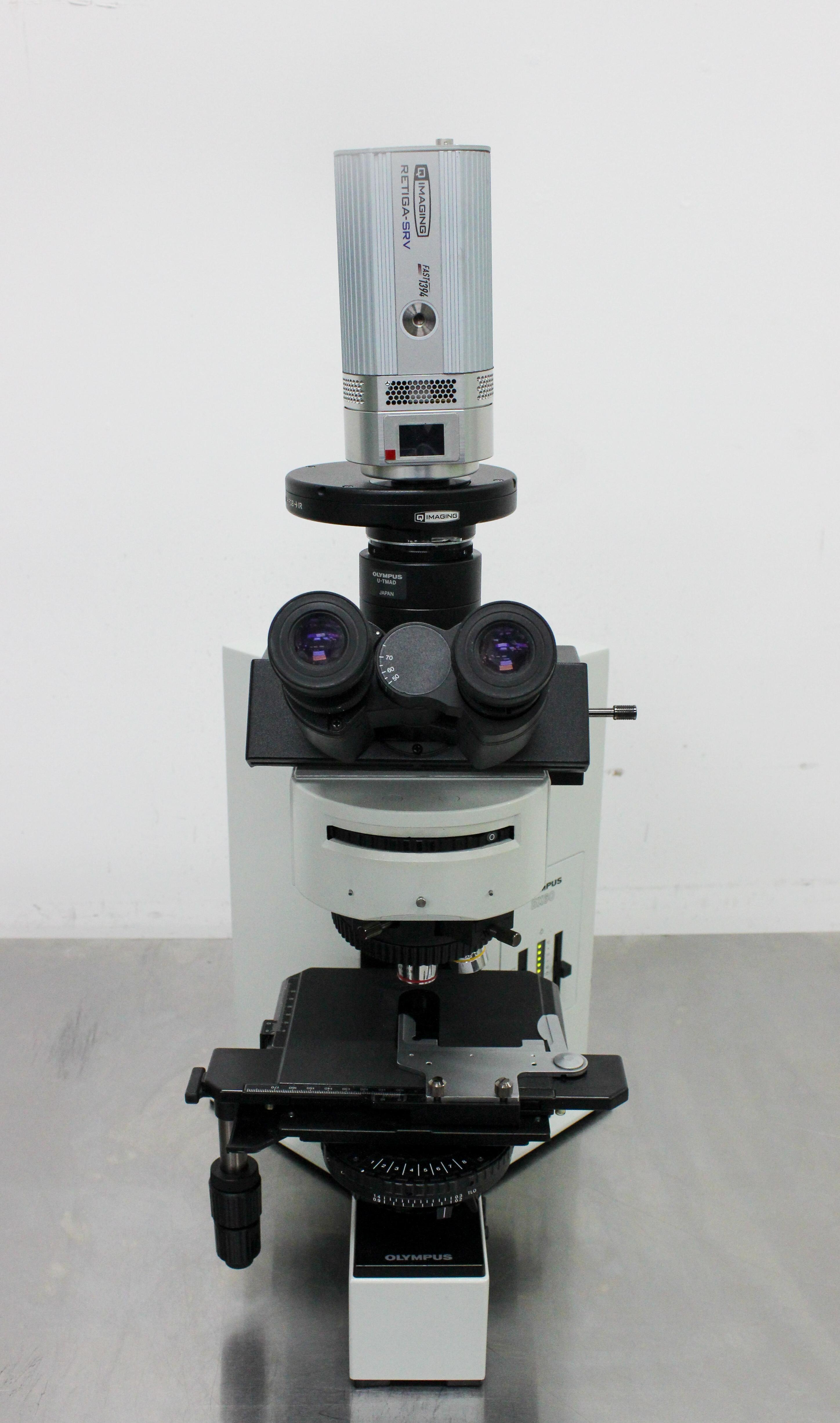

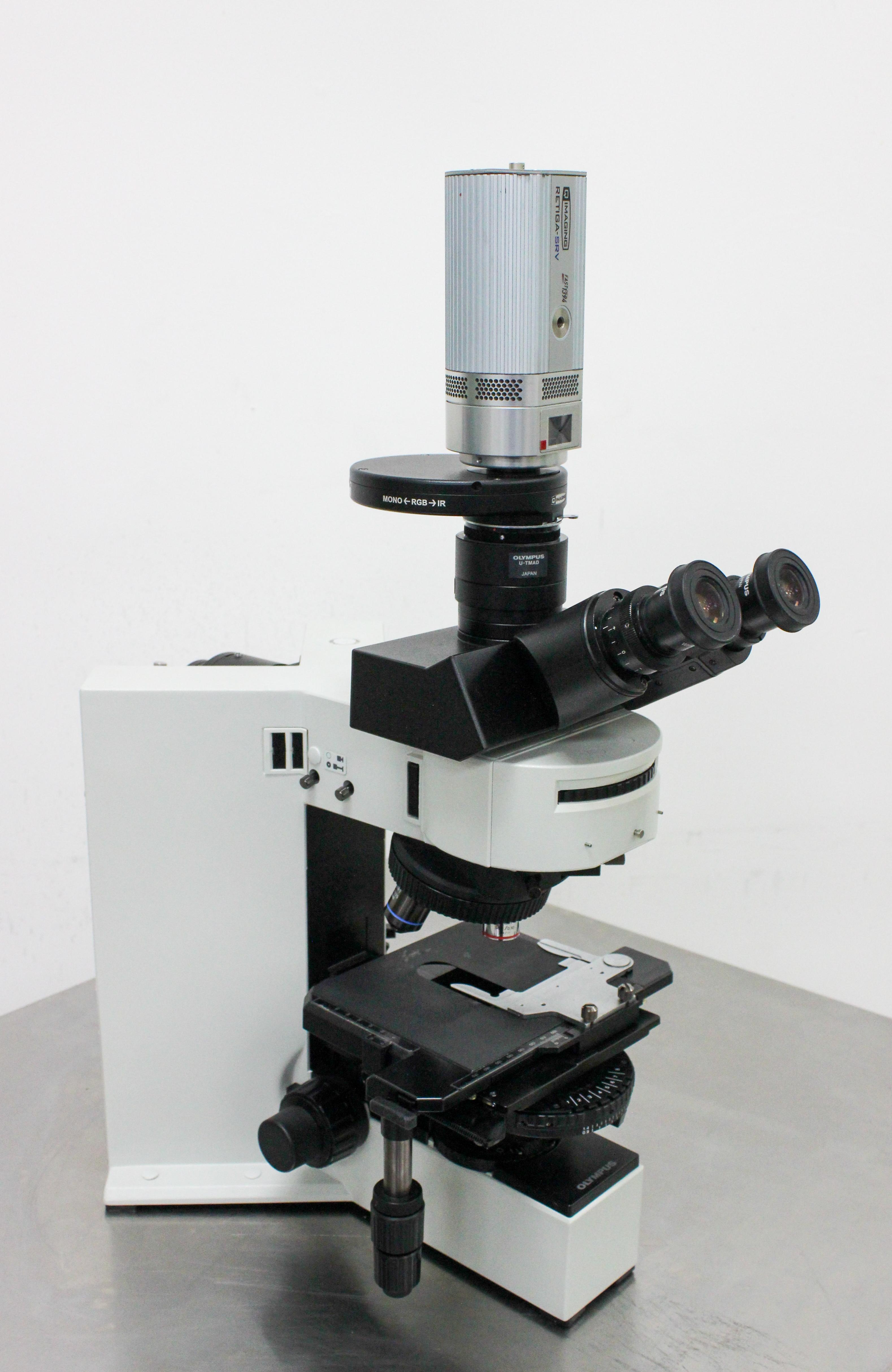

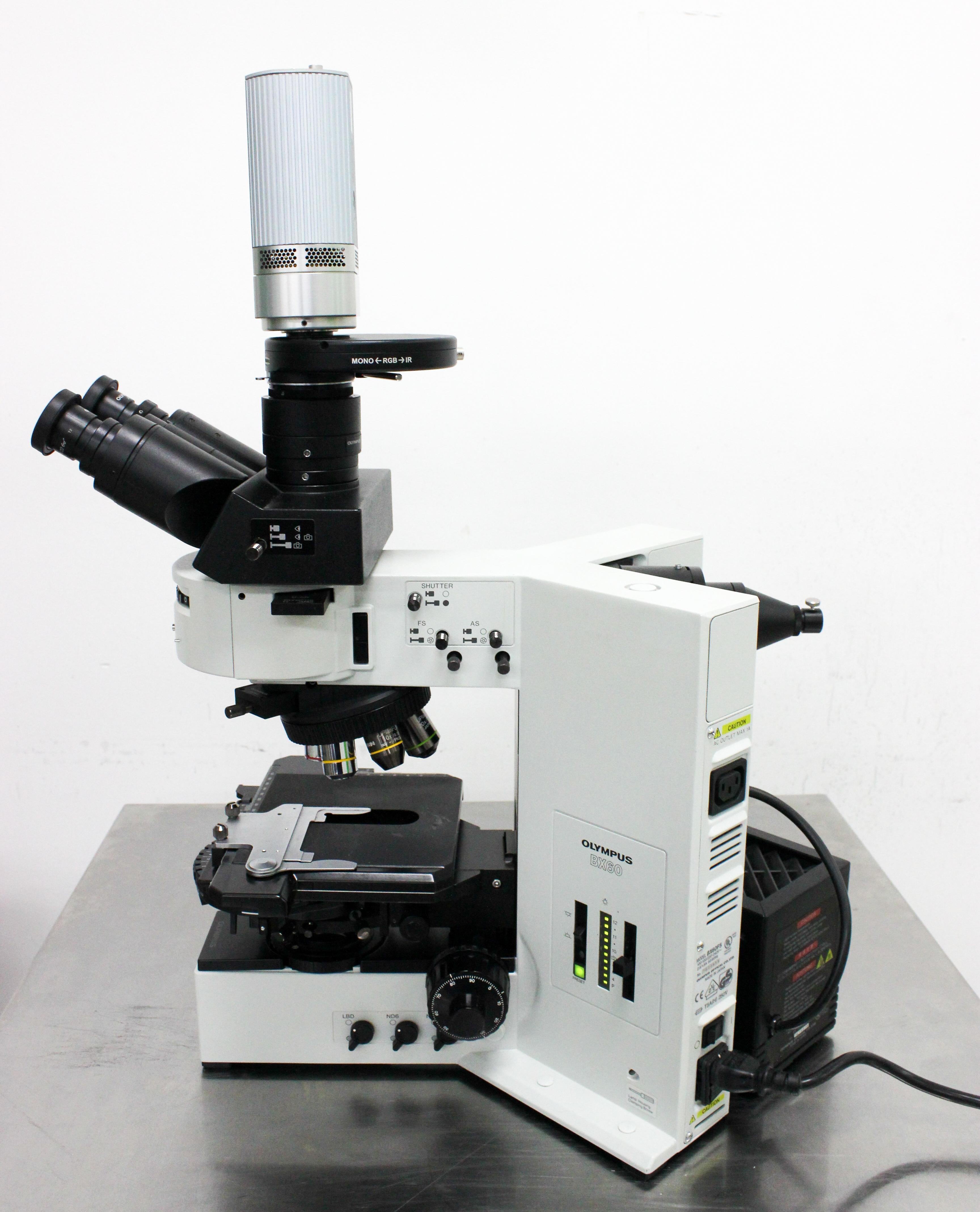

Preowned Olympus BF60F5 microscope from a working lab. Includes QImaging Retiga-SRV CCD camera, U-LH100 lamp house, and collimating adapter. Illuminator not provided. Equipped with Plan 4x/0.10, Plan 10x/0.25, UPlanFL N 10x/0.30, UPlanFI 20x/0.50, and UPlanFL 40x/0.75 objectives for brightfield and fluorescence use. See photos for condition and included components.
Key Features
- UIS2 Infinity-Corrected Optics for clear, sharp imaging
- 5-Position Fluorescence Turret for enhanced imaging flexibility
- Ergonomic Design for comfortable long-term use
- Advanced Focusing System for precision control over depth
- Compatible with phase contrast and DIC imaging systems
Specifications
- Optical System: UIS2 infinity-corrected
- Magnification Range: 4x, 10x, 20x, 40x, 60x, 100x
- Eyepieces: 10x wide-field, FN 22 mm
- Illumination: Halogen lamp (12V 100W) or LED
- Stage: X-Y mechanical, 160mm x 250mm
- Focus Mechanism: Coaxial coarse and fine, 2 µm precision

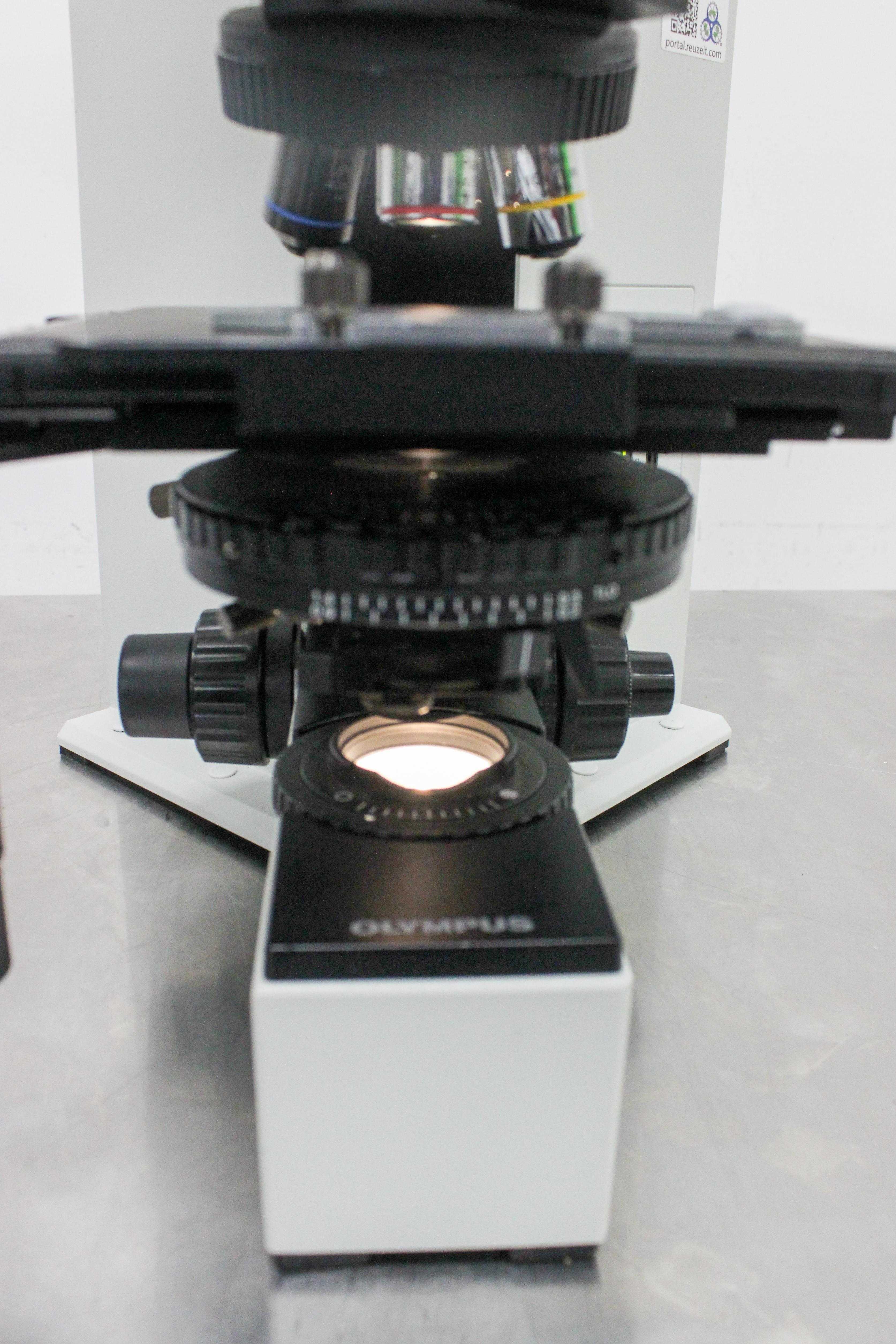

- Condenser: Abbe, NA 1.25, adjustable for brightfield and phase contrast
- Power Supply: 100-240V AC, 50/60Hz
Weight
Imperial: 26.4 Pounds
Metric: 11.97 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 15.6 lb x 32.4 lb
Metric: 60.96 cm x 39.62 cm x 82.3 cm
Harmonized Code
9011.10.40
Harmonized Code Details
9011.10.40 - Compound optical microscopes, for measuring, checking semiconductor wafers or devices. Chosen due to its research application and advanced optical features for biological research.
