Waters nanoACQUITY UPLC System Cart - Chromatography, Proteomics, Sample Manager
Waters
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension29.0in x 20.0in x 51.0in
-

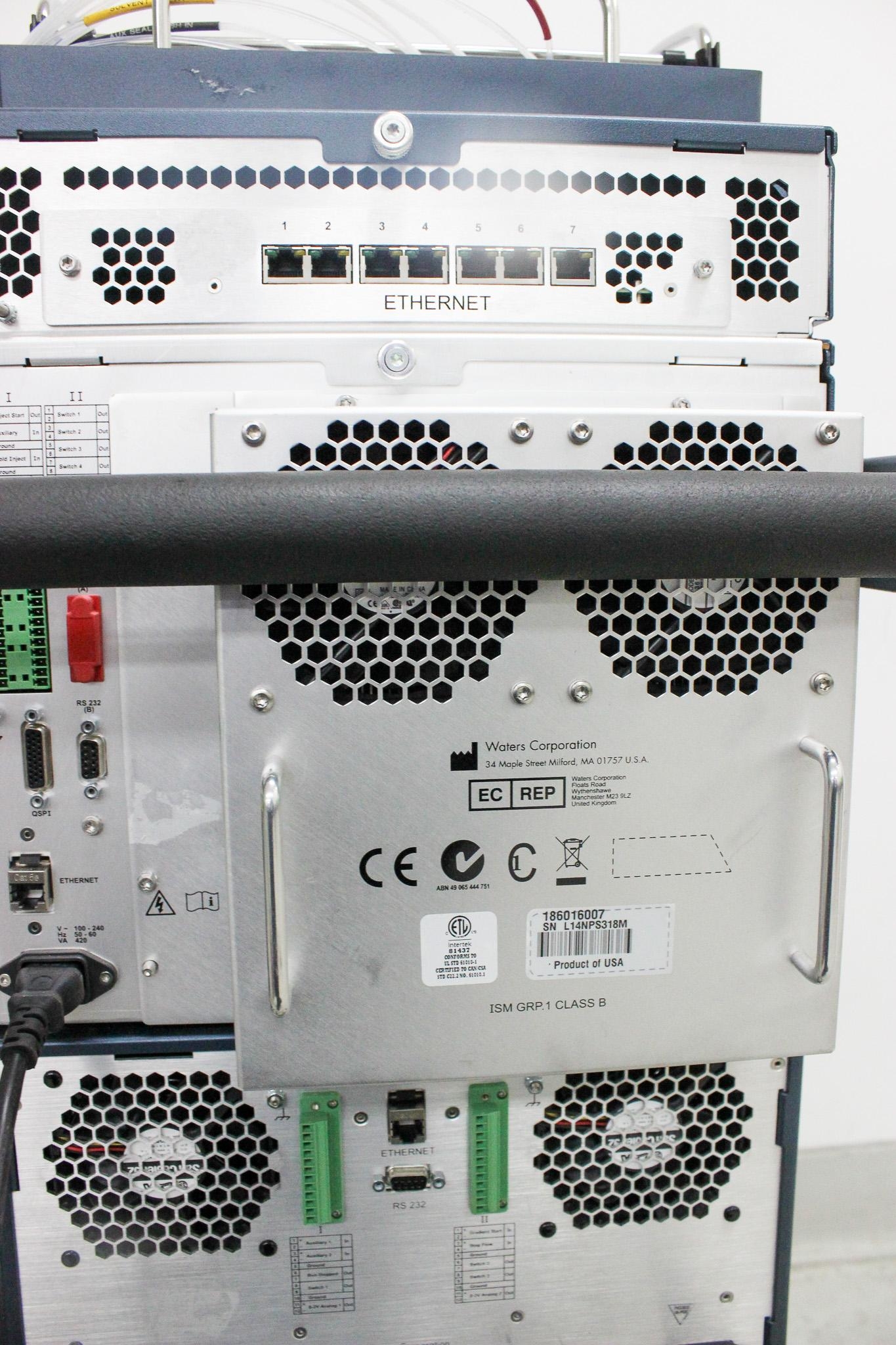

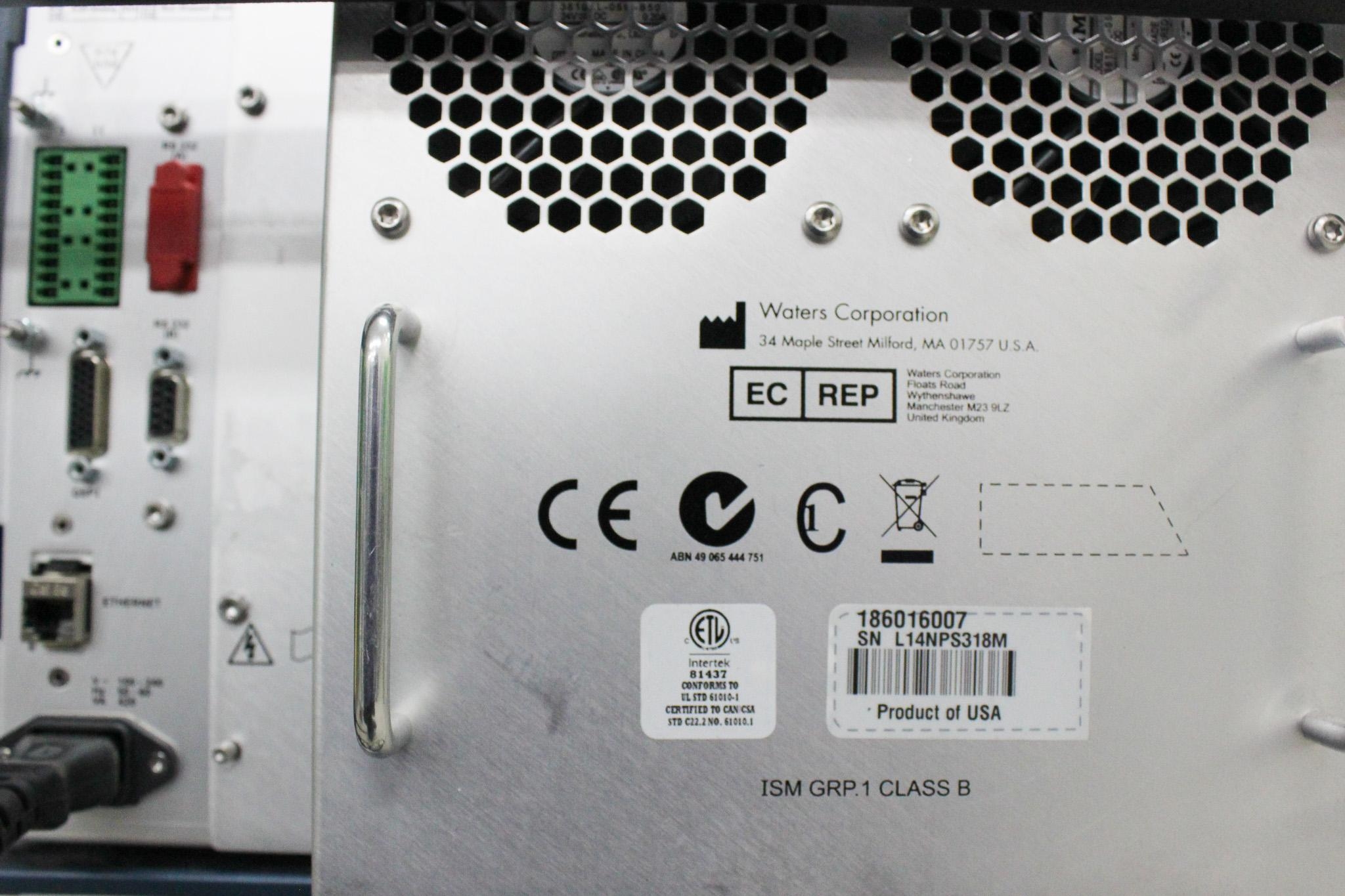

SerialL14NPS318M
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz100-240v / 50Hz/60Hz
Description

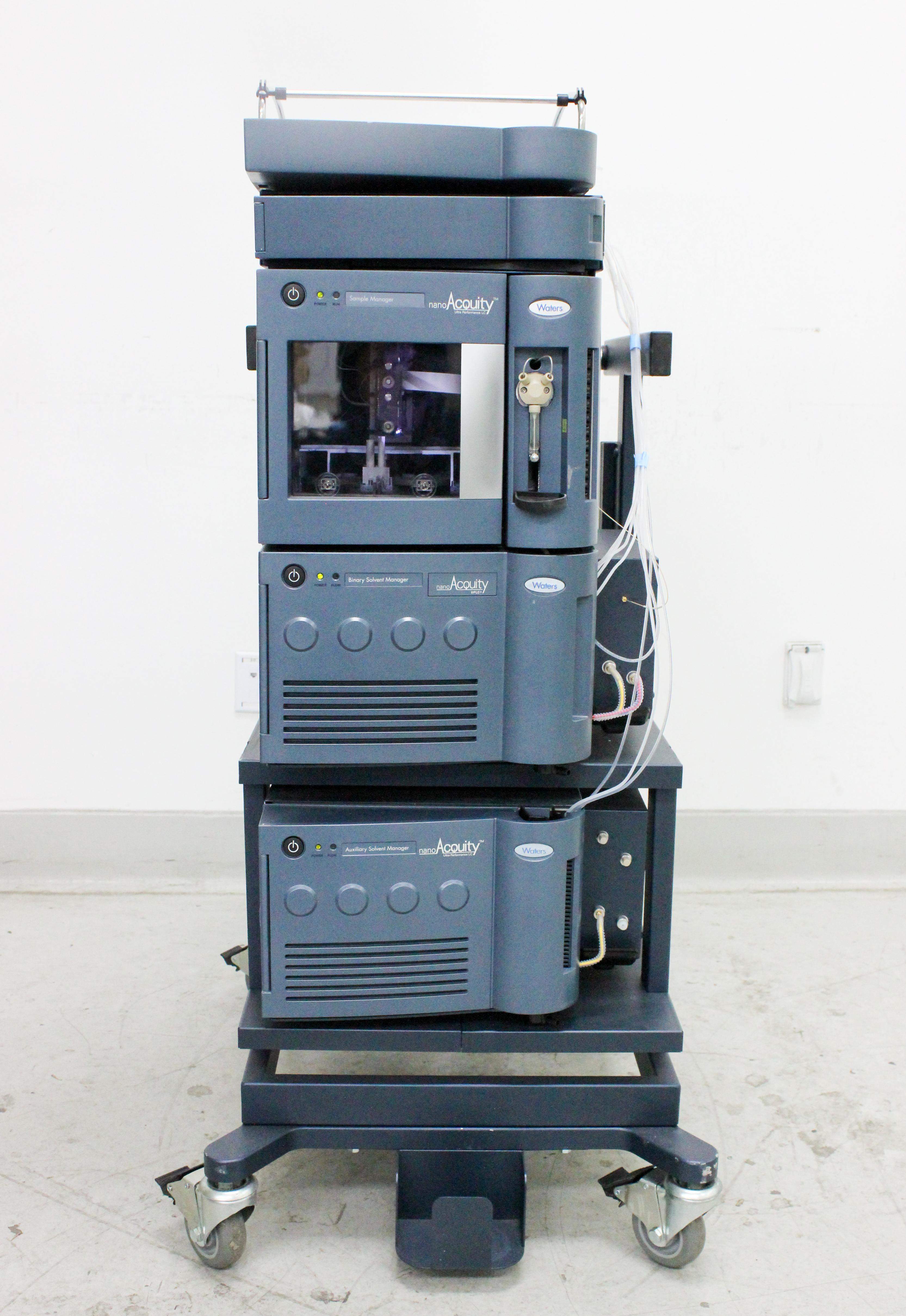

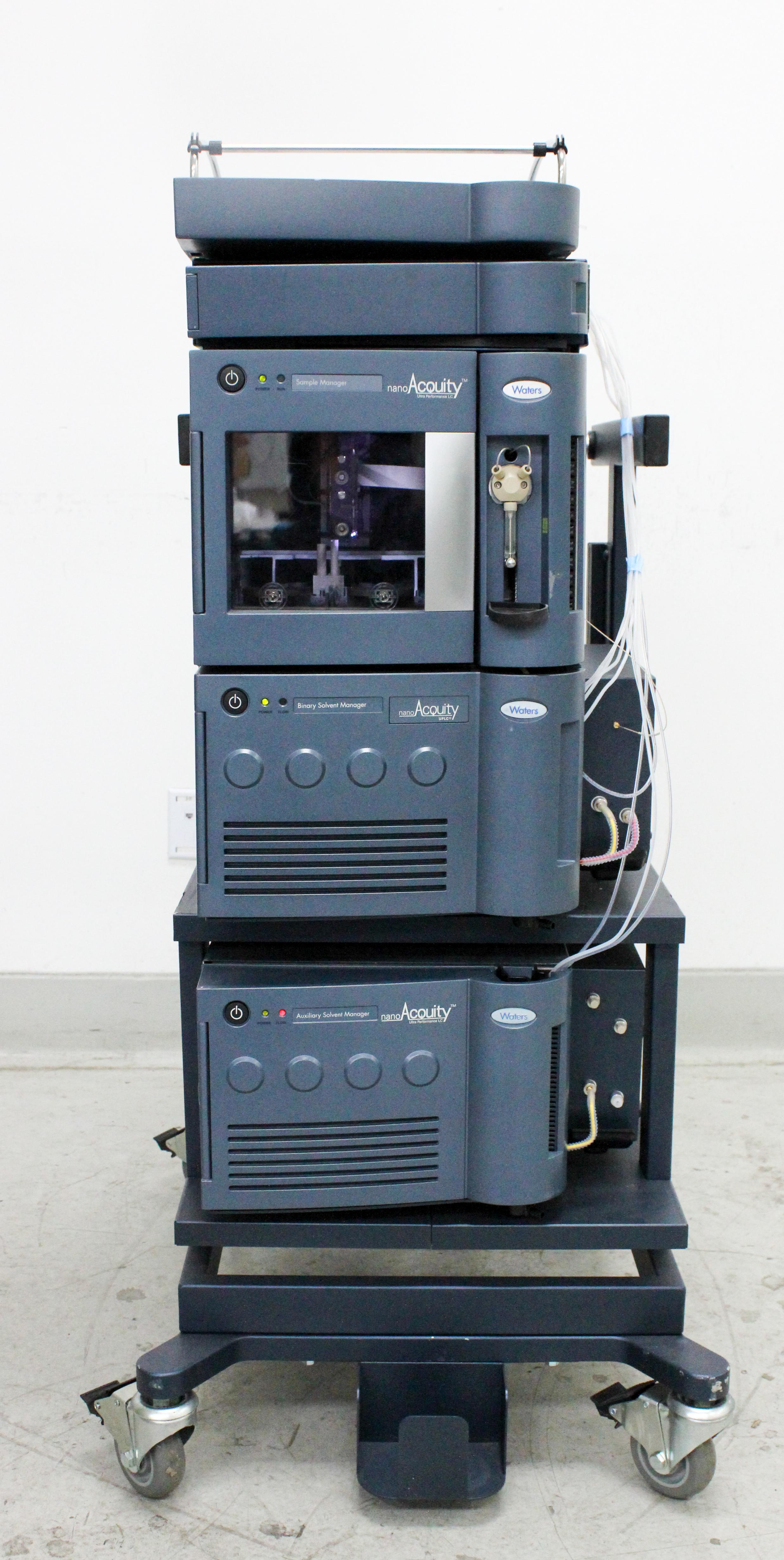

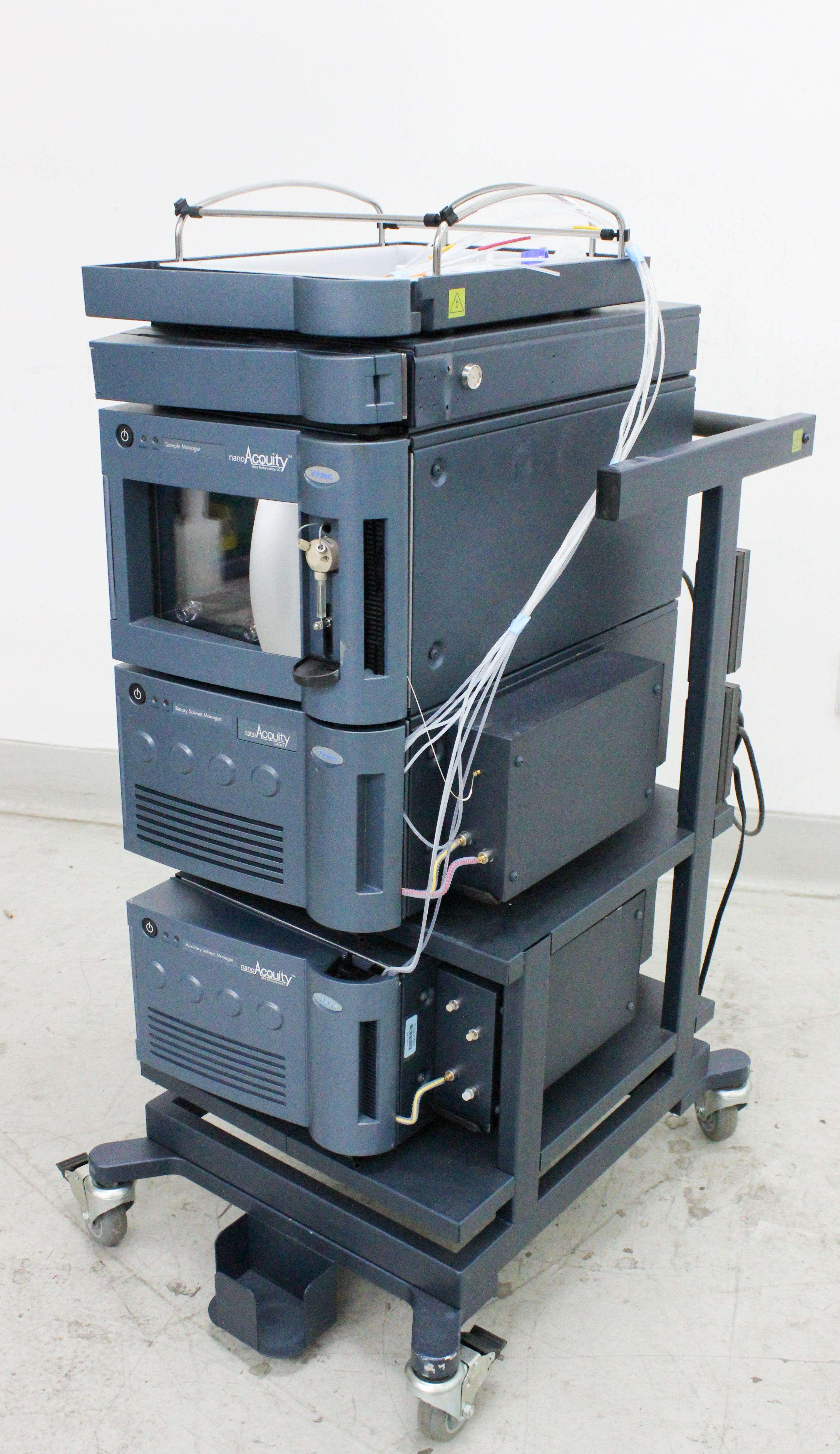

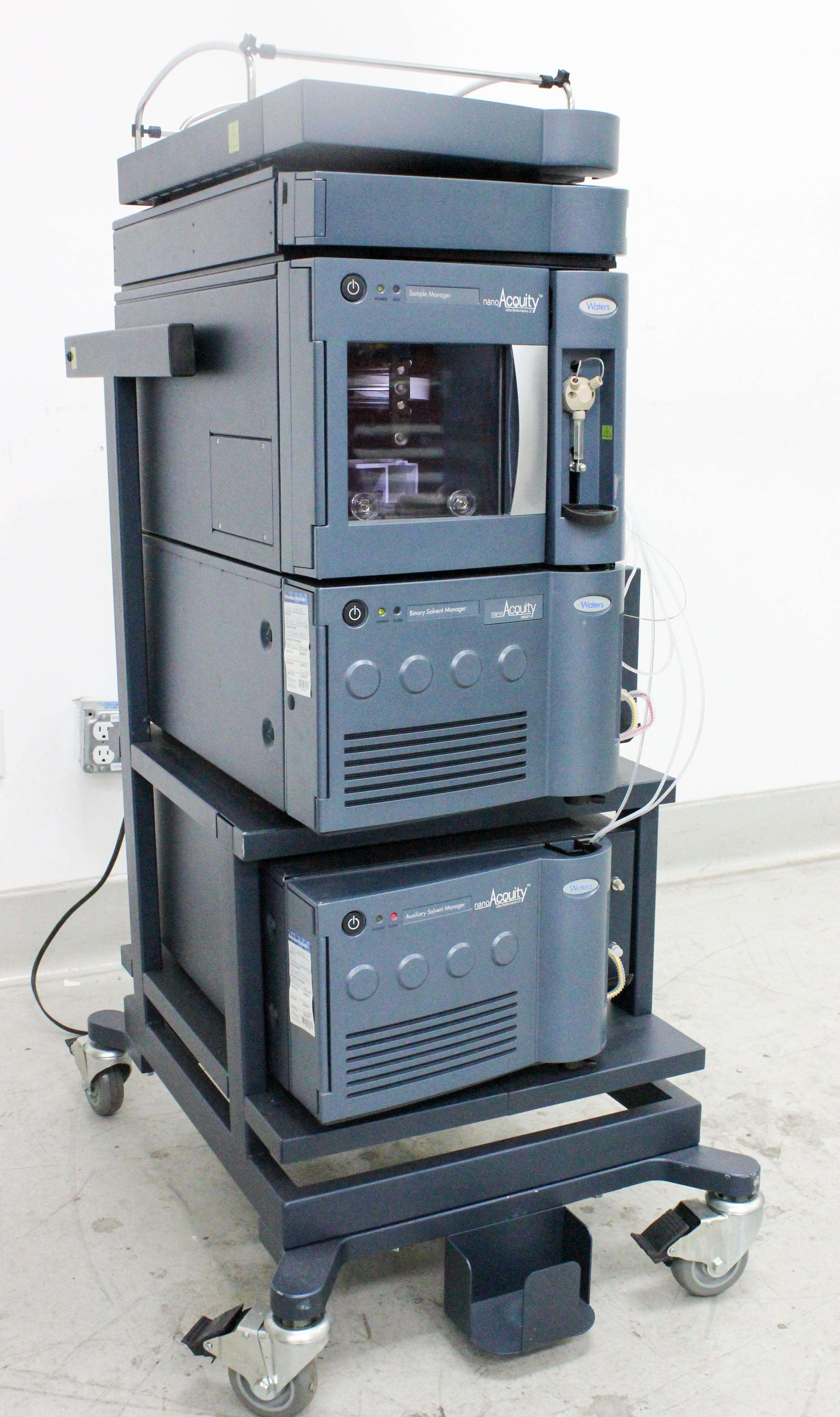

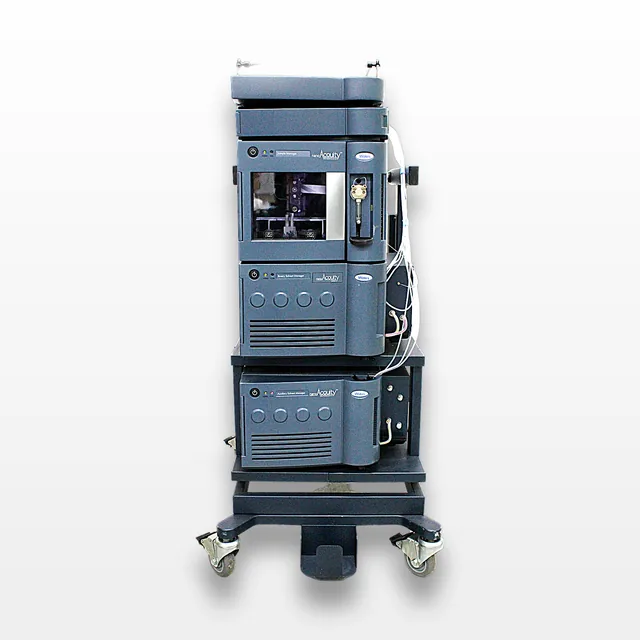

The Waters nanoACQUITY UPLC system, manufactured by Waters, is a compact nano-flow chromatography setup housed on a convenient system cart. Including the Binary Solvent Manager (BSM), Auxiliary Solvent Manager (ASM), and a Sample Manager, this system is designed for high-sensitivity applications like proteomics, peptide mapping, and HDX-MS. This pre-owned equipment offers flow rates from 200 nL/min to 100 μL/min with vacuum degassing for up to six solvents. While the system shows cosmetic wear, the components power on, and the Sample Manager initializes, although the Auxiliary Solvent Manager displays a persistent error preventing full functionality. It will require validation and calibration to ensure accurate results. The system, originating from a working laboratory, is ideal for applications seeking high sensitivity and precision. Please note, the computer and software need to be sourced separately. Inquire about service contracts and calibration options available at an additional cost.
Technician comment

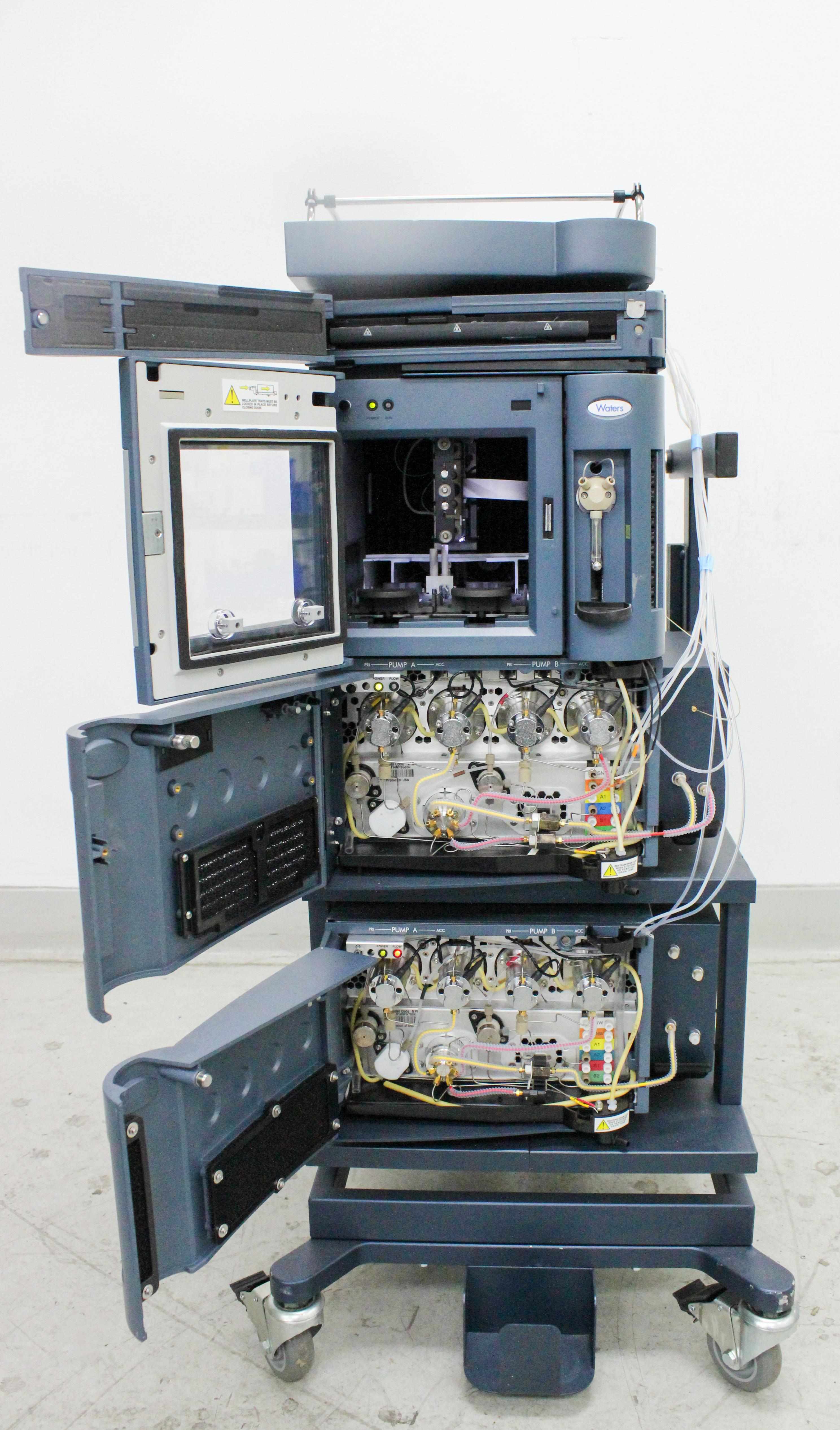

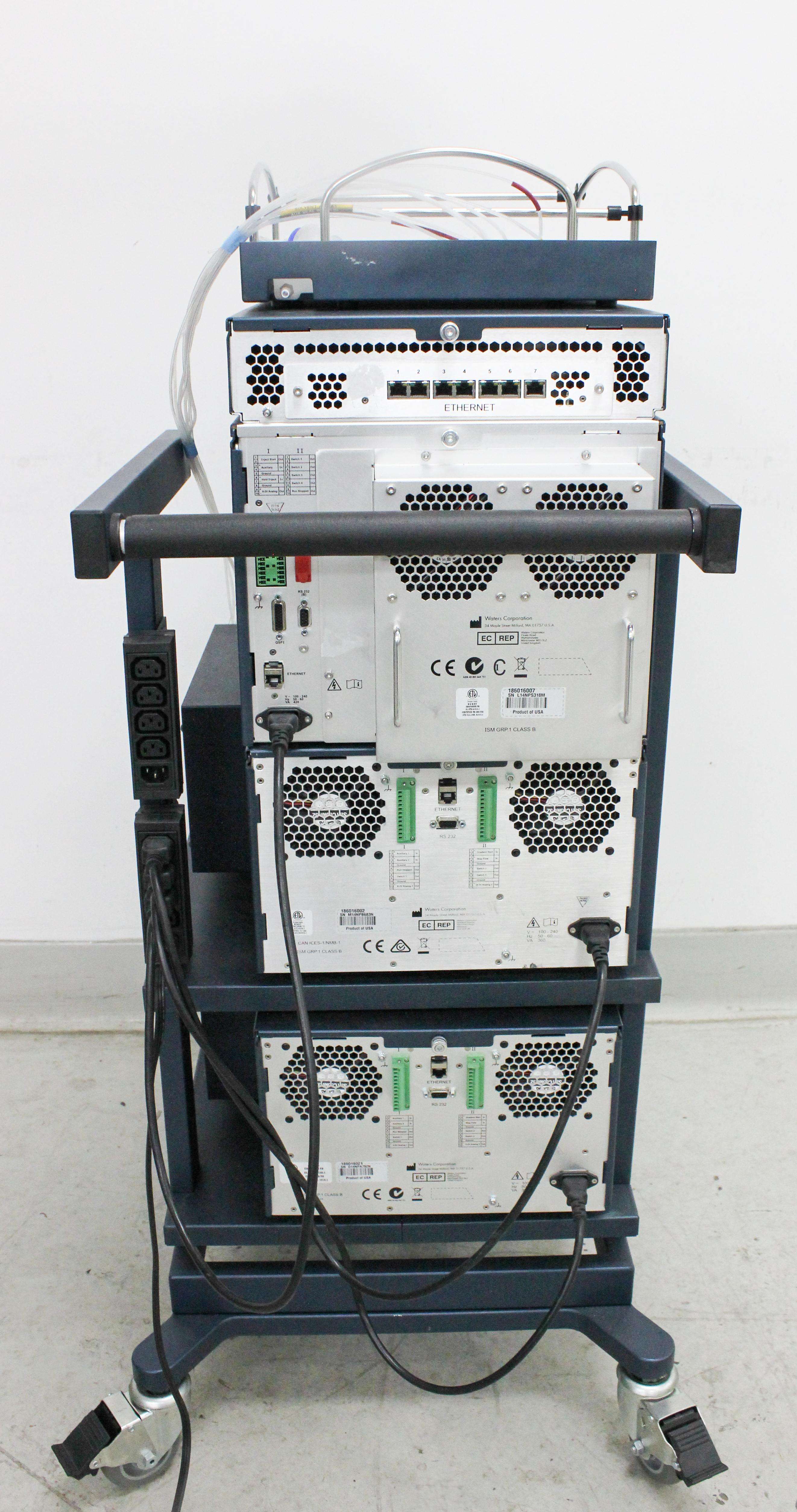

Waters nanoACQUITY UPLC system cart (Sample Manager, Binary Solvent Manager, Auxiliary Solvent Manager): All modules power on and Sample Manager initializes fully on startup. Auxiliary Solvent Manager powers on but displays a persistent blinking red flow LED, signaling a flow path or pressure-related error that prevents normal initialization even after multiple power cycles. System is preowned from a working laboratory environment. Cosmetic condition good; full functionality not verified. System will need to be validated/calibrated to ensure accurate results. Inquire about validation/calibration for an additional cost. Service contracts available. Includes: Sample Manager 186016007 Binary Solvent Manager 186016002 Auxilary Solvent Manager 186016021 Solvent Rack System Cart
Key Features
- Compact nano-flow chromatography setup
- Supports flow rates from 200 nL/min to 100 μL/min
- Vacuum degassing for up to six solvents

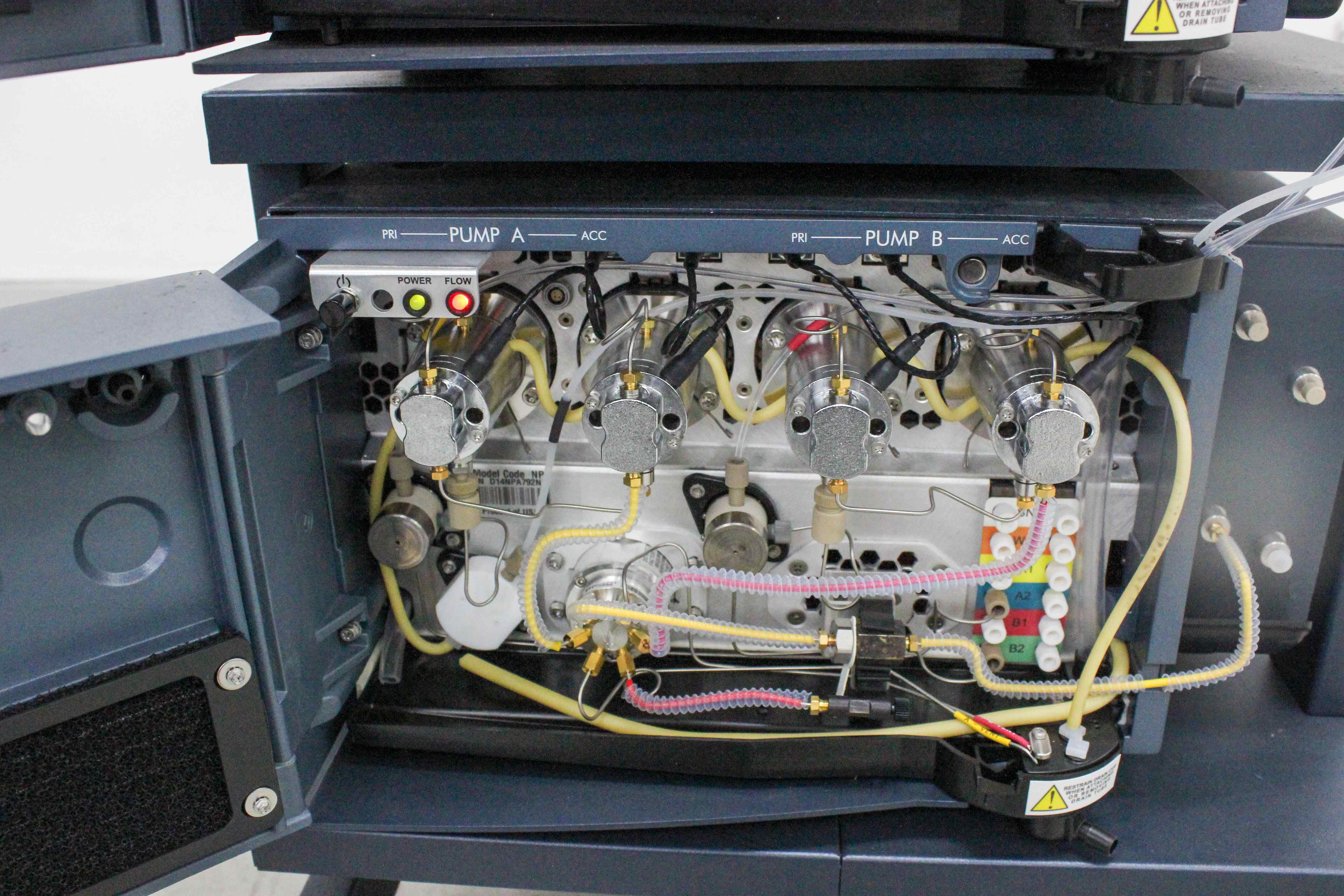

- Binary Solvent Manager with auto compressibility compensation
- Auxiliary Solvent Manager for low-flow delivery

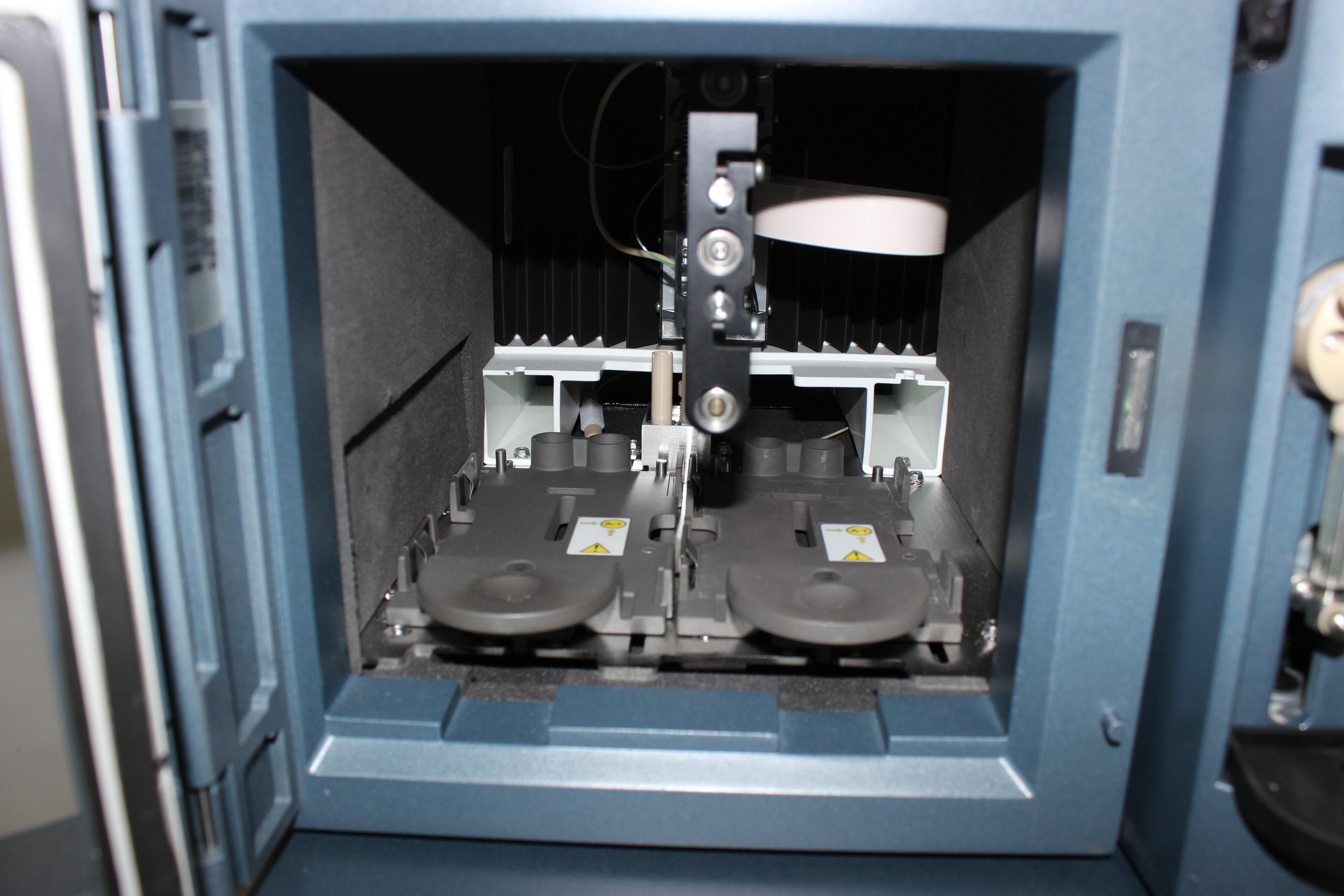

- Sample Manager with 768-sample capacity, 4-40°C cooling
Specifications
- Sample Manager: 768-well capacity, 0.1-50 μL injections, <0.3% RSD
- Temperature Range: 4–40°C
- Binary Solvent Manager: Handles up to four solvents with 11 gradient profiles
- Auxiliary Solvent Manager: Flow rates of 0.10–5 µL/min for loading/lock-mass/sheath
- Max Pressure: 15,000 psi

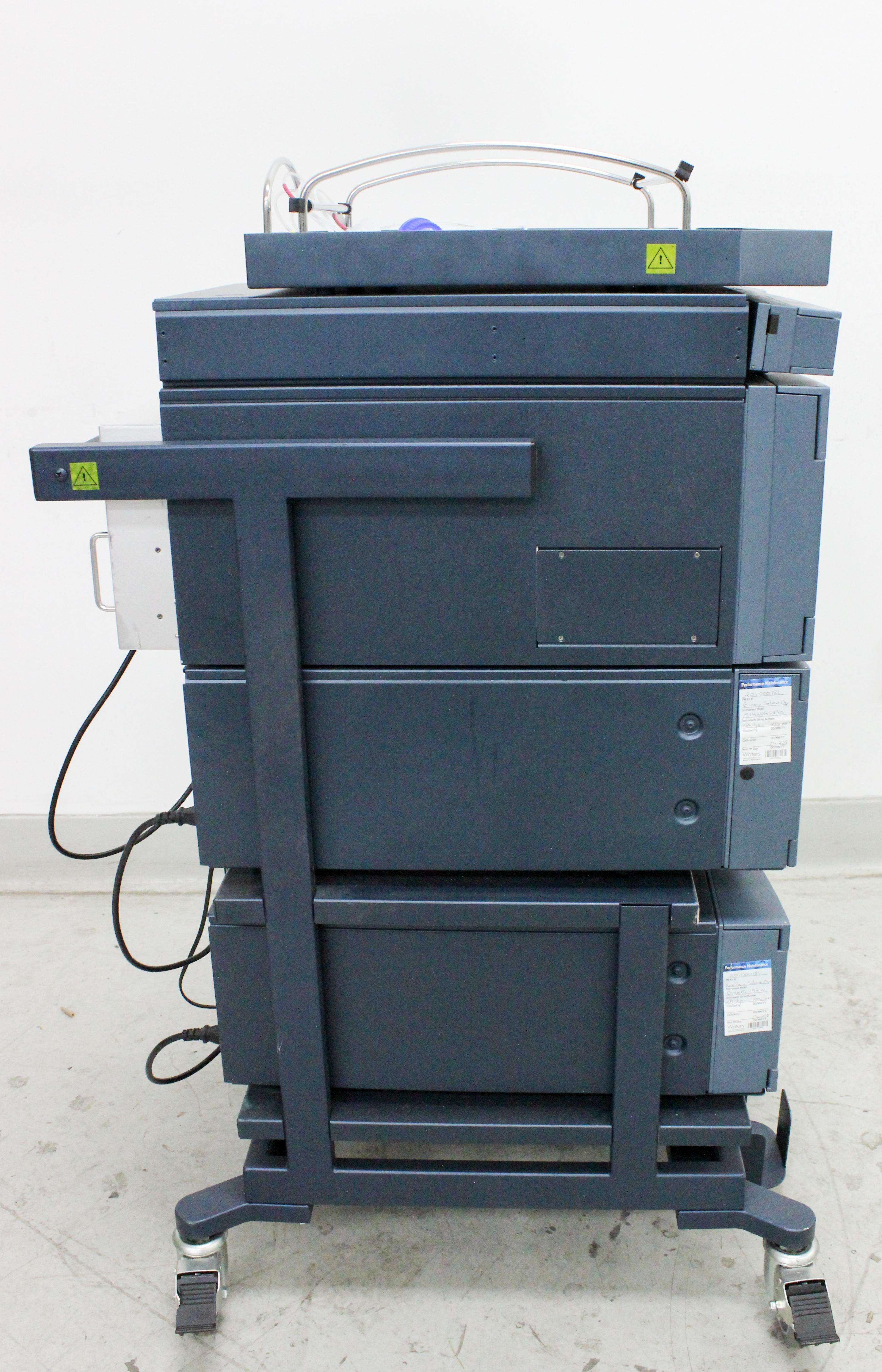

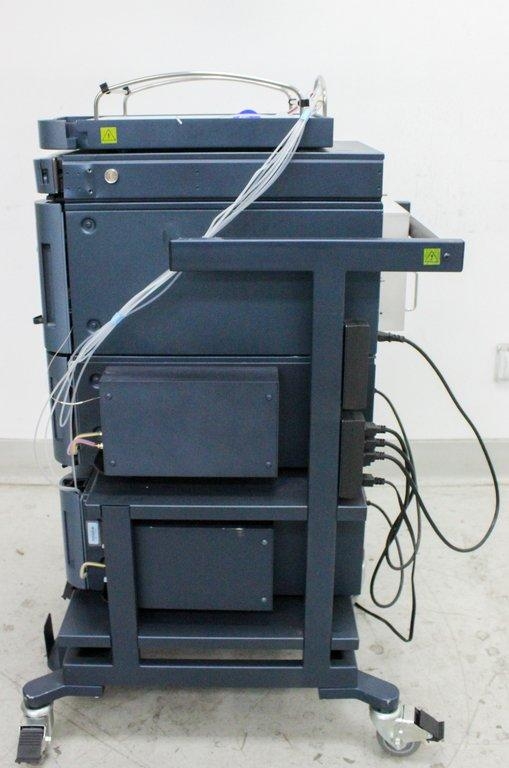

- System is mounted on a wheeled FlexCart for ease of mobility
Weight
Imperial: 240.0 Pounds
Metric: 108.86 Kilograms
Shipping Dimensions
Imperial: 34.8 lb x 24.0 lb x 61.2 lb
Metric: 88.39 cm x 60.96 cm x 155.45 cm
Harmonized Code
902790
Harmonized Code Details
902790: This code pertains to parts and accessories of instruments and apparatus for physical or chemical analysis. It is appropriate for chromatography equipment like the Waters nanoACQUITY UPLC system, which is used for high-sensitivity analysis in scientific settings.
