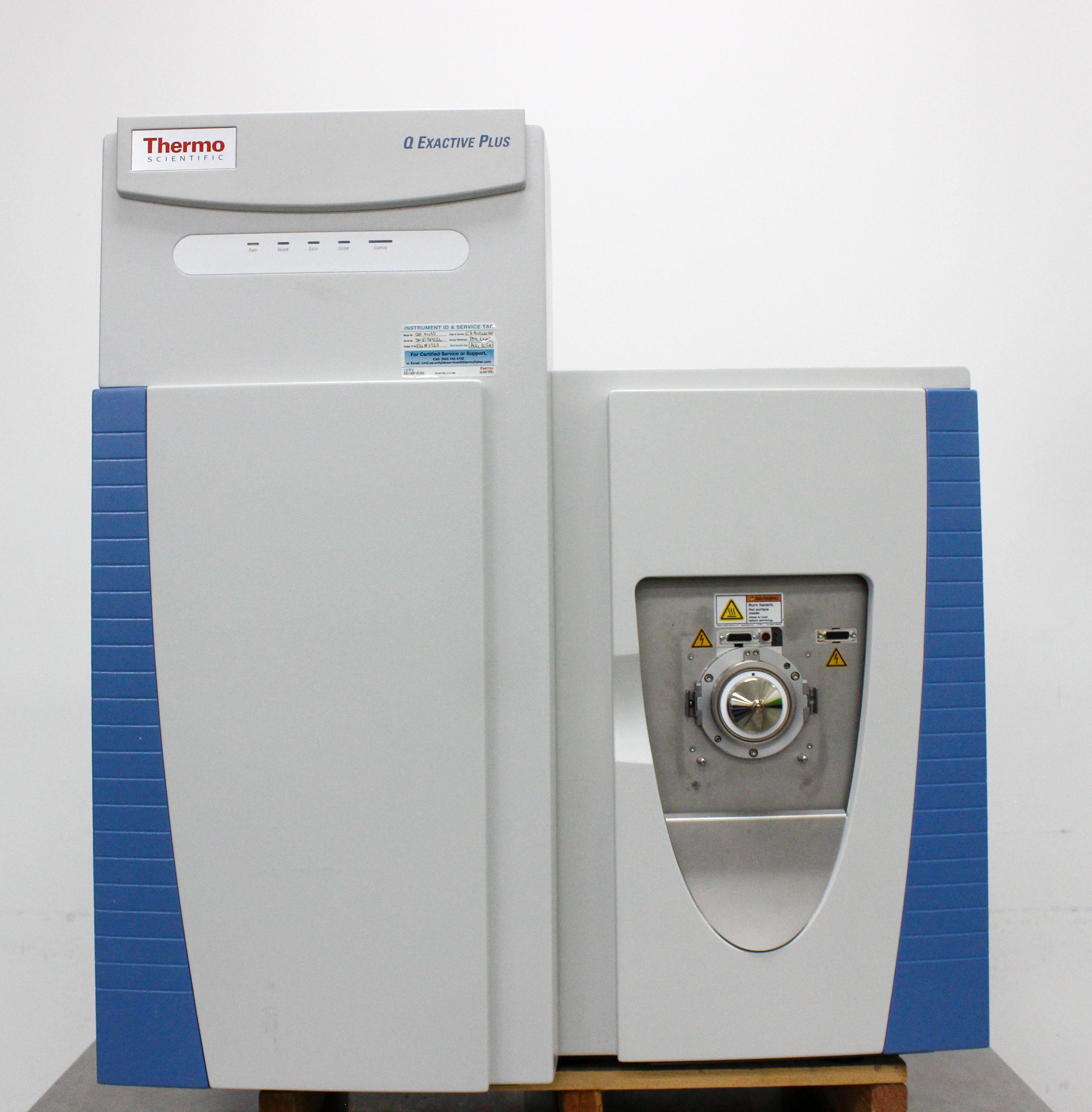

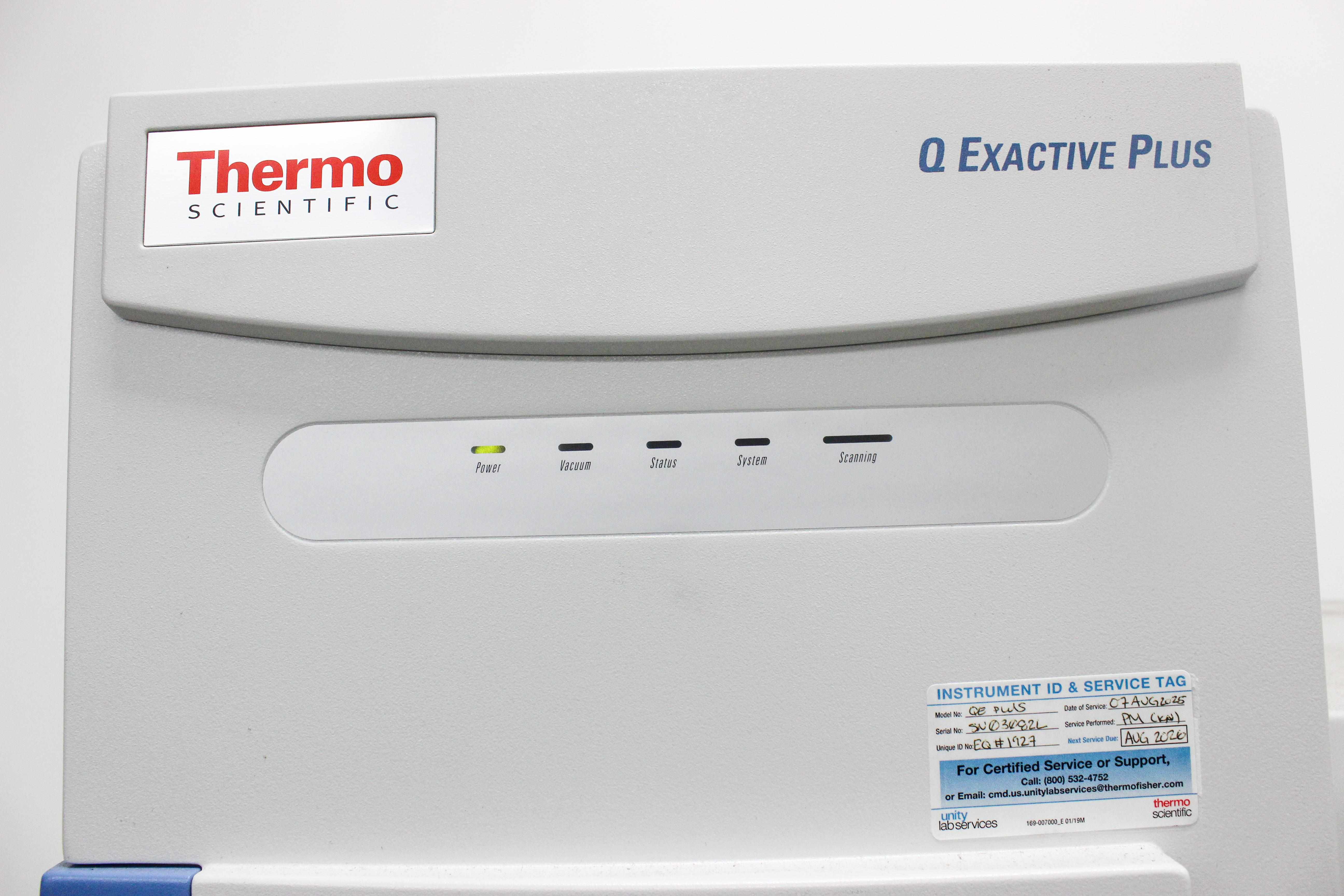

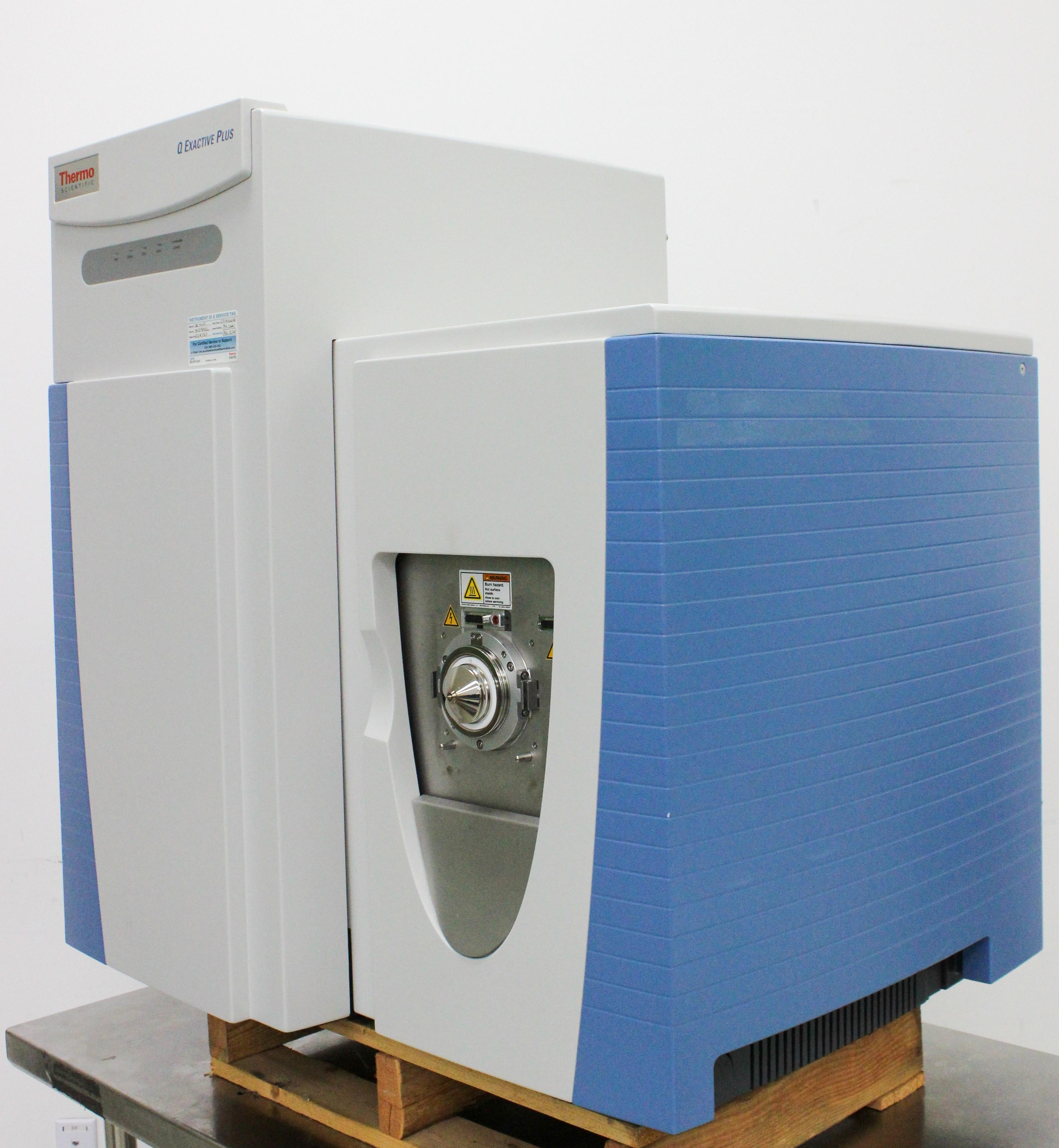

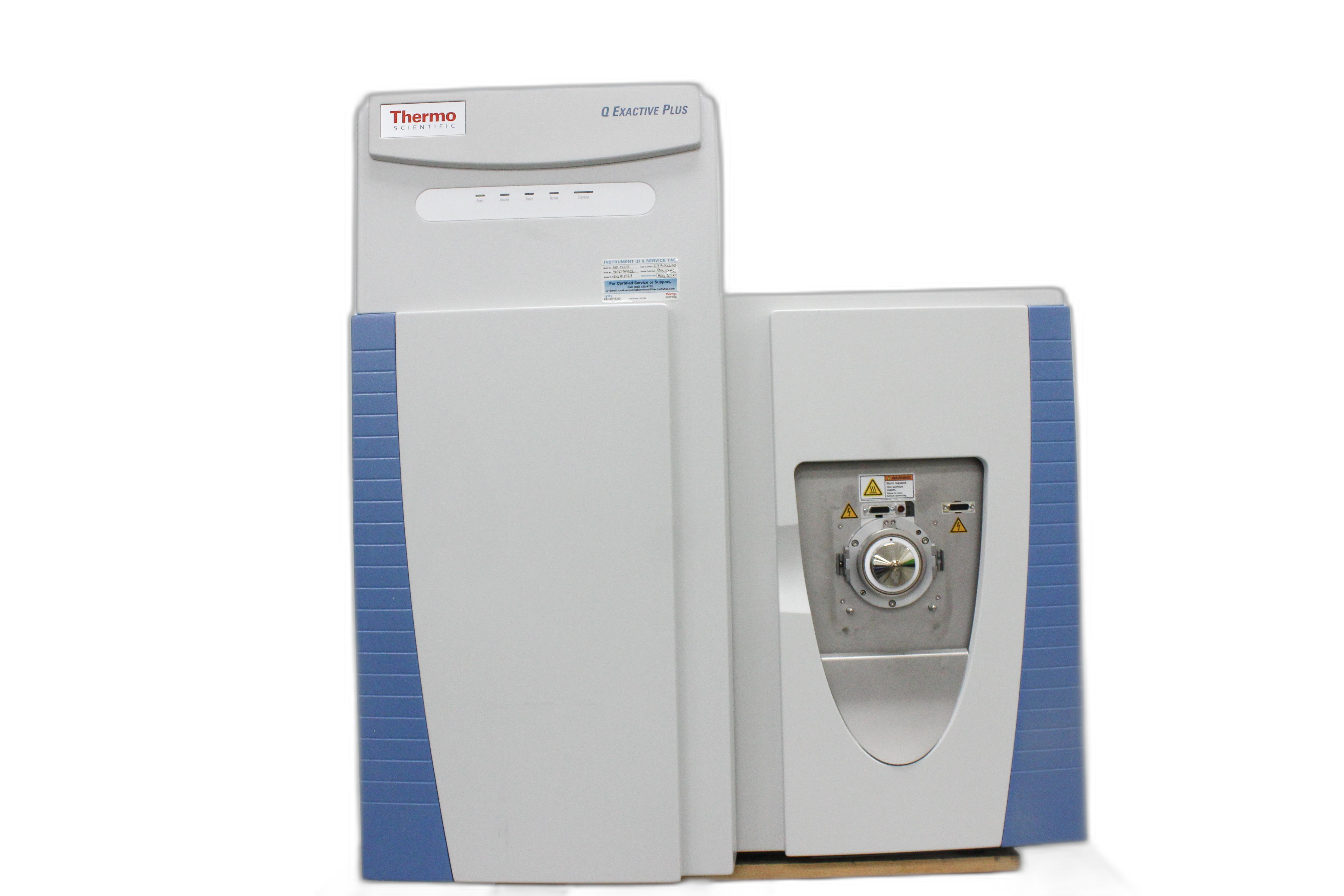

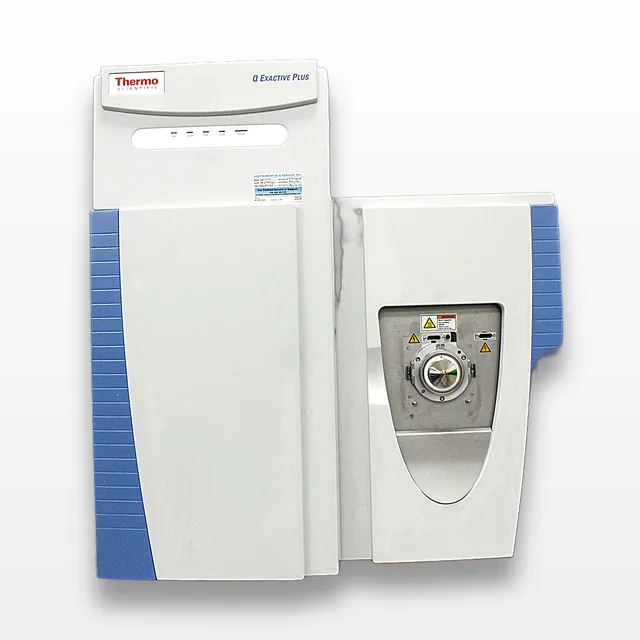

Thermo Q Exactive Plus LC-MS/MS System Advanced Quadruple Orbitrap
Thermo Scientific
Details
-
CategoryMass Spectrometry
-
Dimension30.0in x 36.0in x 38.0in
-

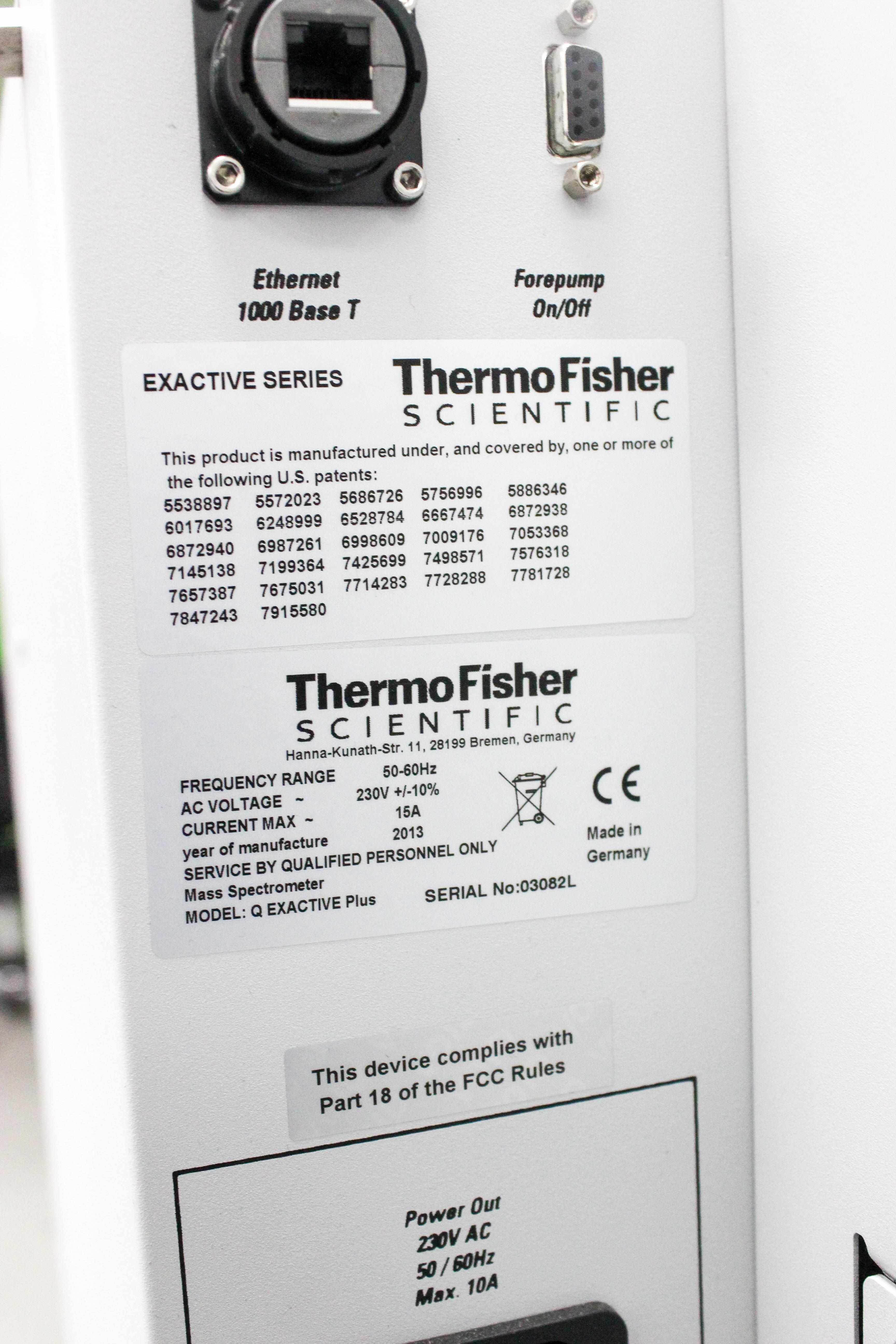

Serial03082L
-
Shipping TypeFreight
-
Manufacturing2013-01-01
-
Voltage / Hertz230V / 50Hz/60Hz
Description
The Thermo Scientific Q Exactive Plus LC-MS/MS System provides unmatched characterizing, quantifying, and confirming capabilities. Utilizing Advanced Quadrupole Technology (AQT), this system guarantees superior precursor isolation and increased ion transmission. It features advanced active beam technology for enhanced sensitivity and robustness, particularly effective for large- and small-molecule applications. Capable of a resolving power of up to 280,000 (FWHM) at m/z 200, this mass spectrometer ensures reliable quantitative and qualitative analysis. Although this unit powers on and passes basic initial tests, full functionality testing was limited due to the absence of control software. Physical condition is good, with minor cosmetic wear. Perfect for research laboratories aiming for high precision in a range of applications, including native protein analysis and lipidomics. Note: Power cord included; computer not included.
Technician comment

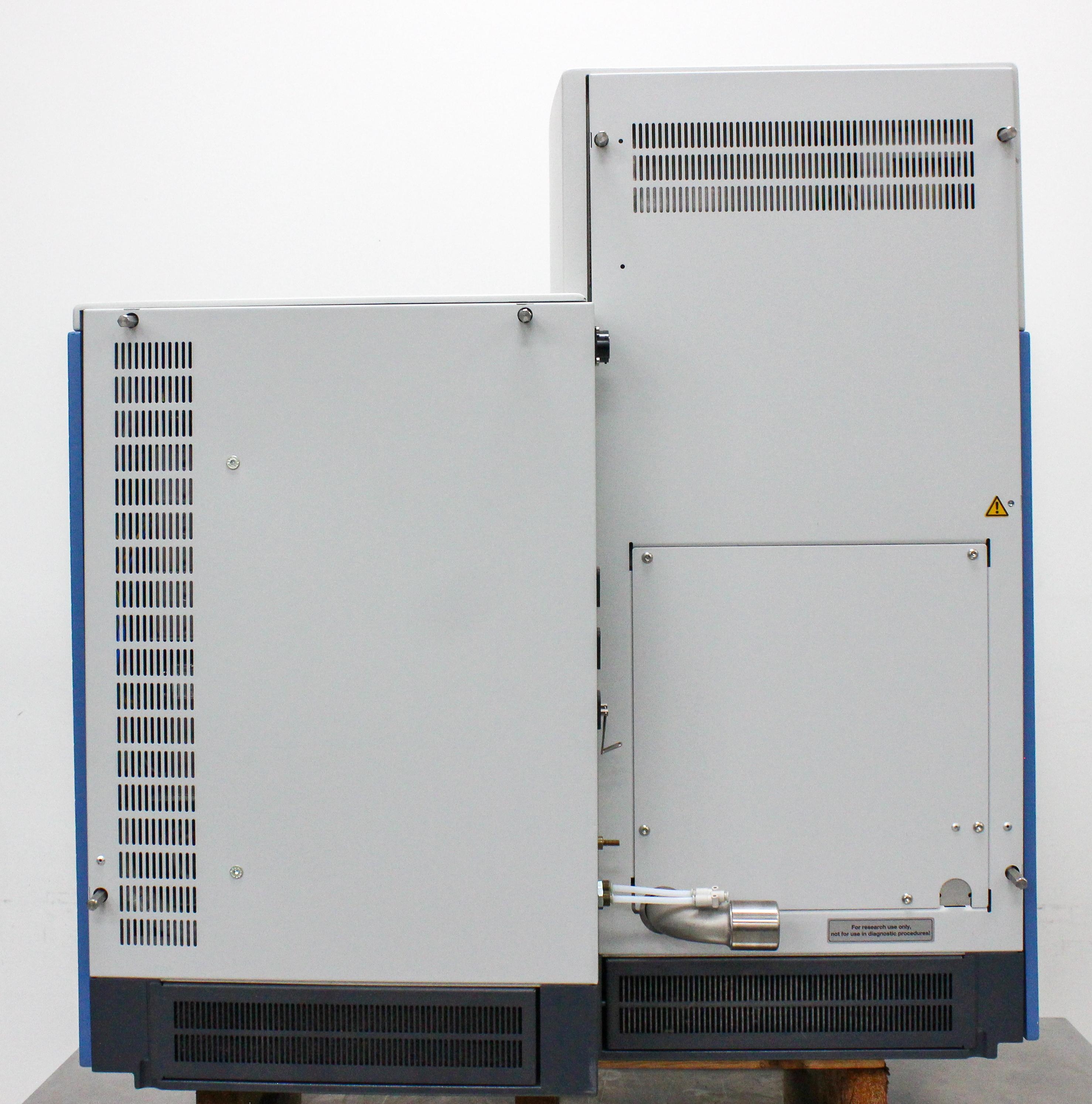

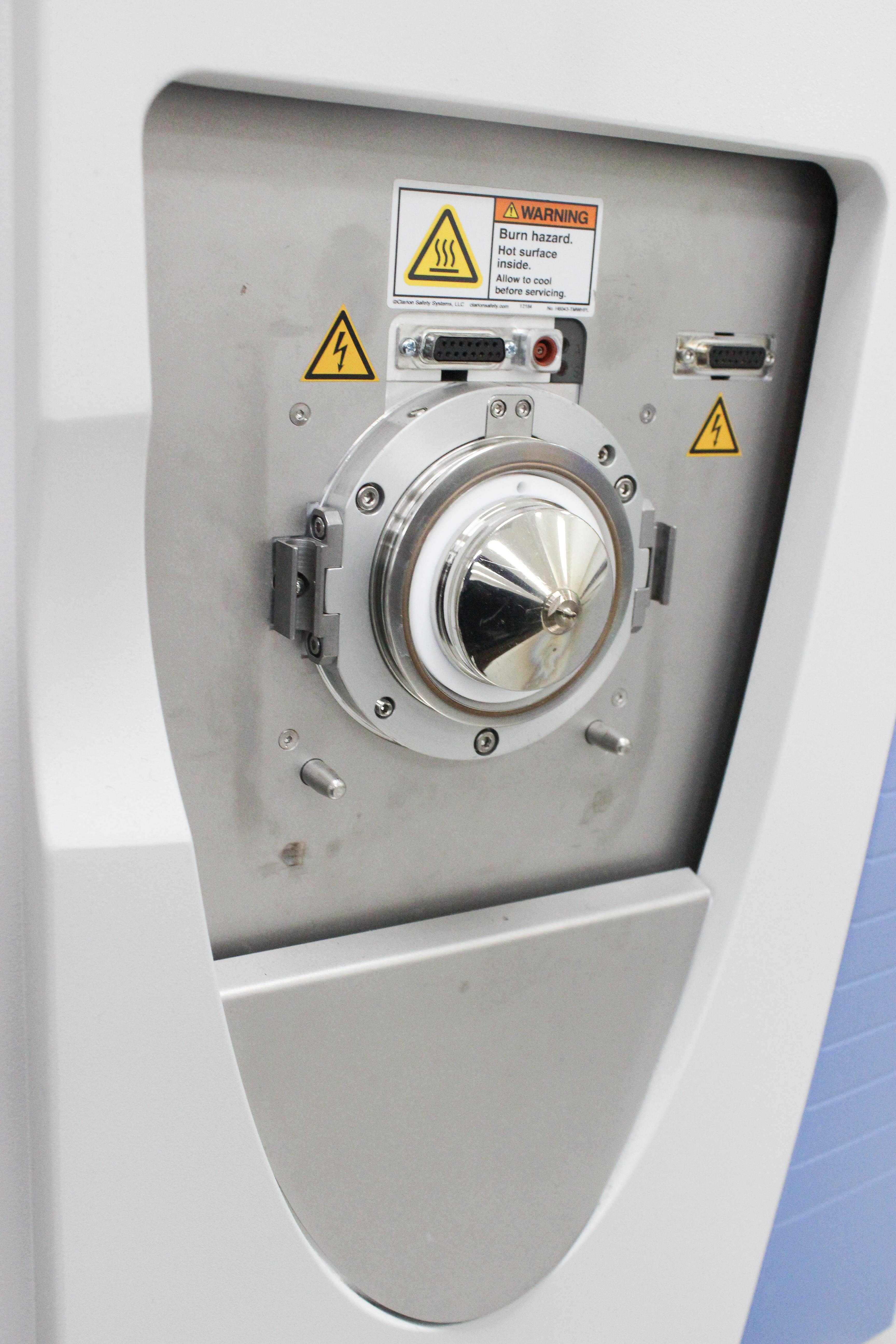

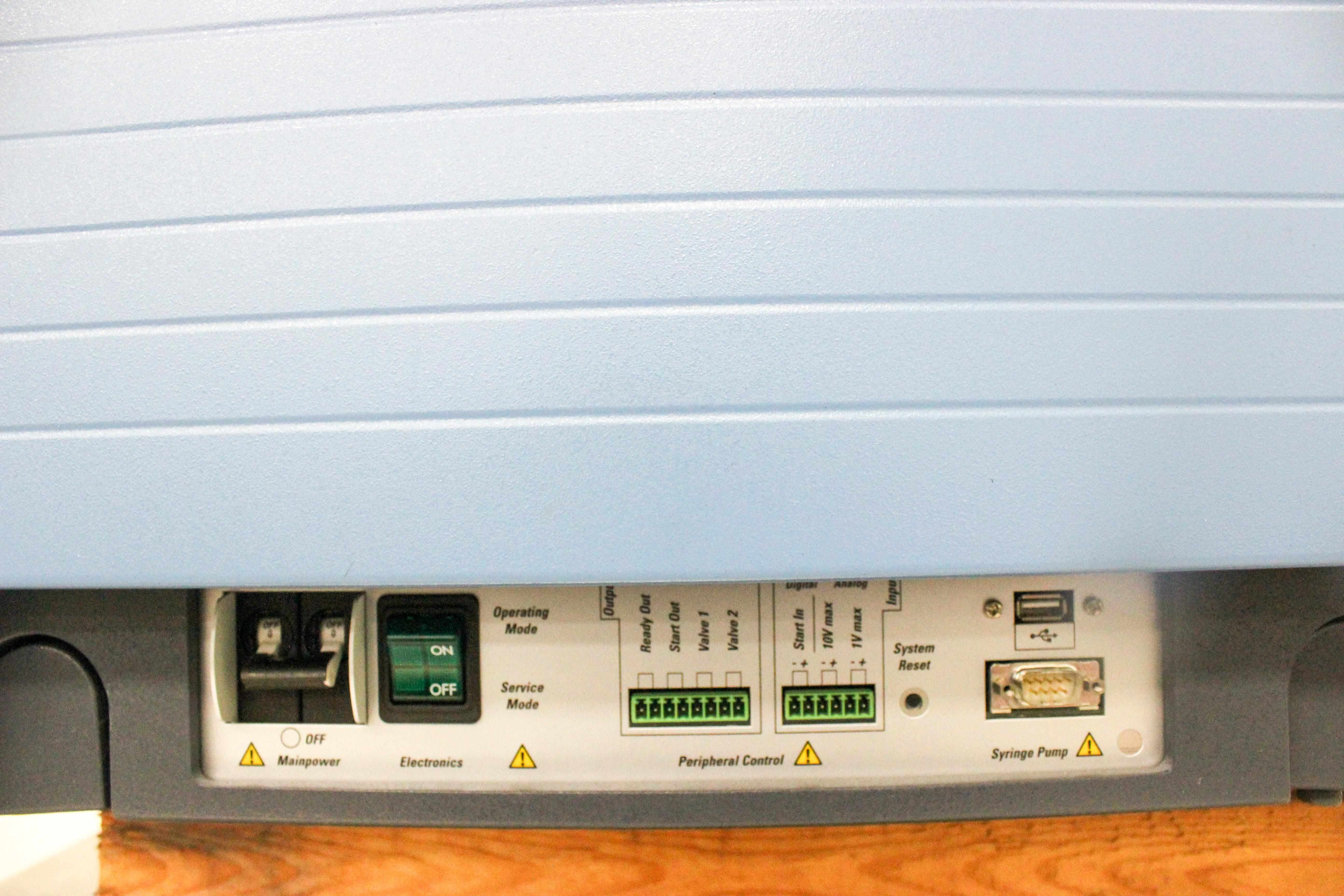

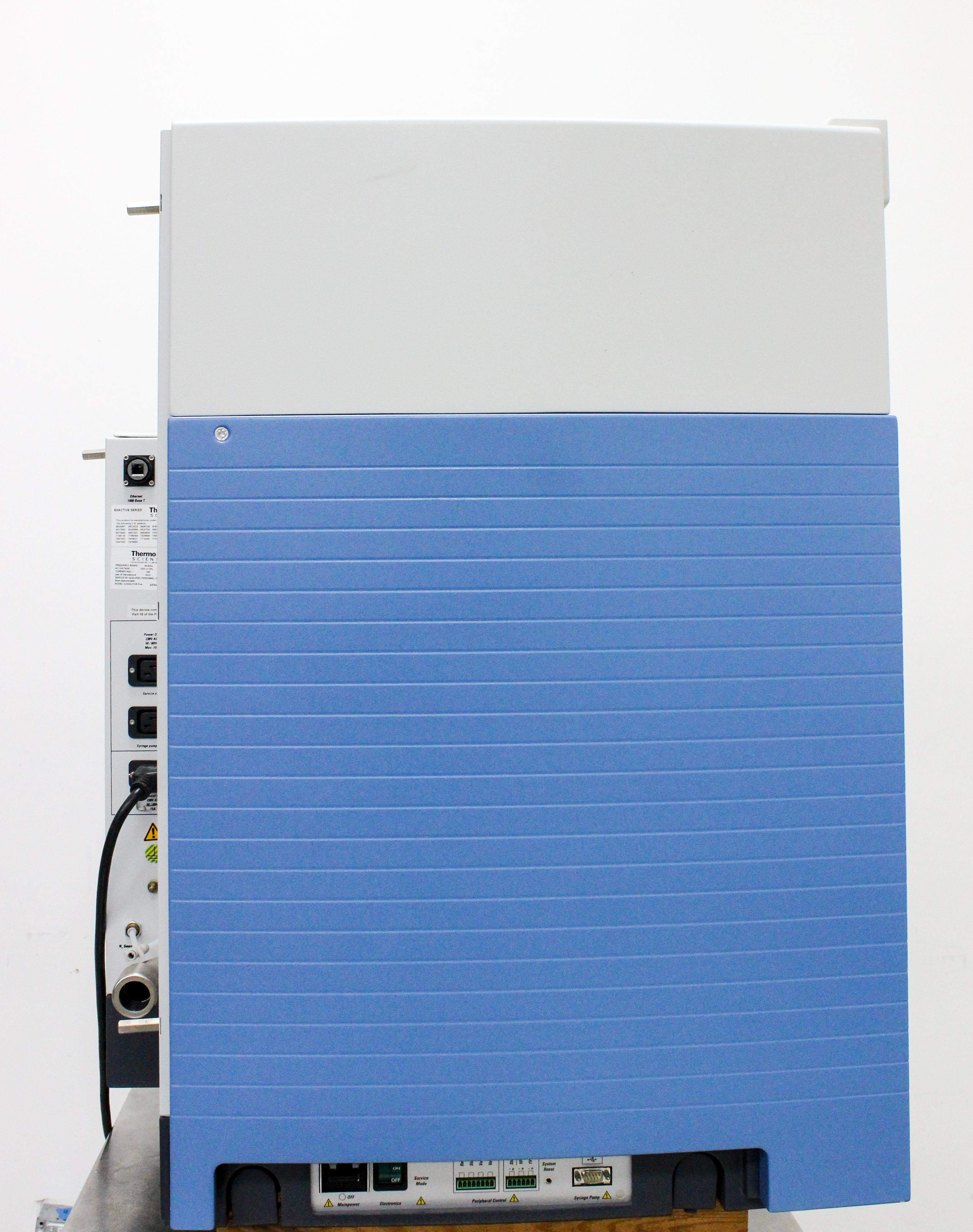

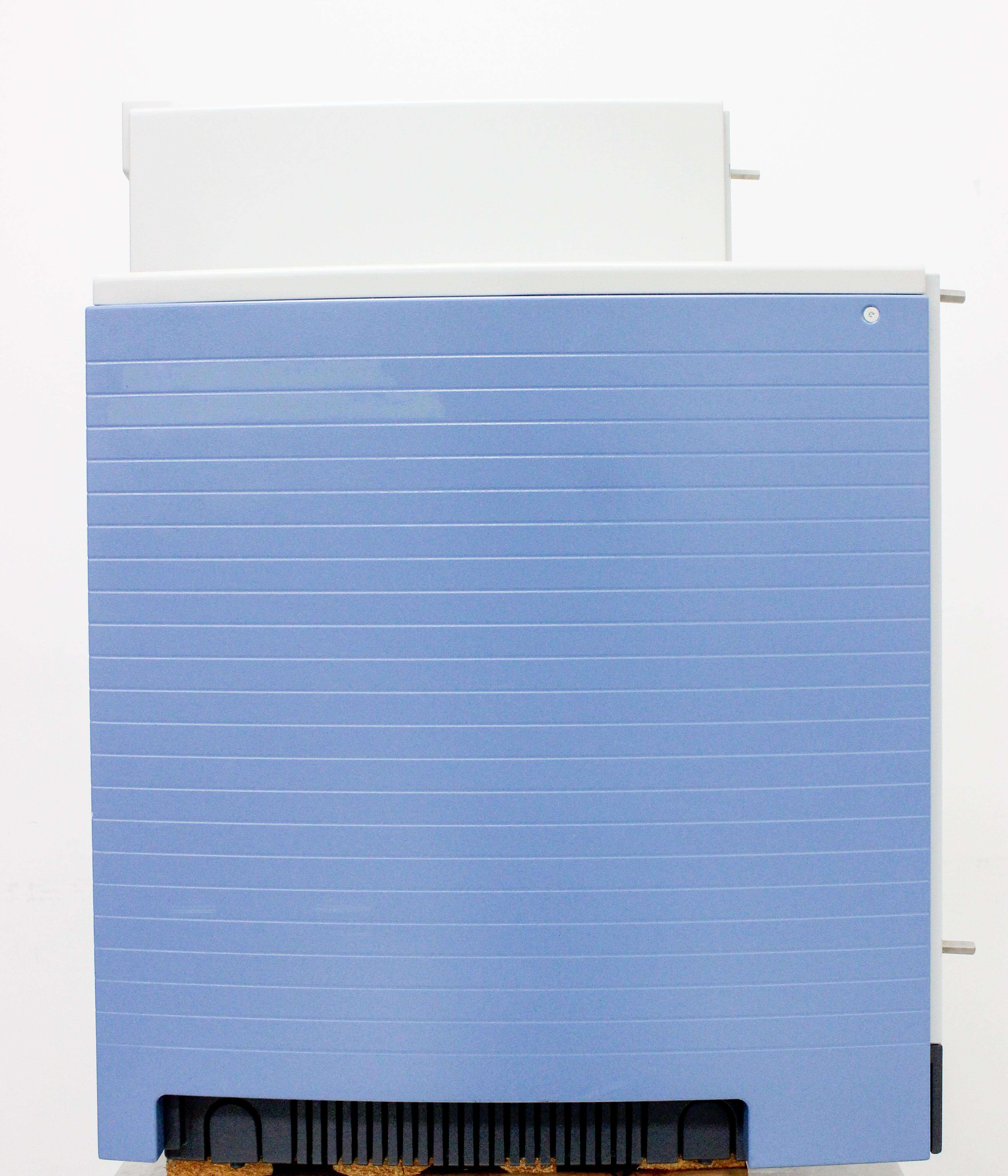

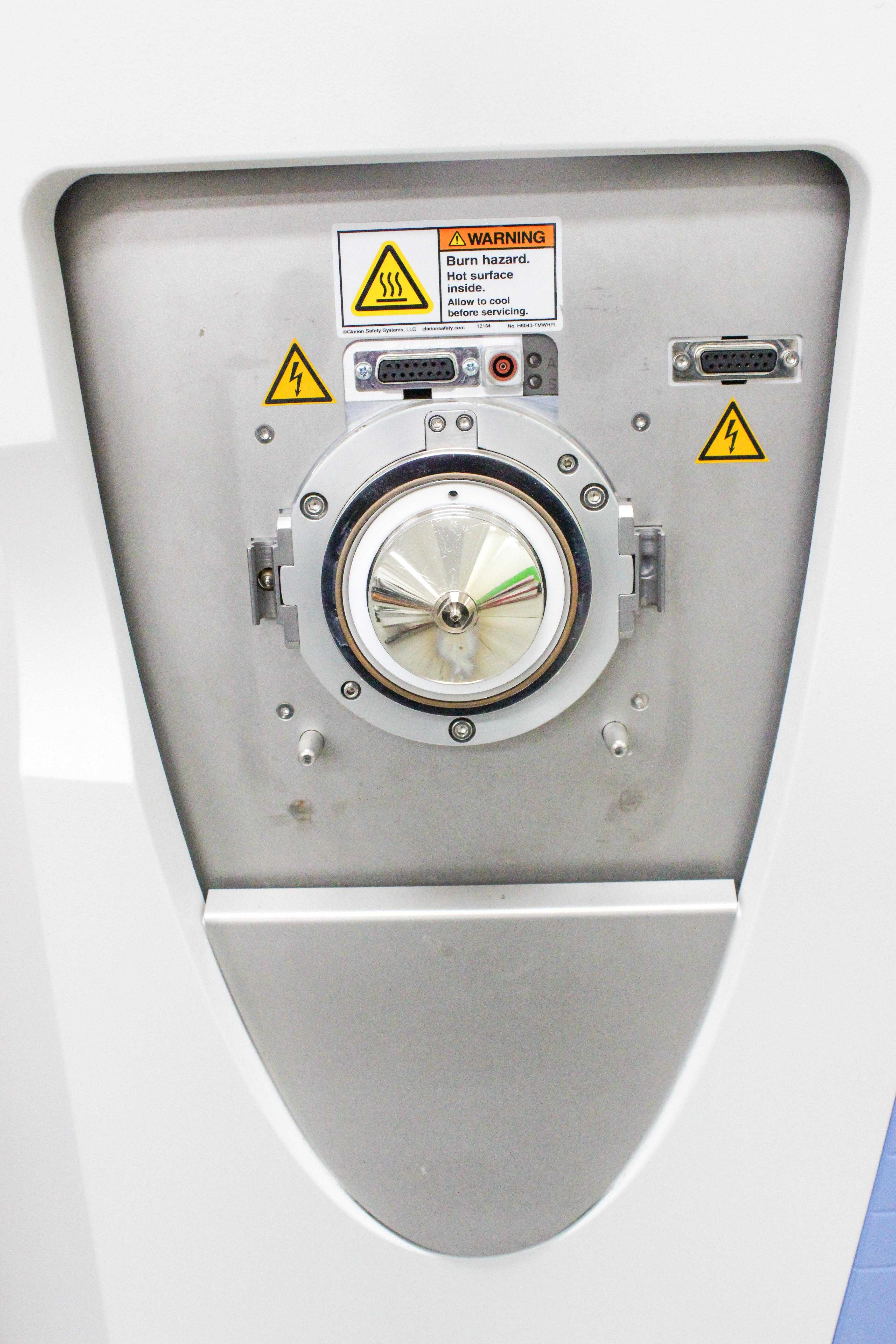

Unit powers on and completes initial startup. Full functional testing could not be performed due to required control software not being available at time of evaluation. Instrument is pre-owned and was removed from a laboratory environment. Overall physical condition appears good with minimal wear consistent with previous use. Inquire about validation and calibration services if available for an additional cost. Sevice contracts available. See photos for details.
Key Features
- Advanced Quadrupole Technology (AQT) for superior precursor isolation
- High-Efficiency Ion Transfer capability
- Resolving power of up to 280,000 (FWHM) at m/z 200
- Data-independent acquisition (DIA) and accurate-mass detection
- Optimized for both large and small molecule applications
- Enhanced protein analysis with optional intact protein mode
- High-resolution, accurate-mass (HR/AM) Orbitrap detection
Specifications
- Resolving power: 140,000 @ m/z 200, optional 280,000 @ m/z 200
- Mass range: 50 to 6,000 m/z
- Scan rate: Up to 12 Hz at resolution setting of 17,500 @ m/z 200
- Mass accuracy: Internal: <1 ppm RMS, External: <3 ppm RMS
- One full cycle polarity switching in under 1 second
- Automatic gain control for optimal ion concentration
Weight
Imperial: 450.0 Pounds
Metric: 204.12 Kilograms
Shipping Dimensions
Imperial: 36.0 lb x 43.2 lb x 45.6 lb
Metric: 91.44 cm x 109.73 cm x 115.82 cm
Harmonized Code
90273000
Harmonized Code Details
Harmonized Code 90273000 refers to spectrometers, spectrophotometers and spectrographs using optical radiations not elsewhere specified. The Q Exactive Plus accurately fits this category as it is a sophisticated mass spectrometer with advanced optical and analytical capabilities.
