Thermo Q Exactive Mass Spectrometer LC-MS/MS Accurate Mass Data
Thermo Scientific
Details
-
CategoryMass Spectrometry
-
Dimension30.0in x 36.0in x 78.0in
-

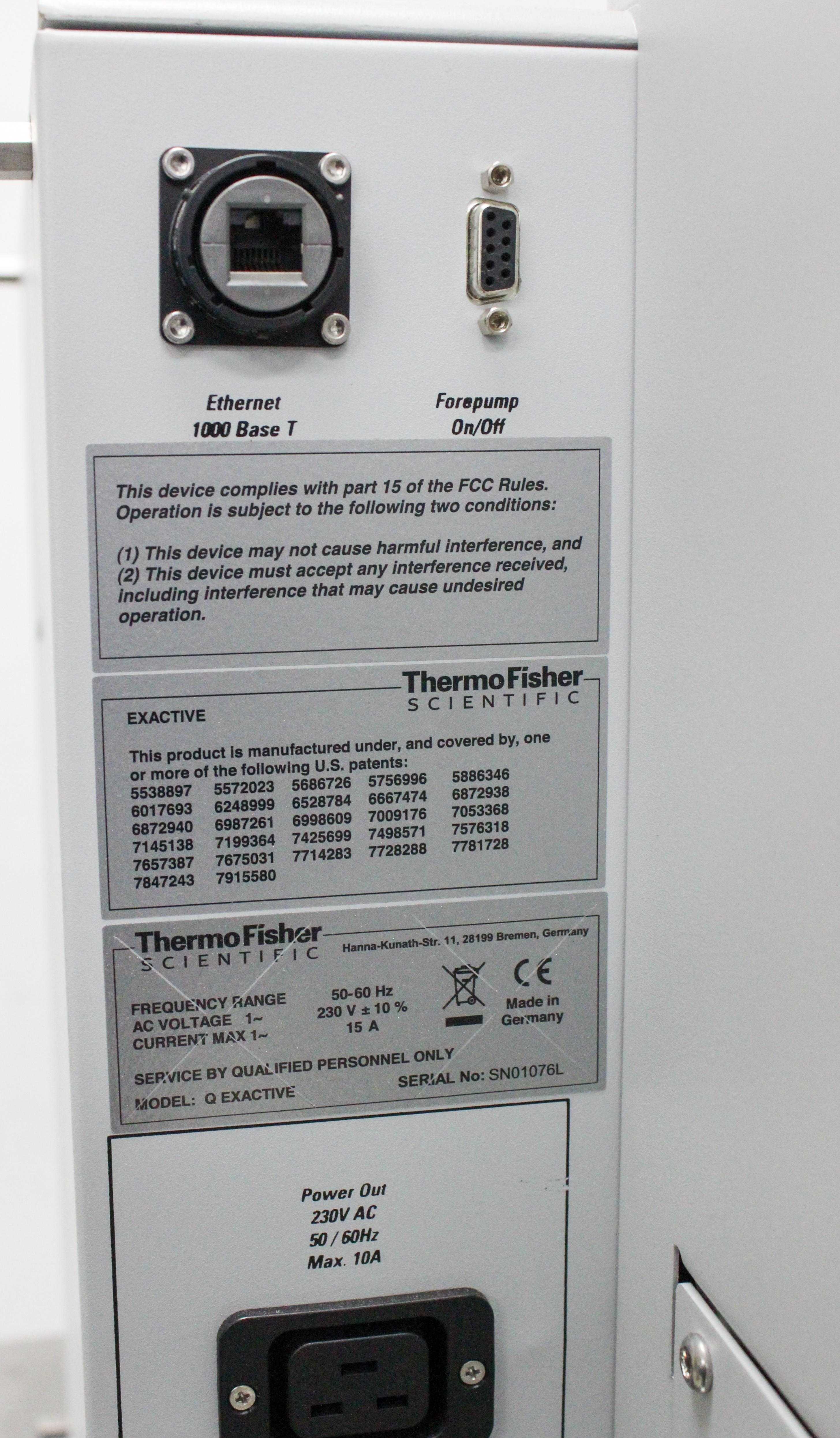

SerialSN01076L
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 50Hz/60Hz
Description

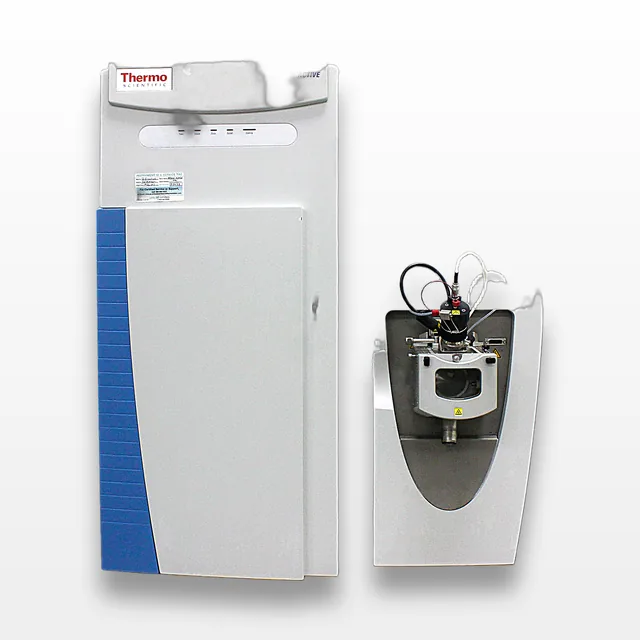

The Thermo Q Exactive is a benchtop Quadrupole-Orbitrap Mass Spectrometer, known for its high-performance LC-MS/MS capabilities. It combines quadrupole precursor selection with high-resolution and accurate-mass Orbitrap detection, enabling versatile applications in drug metabolism, proteomics, environmental analysis, and clinical research. It is designed for identifying, quantifying, and confirming trace-level metabolites and proteins in complex mixtures. The instrument features a fast scan speed and multiplexing for fast chromatography separations, with a resolving power up to 140,000 and a dynamic range greater than 5000:1. Pre-owned and in good condition with some cosmetic wear, this unit powers on but requires control software for full functionality. Ideal for labs seeking robust screening and targeted quantitation capabilities.
Technician comment

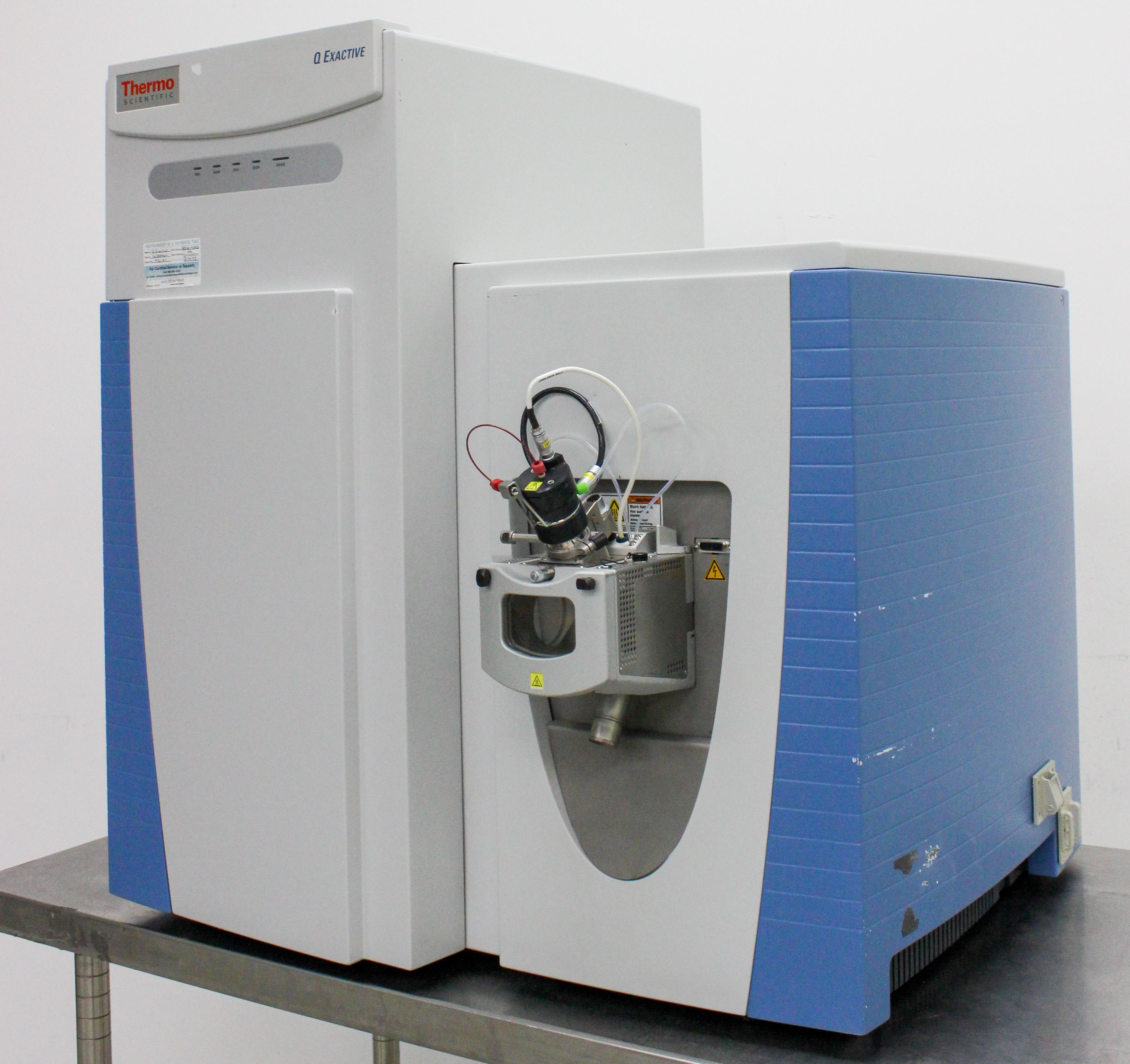

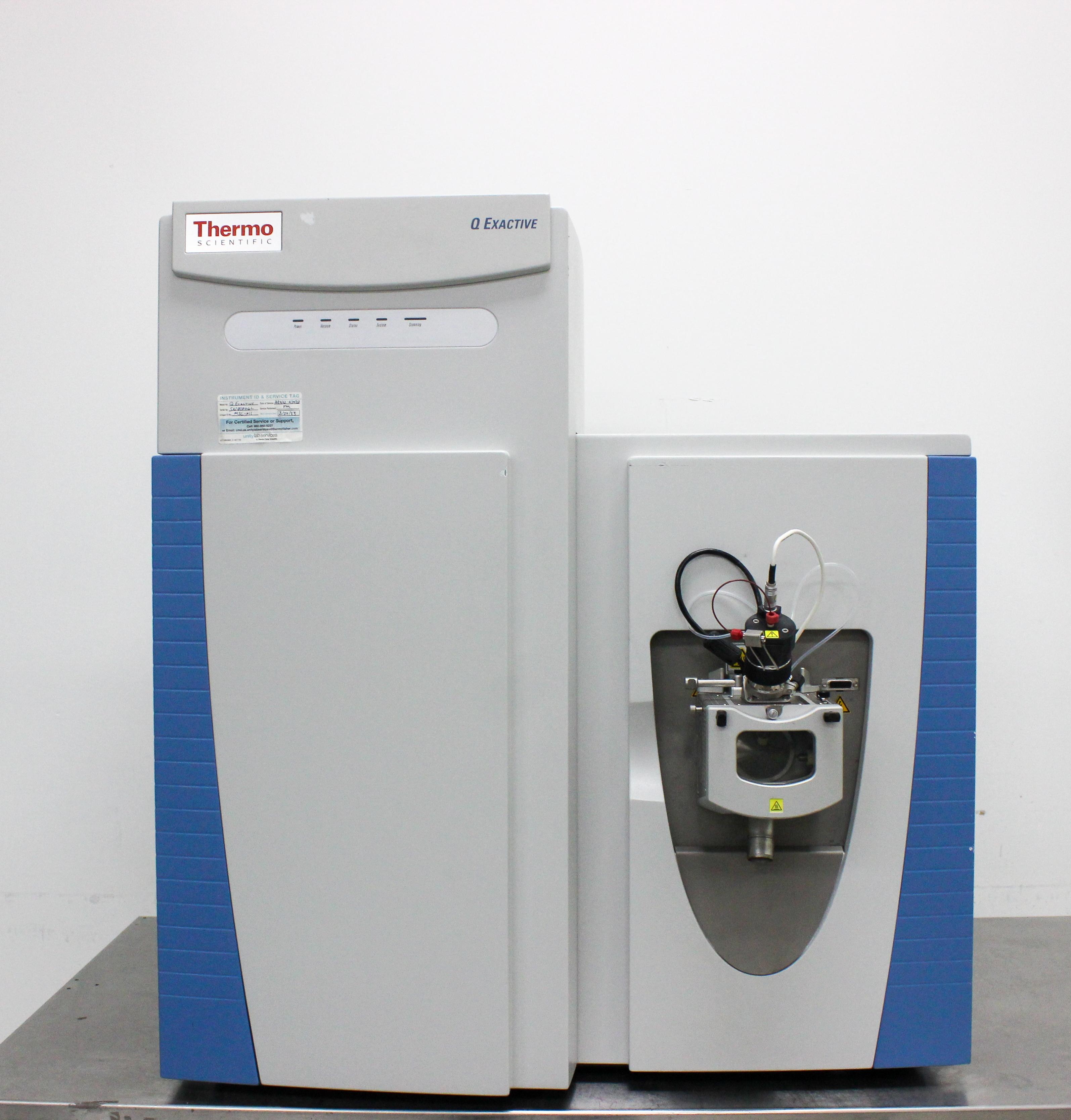

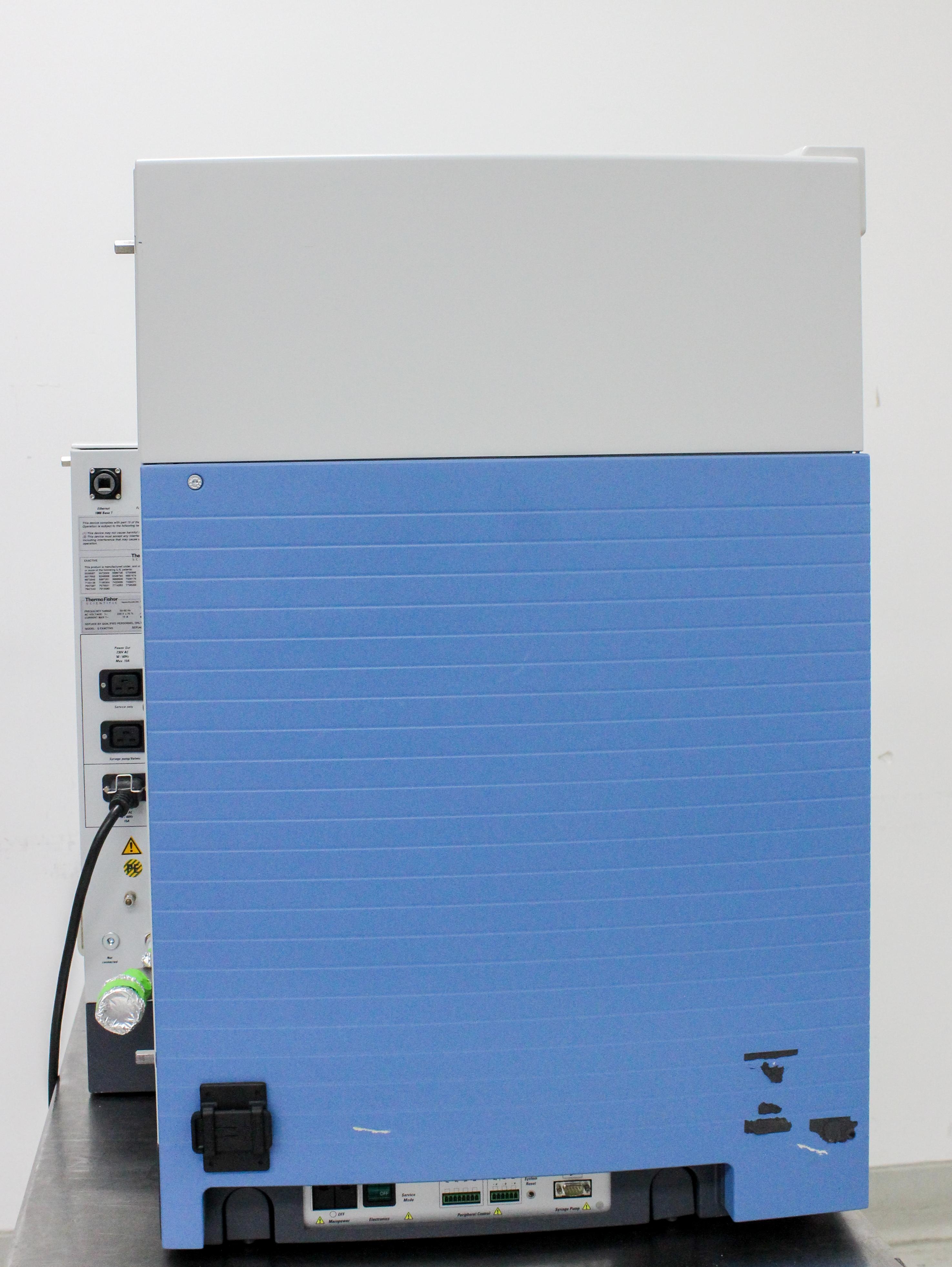

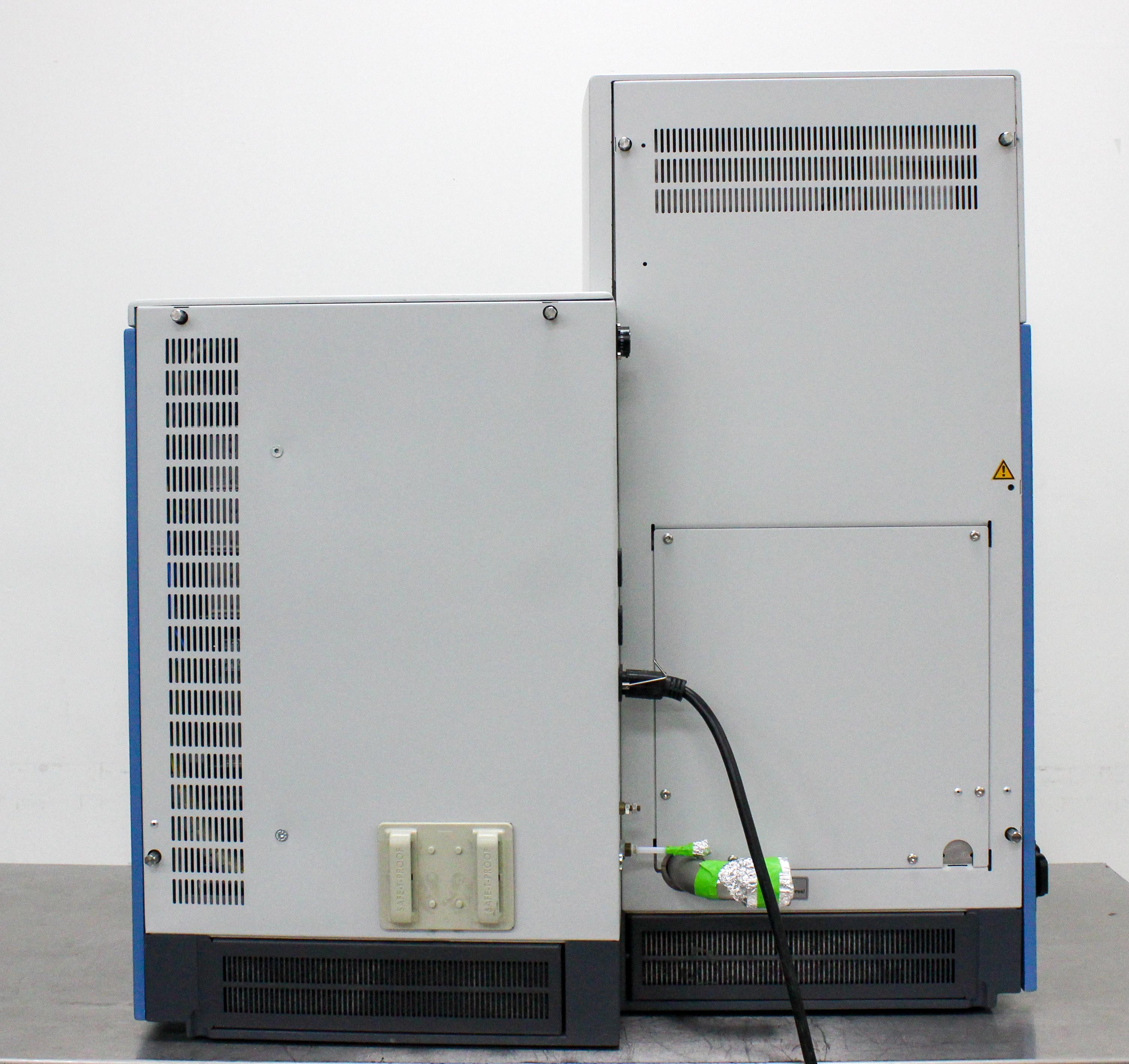

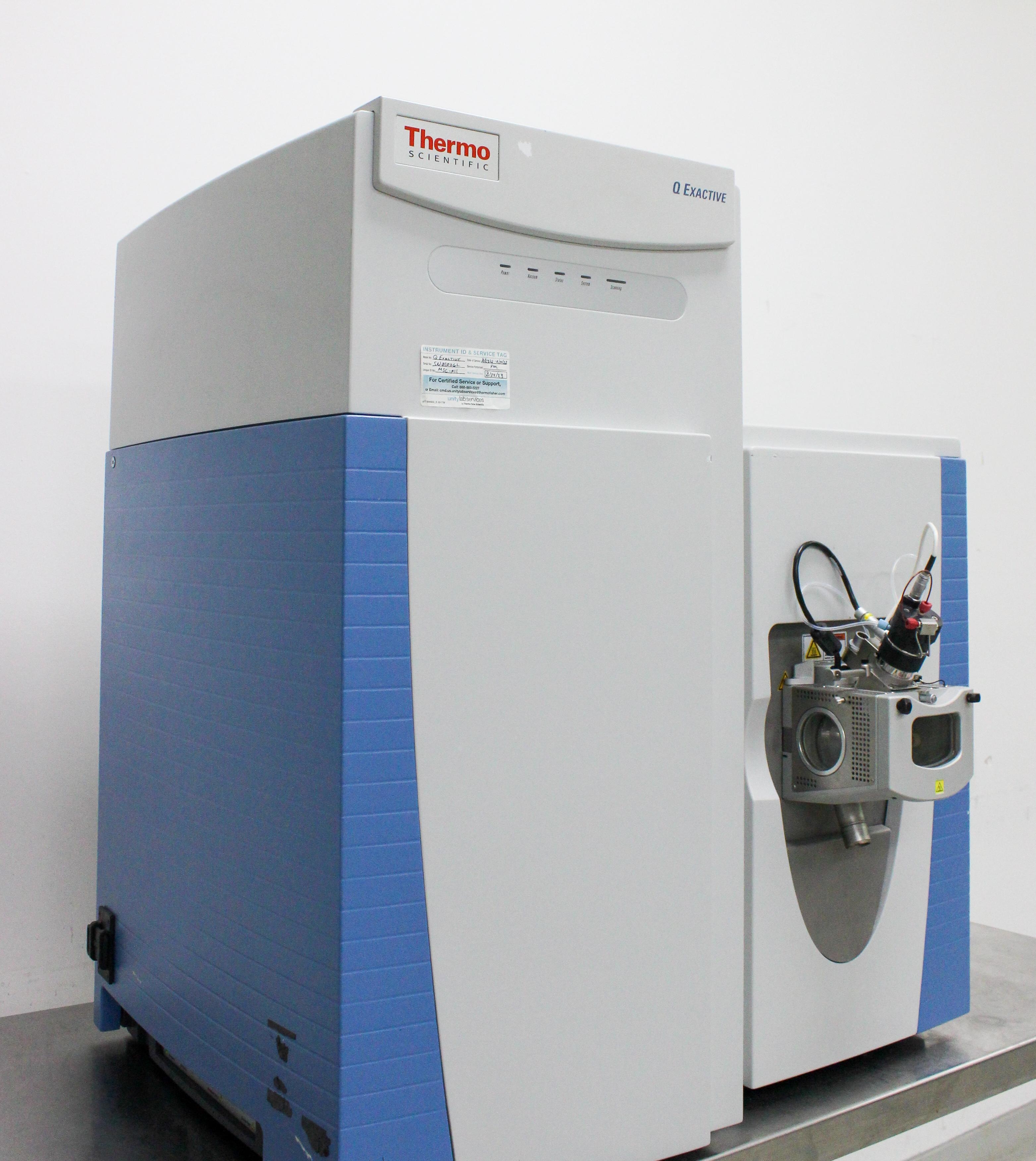

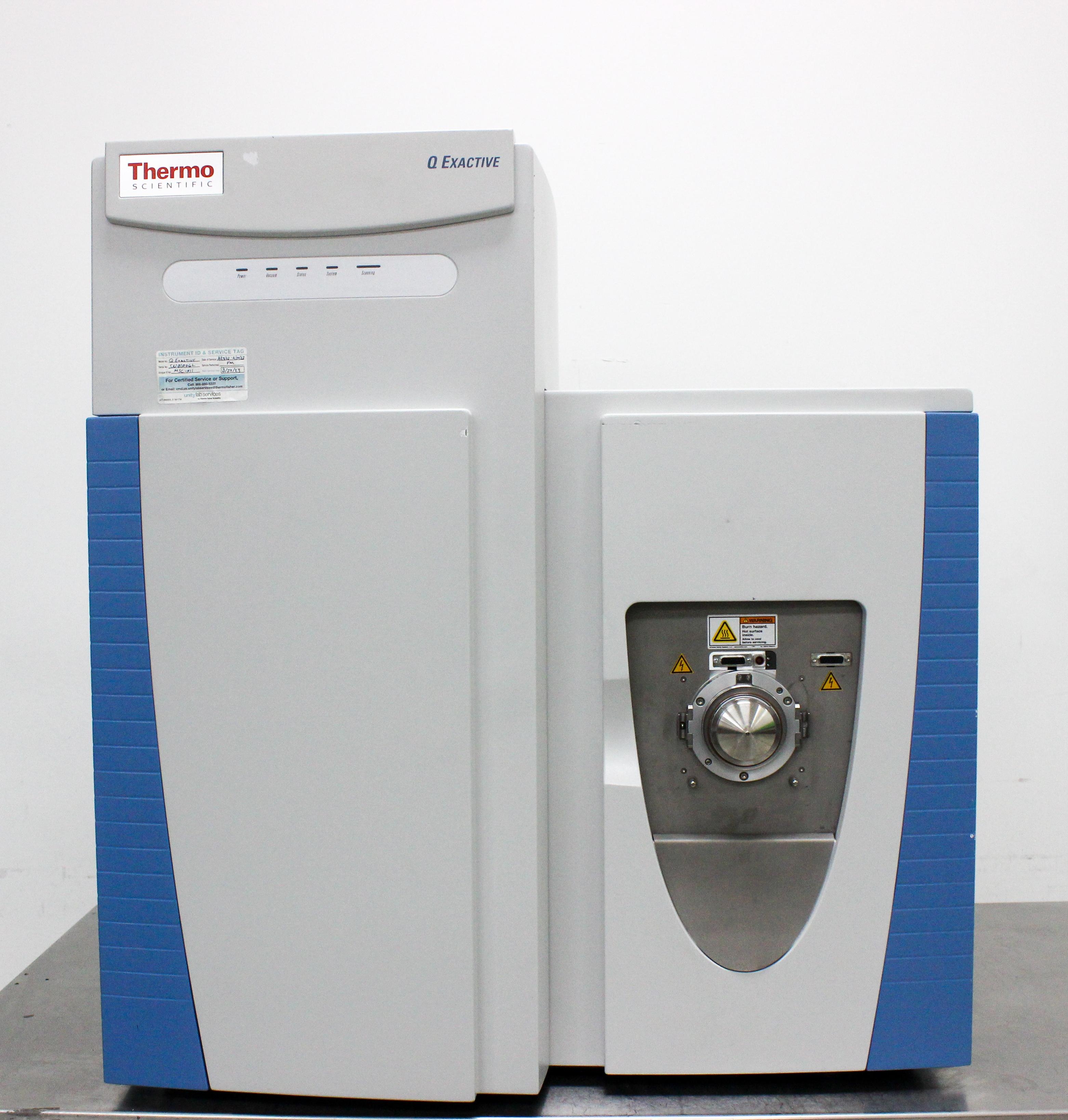

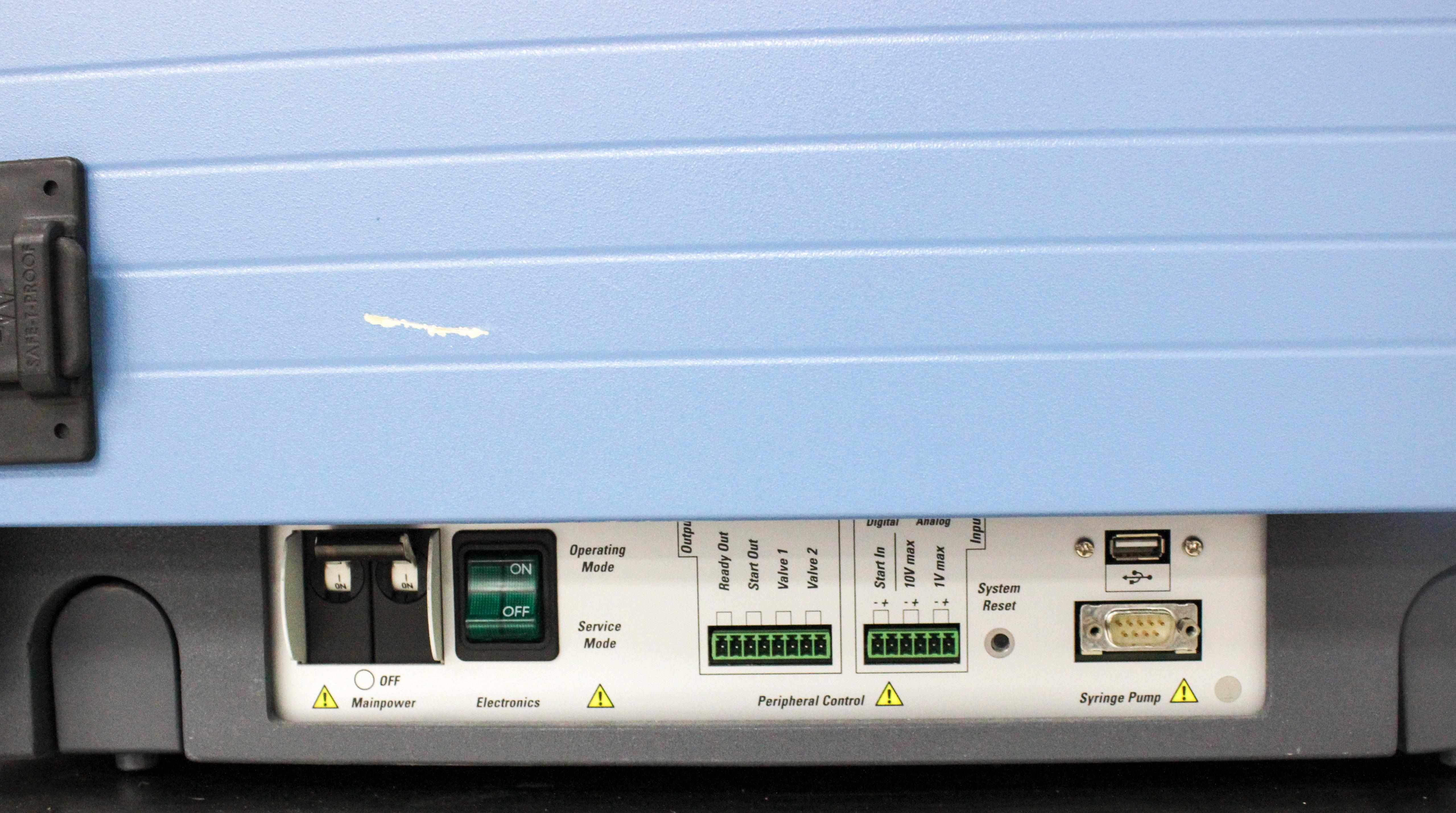

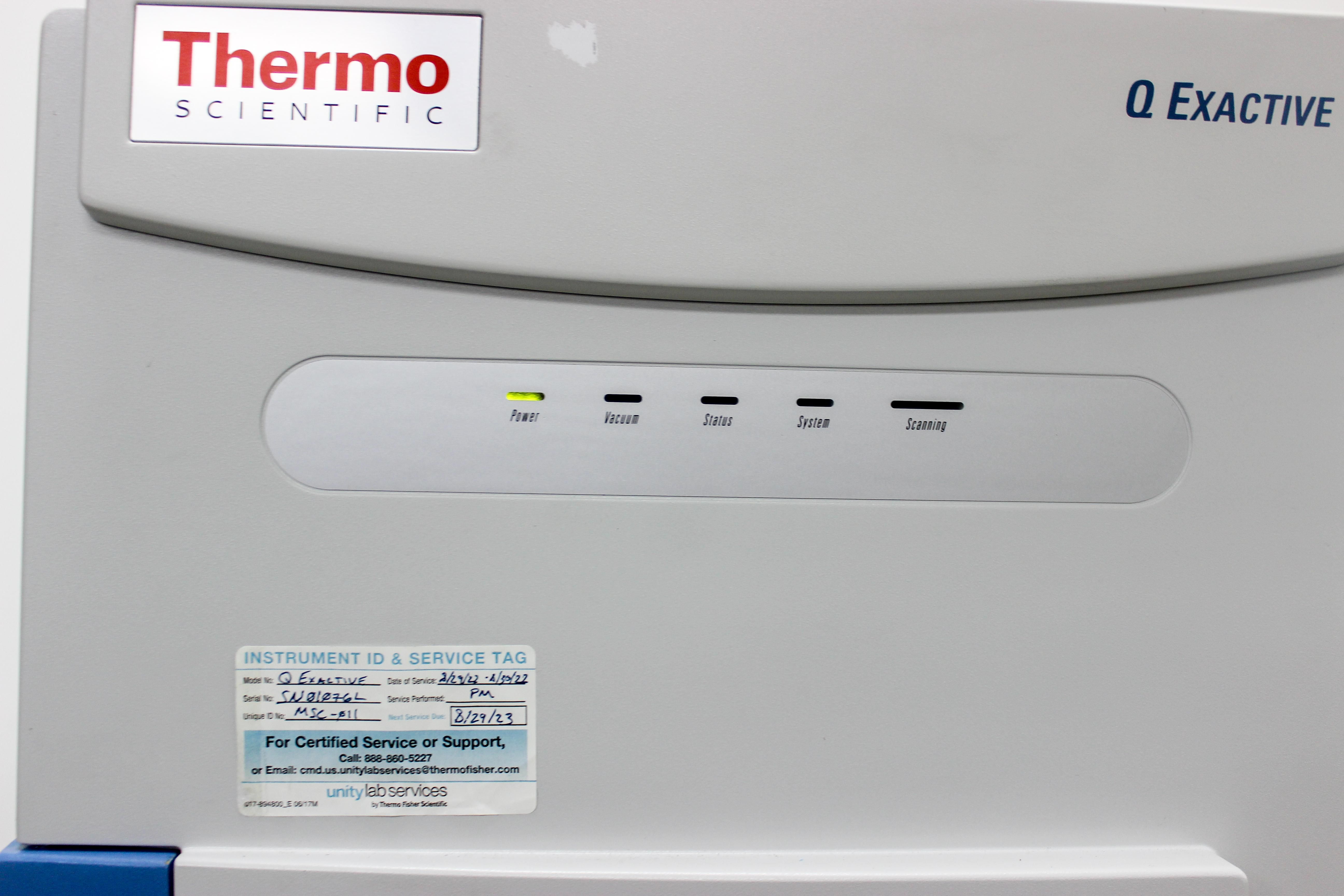

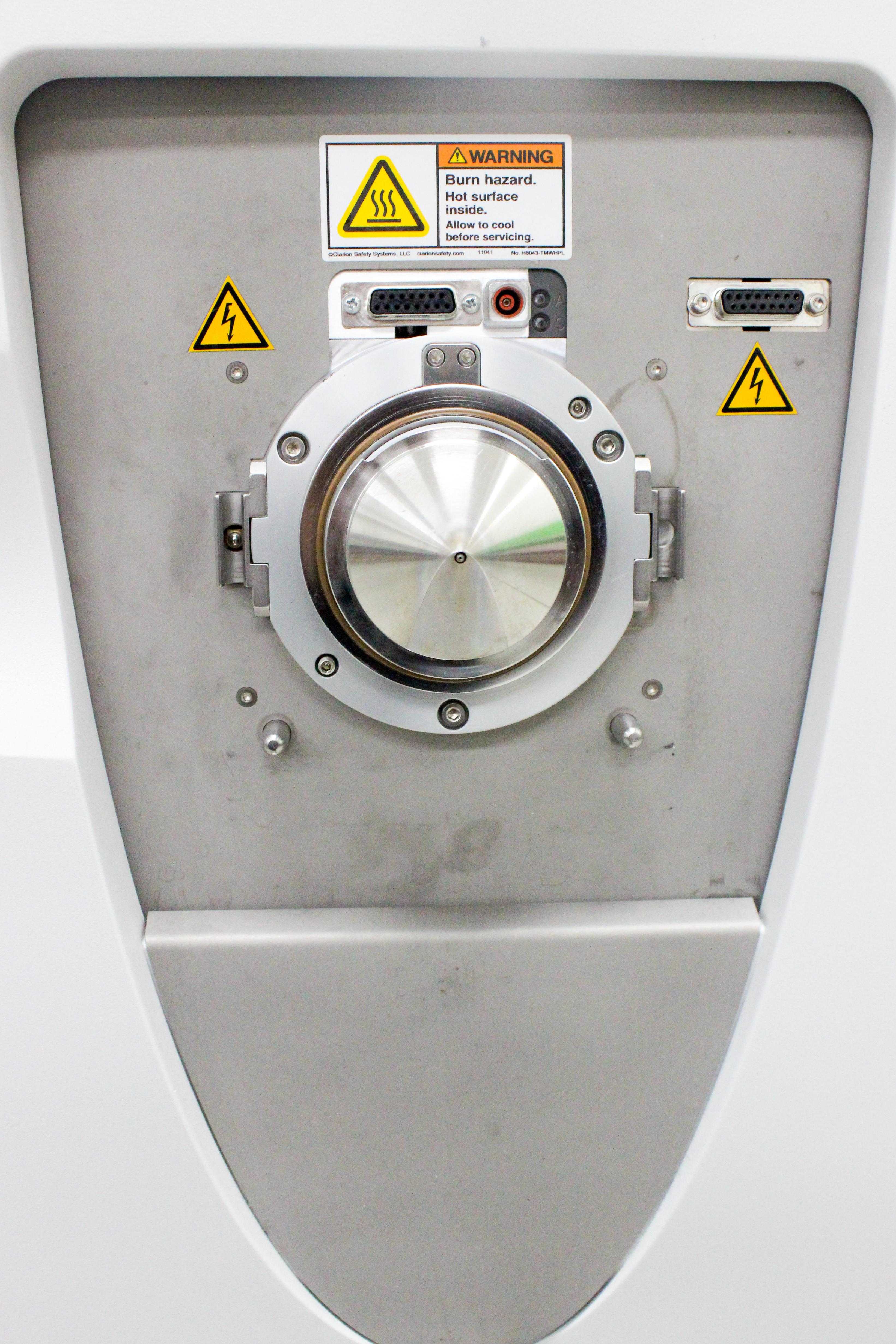

Unit powers on and completes initial startup. Full functional testing could not be performed due to required control software not being available at time of evaluation. Instrument is pre-owned and was removed from a laboratory environment. Overall physical condition appears good with minimal wear consistent with previous use, (scratches and chipped paint on side panels.) Inquire about validation and calibration services if available for an additional cost. See photos for details. Includes: Ion Source
Key Features
- Benchtop Quadrupole-Orbitrap Mass Spectrometer
- High-resolution, accurate-mass (HR/AM) detection
- Fast scan speed up to 12 Hz
- Mass range of m/z 50-6,000
- Resolving power up to 140,000
- Intra-scan dynamic range > 5000:1
- S-Lens ion source for enhanced sensitivity
Specifications
- Mass Range: m/z 50-6,000
- Maximum Resolving Power: 140,000 @ m/z 200
- Maximum Scan Rate: Up to 12 Hz at resolution setting of 17,500 @ m/z 200
- Mass Accuracy: Internal: < 1 ppm RMS
- Ion Source: H-ESI II probe with Dual Desolvation Zone
- Sweep Gas reduces chemical noise
- Data Acquisition: Ultra-fast real-time with automated calibration
Weight
Imperial: 480.0 Pounds
Metric: 217.72 Kilograms
Shipping Dimensions
Imperial: 36.0 lb x 43.2 lb x 93.6 lb
Metric: 91.44 cm x 109.73 cm x 237.74 cm
Harmonized Code
90273000
Harmonized Code Details
The harmonized code 90273000 pertains to spectrometers for physical or chemical analysis, suitable for Q Exactive's application in laboratories for analyzing substances.
