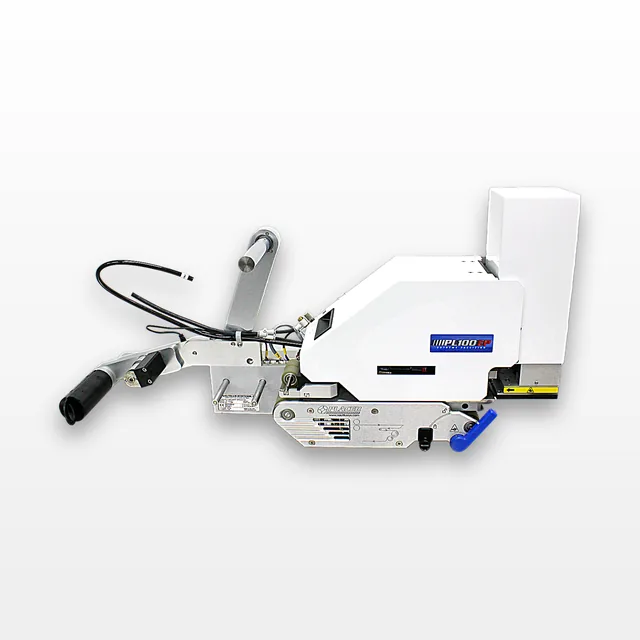

Nautilus Systems PL100i-EP Adhesive Component Applicator 100x100mm
Nautilus Systems
Details
-
CategoryProduction / Manufacturing
-
Dimension10.0in x 34.0in x 21.0in
-
SerialC1996
-
Shipping TypeFreight
-
Manufacturing2021-06-01
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Nautilus Systems PL100i-EP Adhesive Component Applicator, manufactured in 2021, is a pre-owned unit designed for precise placement of die-cut adhesive components. It accommodates components up to 100 x 100mm with an impressive accuracy of +/- 0.035mm. The applicator is equipped with a closed-loop feedback system for enhanced material travel monitoring and correct feed location verification. It is tailored for integration into automated assembly lines, featuring a pneumatic precision-guided Tamp actuator, Payoff assembly, and powered Takeup assembly. The Custom Component Tooling (CCT) allows for rapid changeover without tools, ensuring flexibility and efficiency. The unit includes a 16-key Applicator Interface Module with an LCD display for operator input. Please note that testing was limited due to the absence of a power supply and pinpad.
Technician comment

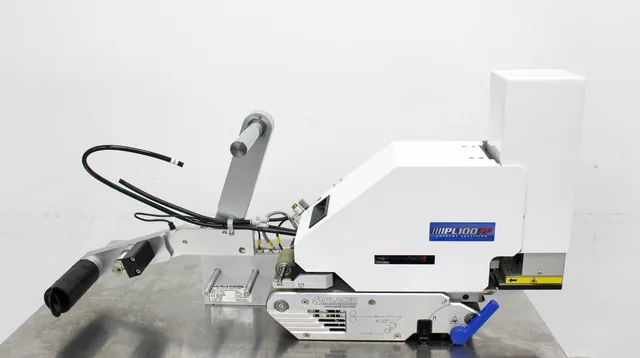

Unit is preowned and sourced from a working environment. Testing is limited due to missing power supply and pinpad; full functional verification could not be performed. See photos for details.
Key Features
- 100 x 100mm component capacity
- EP accuracy: +/- 0.035mm
- Closed-loop feedback system
- Integration into automation
- Rapid changeover features
- 16-key Applicator Interface Module
Specifications
- Voltage: 120V/220V
- Hertz: 50Hz/60Hz
- Component Capacity: 100 x 100mm
- EP Accuracy: +/- 0.035mm
Weight
Imperial: 48.0 Pounds
Metric: 21.77 Kilograms
Shipping Dimensions
Imperial: 12.0 in x 40.8 in x 25.2 in
Metric: 30.48 cm x 103.63 cm x 64.01 cm
Harmonized Code
847989
Harmonized Code Details
Machines and mechanical appliances having individual functions, not specified or included elsewhere. This code is appropriate due to the applicator's specialized function in adhesive component placement.
