Oerlikon Leybold Vacuum Sogevac SV65BIFC Rotary Vane Pump 220V 50/60Hz
Oerlikon Leybold Vacuum
Details
-
CategoryPump
-
Dimension21.0in x 13.0in x 16.0in
-
Serial31001385581
-
Shipping TypeFreight
-
Manufacturing2016-01-01
-
Voltage / Hertz220V / 50Hz/60Hz
Description

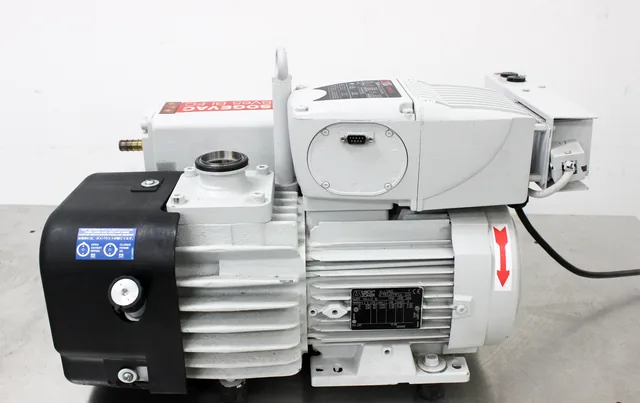

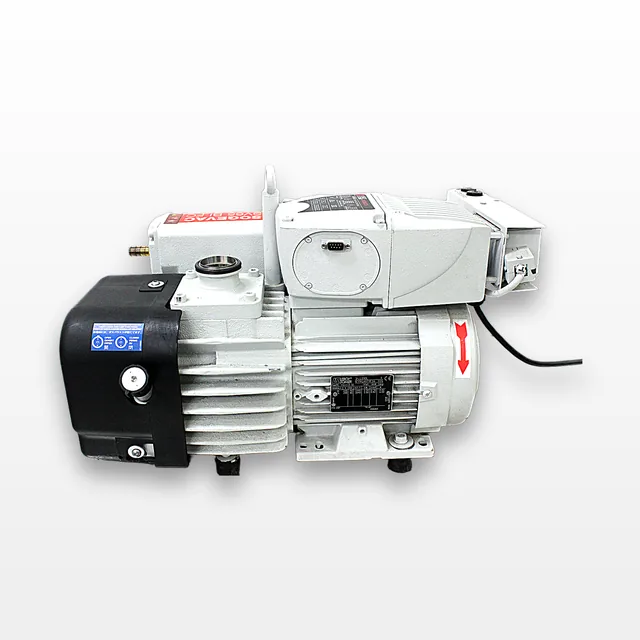

The Oerlikon Leybold Vacuum Sogevac SV65BIFC is a pre-owned, single-stage, oil-sealed rotary vane vacuum pump, manufactured in 2016. It has been tested to reach a vacuum level of 0.058 mbar, indicating its operational capability. The unit exhibits normal cosmetic wear from previous use, including a minor crack on the front casing. Designed for efficiency, it features a compact design, low noise levels, and integrated functions without external piping. This model is ideal for various applications such as vacuum packaging, processing, central vacuum systems, and more. It supports a voltage of 220V and operates at frequencies of 50/60Hz, with a rated pumping speed of 39/47 m3/h. Buyers should validate its suitability for specific applications.
Technician comment
SOGEVAC was tested and operates to specifications, achieving a vacuum level of 0.058 mbar on our pressure gauge. Unit shows normal cosmetic wear from previous use, including a minor crack on the front of the casing. See photos for overall condition and details.
Key Features
- Single-stage oil-sealed design
- Compact design and small footprint
- Low noise level at 60/64 dB(A)
- Integrated lubrication and gas ballast systems
- Rated pumping speed: 39/47 m3/h
Specifications
- Voltage: 220V
- Hertz: 50Hz/60Hz
- Noise level: 60/64 dB(A)
- Oil volume: 2.0 l
- Rated pumping speed: 39/47 m3/h
- Ultimate pressure with gas ballast: < 1.5 mbar
- Ultimate pressure without gas ballast: < 0.5 mbar
- Water vapor tolerance: 30 mbar
- Weight: 49 kg
Weight
Imperial: 153.6 Pounds
Metric: 69.67 Kilograms
Shipping Dimensions
Imperial: 25.2 in x 15.6 in x 19.2 in
Metric: 64.01 cm x 39.62 cm x 48.77 cm
Harmonized Code
841410
Harmonized Code Details
Vacuum pumps. This code is applicable as the item is a vacuum pump designed for industrial applications.
