MVE/Chart MVE 810 Eterne F Cryogenic Storage Tank -190C 370L
MVE/Chart
Details
-
CategoryCold Storage
-
Dimension33.0in x 33.0in x 58.0in
-
SerialCVER06D102
-
Shipping TypeFreight
-
Voltage / Hertz110-230V / 50Hz/60Hz
Description

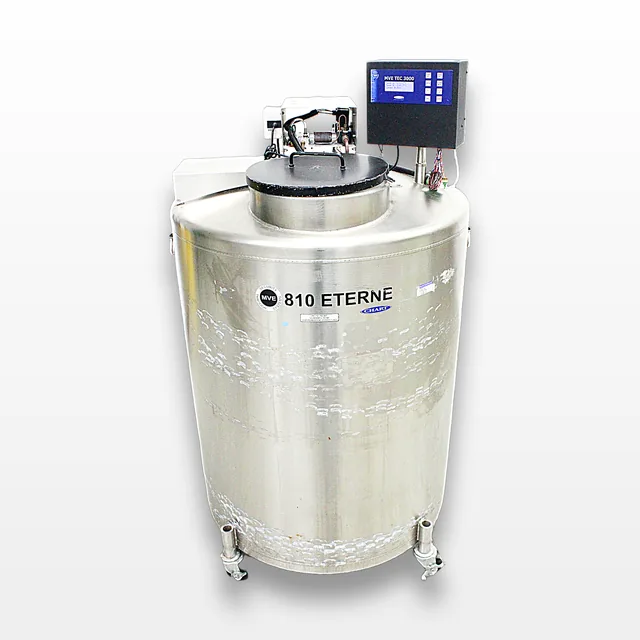

The MVE/Chart MVE 810 Eterne F is a pre-owned cryogenic storage tank designed for vapor storage, offering exceptional user convenience with its offset neck and free-moving sample turn tray. It provides the lowest sample temperature in the industry at -190°C, ensuring enhanced safety and long-term sample viability. The tank features an efficient thermal design with 95% of its surface area enclosed by vacuum, significantly reducing liquid nitrogen usage compared to standard tanks. This unit, removed from a working laboratory, shows cosmetic wear typical of prior use. Buyers are encouraged to validate its suitability for their specific applications.
Technician comment
This MVE 810 Eterne F Cryogenic Storage Tank is preowned and was removed from a working laboratory environment. Due to the absence of liquid nitrogen (LN₂), functional testing could not be performed. The unit shows cosmetic wear consistent with previous use, including stains around the exterior. Please review all photos for condition details.
Key Features
- Offset neck for user convenience
- Free-moving sample turn tray
- Designed for vapor storage
- Efficient thermal design with 95% vacuum enclosure
- Lowest sample temperature at -190°C
- Reduced liquid nitrogen usage
Specifications
- LN2 Capacity: 370L
- LN2 Capacity Under Platform: 52L
- Neck Opening: 12.5 inches
- Useable Internal Height: 28.8 inches
- Inner Diameter: 28.5 inches
- Overall Height: 47.3 inches
- Outer Diameter: 32 inches
- Weight Empty: 475 lbs
- Voltage: 110-230V
- Hertz: 50Hz/60Hz
Weight
Imperial: 570.0 Pounds
Metric: 258.55 Kilograms
Shipping Dimensions
Imperial: 39.6 in x 39.6 in x 69.6 in
Metric: 100.58 cm x 100.58 cm x 176.78 cm
Harmonized Code
841960
Harmonized Code Details
Machinery for liquefying air or gas. This code is applicable due to the cryogenic nature of the equipment and its use in storing liquefied gases.
