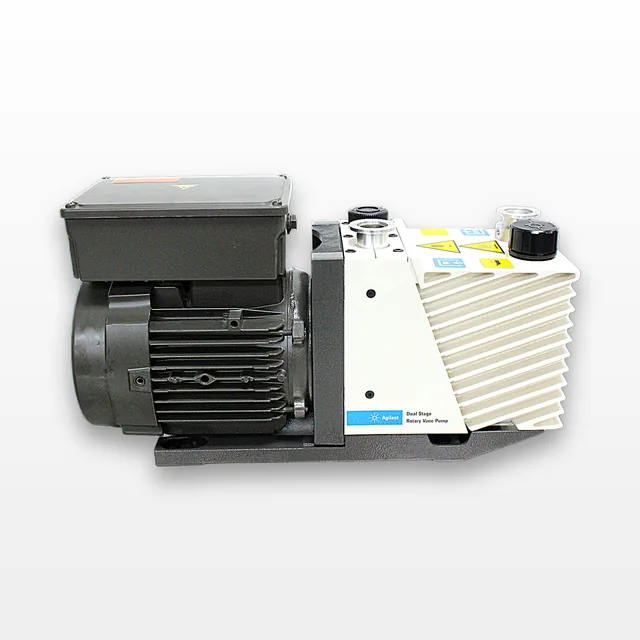

Agilent DS 102 Rotary Vane Pump 5.0 m3/hr 120V
Agilent
Details
-
CategoryPump
-
Dimension17.0in x 6.0in x 10.0in
-
SerialMY1937RA20
-
Shipping TypeFedEx Ground
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Agilent DS 102 Rotary Vane Pump, model 9499315M001, is a high-performance dual-stage oil-sealed pump designed for efficient vacuum applications. This pump, manufactured in the United States, offers a pumping speed of 5.0 m3/hr at 50 Hz and 3.5 CFM at 60 Hz, with a base pressure of less than 2 x 10-3 mbar. It features a universal-voltage single-phase electric motor and an integral power switch. The pump is equipped with an inlet isolation valve to prevent oil contamination and a manual gas ballast valve for enhanced water vapor handling. This preowned unit, originating from a working laboratory environment, is in excellent cosmetic condition and operates smoothly, achieving an ultimate vacuum of 3 microns. It is ideal for applications requiring reliable vacuum performance.
Technician comment
The Agilent DS 102 Rotary Vane Pump is preowned from a working laboratory environment. The pump is in excellent cosmetic condition and reached an ultimate vacuum of 3 microns. The pump operated smoothly during testing with no abnormal noises observed. See photos for additional details.
Key Features
- Dual-stage oil-sealed design
- Pumping speed: 5.0 m3/hr at 50 Hz
- Base pressure: < 2 x 10-3 mbar
- Universal-voltage motor
- Inlet isolation valve
- Manual gas ballast valve
Specifications
- Voltage: 120V
- Hertz: 50Hz/60Hz
- Pumping Speed (50 Hz): 5 m3/h
- Pumping Speed (60 Hz): 3.5 cfm
- Ultimate Partial Pressure: 10-4 mbar
- Ultimate Total Pressure with Gas Ballast: 2∙10-2 mbar
- Water Vapour Pumping Capacity: 60 g/h
- Water Vapour Tolerance: 15 mbar
- Weight: 22 kg
- Dimensions (WxHxL): 132 mm x 212 mm x 430 mm
Weight
Imperial: 57.6 Pounds
Metric: 26.13 Kilograms
Shipping Dimensions
Imperial: 20.4 in x 7.2 in x 12.0 in
Metric: 51.82 cm x 18.29 cm x 30.48 cm
Harmonized Code
841410
Harmonized Code Details
Vacuum pumps; used for creating vacuum in various applications, including laboratory and industrial settings.
