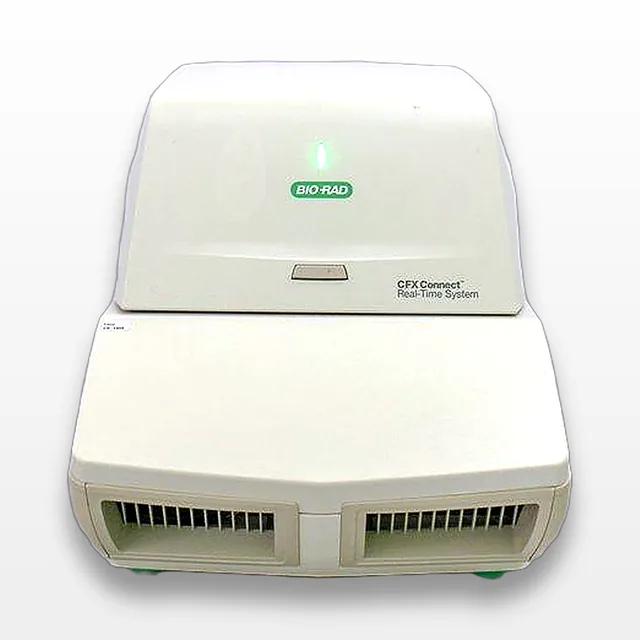

BIO-RAD CFX Connect Thermal Cycler System with Optics Module
BIO-RAD
Details
-
CategoryMolecular Biology
-
Dimension19.0in x 13.0in x 15.0in
-
SerialBR007634
-
Shipping TypeFedEx Ground
-
Manufacturing2018-08-01
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description
BIO RAD CFX Connect Thermal Cycler System with CFX Connect Optics Module
CFX Connect Real-Time PCR Detection System
The CFX Connect Real-Time PCR System provides excellent thermal performance for two-target multiplex PCR and routine detection of single fluorophore experiments
The CFX Connect Real-Time PCR Detection System offers two-target analysis, excellent thermal cycler specifications, and the same reliable performance as the CFX96 Touch Real-Time PCR Detection System. The system incorporates innovative optical technologies with powerful software to provide maximal reliability and efficiency for all your real-time PCR needs.
Key Features and Benefits
The CFX Connect Real-Time PCR Detection System offers:
Easy startup — obtain great results right away with factory-calibrated dyes, quick setup, and intuitive software
Effortless optimization — save time and reduce costs by optimizing assays in a single run using the thermal gradient
Powerful data analysis tools — quickly and accurately validate and analyze data with the advanced analysis modules of CFX Maestro Software
Accelerated publication submission — include MIQE annotations and generate RDML files using Biogazelle's qbase+ Software
Chassis
CFX Connect
Maximum ramp rate, °C/sec
5
Average ramp rate, °C/sec
3.3
Heating and cooling method
Peltier
Lid, °C
Heats up to 105
Temperature
Range, °C
0–100
Accuracy, °C
±0.2 of programmed target at 90°C
Uniformity, °C
±0.4 well-to-well within 10 sec of arrival at 90°C
Gradient
Operational range, °C
30–100
Programmable span, °C
1–24
Optical Detection
Excitation
3 filtered LEDs
Detection
3 filtered photodiodes
Range of excitation/emission wavelengths, nm
450–580
Sensitivity
Detects 1 copy of target sequence in human genomic DNA
Dynamic range
10 orders of magnitude
Scan Time
All channels, sec
12
FAM/SYBR® Green only, sec
3
Software
Operating systems
Windows 7, Windows 8, Windows 10
Multiplex analysis
Up to 2 targets per well
System
Licensed for real-time PCR
Yes
Sample capacity, wells
96
Sample size, µl
1–50 (10–25 recommended)
Communication interface
USB 2.0
Electrical approvals
IEC, CE
Dimensions (W x L x H), cm/in
33 x 46 x 36/13 x 18 x 14
Weight, kg/lb
21/47
