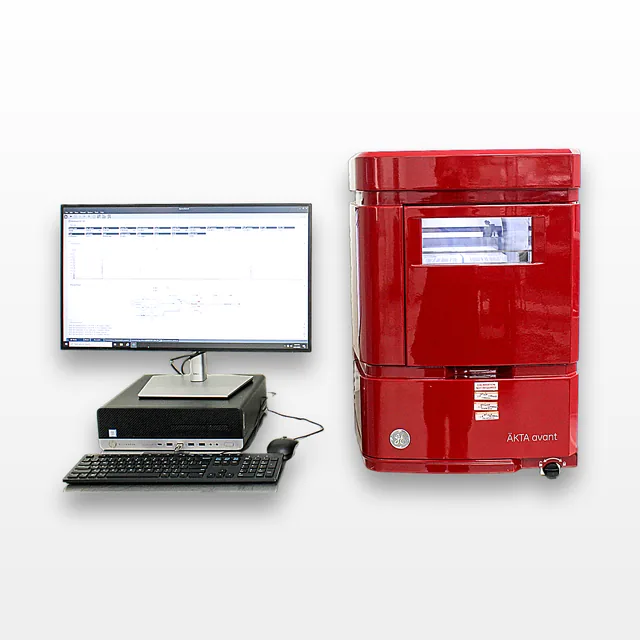

Cytiva AKTA Avant 150 Preparative Protein Purification Chromatography System UNICORN
Used and in working order based on our intake inspection. It has not been through full performance testing, so please confirm it suits your application. Normal signs of prior use.
Cytiva
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension27.0in x 33.0in x 26.0in
-
Serial2661548
-
Shipping TypeFreight
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
Cytiva AKTA Avant 150 preparative protein purification chromatography system for method and process development. Built for scalable purification workflows, the AKTA avant integrates valves, detectors, and a built-in fraction collector for automated control and fraction handling. The system supports preparative liquid chromatography techniques including affinity chromatography, gel filtration or size exclusion chromatography, ion exchange chromatography, and hydrophobic interaction chromatography. Flow rate range is 0.01 to 150 mL/min with up to 5 MPa (50 bar) operating pressure. The instrument is controlled via UNICORN software and includes BufferPro for automatic buffer preparation and UNICORN design of experiments (DoE) tools for accelerated process development. Includes a Windows PC with UNICORN 7.5 software installed and power/data cables. Condition Class G (Good): pre-owned in usable condition per intake inspection with normal cosmetic wear; side panel is missing but does not affect system functionality. Buyer should validate fitness for their specific application and perform any required site calibration and qualification.
Technician comment

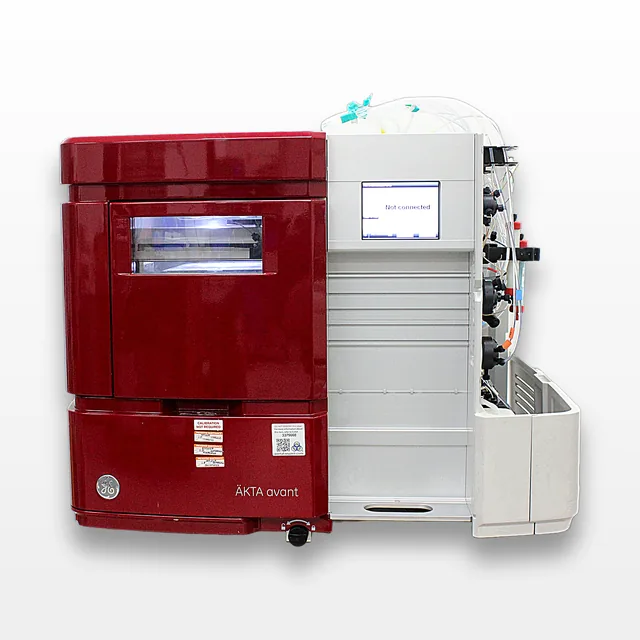

Cytiva ÄKTA Avant 150 Preowned from a working laboratory environment. The system powers on, connects to the software, and reaches a Ready state. Includes a Windows PC with UNICORN 7.5 software installed. The system will require validation and calibration prior to use. The side panel is missing; this does not affect the system’s functionality. Please see photos for additional details and overall condition.
Key Features
- Preparative liquid chromatography system for protein and biomolecule purification
- Integrated valves, detectors, and fraction collector in the flow path for automated control
- Built-in fraction collector with cooling for secure fraction storage during unattended runs
- UNICORN software for instrument control, experimental planning, supervision, and evaluation
- Predefined method phases for creating and editing purification methods
- Run statistics history saving for individual columns (e.g., runs and runs since cleaning)
- BufferPro automatic buffer preparation for in-line buffer composition screening and preparation
- Integrated design of experiments DoE tool within UNICORN for structured process development
- Multiple sample injection capability up to 7 samples
- Multiple wavelength detection capability up to 3 wavelengths
- pH monitoring capability
Specifications
- Flow rate: 0.01 mL/min-150 mL/min
- Operating pressure (sample pump) max: 5 MPa (50 bar, 725 psi)
- Operating pressure max: 5 MPa (50 bar, 725 psi)
- Power consumption: 800 VA
- Protection class: IP 20
- Pump type: Piston pump, metering type
- Tubing i.d. (flow path): 0.75 mm
- UV wavelength: 190-700 nm
- Viscosity: 0.35 to 5 cP (system pump), 0.7 to 10 cP (sample pump)
- Relative humidity: 20% to 95% (noncondensing)
- Voltage: 100120/220240 VAC
- pH monitoring: 0-14
- Buffer selection: 18 buffer inlets, option of up to 46
- Multiple sample injection: Yes, up to 7 samples
- Multiple wavelength detection: Yes, up to 3 wavelengths
- Depth: 710 mm
- Height: 660 mm
- Width: 860 mm
- Flow cell path length: 2 mm (optional 10 mm and 0.5 mm)
- Model: AKTA avant 150
Weight
Imperial: 216.0 Pounds
Metric: 97.98 Kilograms
Shipping Dimensions
Imperial: 32.4 in x 39.6 in x 31.2 in
Metric: 82.3 cm x 100.58 cm x 79.25 cm
