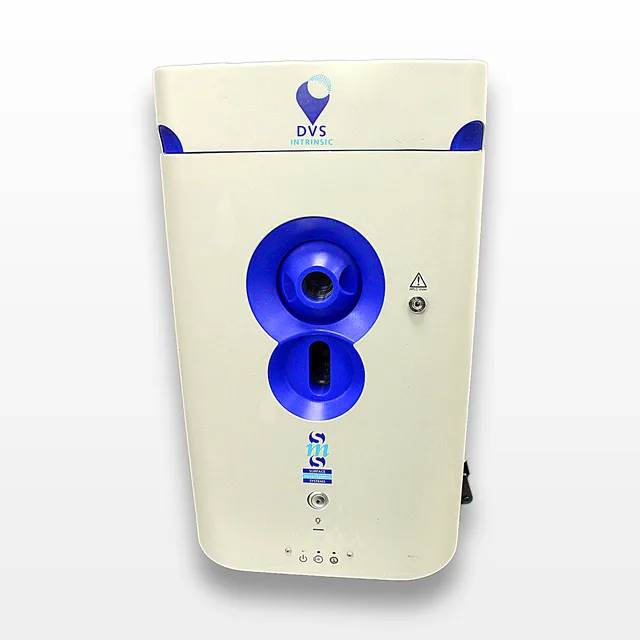

SMS Surface Measurement Systems DVS Intrinsic Dynamic Water Vapor Adsorption Analyzer
SMS Surface Measurement Systems
Details
-
CategoryAnalytical
-
Dimension17.0in x 11.0in x 19.0in
-
SerialP14F0039
-
Shipping TypeFedEx Ground
-
Voltage / Hertz100-240v / 50Hz/60Hz
Description
SMS Surface Measurement Systems DVS Intrinsic Dynamic Water Vapor Adsorption Analyzer (DVS Intrinsic Dynamic Water Vapor Adsorption Analyzer) is a gravimetric DVS instrument for measuring water vapor adsorption and desorption isotherms. It uses an SMS UltraBalance digital microbalance to detect mass change as a carrier gas passes the sample at controlled relative humidity, producing adsorption/desorption curves for hygroscopicity and water activity related studies. The system supports small samples up to 4 g and up to 40 mm, with high sensitivity for resolving 0.1 ug mass changes. Temperature stability is controlled to within ±0.1 C with independent zones for the sample and microbalance, and high-precision mass flow control for accurate RH. Built-in network connectivity supports data sharing and remote analysis, and one computer can control up to 5 operating units via DVS-IntrinsiLink. Condition Class F (Fair): unit powers on and was checked for power only; functionality was not fully verified. One rubber footpad is missing; review photos for exact cosmetic/mechanical condition and included items.
Technician comment
Preowned DVS Intrinsic from a working laboratory environment. Unit powers on and was tested for power only; unable to fully test functionality. One rubber footpad is missing. Please review all photos carefully for the exact condition and included components.
Key Features
- Gravimetric water vapor adsorption and desorption measurement principle
- SMS UltraBalance digital microbalance for sensitive mass change detection
- Controlled relative humidity carrier gas flow through the sample
- Sample capacity up to 4 g and up to 40 mm
- Mass resolution of 0.1 ug for adsorption/desorption curve generation
- Independent temperature control zones for sample and microbalance
- Temperature stability controllable within ±0.1 C
- High-precision mass flow control for accurate RH control
- Built-in network connectivity for data sharing and remote analysis
- One computer can control up to 5 operating units via DVS-IntrinsiLink
- Automated operation with DVS-WIN software wizard interface
- Data analysis environment running within Microsoft Excel
Specifications
- Voltage: 100-240V
- Frequency: 50Hz/60Hz
- Sample maximum mass: 4 g
- Sample maximum size: 40 mm
- Mass change resolution: 0.1 ug
- Temperature control stability: ±0.1 C
- Humidity and temperature sensors: present in the sample chamber
- Data analysis software: runs within Microsoft Excel
- Network connectivity: built-in
- Multi-unit control: up to 5 operating units per computer via DVS-IntrinsiLink
- Serial number: P14F0039
Weight
Imperial: 57.6 Pounds
Metric: 26.13 Kilograms
Shipping Dimensions
Imperial: 20.4 in x 13.2 in x 22.8 in
Metric: 51.82 cm x 33.53 cm x 57.91 cm
