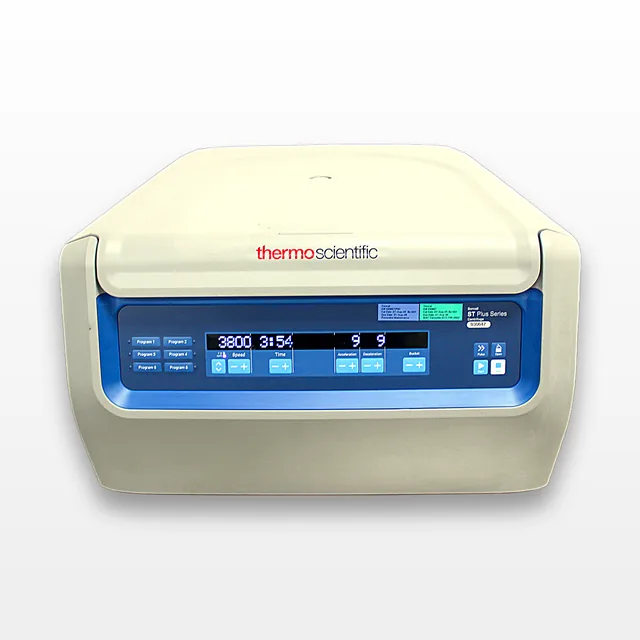

Thermo Fisher Sorvall ST4 Plus-MD Benchtop Centrifuge with TX-1000 Rotor 120V

Thermo Fisher Scientific Sorvall ST4 Plus-MD benchtop centrifuge (with TX-1000 rotor), manufactured year not provided. This unit is in Condition Class E (Excellent) and was verified during intake inspection to reach the manufacturer-specified maximum speed for the TX-1000 rotor/centrifuge combination, spinning up to 3,800 RPM. The centrifuge features a microprocessor controller with bright LCD push-button interface, direct brushless induction drive, and a motorized lid latch for secure one-finger closing. Rotor handling is supported by the Auto-Lock III rotor system for push-button rotor exchange, and the SMARTSpin technology manages acceleration, braking, and residual imbalance for improved safety and separations. Capacity supports blood tubes, conical tubes, microplates, and BioBottles when used with compatible rotors. Minor cosmetic wear is present on the right side; overall condition is excellent based on intake inspection. Includes power cord and TX-1000 rotor.

Technician comment

Preowned Sorvall ST4 Plus-MD centrifuge from a working laboratory environment. Unit was tested and verified to spin at 3,800 RPM with the TX-1000 rotor, which is the manufacturer-specified maximum speed for this rotor/centrifuge combination. Unit reached the full rated speed during testing. Minor cosmetic wear is present on the right side; overall, the unit is in excellent condition. Please review all photos carefully for the exact condition and included accessories. Includes TX-1000 rotor

Key Features

1. Microprocessor controller with bright LCD push-button user interface
2. Direct brushless induction low profile drive system
3. Motorized lid latch for one-finger downward closing and locking
4. Auto-Lock III rotor system for push-button rotor installation and exchange
5. Tool-less rotor exchange for fast switching between rotor options
6. SMARTSpin technology for rotor-specific acceleration, braking, and imbalance management
7. Program storage for up to 6 programs via LCD interface
8. Timer supports count up or count down operation
9. Option for 9 acceleration and 10 deceleration rate choices
10. Compact benchtop footprint for ergonomic sample loading and unloading
11. Energy efficient operation with up to 40% savings on standard protocols

Specifications

1. Voltage: 120V
2. Frequency: 50/60 Hz
3. Product Type: Benchtop Centrifuge
4. Refrigerated: No
5. Controller Type: Microprocessor
6. Display Type: Bright LCD push-button user interface
7. Drive System: Direct brushless induction low profile
8. Wattage: 1300 w
9. Noise Level: <64 dB(A)
10. Run Time: Up to 9 hr. 59 min.
11. Profile Acceleration Braking: Choices of 9 Accel and 10 Decel rates
12. Program Storage: Up to 6 programs via LCD user interface buttons
13. Timer: Option to count up or down
14. Rotor Options: 13 rotor options available (rotor sold separately)
15. Rotor Included: No
16. Max RCF: 25,830 x g fixed angle (with 30 x 2 mL rotor)
17. Max RCF: 5,590 x g swing-out (with BIOShield 1000A rotor)
18. Capacity: 196 x 5/7 mL blood tubes
19. Capacity: 148 x 9/10 mL blood tubes
20. Capacity: 96 x 15 mL conical tubes
21. Capacity: 40 x 50 mL conical tubes
22. Capacity: 6 microplates
23. Capacity: 4 x 1000 mL BioBottles (with TX-1000 rotors)
24. Depth Metric: 690 mm
25. Width Metric: 566 mm
26. Height Metric: 362 mm
27. Height Metric Lid Open: 861 mm
28. Net Weight: 89 kg
29. Shipping Weight: 235.2 lb
30. Actual Weight: 196.0 lb
31. Standards: ISO 14971
32. Standards: ISO 13485
33. Standards: ISO 9001
34. Certifications Compliance: EN/UL/IEC 61010-1
35. Certifications Compliance: EN/UL/IEC 61010-2
36. Certifications Compliance: EN/UL/IEC 61326-1
37. Certifications Compliance: EN/UL/IEC 61326-2
38. Certifications Compliance: FCC part 15
39. Includes: Corrosion resistance oil (70009824)
40. Includes: Power cord for the according country supply voltage
41. Includes: Declaration of conformity
42. Material: Front top and sides PC-ABS with 2K lacquer; metal housing cold rolled steel with powder paint; centrifuge bowl stainless steel 1.4301 cold rolled; unit feet rubber

Weight

Imperial: 235.2 Pounds

Metric: 106.68 Kilograms

Shipping Dimensions

Imperial: 32.4 in x 27.6 in x 16.8 in

Metric: 82.3 cm x 70.1 cm x 42.67 cm
