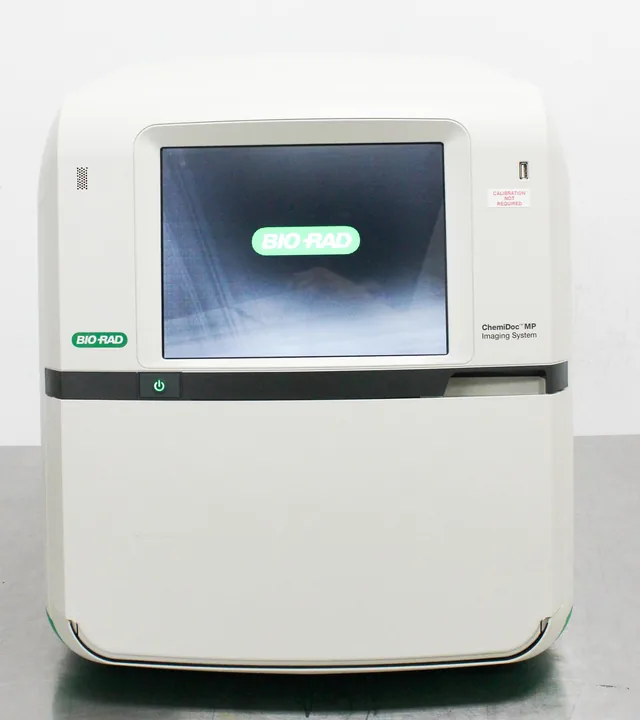

BIO-RAD ChemiDoc MP Imaging System Gel and Western Blot Fluorescence Chemiluminescence
BIO-RAD
Details
-
CategoryMicroscope / Imager
-
Dimension25.0in x 20.0in x 22.0in
-
Serial734BR56066
-
Shipping TypeFedEx Ground
-
Manufacturing2021-11-01
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description
BIO-RAD ChemiDoc MP Imaging System (Manufacture Date: 2021-11-01) for gel and western blot imaging, quantification, and documentation. This near-new unit was sourced from a working lab environment and was able to acquire an image during intake inspection. The system includes an internal computer, 12.1 inch multitouch display, camera, and Blot/UV/Stain-Free Sample Tray with Image Lab Touch Software and Image Lab Software. Imaging supports multiplex fluorescent western blots (RGB plus far-red and near-IR) and chemiluminescent western blots, as well as nucleic acid and protein gel stains and stain-free gels. Smart Tray Technology automatically recognizes application-specific trays and adjusts imaging parameters and software options. Hardware features include a cooled CCD detector (6 megapixels), autofocus, auto-exposure modes, and image flat fielding for consistent results. Operating conditions include 100-250 V input and 10-28 C operating temperature.
Technician comment
Preowned from working lab environment. Unit was tested and successfully able to acquire an image. Overall, the system is in excellent condition with minimal cosmetic wear. Please see photos for additional details and condition.
Key Features
- Smart Tray Technology automatically recognizes application-specific trays and adjusts imaging parameters
- Autofocus with precalibrated focus for zoom setting and sample height
- Auto-exposure with rapid or optimal auto-exposure modes
- Image flat fielding with dynamic precalibrated optimization for each application
- 12.1 inch multitouch touchscreen interface
- Cooled CCD detector with 6 megapixels
- Multiplex fluorescent western blot detection for RGB plus far-red and near-IR
- Chemiluminescence imaging with dedicated filter sets for blue, green, red, far-red, and near-IR fluorophores
Specifications
- Manufacture Date: 2021-11-01
- Serial Number: 734BR56066
- Voltage: 100-240V
- Hertz: 50Hz/60Hz
- Operating temperature: 10-28°C
- Operating humidity: 10-85% relative humidity (non-condensing)
- Maximum image area W x H: 21 x 16.8 cm
- Detector: Cooled CCD, 6 megapixels
- Dynamic range: >4 orders of magnitude
- Illumination sources: Trans-UV 302 nm excitation
- Illumination sources: Epi-white
- Illumination sources: Trans-white requires White Sample Tray
- Illumination sources: Trans-blue 450-490 nm excitation requires Blue Sample Tray
- Illumination sources: Epi-blue 460-490 nm excitation
- Illumination sources: Epi-green 520-545 nm excitation
- Illumination sources: Epi-red 625-650 nm excitation
- Illumination sources: Epi-far red 650-675 nm excitation
- Illumination sources: Epi-near IR 755-777 nm excitation
- Standard filter: 590/110 nm
- Chemiluminescence filter: 518-546 nm
- Chemiluminescence filter: 577-613 nm
- Chemiluminescence filter: 675-725 nm
- Chemiluminescence filter: 700-730 nm
- Chemiluminescence filter: 813-860 nm
- Data output: 16-bit or 8-bit SCN, TIFF, JPEG files
- Instrument weight: 35 kg (78 lb)
- Instrument size L x W x H: 61 x 51 x 53 cm
Weight
Imperial: 93.6 Pounds
Metric: 42.46 Kilograms
Shipping Dimensions
Imperial: 30.0 in x 24.0 in x 26.4 in
Metric: 76.2 cm x 60.96 cm x 67.06 cm
