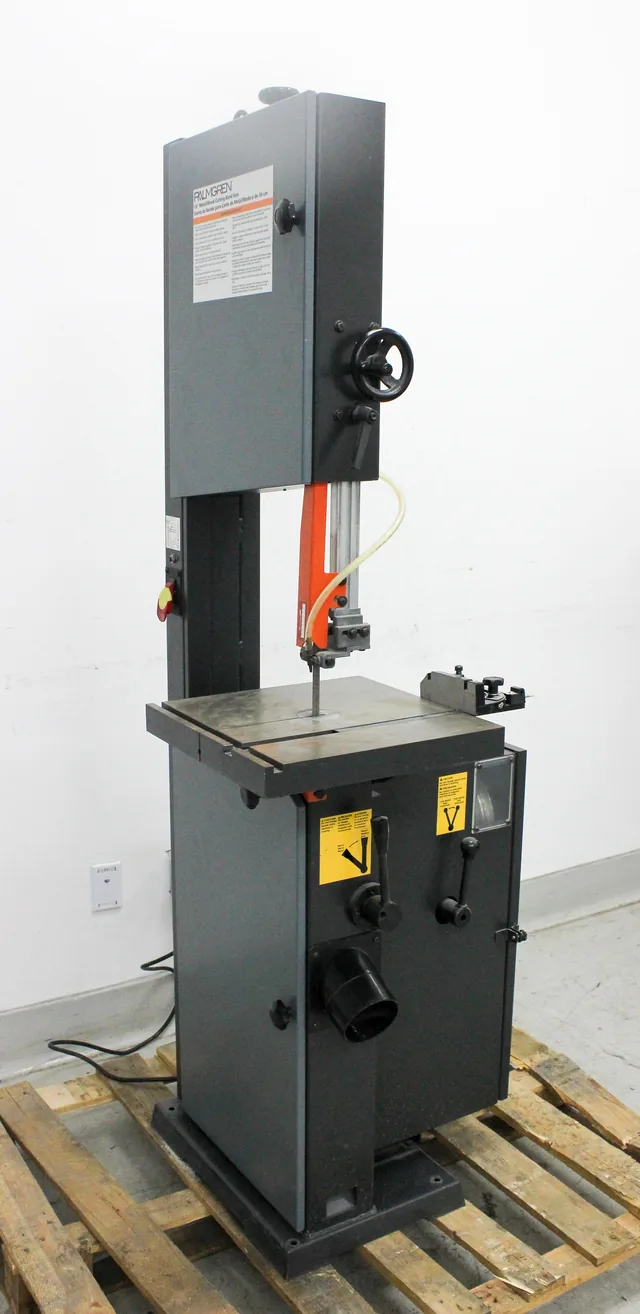

Palmgren 83115 15in Metal Wood Cutting Vertical Band Saw 1 HP 115/230V
Palmgren
Details
-
CategoryMiscellaneous
-
Dimension27.0in x 25.0in x 73.0in
-
Serial40168
-
Shipping TypeFreight
-
Voltage / Hertz115V-230V / 50Hz/60Hz
Description
Palmgren 83115 15" Metal/Wood Cutting Band Saw (Model 83115) is a vertical, manual band saw designed to cut wood, plastics, composites, and ferrous and non-ferrous metals. Built with a unitized welded steel frame, cast blade wheels, and a large cast iron work table that tilts up to 45 degrees, it supports straight cutting, ripping, miter/angle cutting, contour work, and cutting-off or notching. The 15 x 15 in table and 15 in throat capacity make it suitable for a range of shop and light production tasks. Condition Class F (Fair): the unit shows minor cosmetic wear from prior use and will need a replacement drive belt. It powers on and appears to function as expected aside from the belt requirement. Review photos for the exact cosmetic and mechanical condition.
Technician comment
Preowned from a working environment. The Palmgren 83115 powers on and appears to function as expected but will need a replacement drive belt. Unit has minor cosmetic wear from normal use. Please review all photos carefully for additional details regarding condition.
Key Features
- Vertical band saw design for wood and metal cutting
- Unitized welded steel frame construction
- Cast blade wheels for band support
- Large cast iron work table tilts up to 45 degrees
- Adjustable precision bearing blade guides
- Hinged wheel covers and convenient blade tensioning wheel for fast blade changes
- 4 inch dust port for chip and dust extraction
- Rip fence for straight ripping cuts
- Miter gauge for angle and miter cutting
- Chip blower and chip chute for chip management
- Extra wide speed range for varied materials
- Manual cold saw and band saw operation with air coolant
Specifications
- Voltage: 115/230V
- Hertz: 50Hz/60Hz
- Phase: Single
- Motor HP: 1
- Band Saw Type: Vertical
- Sawing Type: Vertical Band Saws
- Blade Length: 114 in
- Blade Width: 1/8 in to 3/4 in
- Blade Thickness: .035 in
- Cutting Capacity: 254 mm / 10 in round
- Cutting Capacity Miter: 45 degrees
- Miter Capacity: 45 degrees
- Table Dimensions: 15 x 15 in
- Throat Capacity: 15 in
- Type of Cutting: Angle/Miter, Contour, Cutting-Off, Pattern/Cutting Out/Notching, Ripping, Single Piece, Stacking, Straight
- Coolant: Air
- Frequency of Use: Intermittent Use, Light Production (Less than 25% of work day)
- Blade Guides: Adjustable precision bearing blade guides
- Blade Tensioning: Blade tensioning wheel
- Dust Port: 4 in
- Overall Dimensions: 25 x 27 x 78 in (L x W x H)
- Product Length: 24 in
- Product Width: 26 in
- Product Height: 76 in
- Product Weight: 346 lb
- Blade Thickness Range: .035 in
- Blade Width Range: 1/8 in to 3/4 in
- Blade Thickness: .035 in
- Blade Length: 114 in
- Country of Origin: TW
- UPC: 726896831152
- Serial Number: 40168
Weight
Imperial: 415.2 Pounds
Metric: 188.33 Kilograms
Shipping Dimensions
Imperial: 32.4 in x 30.0 in x 87.6 in
Metric: 82.3 cm x 76.2 cm x 222.5 cm
