THORlabs MB2424 Optical Breadboard Platform Matte Black Aluminum 0.5/0.75 inch
THORlabs
Details
-
CategoryMiscellaneous
-
Dimension26.0in x 24.0in x 13.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

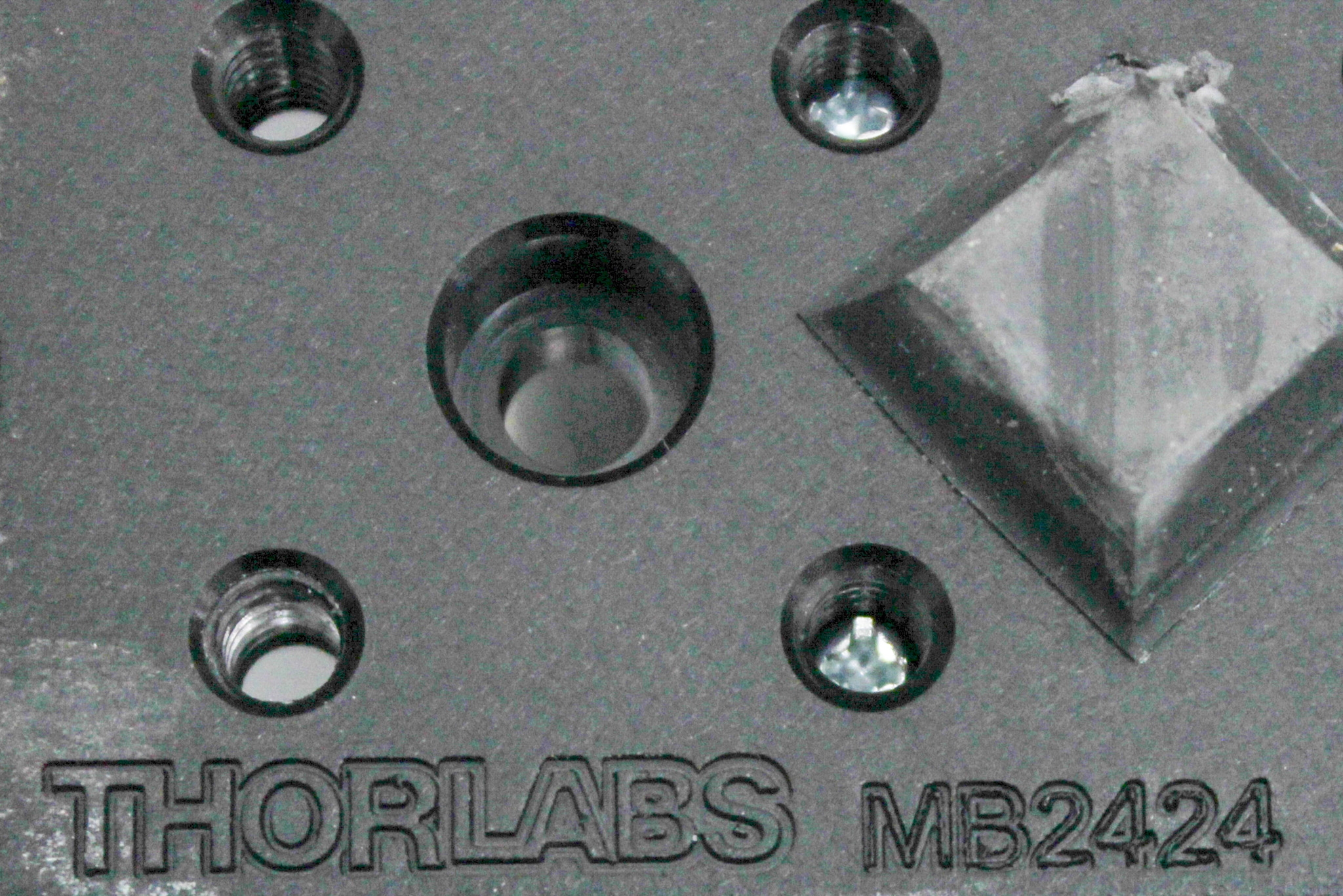

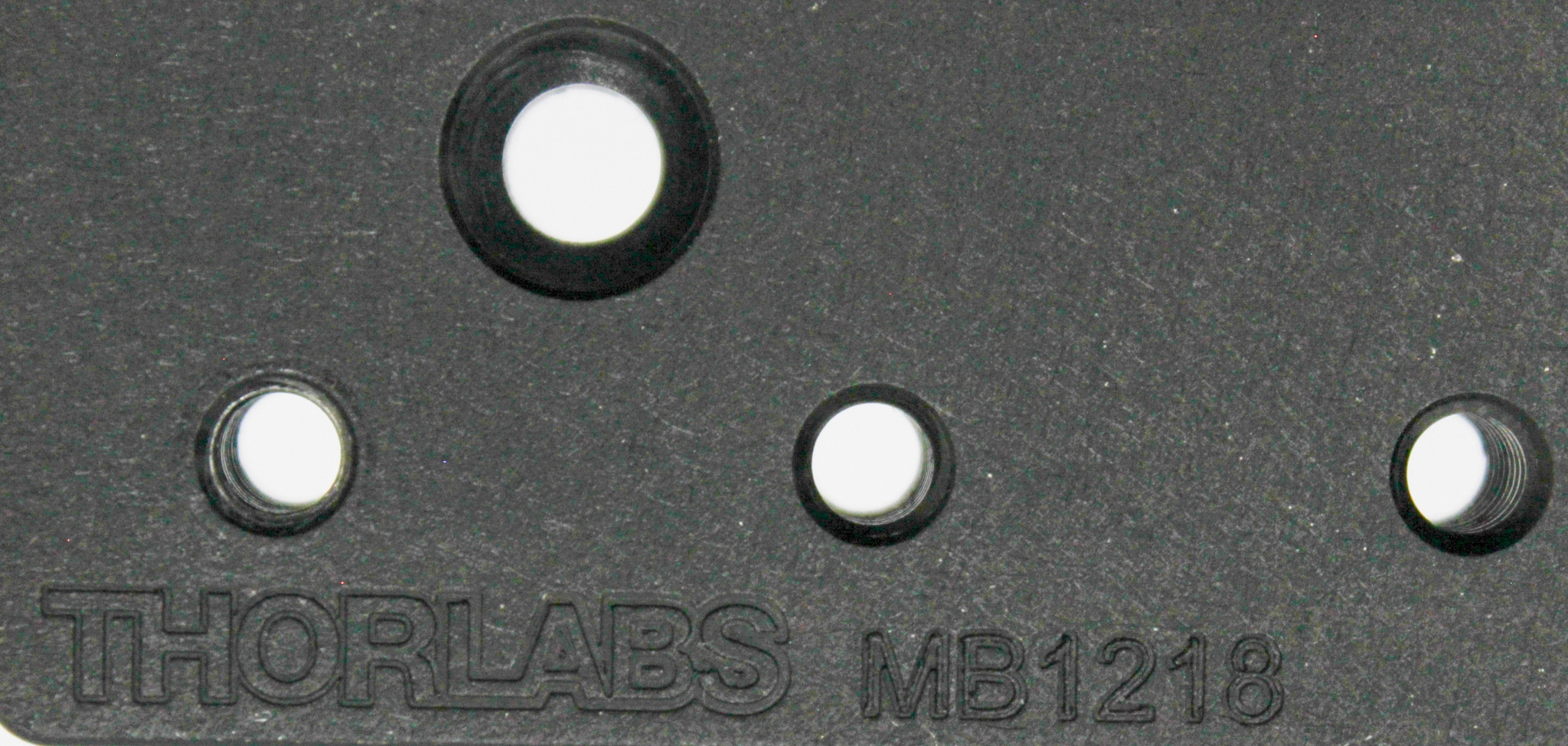

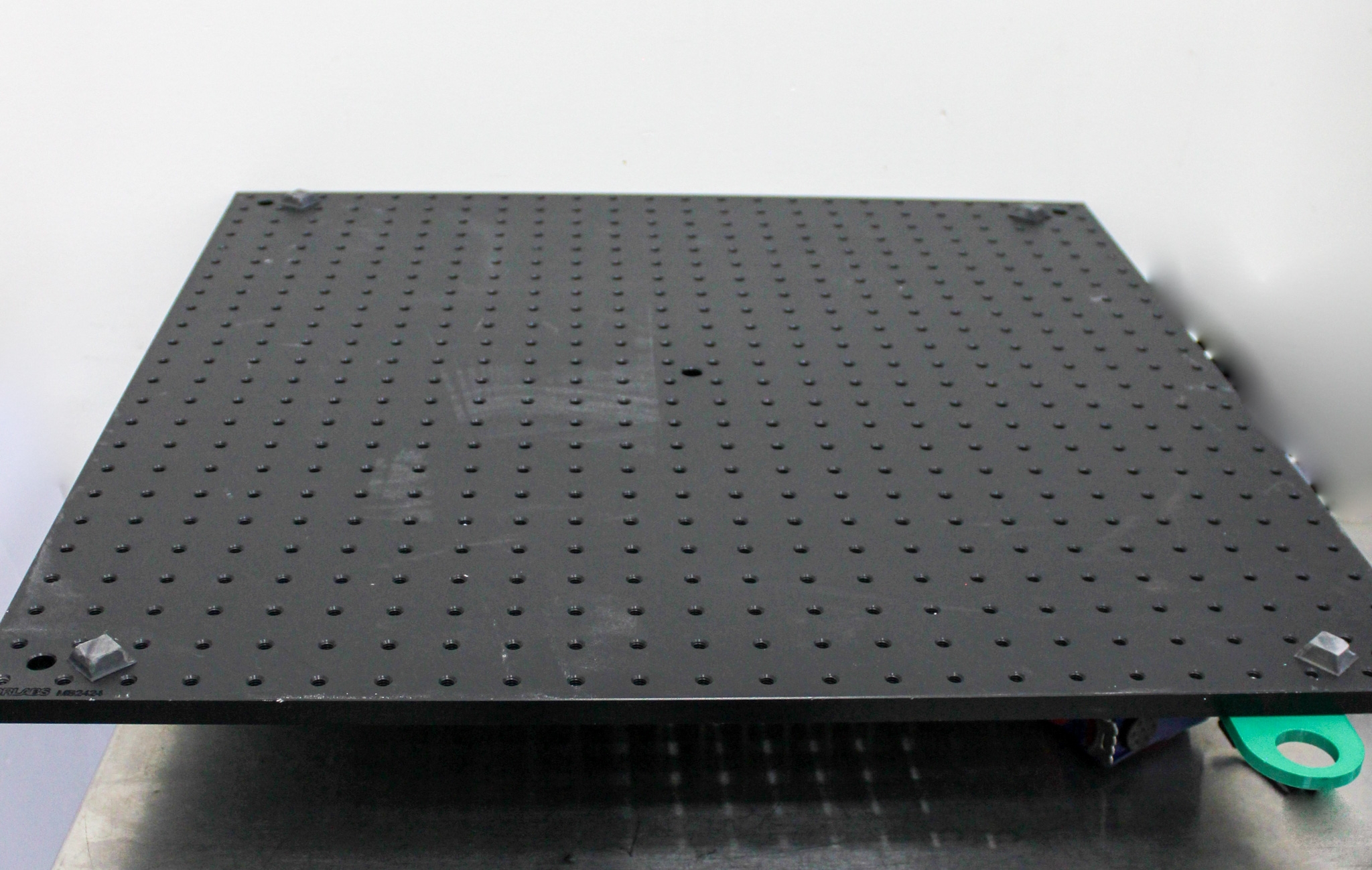

The THORlabs MB2424/MB1218 Optical Breadboard Platform, originating from the USA, is a versatile assembly designed to support the construction of custom optical setups. Crafted from solid aluminum, this used nonmagnetic platform ensures minimal light reflection due to its matte black anodized finish. The board features a comprehensive grid of 1/4"-20 (M6) tapped holes spaced evenly on 1" (25 mm) centers, offering multiple mounting options. Compatible components may be mounted on both sides of the 0.5" or 0.75" thick board, thanks to the through-tapped nature of these holes. The design incorporates a convenient array of counter-bored holes at corners and center to support robust attachment and increased rigidity during heavy-duty applications. Ideal for experimental setups and prototype assembly, this system accentuates functionality and precision for laboratory environments.
Key Features
- Solid aluminum nonmagnetic structure
- Matte black anodized finish minimizes reflections
- Grid pattern of 1/4"-20 (M6) tapped mounting holes
- 0.5" or 0.75" board thickness available
- Versatile through-tapped design for dual-sided component mounting
- Counterbored holes for secure and rigid attachment
Specifications
- Material: Solid Aluminum Plate
- Finish: Matte Black Anodized to reduce reflections
- Breadboard Thickness: Available in 0.5 inch (12.7 mm) or 0.75 inch (19.05 mm)
- Mounting Hole Size and Spacing: 1/4"-20 tapped holes on 1" centers (M6 on 25 mm metric)
- Distance from Edge to First Hole: 0.5 inch (12.5 mm) on all sides
- Number of Counterbored Holes: Four 1/4"-20 located at corners with an option for a center mounting hole on larger boards
- Flatness: 0.006 inch over 1 ft (0.15 mm over 0.09 m²)
Weight
Imperial: 126.0 Pounds
Metric: 57.15 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 28.8 lb x 15.6 lb
Metric: 79.25 cm x 73.15 cm x 39.62 cm
Harmonized Code
901290
Harmonized Code Details
901290 - Parts and accessories for optical instruments. This is appropriate as the item is an integral part for constructing optical assemblies and customizing optical instruments in lab settings.
