SMC MXS 16-20 Air Slide Table Base Precision Assembly Table 120V
1 6
SMC MXS 16-20 Air Slide Table Base Precision Assembly Table 120V
SMC MXS 16-20 Air Slide Table Base Precision Assembly Table 120V
SMC MXS 16-20 Air Slide Table Base Precision Assembly Table 120V
SMC MXS 16-20 Air Slide Table Base Precision Assembly Table 120V
SMC MXS 16-20 Air Slide Table Base Precision Assembly Table 120V
SMC MXS 16-20 Air Slide Table Base Precision Assembly Table 120V

SMC MXS 16-20 Air Slide Table Base Precision Assembly Table 120V

sku: 3375795
1 In Stock

N/A

SMC
US • REUZEit West Coast US - R
30-Day Warranty On Part
$199.00
$500.00
-60% OFF
Make Offer Enquiry Here
Add to cart Download flyer

Details

  • Category
    Miscellaneous
  • Dimension
    16.0in x 11.0in x 9.0in
  • Serial
    N/A
  • Shipping Type
    FedEx Ground
  • Manufacturing
    Does Not Apply
  • Voltage / Hertz
    120V / Does Not Apply

Description

Product Information

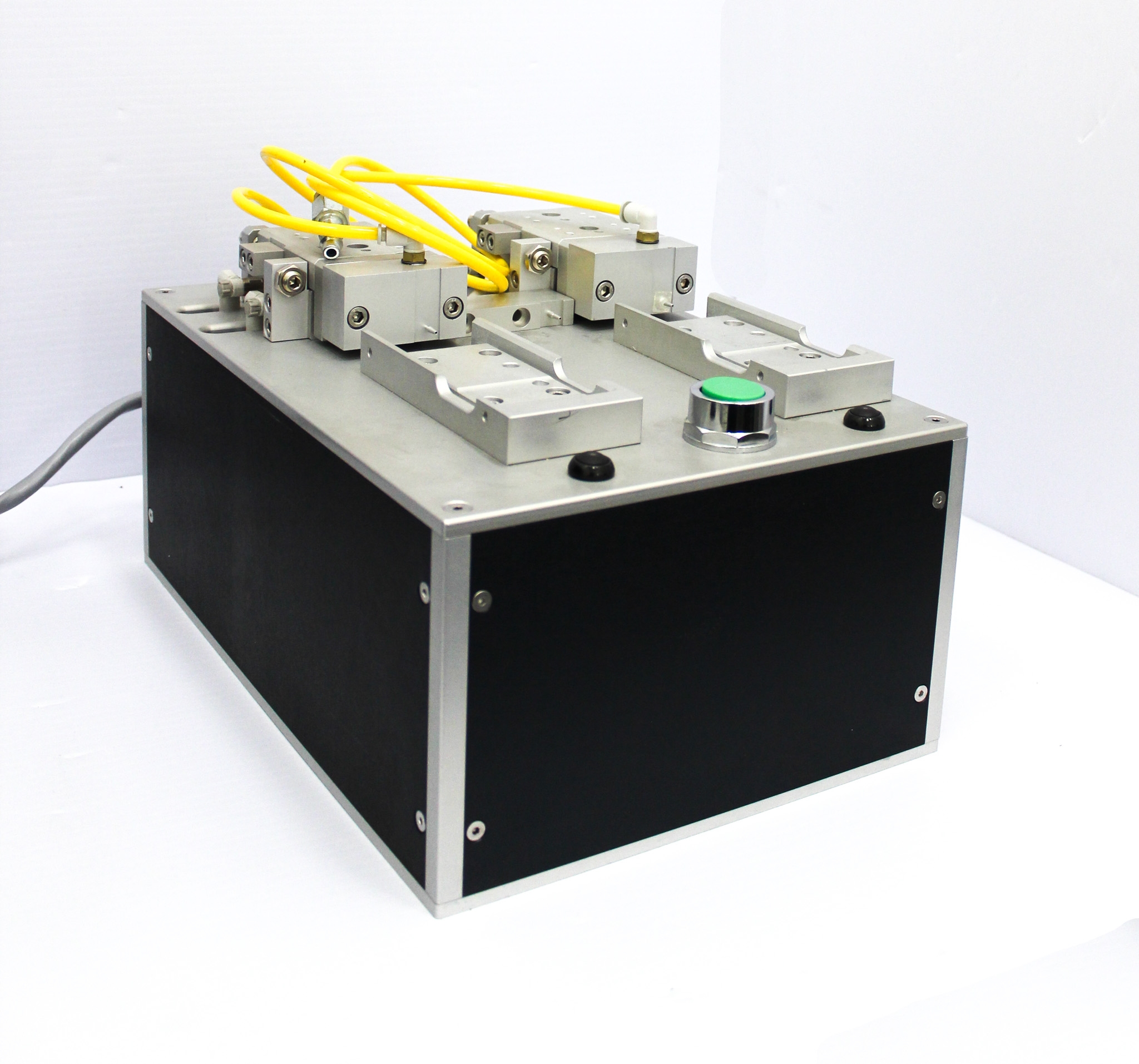

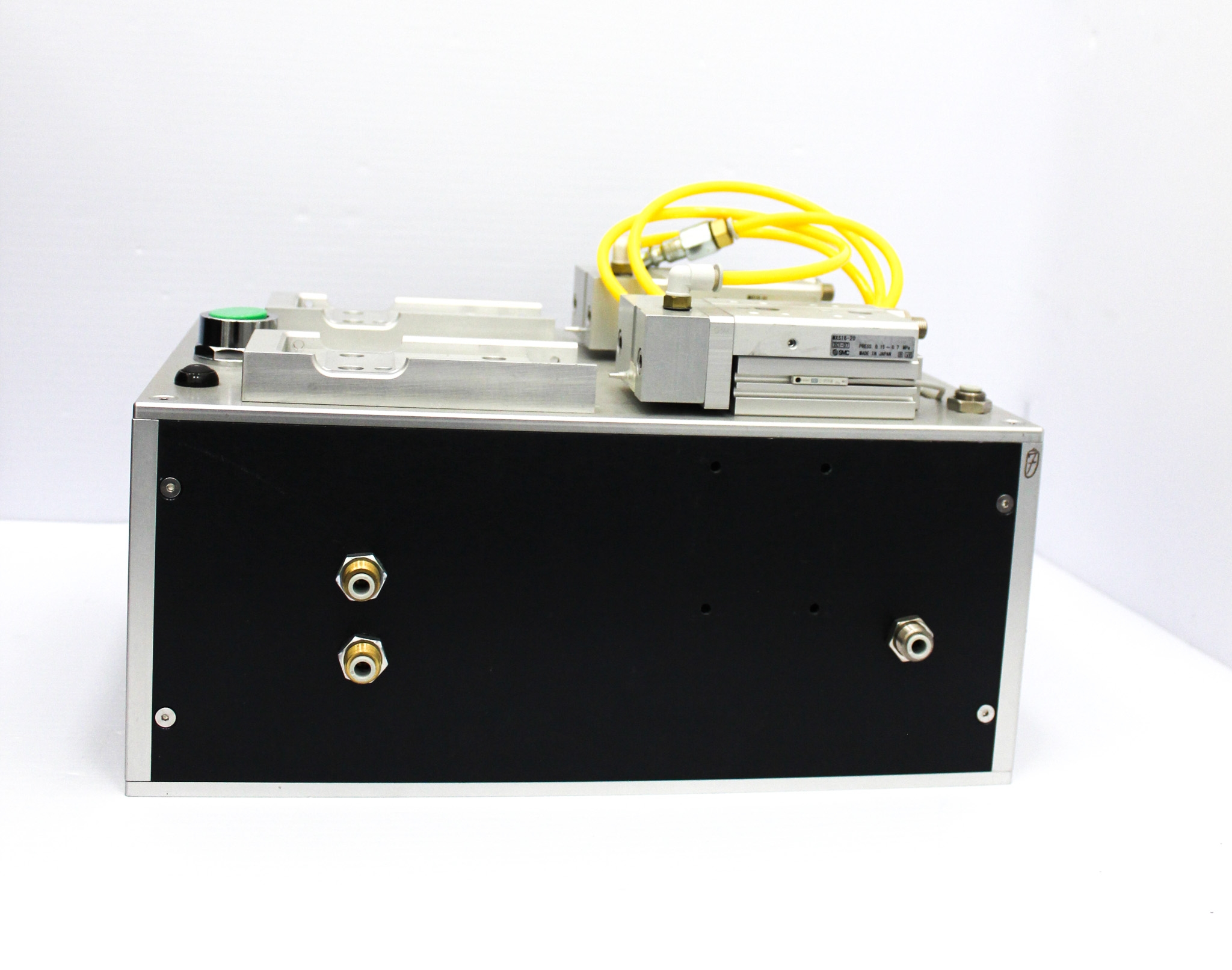

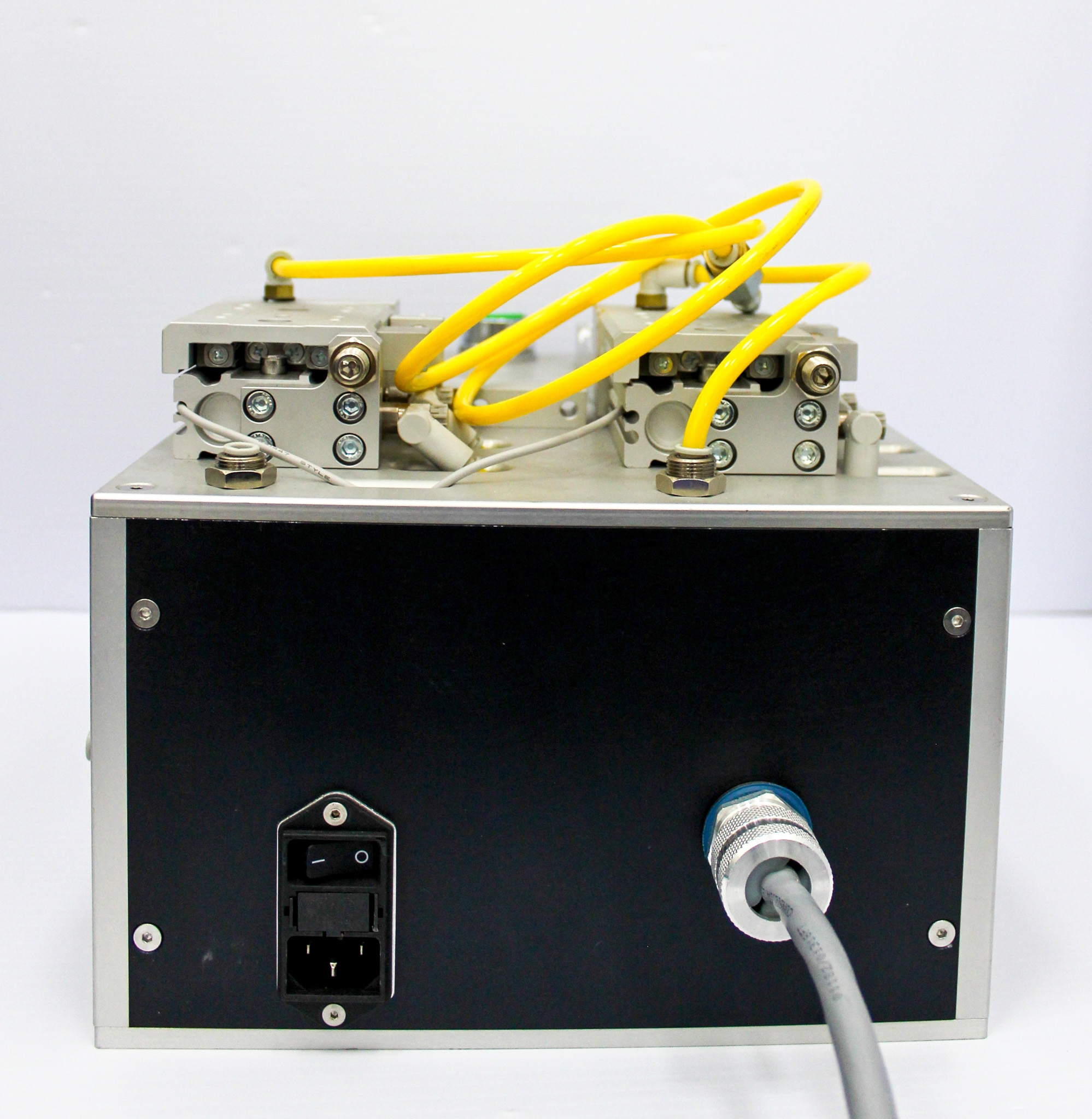

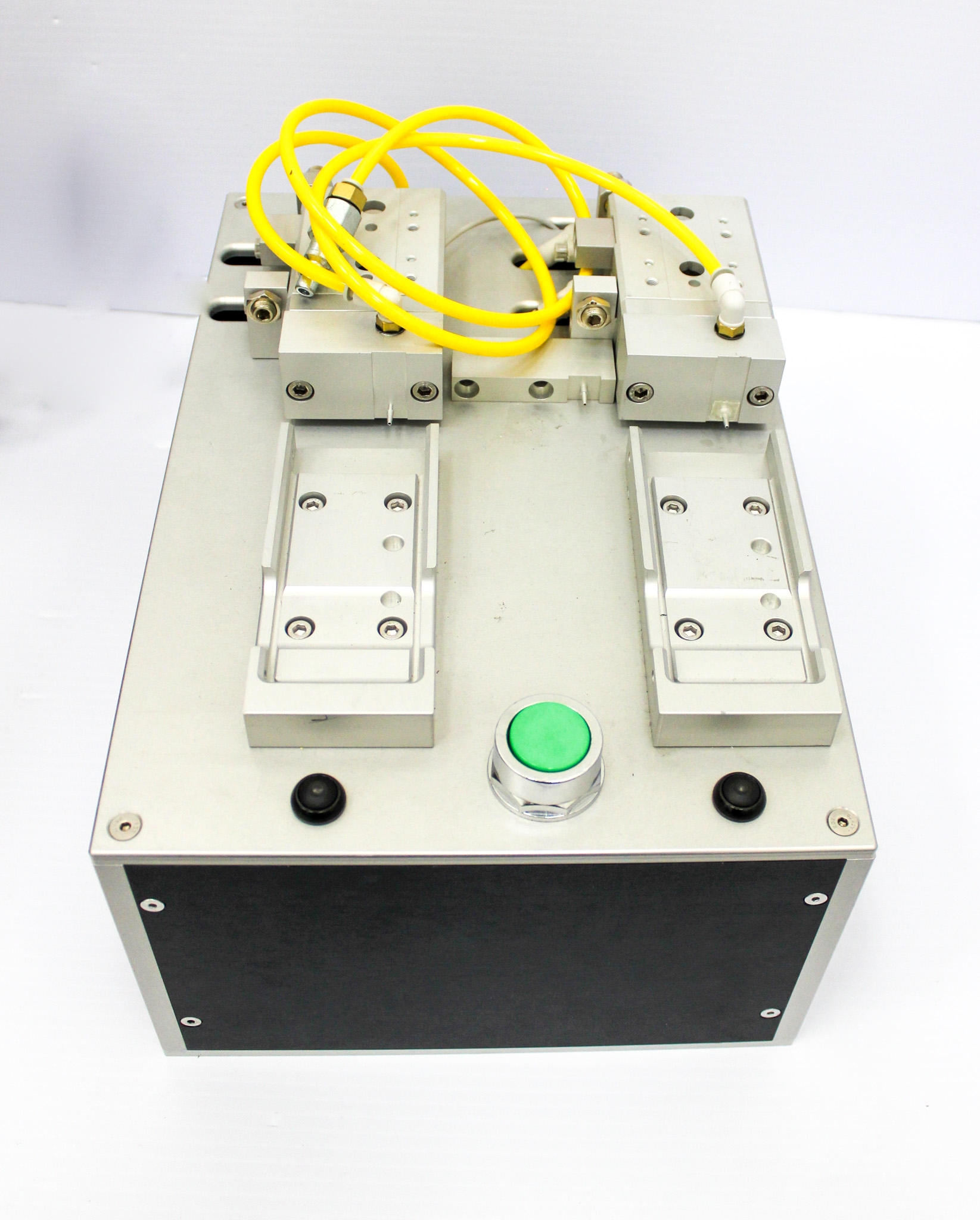

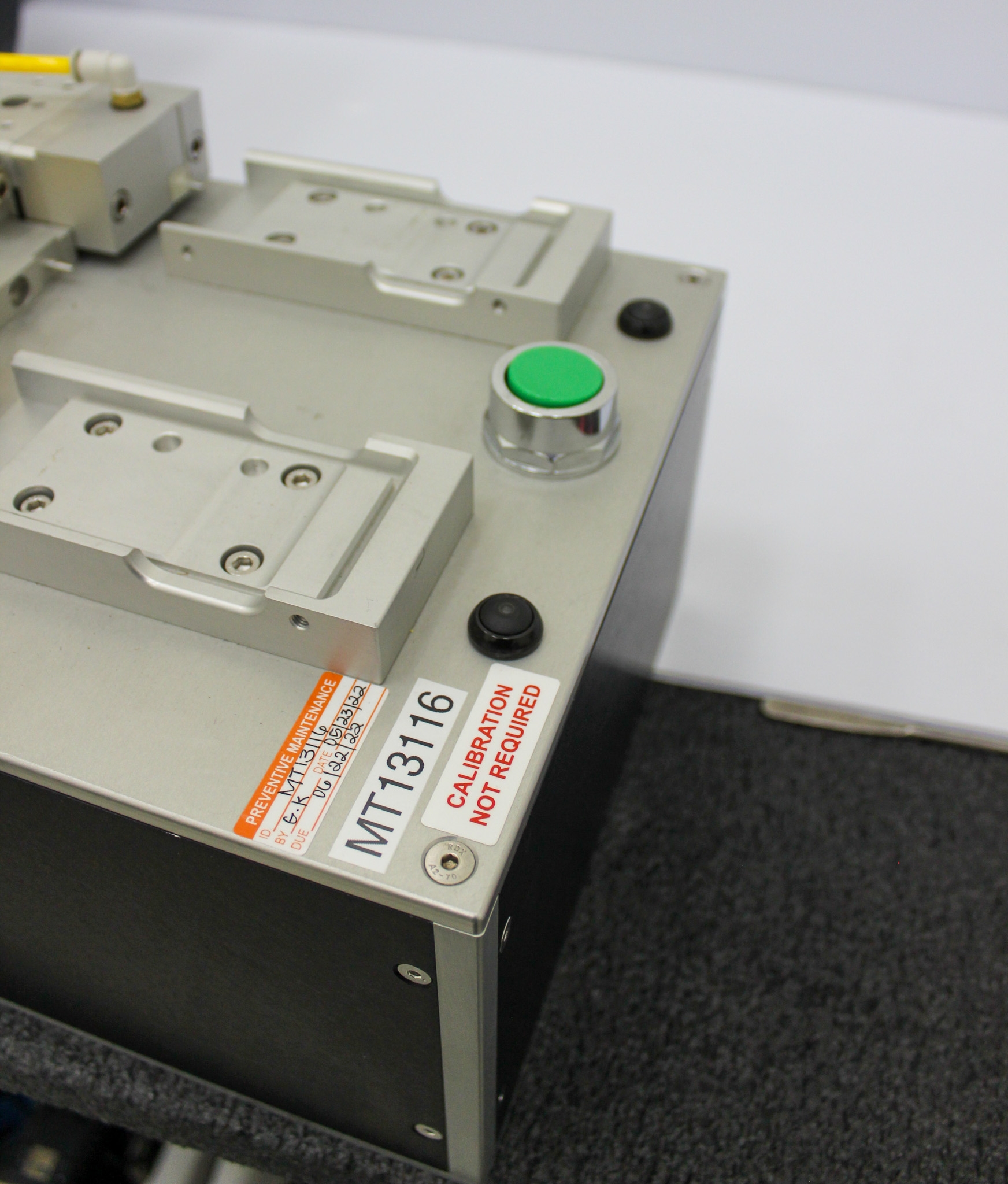

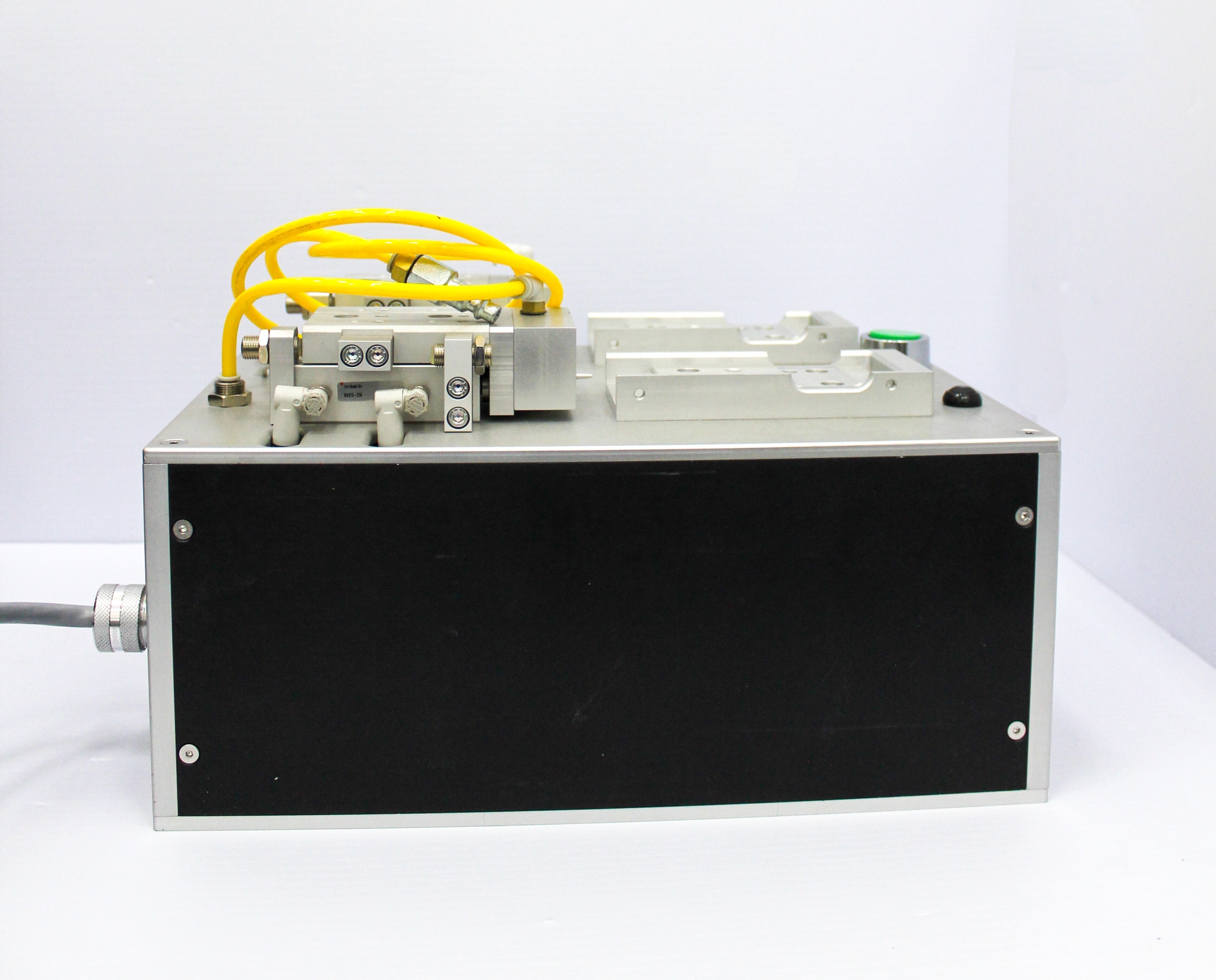

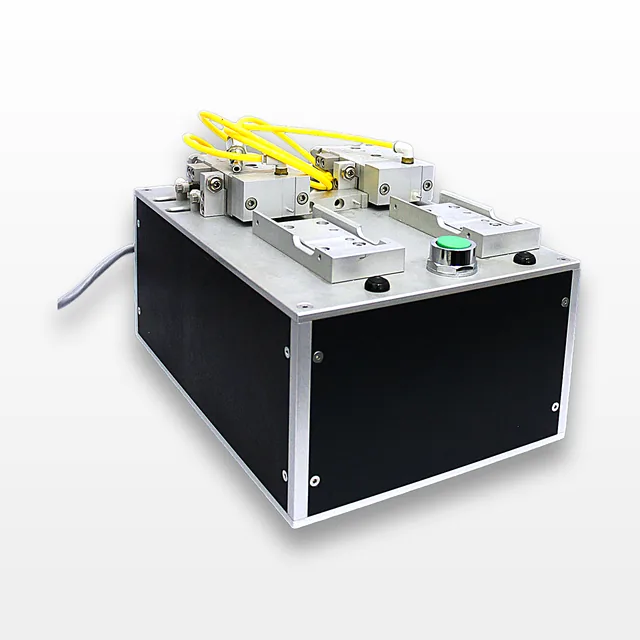

The SMC MXS 16-20 Custom Air Slide Table Base is a versatile component ideal for precision assembly tasks. This unit, which integrates a compact work table and air cylinder, features a dual-rod structure for enhanced stability. Manufactured in the United States, it showcases the craftsmanship of SMC components combined with MISUMI's high-quality parts. The table is configured for both horizontal and vertical applications, offering improved mounting repeatability for workpieces. Functionally tested to the extent possible, the unit powers on and passes basic evaluation tests despite minor cosmetic wear. It operates on a 120V power supply and boasts features such as a rolling guide cross roller and an anodized aluminum alloy surface, making it suitable for various general-purpose environments.


Key Features
  • SMC MXS 16-20 model
  • Integrated air slide table
  • Compact work table and air cylinder
  • Dual-rod structure for stability
  • Suitable for precision assembly
  • Operates at 120V, 50/60Hz
  • Anodized aluminum alloy table surface

Specifications
  • Max Load Mass (Horizontal Mounting): 1~4.9 kg
  • Cylinder Inner Diameter: 16 mm
  • Stroke: 20 mm
  • Table Size Length: 76 mm
  • Table Size Height: 40 mm
  • Guide: Rolling Guide Cross Roller
  • Power Voltage: 120V, 50/60Hz
  • Table Surface Treatment: Hard Anodize
  • Environment: General Purpose
  • Maximum Load: 4 kg

Weight

Imperial: 24.0 Pounds

Metric: 10.89 Kilograms


Shipping Dimensions

Imperial: 19.2 lb x 13.2 lb x 10.8 lb

Metric: 48.77 cm x 33.53 cm x 27.43 cm


Harmonized Code

903290


Harmonized Code Details

HS Code 903290 - Parts and accessories for the measurement or checking instruments, appliance, or machines specified in heading 9032. The code fits due to the unit's precision assembly and measurement capabilities.
