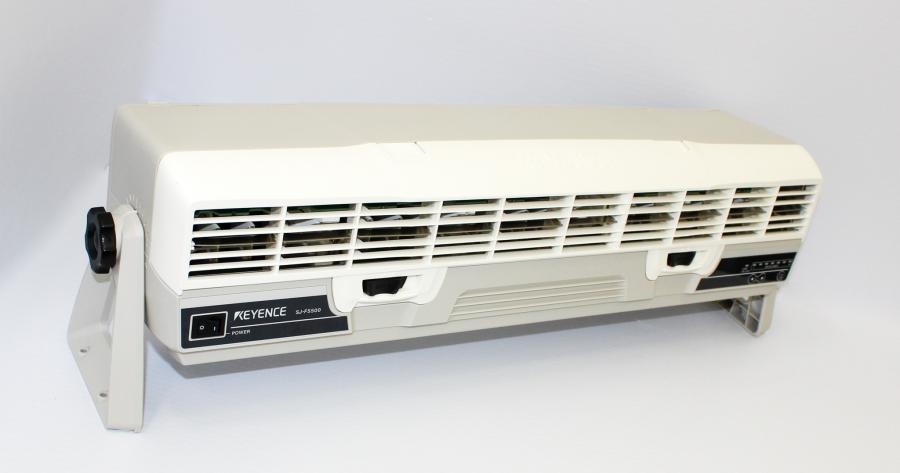

Keyence SJ-F5500 Static Eliminator Blower High-Speed Static Control
Keyence
Details
-
CategoryProduction / Manufacturing
-
Dimension25.0in x 6.0in x 7.0in
-
Serial8A910071
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Keyence SJ-F5500 Static Eliminator Blower, designed and manufactured in the United States by Keyence, is a high-speed and high-precision system specialized for static electricity management. Engineered to prevent dust adhesion and electrostatic discharge damage, this device plays a pivotal role in various industrial and laboratory settings where static control is crucial. Conditioned as 'very good', the unit has been thoroughly tested to ensure its functionality and boasts slight cosmetic blemishes from regular use. The SJ-F5500 utilizes a Pulse AC method with a remarkable 7000V applied voltage, achieving static elimination in approximately 0.6 seconds, and works efficiently within an operating distance starting at 50mm. It features Keyence's I.C.C. ion balance control method with a 5V ion balance, and its peak operating wind speed reaches 5.7 m/s. Designed for variable environments, it operates across 0 to +50°C and 35 to 65% relative humidity, ensuring versatility across applications. See the accompanying photos for further details as this reliable unit does not include a computer and software.
Key Features
- High-speed and high-precision static control
- 7000V applied voltage using Pulse AC method
- I.C.C. ion balance control
- Static elimination in approximately 0.6 seconds
- Maximum wind speed of 5.7 m/s
- Temperature range from 0 to +50°C
- Relative humidity range from 35 to 65% RH
Specifications
- Model: SJ-F5500
- Voltage application method: Pulse AC method
- Applied voltage: 7000V
- Ion balance control method: I.C.C.
- Ion balance: 5V
- Static elimination time: Approx. 0.6 sec
- Operating distance: 50 mm min.
- Maximum wind speed: 5.7 m/s
- Ambient temperature: 0 to +50°C
- Relative humidity: 35 to 65% RH
- Maximum air volume: 10.0 m3/min
- Ozone density: 0.005 ppm max.
- Power source input type: AC cord input
- Power voltage: 100 to 240 VAC, 50/60 Hz
- Power consumption: 90 VA
- Pollution Degree: 2
Weight
Imperial: 12.0 Pounds
Metric: 5.44 Kilograms
Shipping Dimensions
Imperial: 30.0 lb x 7.2 lb x 8.4 lb
Metric: 76.2 cm x 18.29 cm x 21.34 cm
Harmonized Code
8543.70.99
Harmonized Code Details
8543.70.99 is for electrical machines and apparatus, having individual functions, not specified or included elsewhere in this chapter. This is appropriate due to the SJ-F5500's specialized function in static electricity removal.
