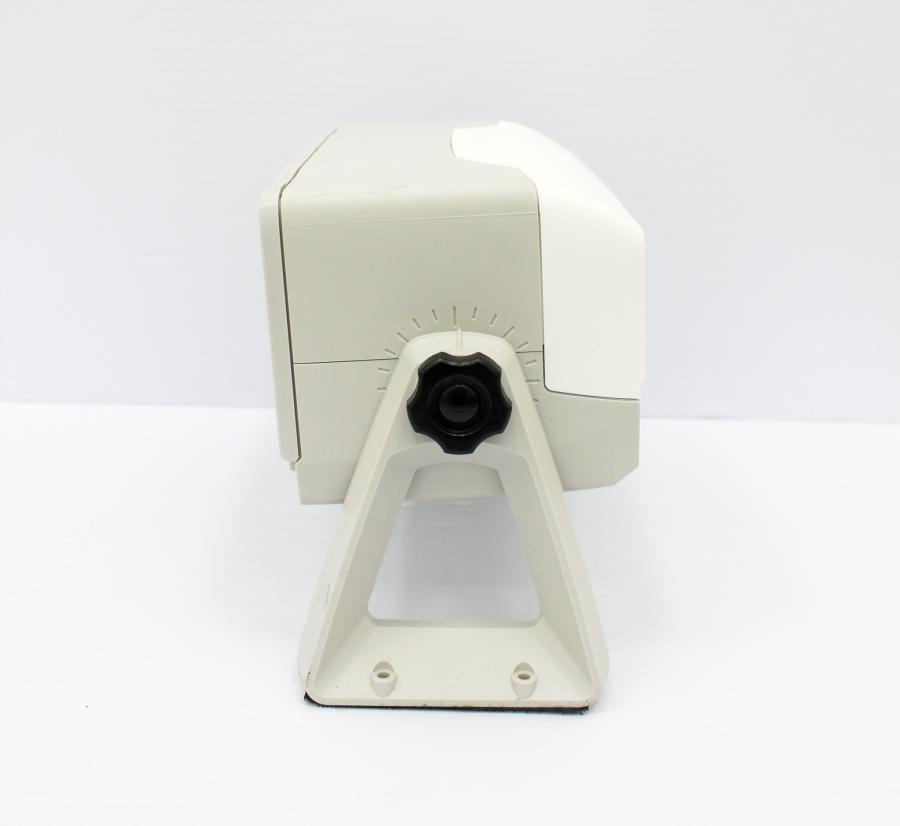

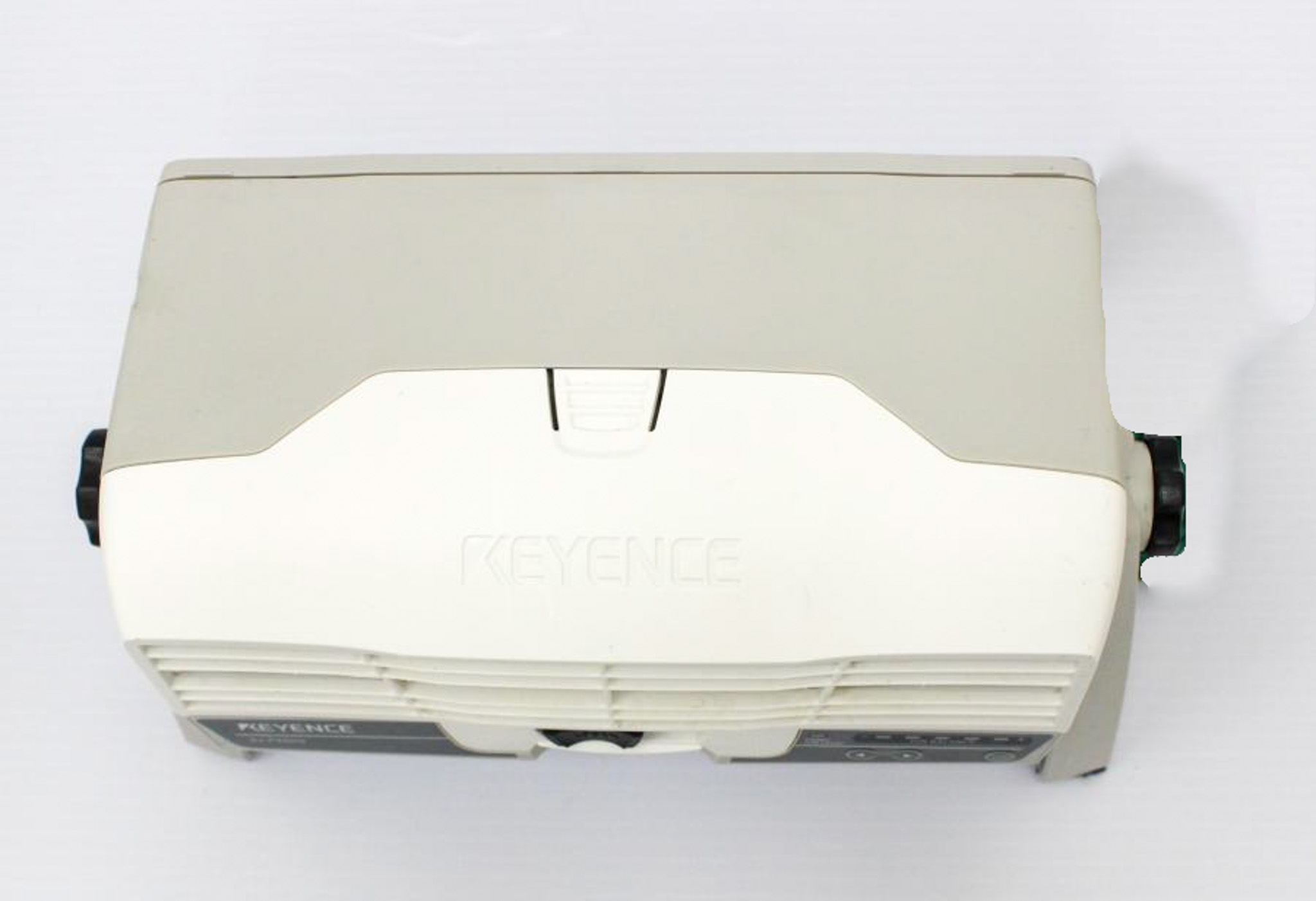

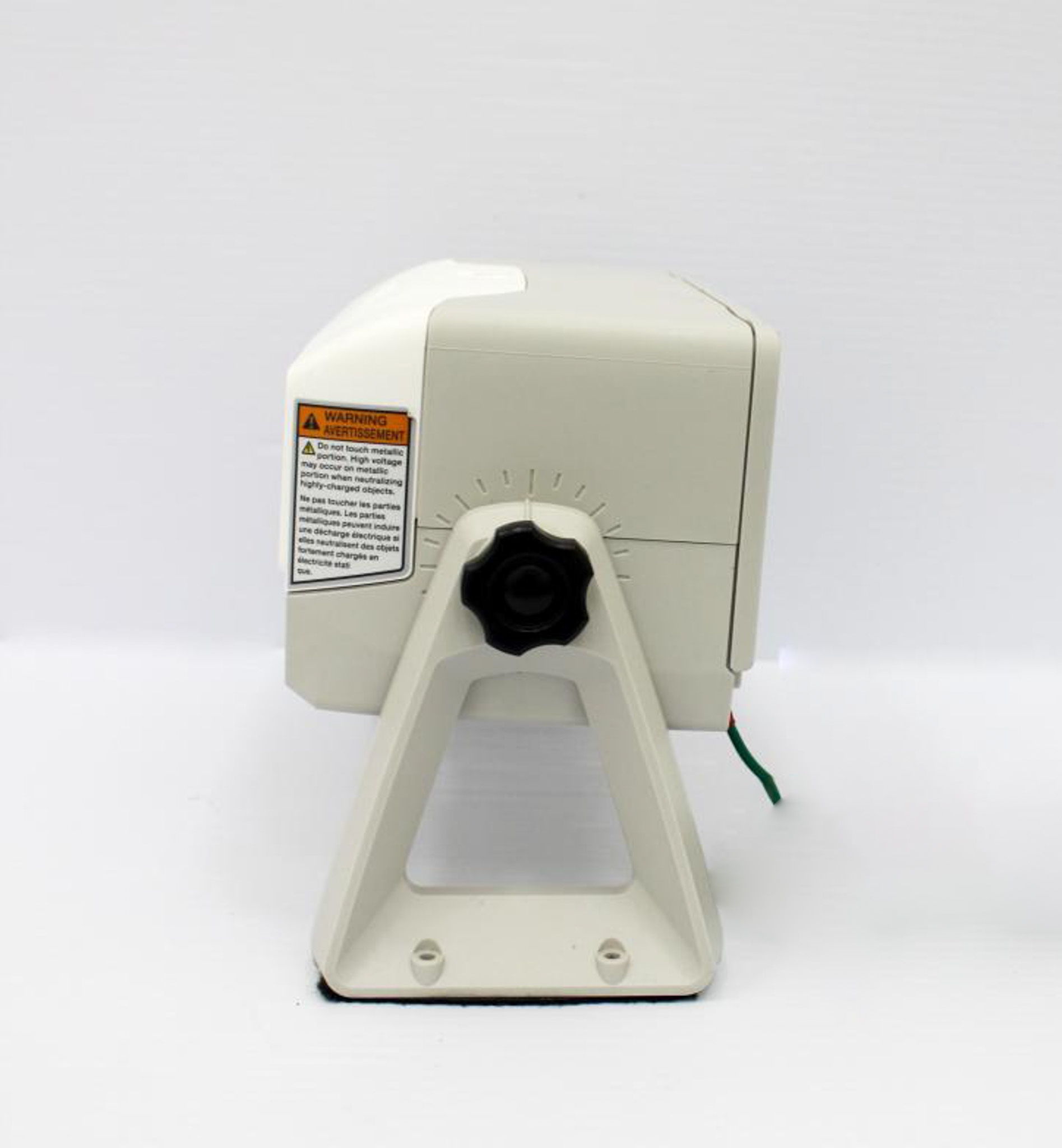

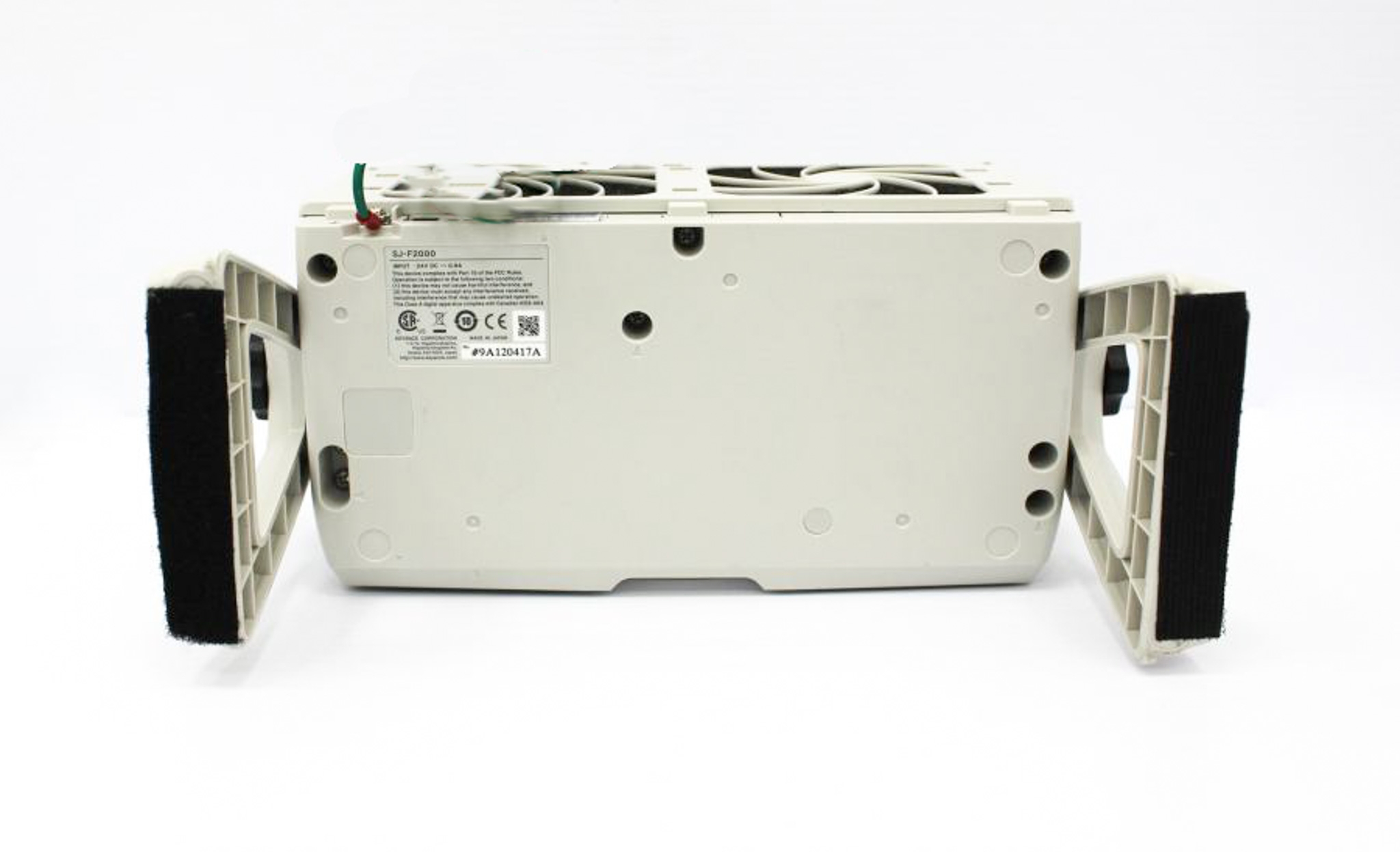

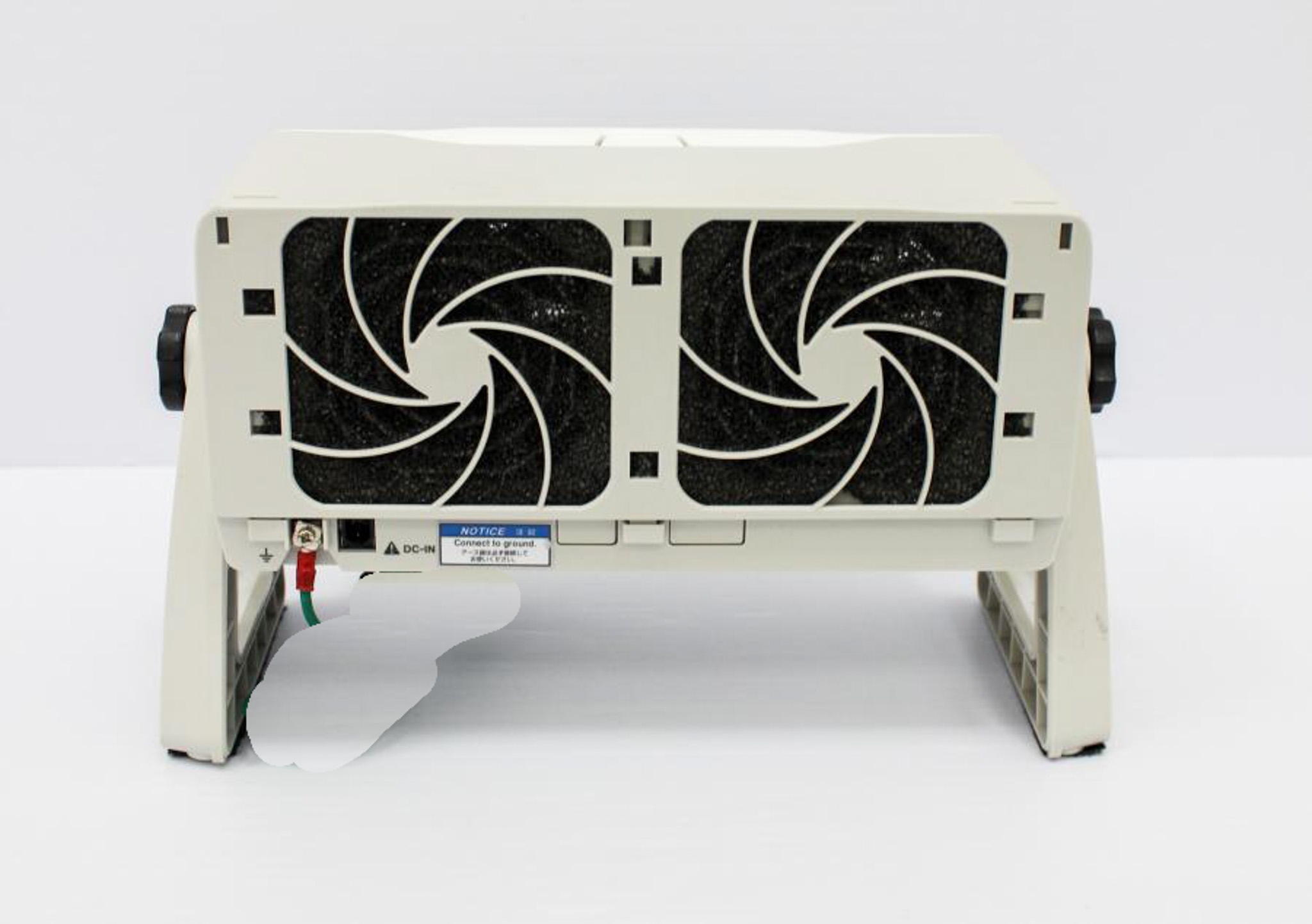

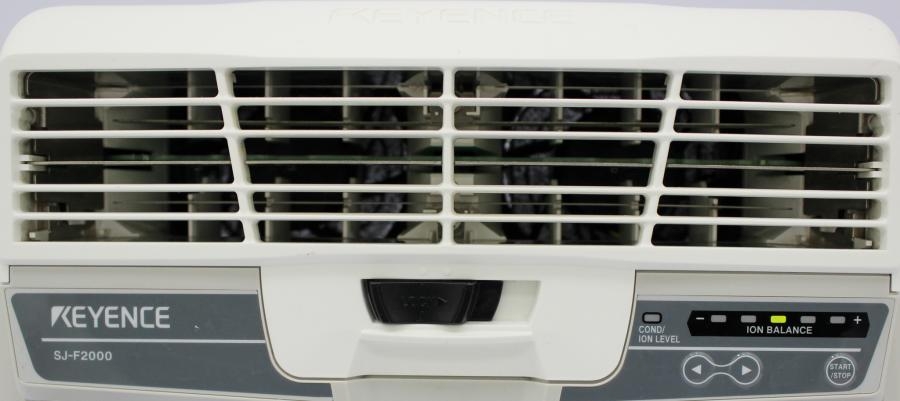

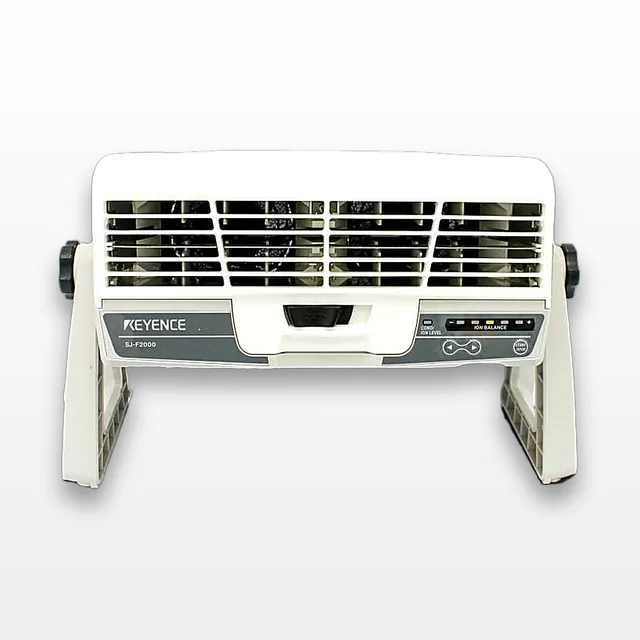

Keyence SJ-F2000 Static Elimination Blower, High-Speed, Precision
Keyence
Details
-
CategoryMiscellaneous
-
Dimension13.0in x 5.0in x 8.0in
-

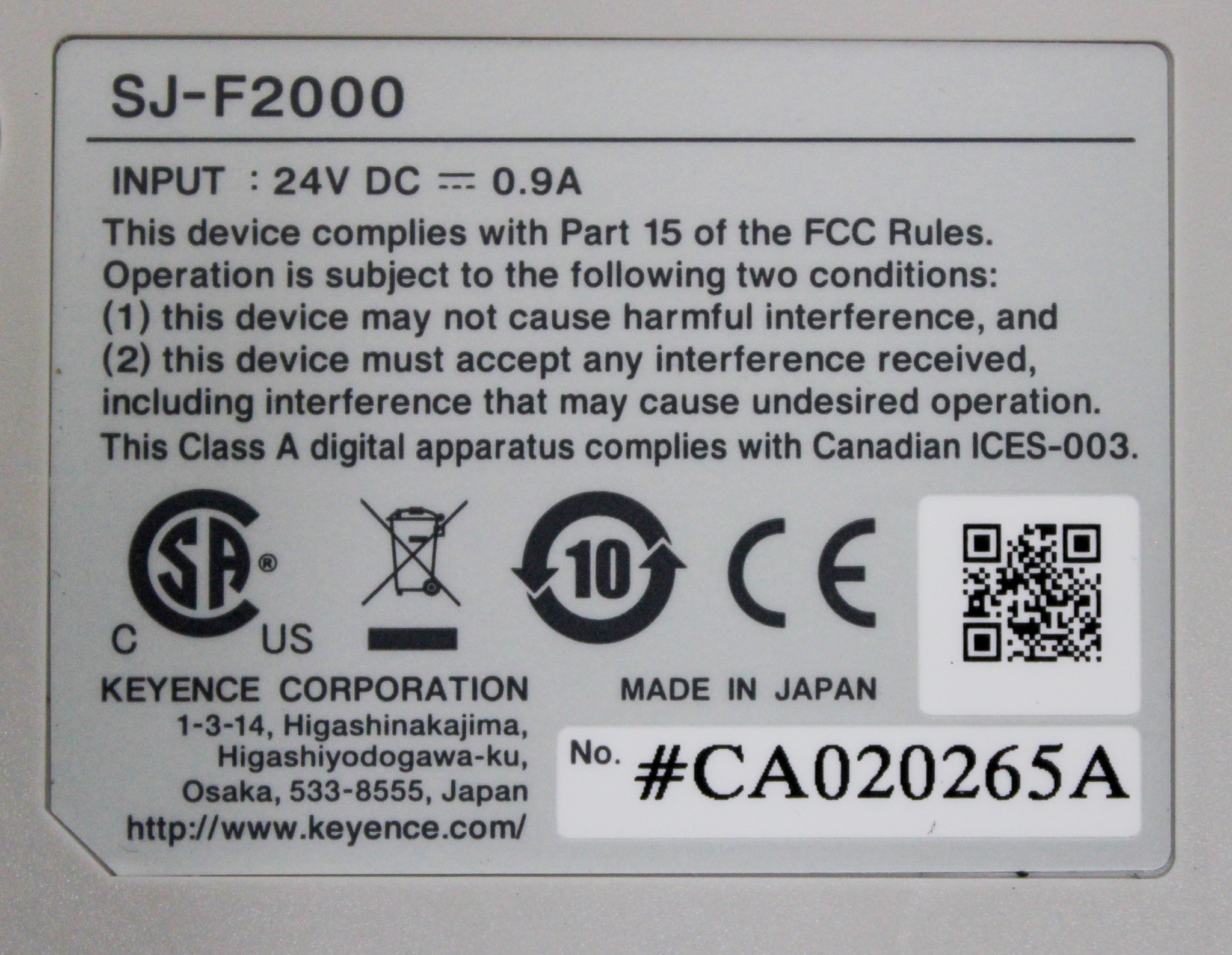

SerialCA020265A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Keyence SJ-F2000 Static Elimination Blower is a high-speed and high-precision unit designed for efficient static elimination in wide-area applications. With an ion balance of ±5 V and a rapid static elimination time of approximately 1 second, this device operates effectively over a distance of 50mm. Despite its use, this blower is in very good condition, exhibiting only slight cosmetic blemishes without impacting its functionality. It supports a maximum air volume of 2.5m³/min (88.29 CFM) and is designed for optimal use in environments with relative humidity between 35% and 65%. The unit's voltage application follows the Pulse AC method with an applied voltage of 7000V, ensuring efficient static discharge. This used unit includes a power cord and functions as intended, making it a reliable choice for environments requiring precise static control.
Key Features
- High-speed static elimination
- High-precision ion balance ±5 V
- Rapid static elimination time of approx. 1 second
- Operates at a distance of 50mm (1.97")
- Maximum air volume of 2.5m³/min (88.29 CFM)
- Voltage application method: Pulse AC
- Applied voltage: 7000V
- Current consumption: 0.9 A
- Operates at ambient temperatures from 0 to +50°C
Specifications
- Model: SJ-F2000
- Type: 300 mm (11.81") wide type
- Voltage Application Method: Pulse AC
- Applied Voltage: 7000V
- Ion Balance Control: I.C.C.

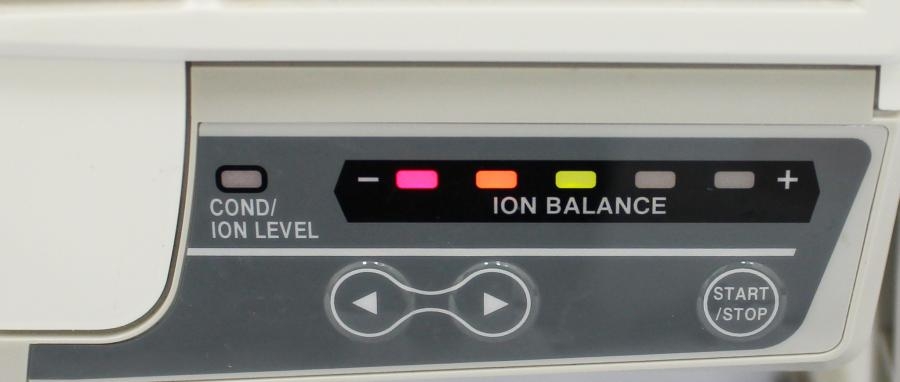

- Ion Balance: ±5 V
- Static Elimination Time: Approx. 1 sec
- Operating Distance: 50 mm (1.97")
- Maximum Wind Speed: 3.5 m/s (11.48 ft/s)
- Maximum Air Volume: 2.5 m³/min (88.29 CFM)
- Ozone Density: 0.005 ppm max.
- Power Source Input Type: KEYENCE AC Adapter or DC Option
- Power Voltage: 24 VDC ±10%
- Current Consumption: 0.9 A
- Pollution Degree: 2
- Operating Temperature: 0 to +50°C (32 to 122°F)
- Relative Humidity: 35 to 65% RH
Weight
Imperial: 6.0 Pounds
Metric: 2.72 Kilograms
Shipping Dimensions
Imperial: 15.6 lb x 6.0 lb x 9.6 lb
Metric: 39.62 cm x 15.24 cm x 24.38 cm
Harmonized Code
841490
Harmonized Code Details
841490 - Parts of vacuum pumps, compressors, and fans. This code applies as the item is related to blower units, which are categorized under fans and similar machinery parts.
