MesaBiotech 210280-2/ -3 Flexible Circuit Board System Domed Switches
MesaBiotech
Details
-
CategoryMiscellaneous
-
Dimension11.0in x 10.0in x 10.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

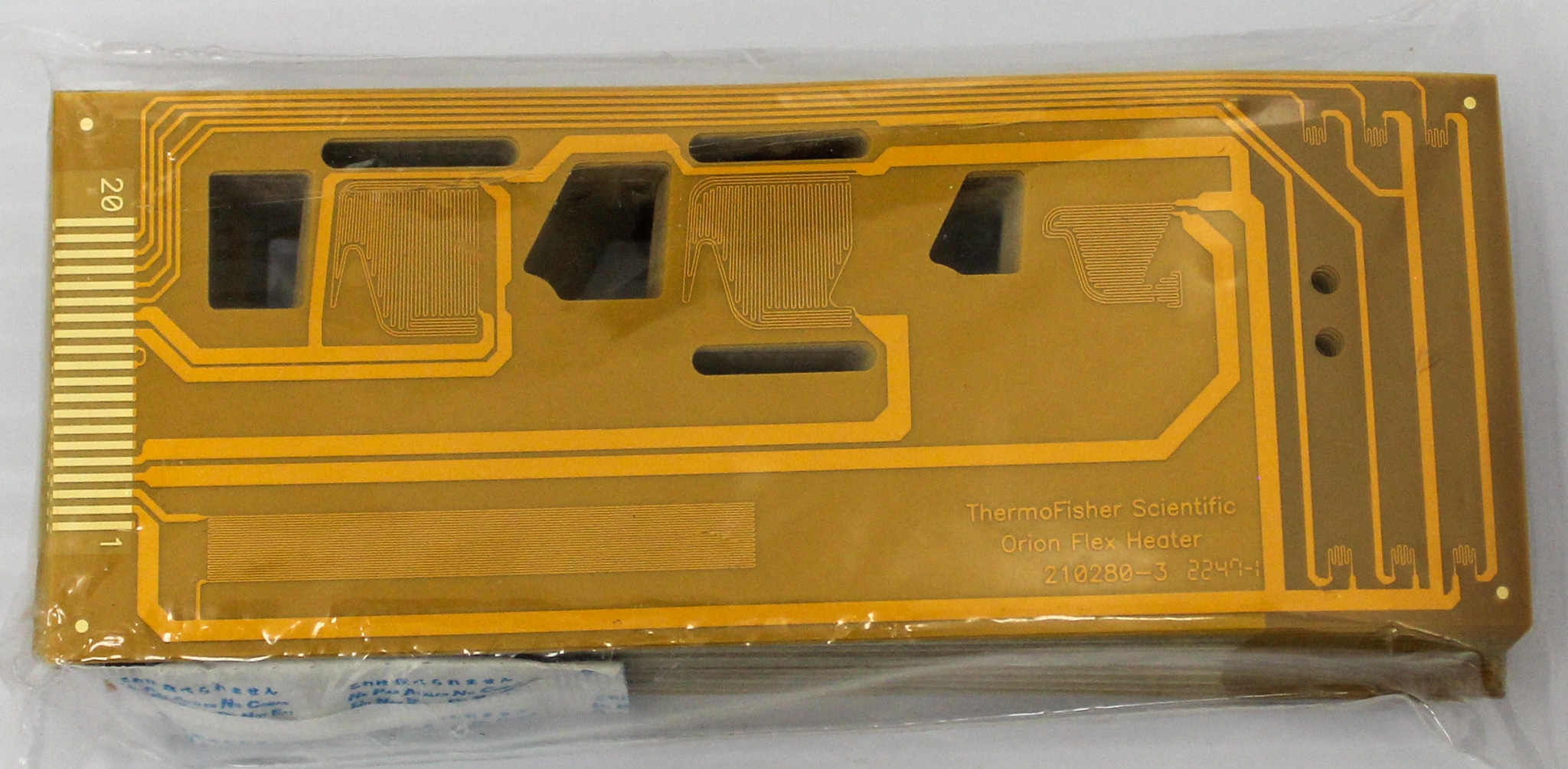

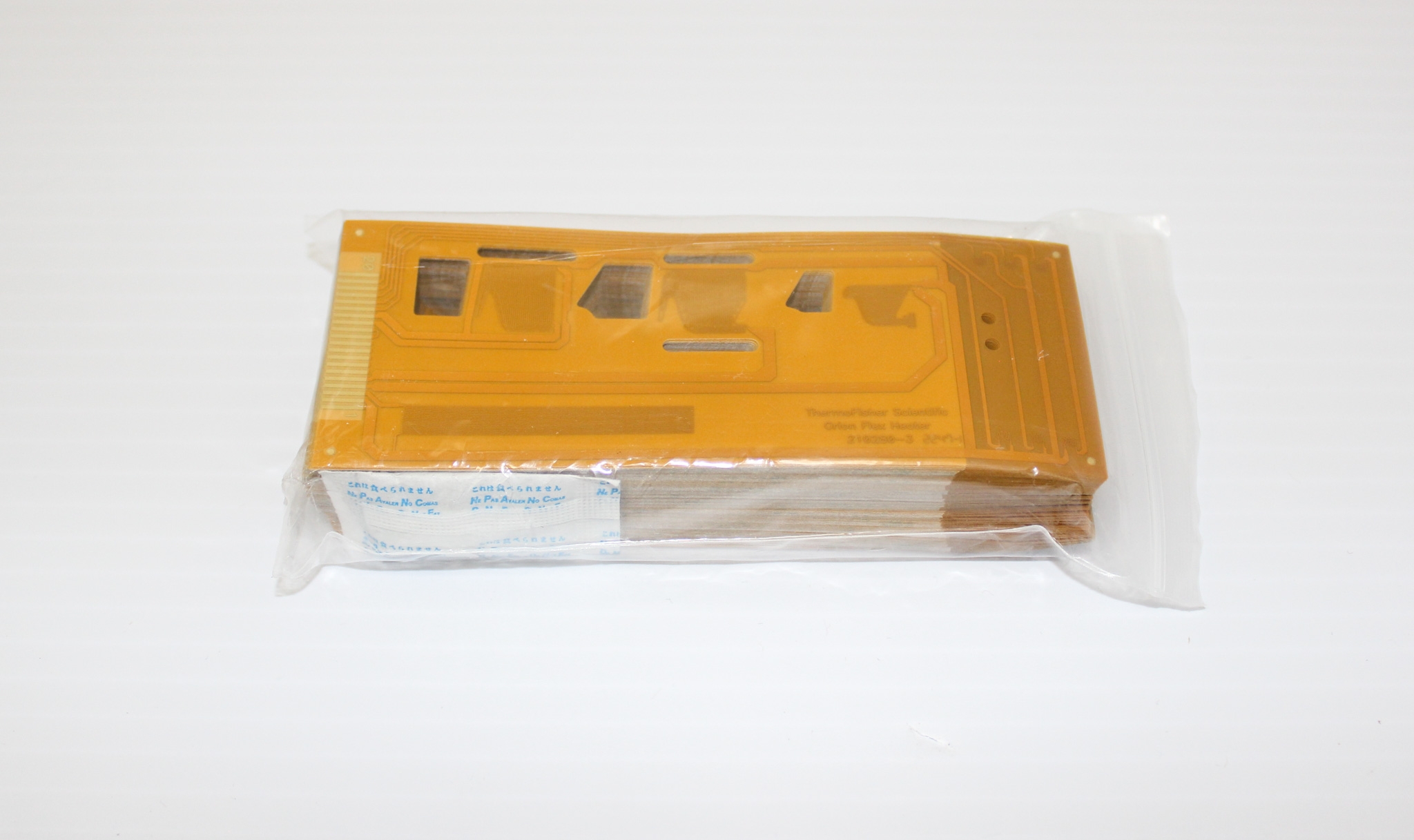

The MesaBiotech 210280-2/ -3 is a box containing high-quality flexible PCB circuit boards designed for optimizing space and reducing weight in intricate electronic devices. This turnkey system is fully functional and ready for use, featuring integrated dome switches that provide tactile feedback for momentary contacts in various applications. These new flexible circuit boards are essential for seamless integration, eliminating the need for additional connectors, thus cutting assembly costs. Surface finishes include Nickel Plating, Hard Gold, and ENIG, each offering distinct cycle life and soldering compatibility. Ideal for user interfaces requiring reliable performance over numerous cycles.
Key Features
- Turnkey system, fully functional
- New flexible PCB circuit boards
- Integrated dome switches for tactile feedback
- Eliminates additional connectors
- Suitable for user interfaces and handheld devices
Specifications
- Model: 210280-2/ -3
- Condition: New other (see details)
- Country of Origin: United States
- Nickel Plating: 50-200 uIN for <1 million cycles, 200-500 uIN for >1 million cycles
- Hard Gold: 15-30 uIN for <1 million cycles, 30-50 uIN for >1 million cycles
- ENIG: 100-200 uIN Nickel + 3-5 uIN Gold
- Compatible with ZIF connectors
- Does not require additional connectors or cabling
- Weight: 12 lbs
Weight
Imperial: 14.4 Pounds
Metric: 6.53 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 12.0 lb x 12.0 lb
Metric: 33.53 cm x 30.48 cm x 30.48 cm
Harmonized Code
8534.00.00
Harmonized Code Details
Harmonized code 8534.00.00 covers printed circuits for assembly into other devices and is applicable as the flexible circuit boards fit within this product classification.
