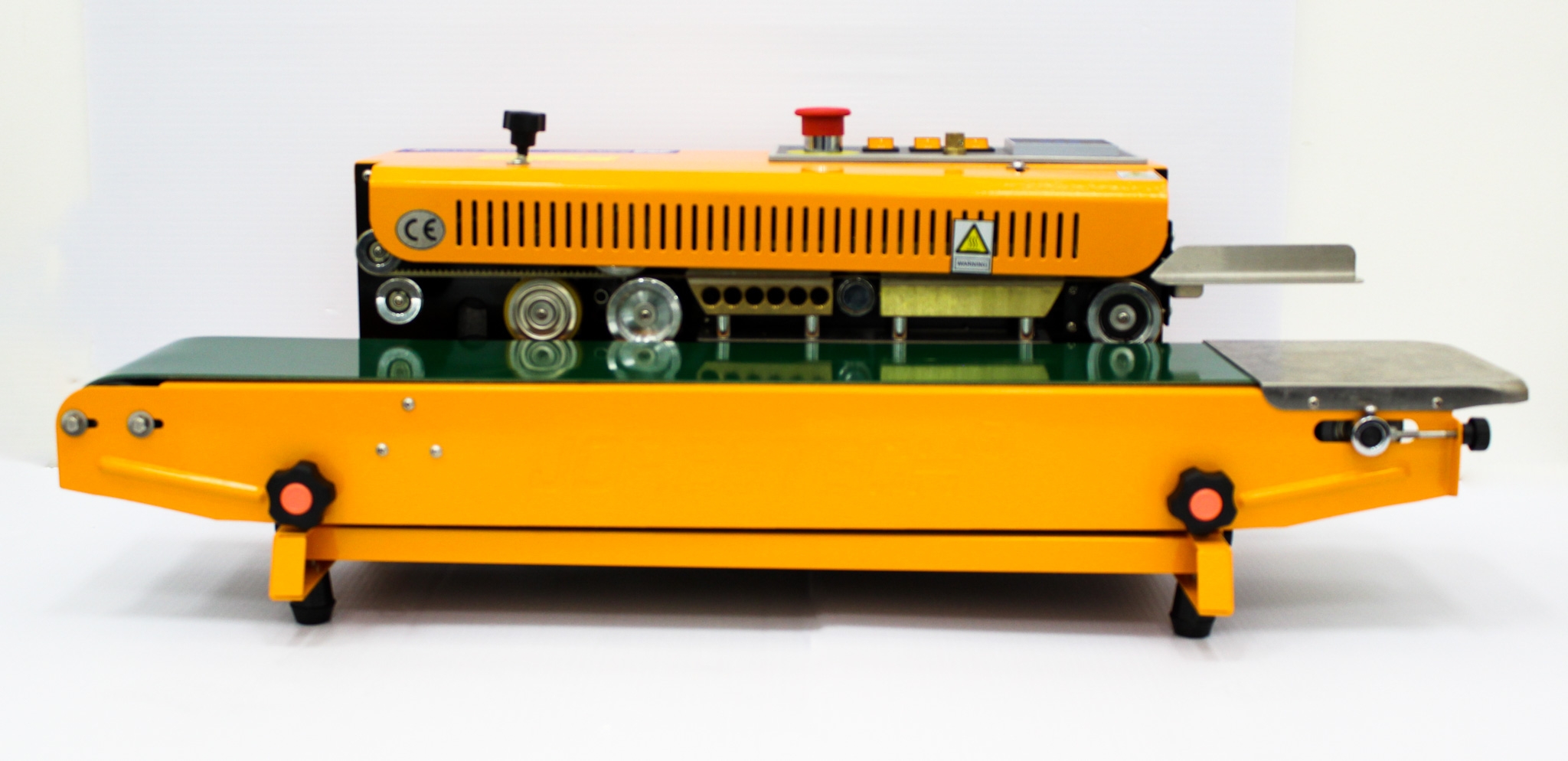

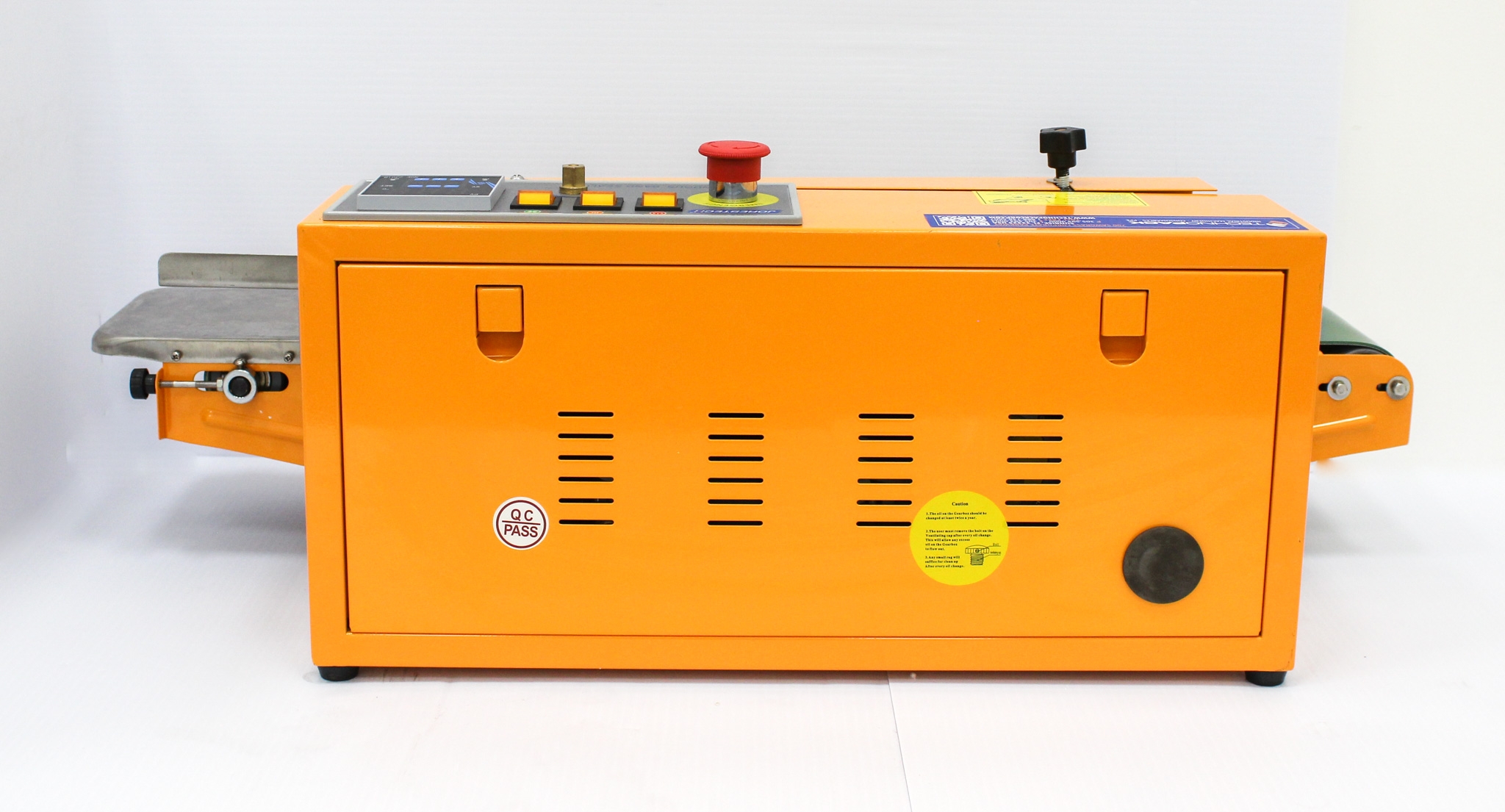

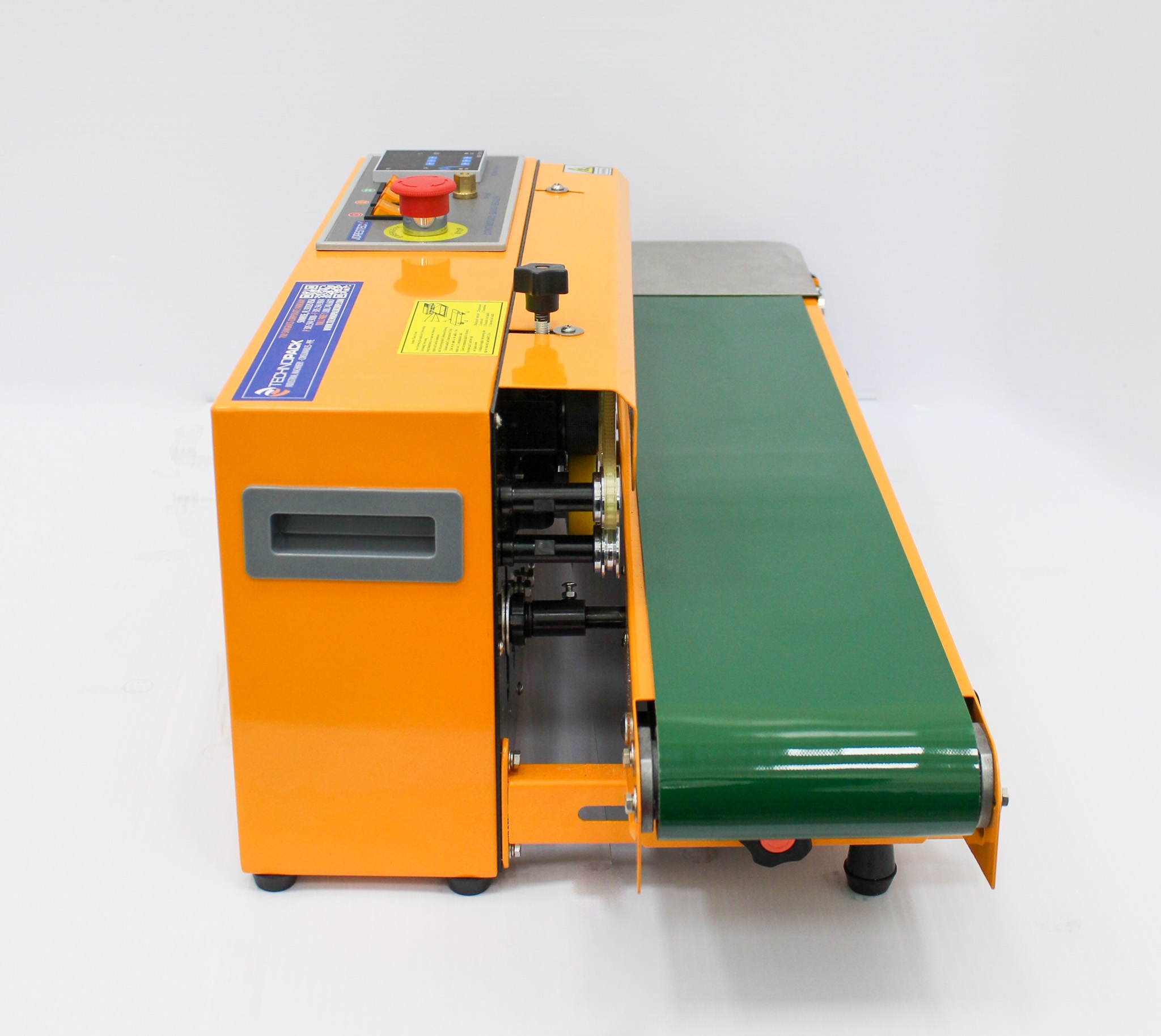

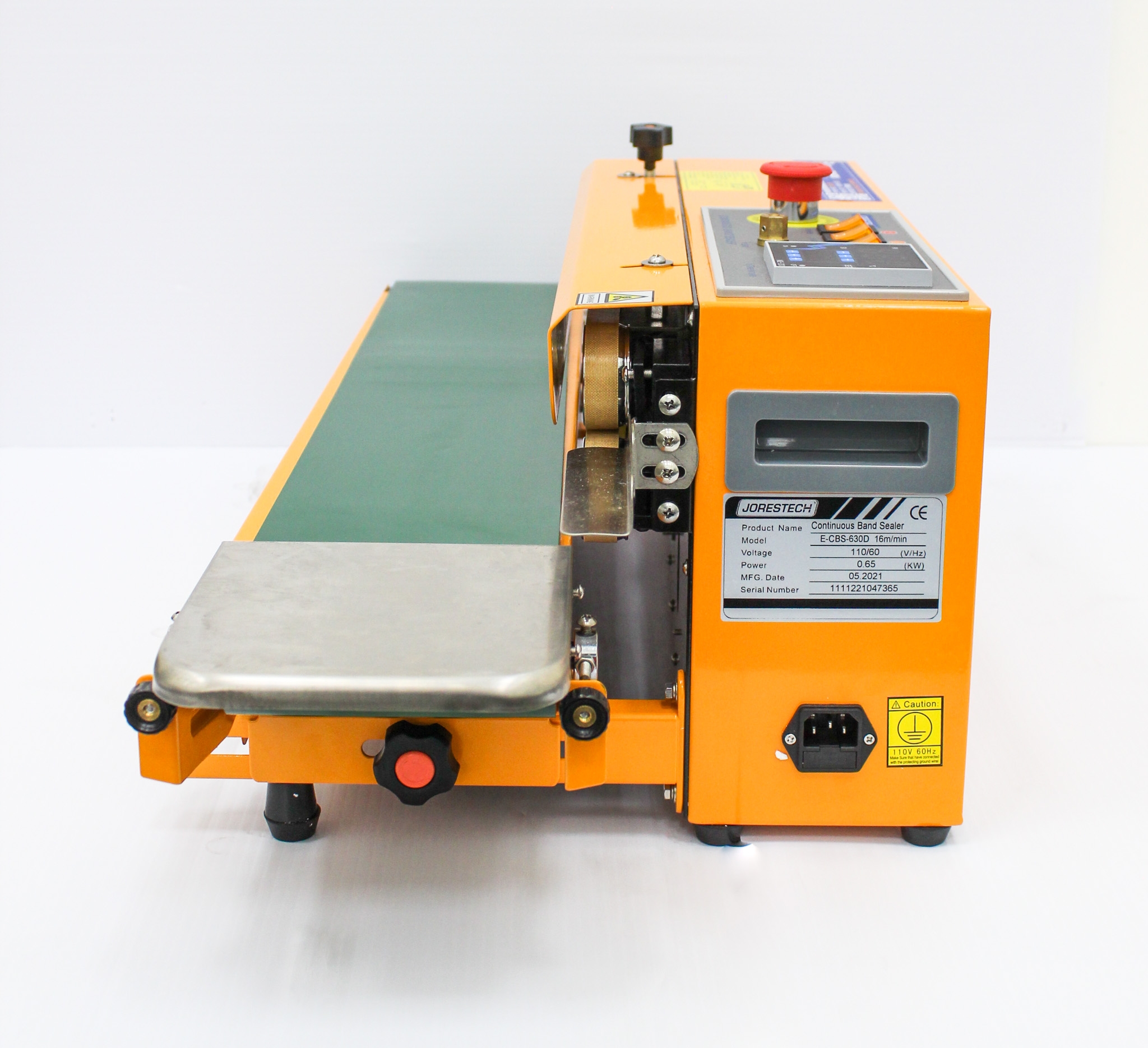

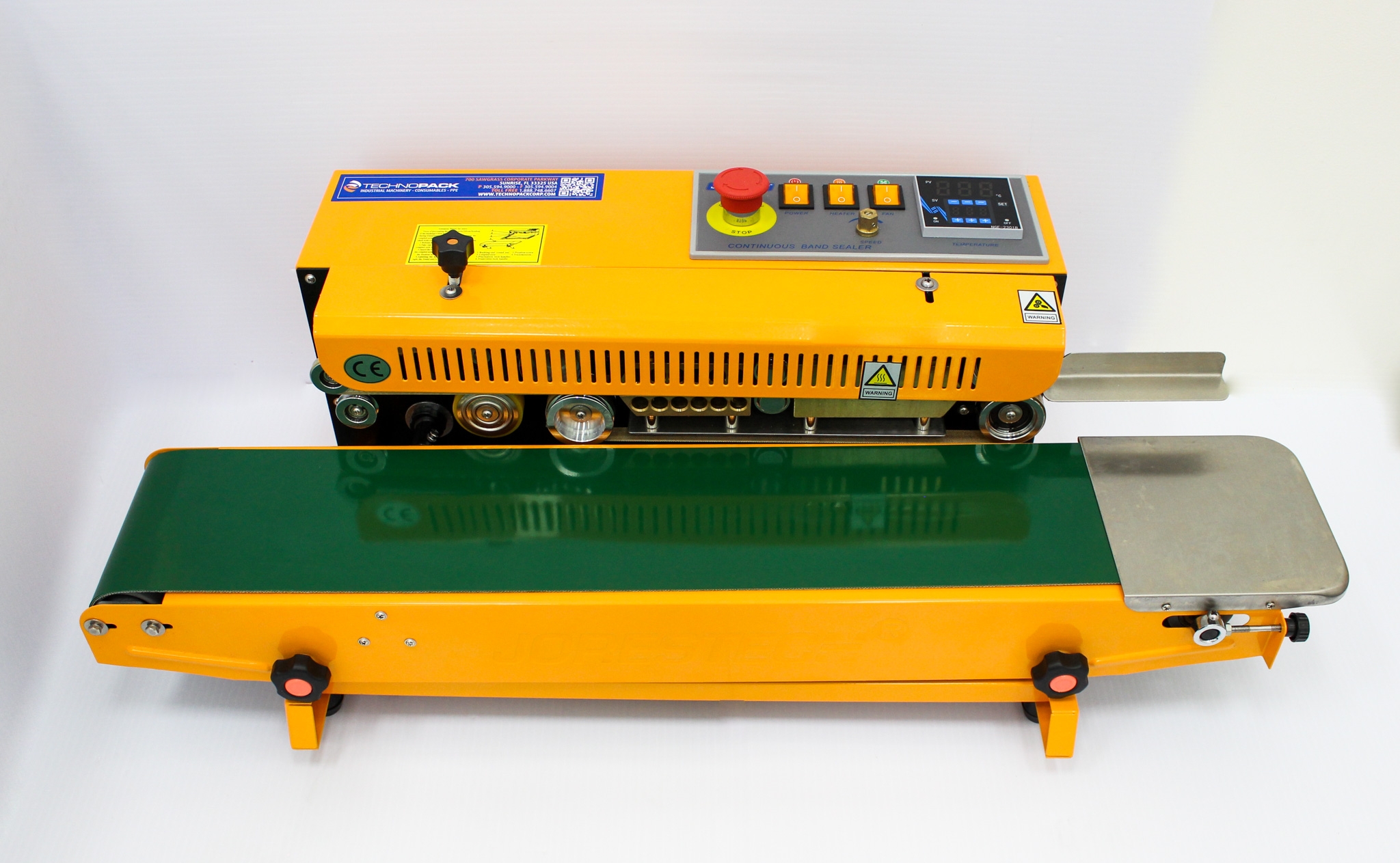

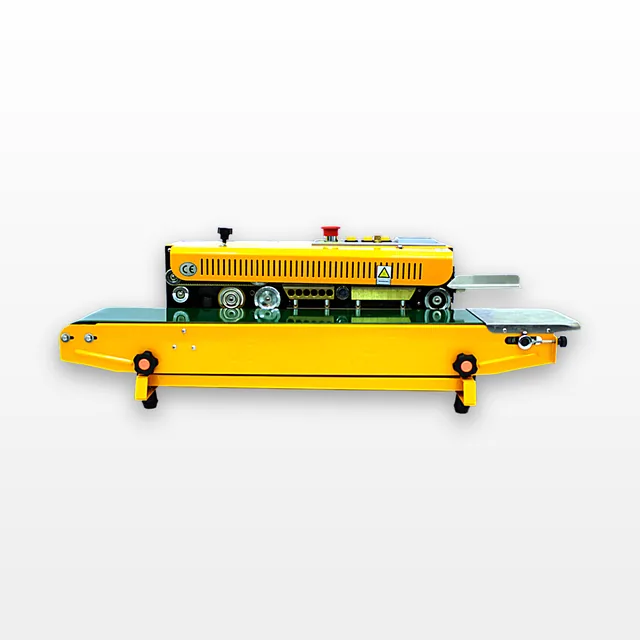

JORESTECH E-CBS-630D Continuous Band Sealer 120V 50Hz/60Hz Digital Control
JORESTECH
Details
-
CategoryProduction / Manufacturing
-
Dimension15.0in x 34.0in x 11.0in
-

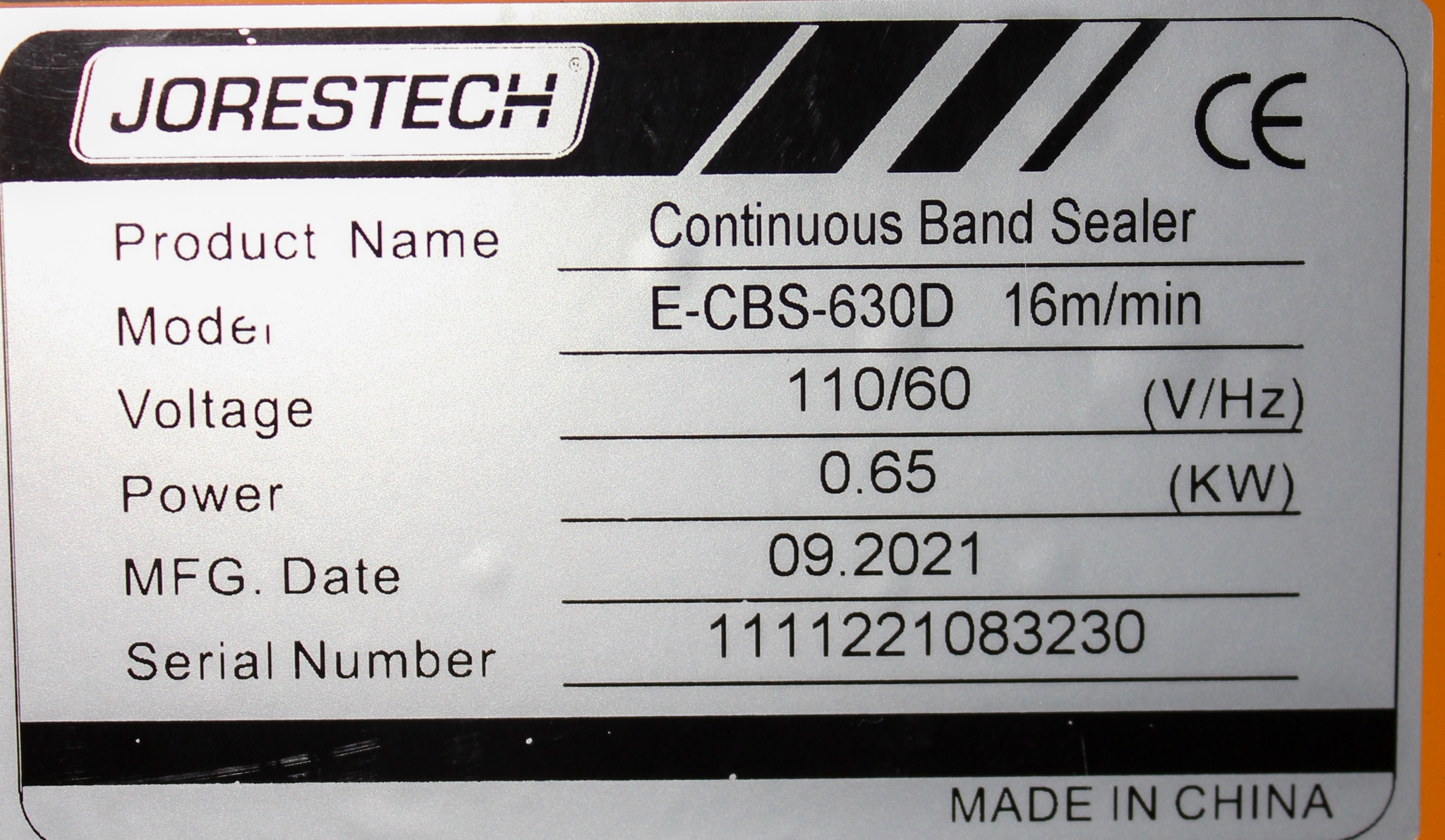

Serial1111221083230
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The JORESTECH E-CBS-630D is a versatile Continuous Band Sealer designed for efficient sealing of thermoplastic materials such as Polyethylene (PE), Polypropylene (PP), Bo PET (i.e. Mylar), and laminations. With dual operation modes, both horizontally and vertically, this semi-automatic sealer ensures airtight, professional seals for a variety of bag formats including stand-up pouches, gusseted bags, and pillow-type bags. Its precise PID Digital Temperature Controller allows for temperature settings ranging from 0 to 300°C (572°F), adjustable through a user-friendly digital panel. Operating at speeds up to 54 ft/min, this unit utilizes a motorized belt conveyor with synchronized speed adjustment, making it an ideal choice for packaging various products from food to medications. The device was manufactured in the United States and is in Very Good used condition, having passed functional tests with little cosmetic damage.
Key Features
- Continuous sealing of thermoplastic materials up to 54 ft/min
- Precise temperature control: 0 - 300°C (572°F)
- Versatile vertical and horizontal operation modes

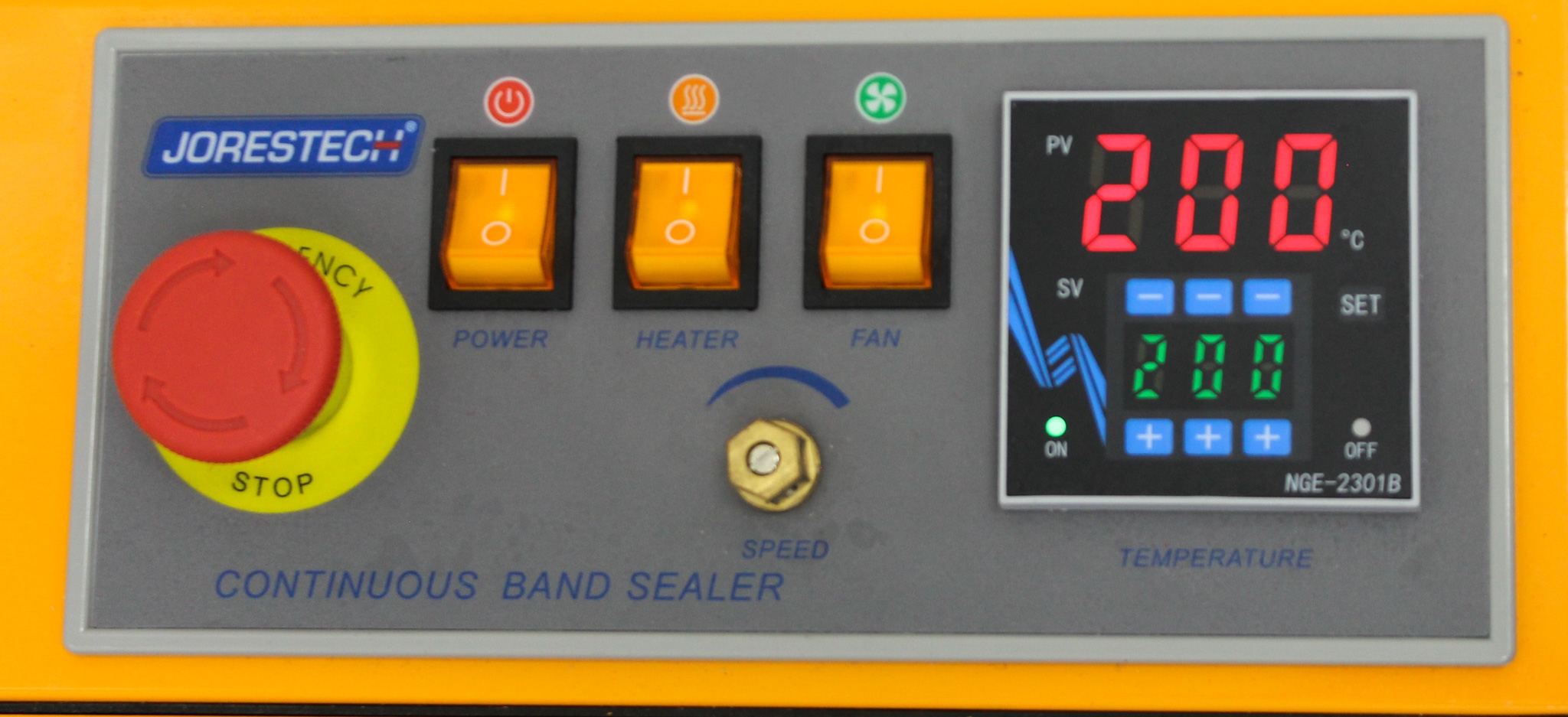

- PID Digital Temperature Controller with dual displays
- Suitable for a variety of bag formats: stand-up pouches, gusseted, pillow-type
Specifications
- Operation: Semi-Automatic
- Power Type: Constant Heat
- Seal Head Orientation: Dual Fit System (Vertical & Horizontal)
- Seals: PE, PP, Bo PET, Cello, Laminated bags
- Seal Width: 10 mm / 3/8 in
- Max Speed: 54 ft/min (16 m/min)
- PID Digital Temperature Control: 0 - 300°C
- Recommended Bag Height (Vertical): 125 - 280 mm
Weight
Imperial: 58.8 Pounds
Metric: 26.67 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 40.8 lb x 13.2 lb
Metric: 45.72 cm x 103.63 cm x 33.53 cm
Harmonized Code
842230
Harmonized Code Details
842230 - Machinery for packing or wrapping. This code is applicable due to the equipment's function of sealing bagged products for packaging.
