BioTek 7103034 VG Vacuum Pump 26 IN-HG 5-40C 120/220V 405 EL406 Use Ready
BioTek Instruments
Details
-
CategoryPump
-
Dimension14.0in x 10.0in x 13.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

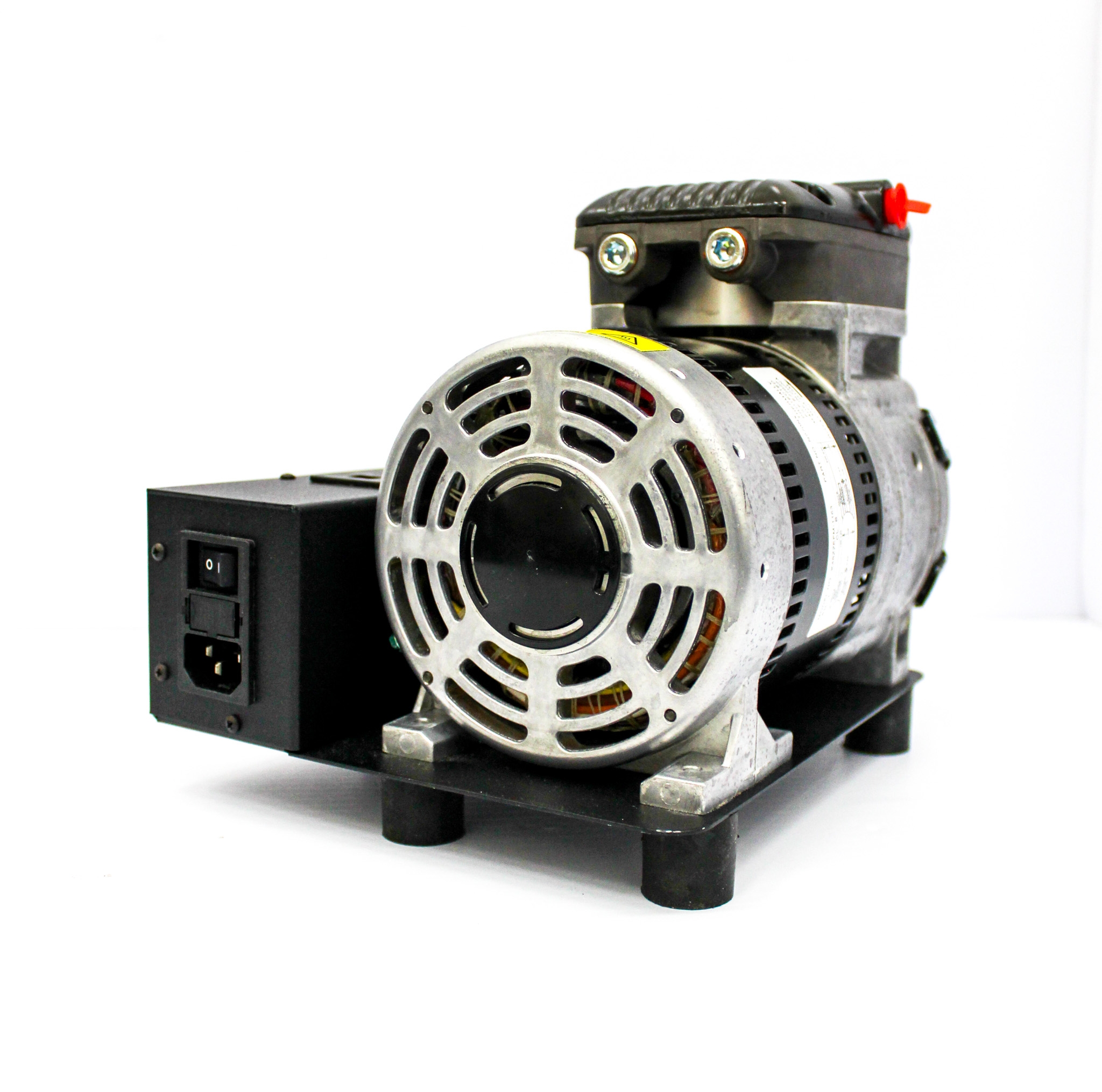

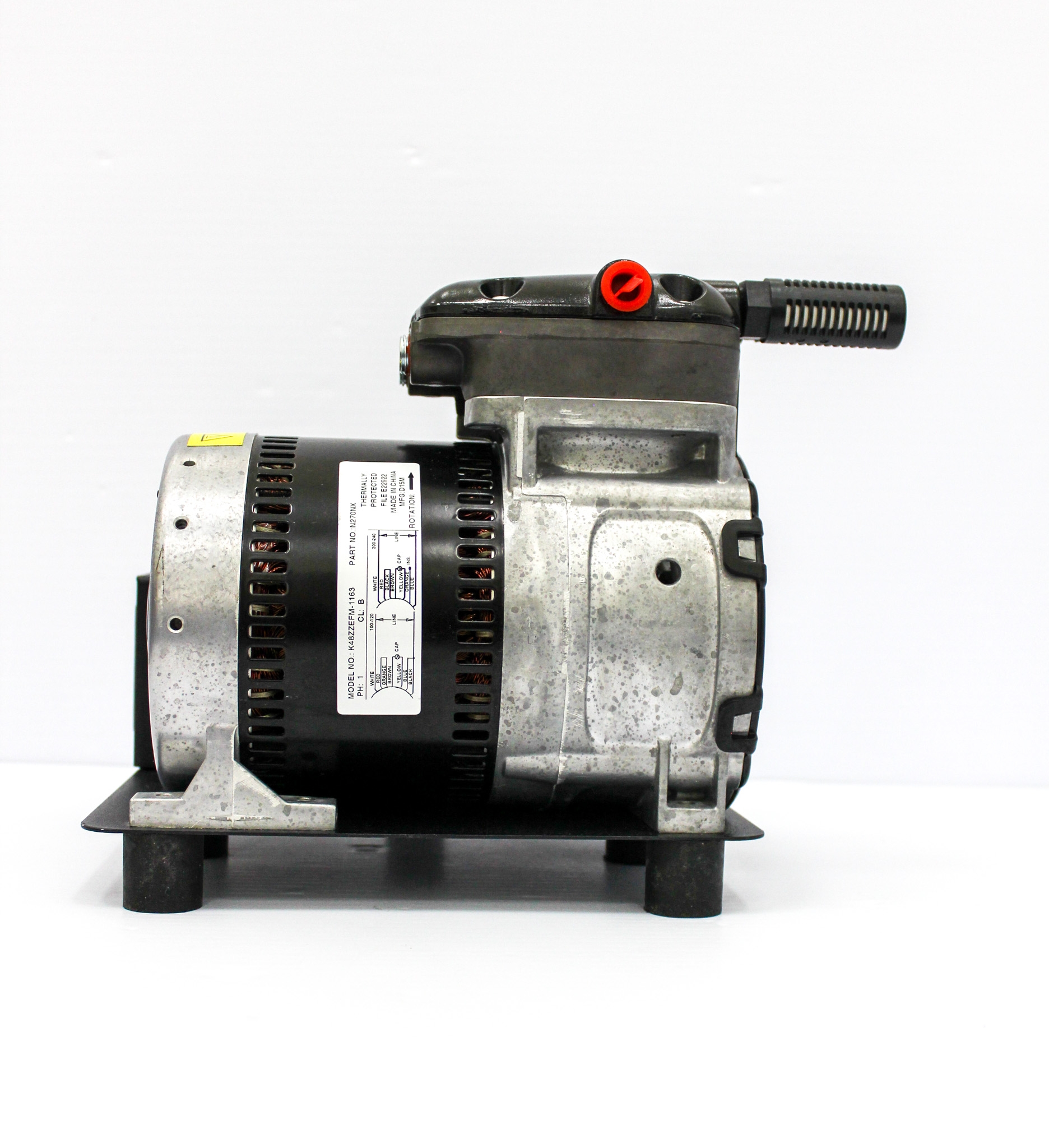

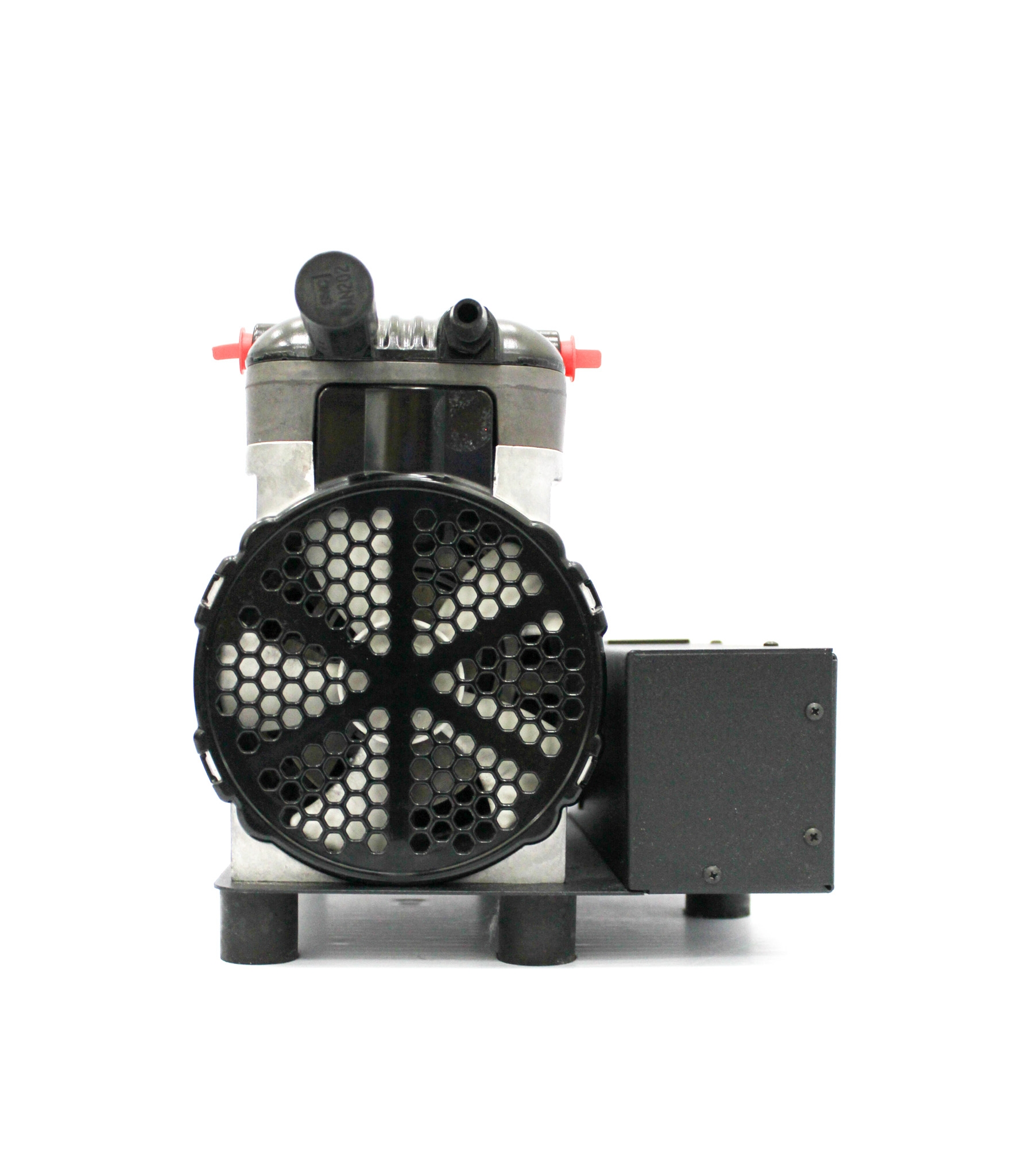

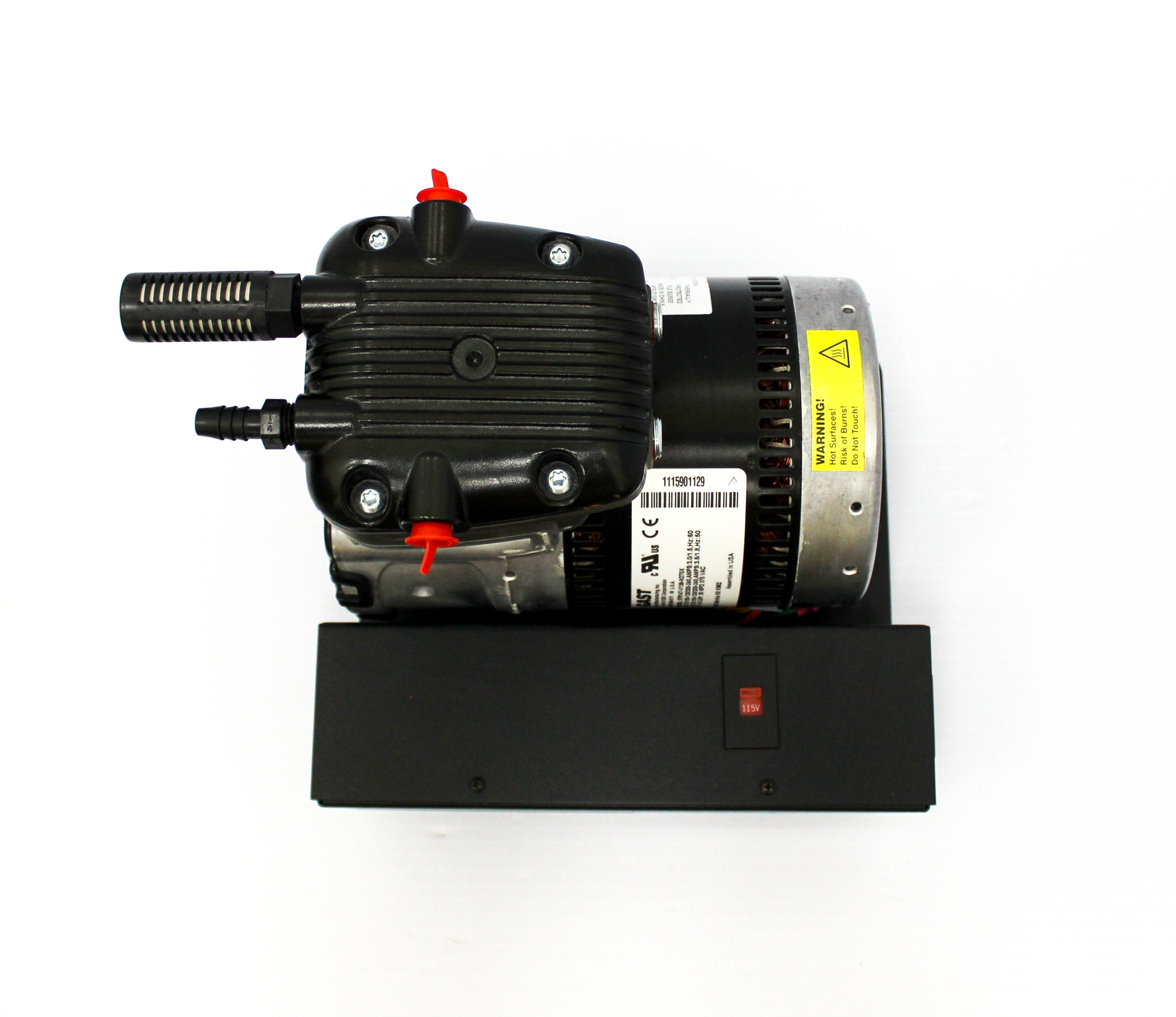

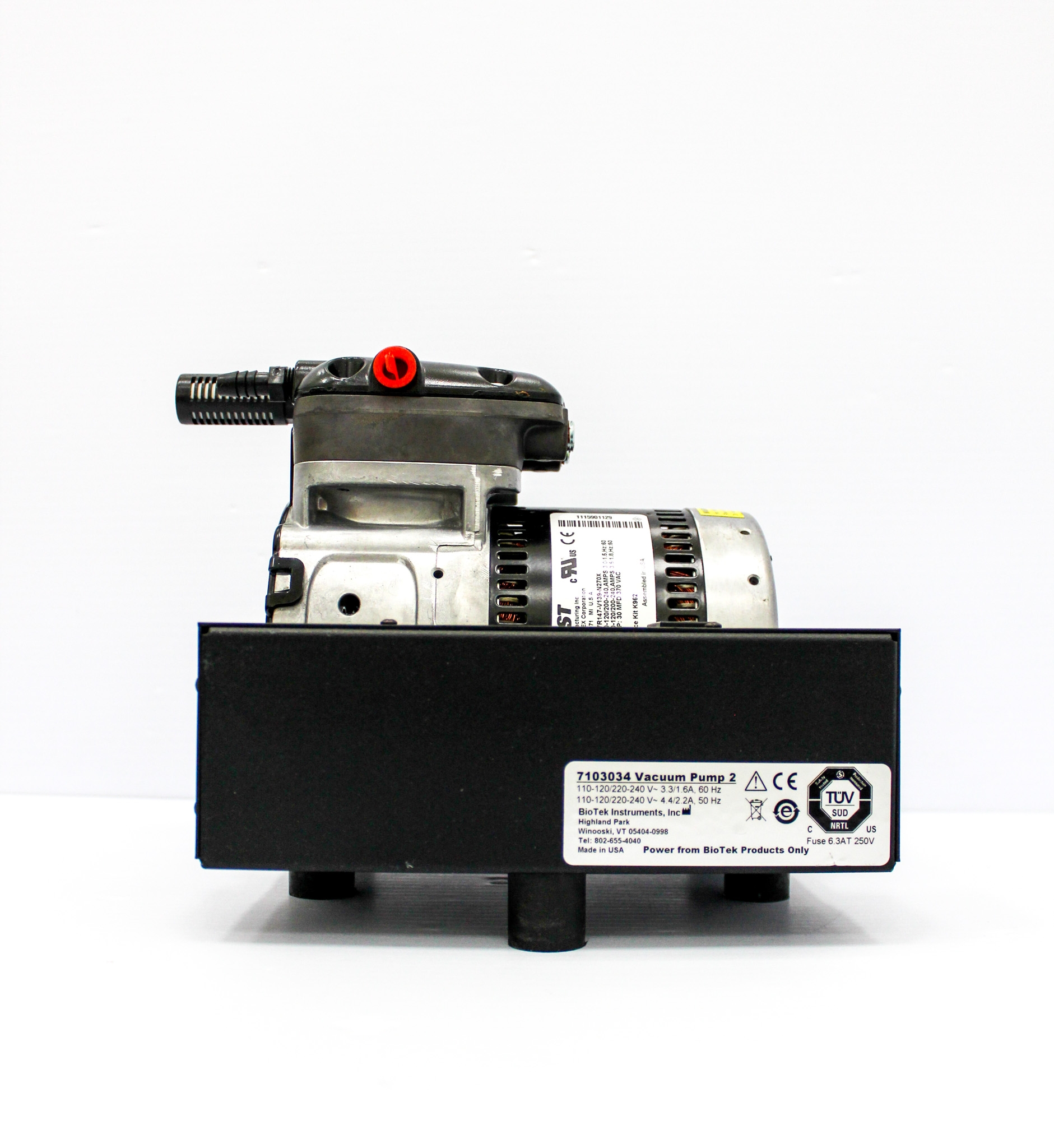

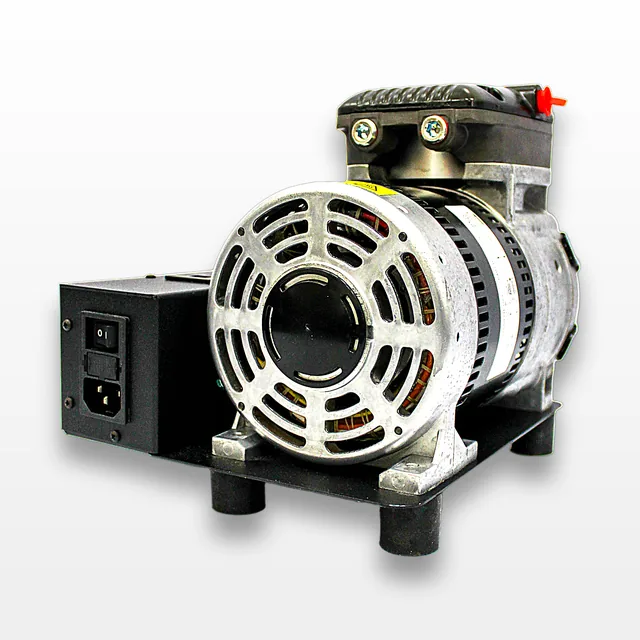

The BioTek Instruments GAST Model 87R147-V139-N270X Vacuum Pump is a reliable and versatile unit from BioTek Instruments, designed for use with EL 406, 405 TS, 405 LS, and ELx405 microplate washers. With a voltage input of 115-230V and phase single operation, this oil-less rocking piston compressor delivers high-pressure performance while operating under 65 dba. It also boasts a maximum RPM range of 1425 - 1725, a power input of 120V/220V at 50Hz/60Hz, and a max vacuum level of 26 in-HG. Despite its used condition and some cosmetic damage, it functions optimally without error messages and has been tested to specifications. The pump is built for durability with lower exhaust temperatures and a longer lifespan, making it suitable for various life science applications.
Key Features

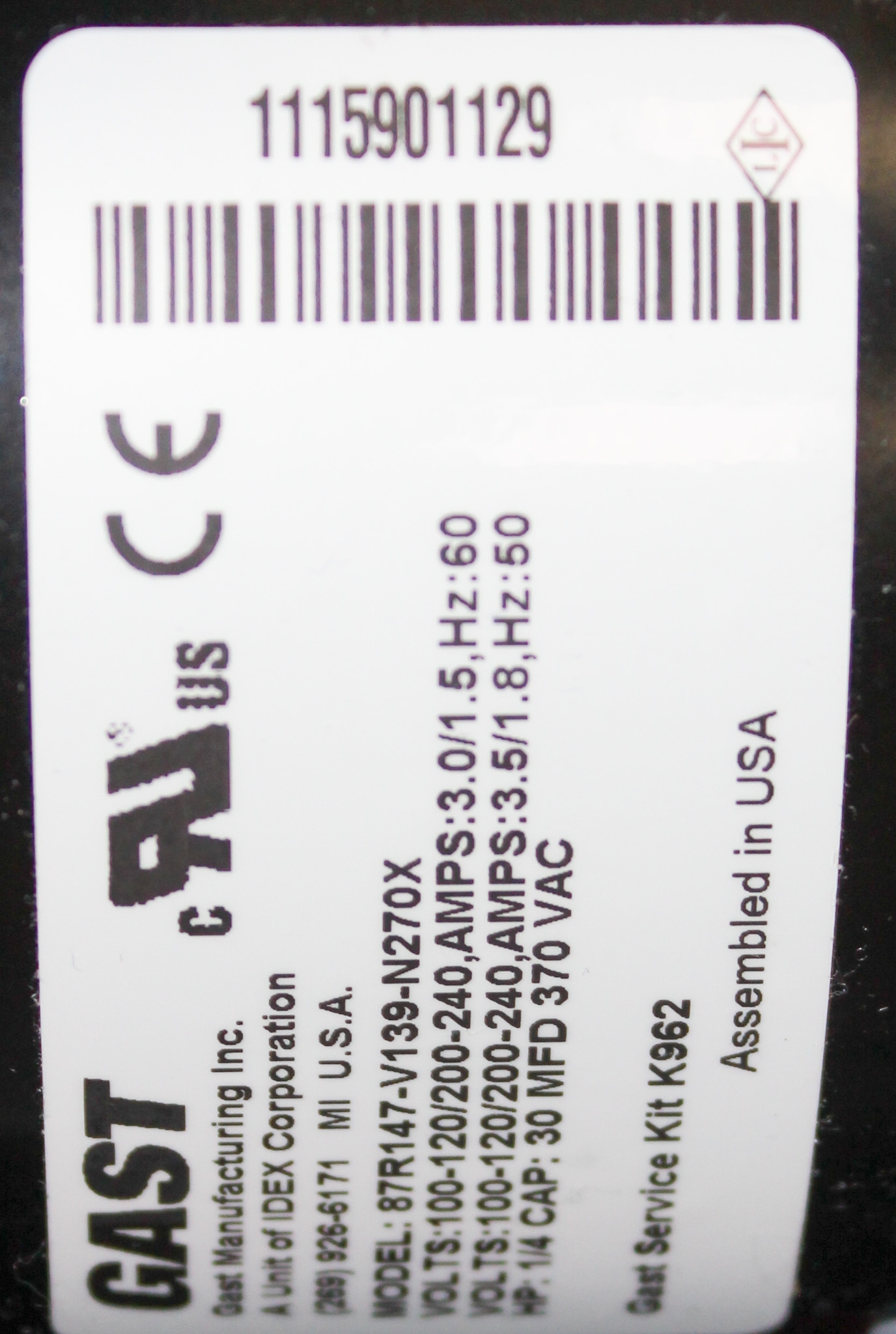

- Model: 87R147-V139-N270X
- Voltage: 115-230V
- Max Vacuum: 26 in-HG
- RPM Range: 1425 - 1725
- Sound Level: Under 65 dba
- Oil-less Rocking Piston Design
- Supports EL 406, 405 TS/LS, ELx405
Specifications
- Compressor Type: Standard Vacuum Pump
- Port Size: 1/4 in NPT
- End Connections: NPT
- Phase: Single
- Maximum RPM: 1725; 1425
- Minimum Working Temp: 5 C
- Maximum Working Temp: 40 C
- Standards: CE; UL
- Voltage: 115 - 230V
- Sound Level: Less than 65 db(A)
- Max Vacuum: 26 in-HG
- Application: For use with microplate washers EL 406, 405 TS/LS, ELx405
Weight
Imperial: 24.0 Pounds
Metric: 10.89 Kilograms
Shipping Dimensions
Imperial: 16.8 lb x 12.0 lb x 15.6 lb
Metric: 42.67 cm x 30.48 cm x 39.62 cm
Harmonized Code
841410
Harmonized Code Details
841410: Vacuum Pumps. Chosen due to the unit's vacuum functionality and design tailor-made for use in laboratory settings.
