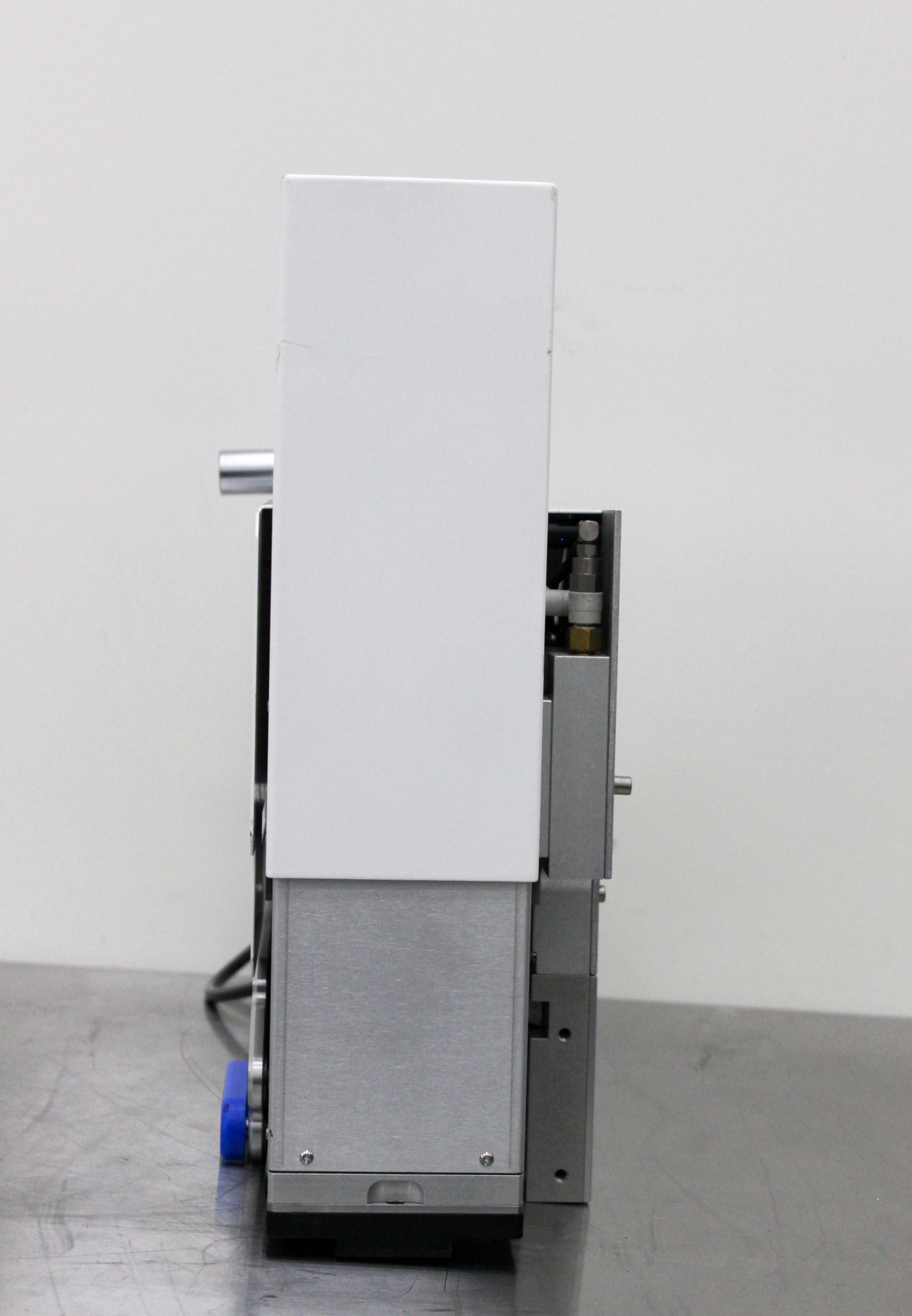

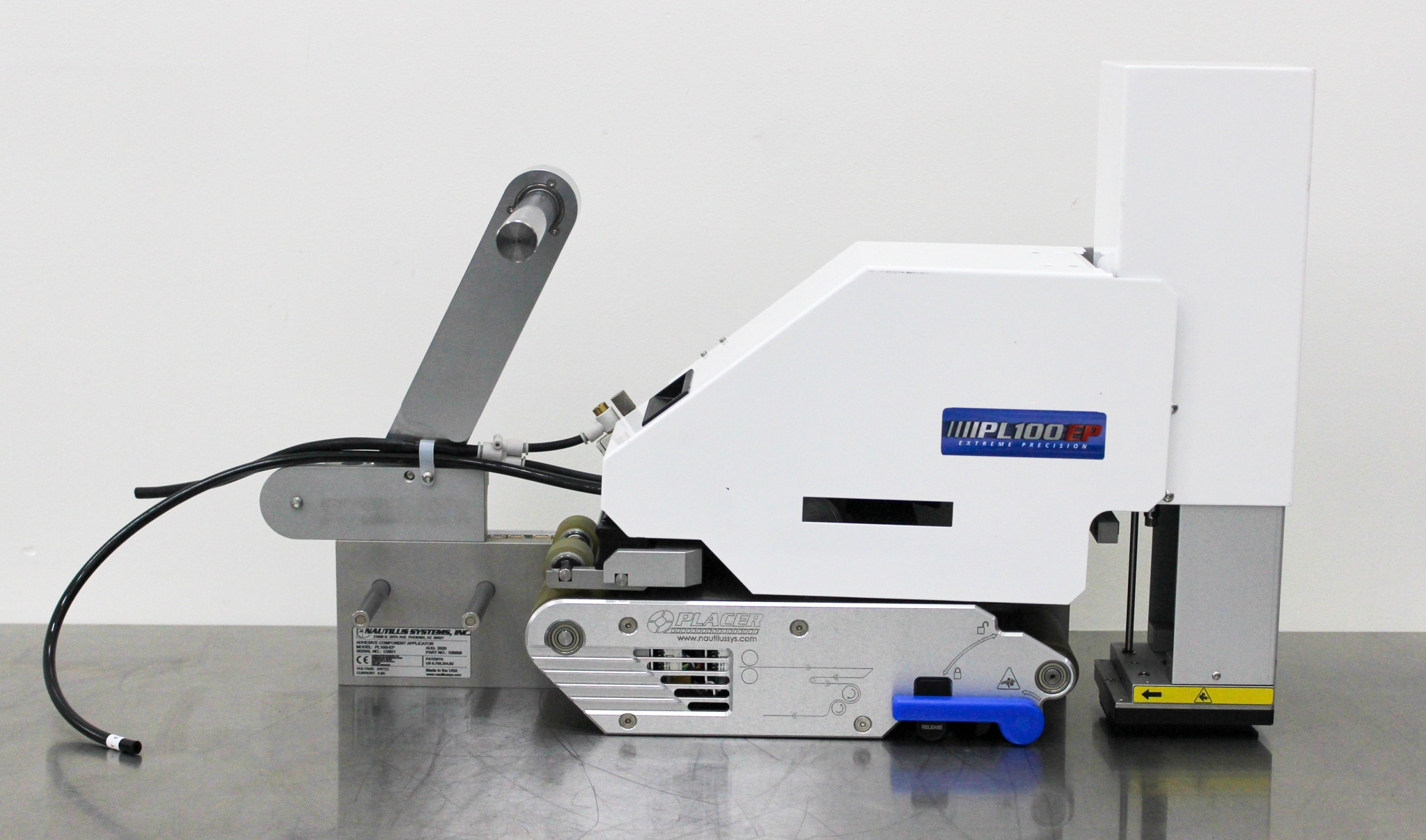

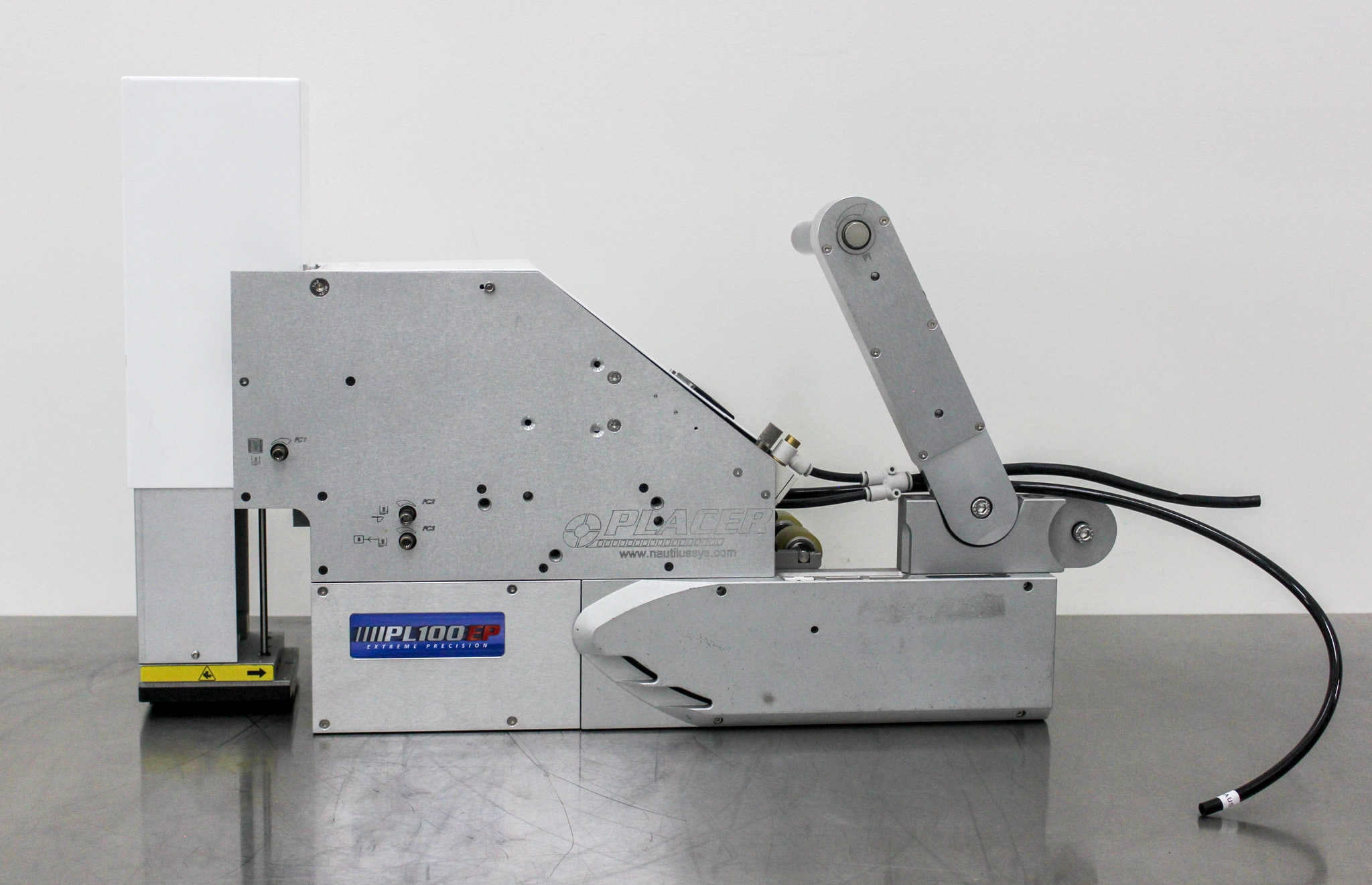

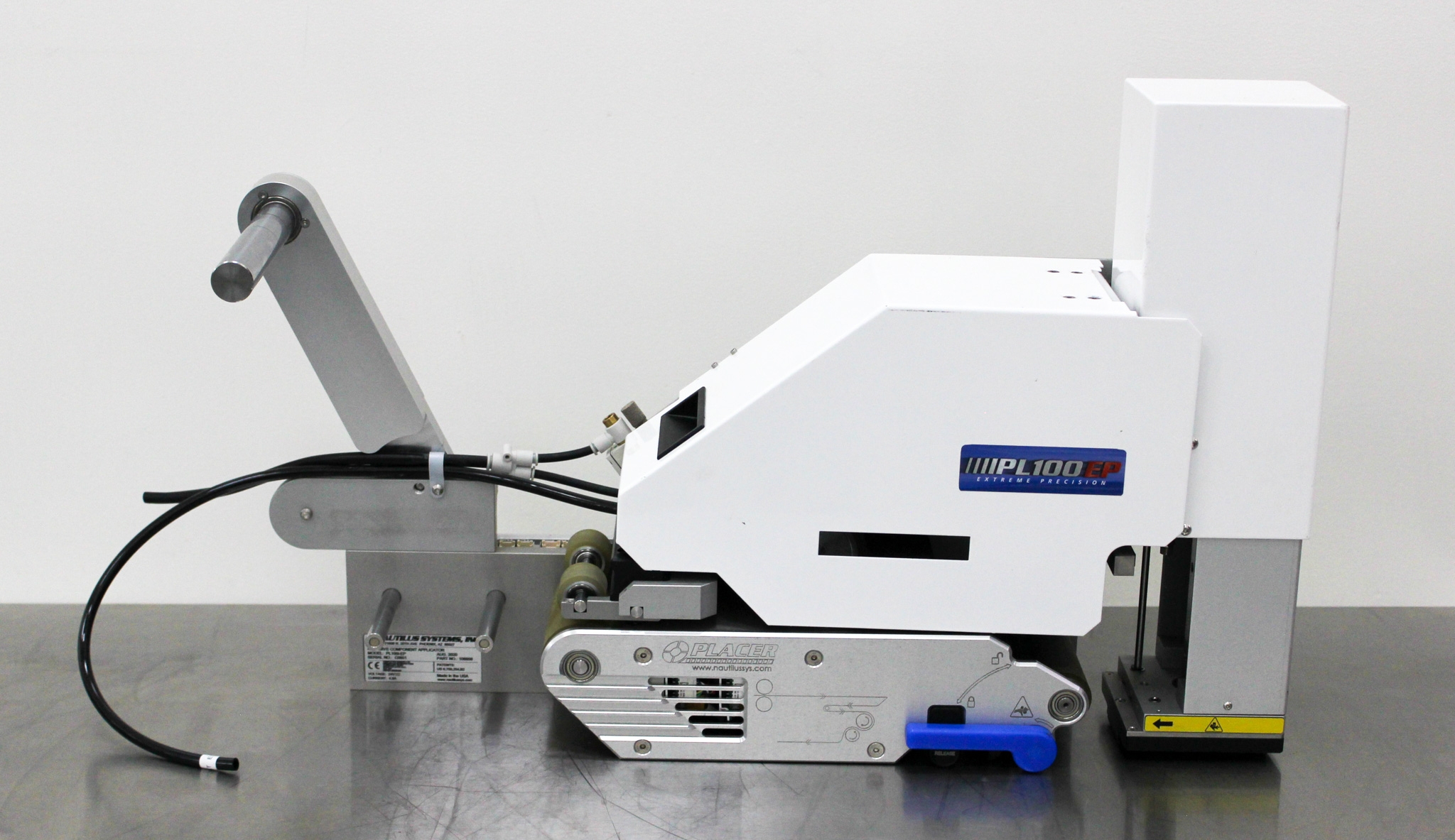

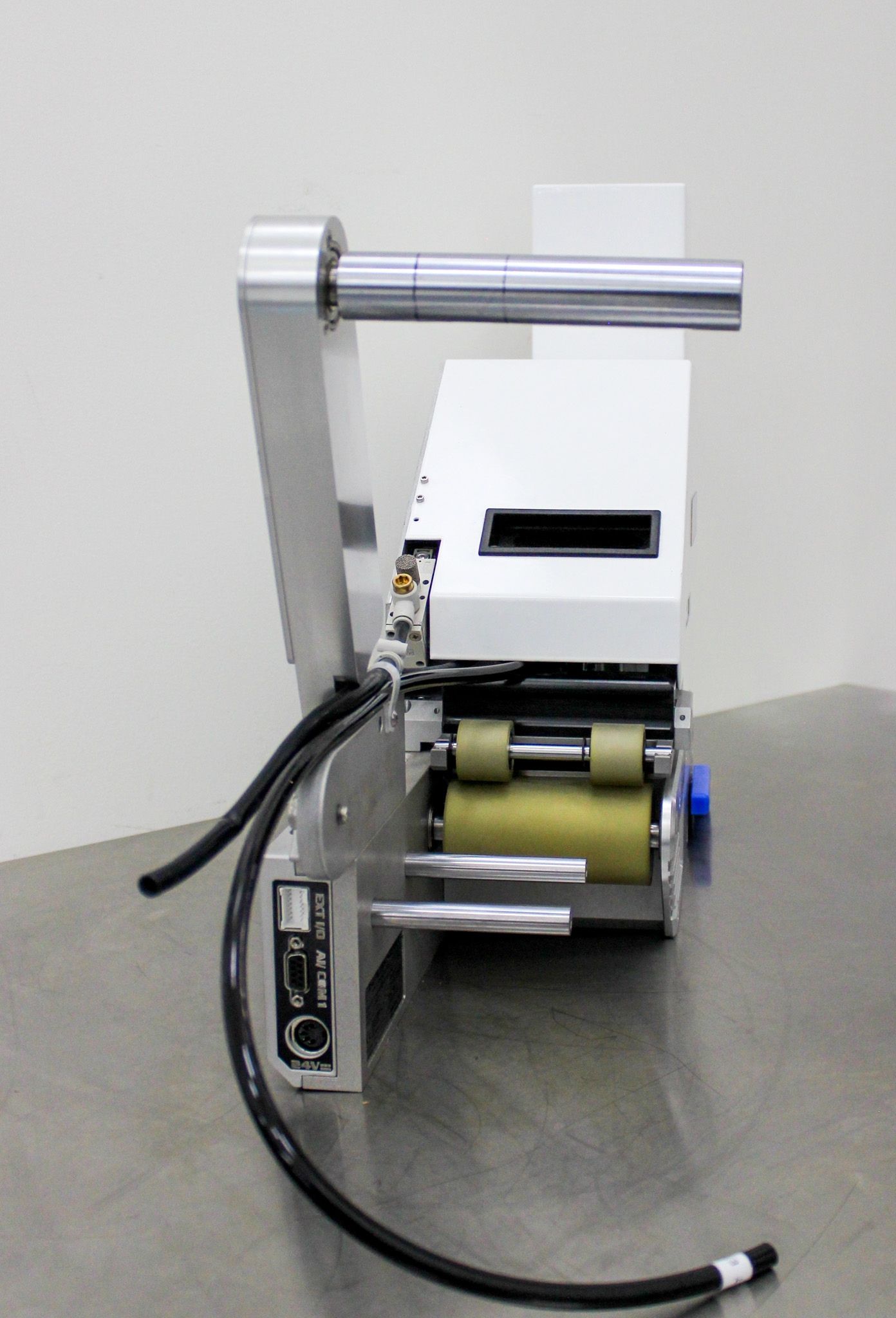

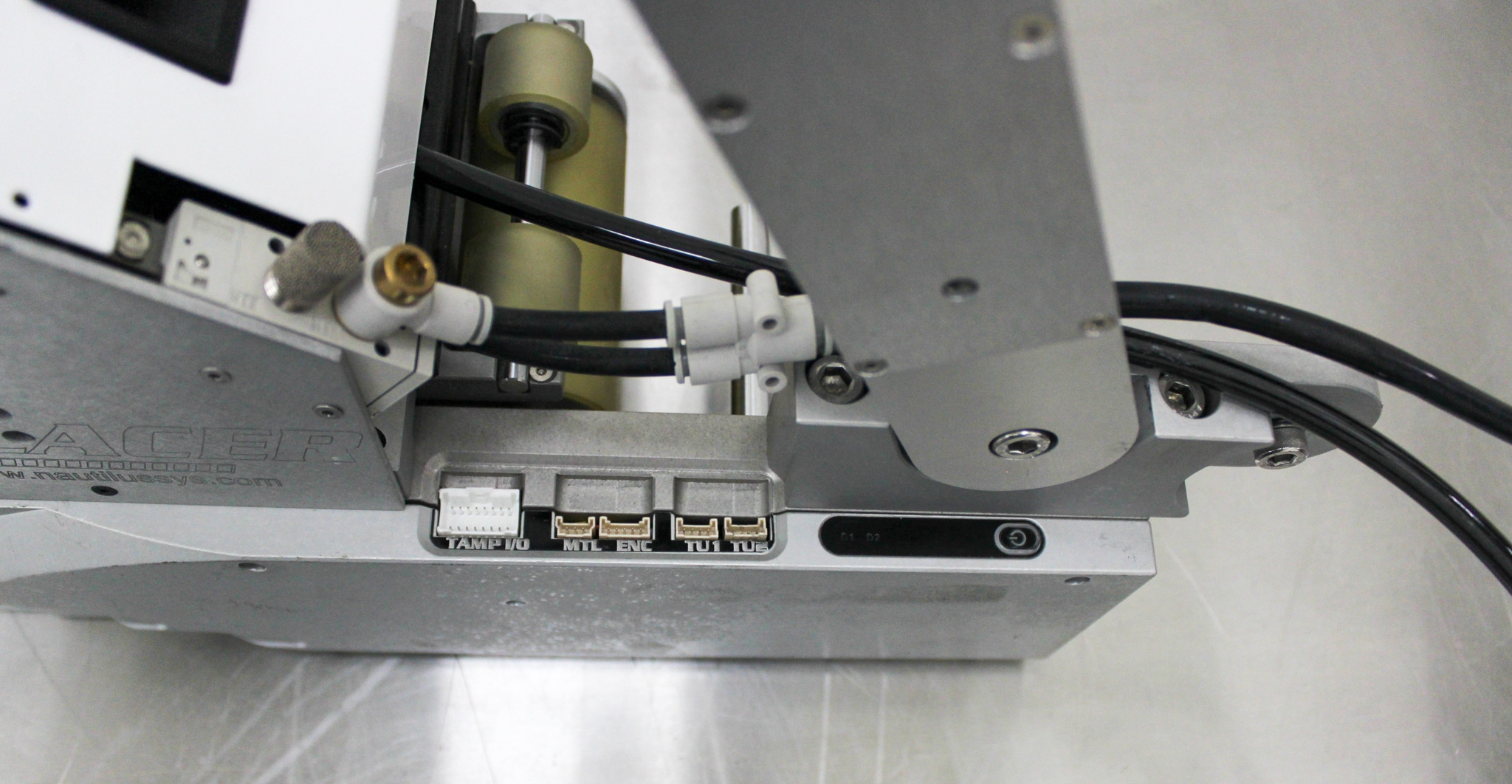

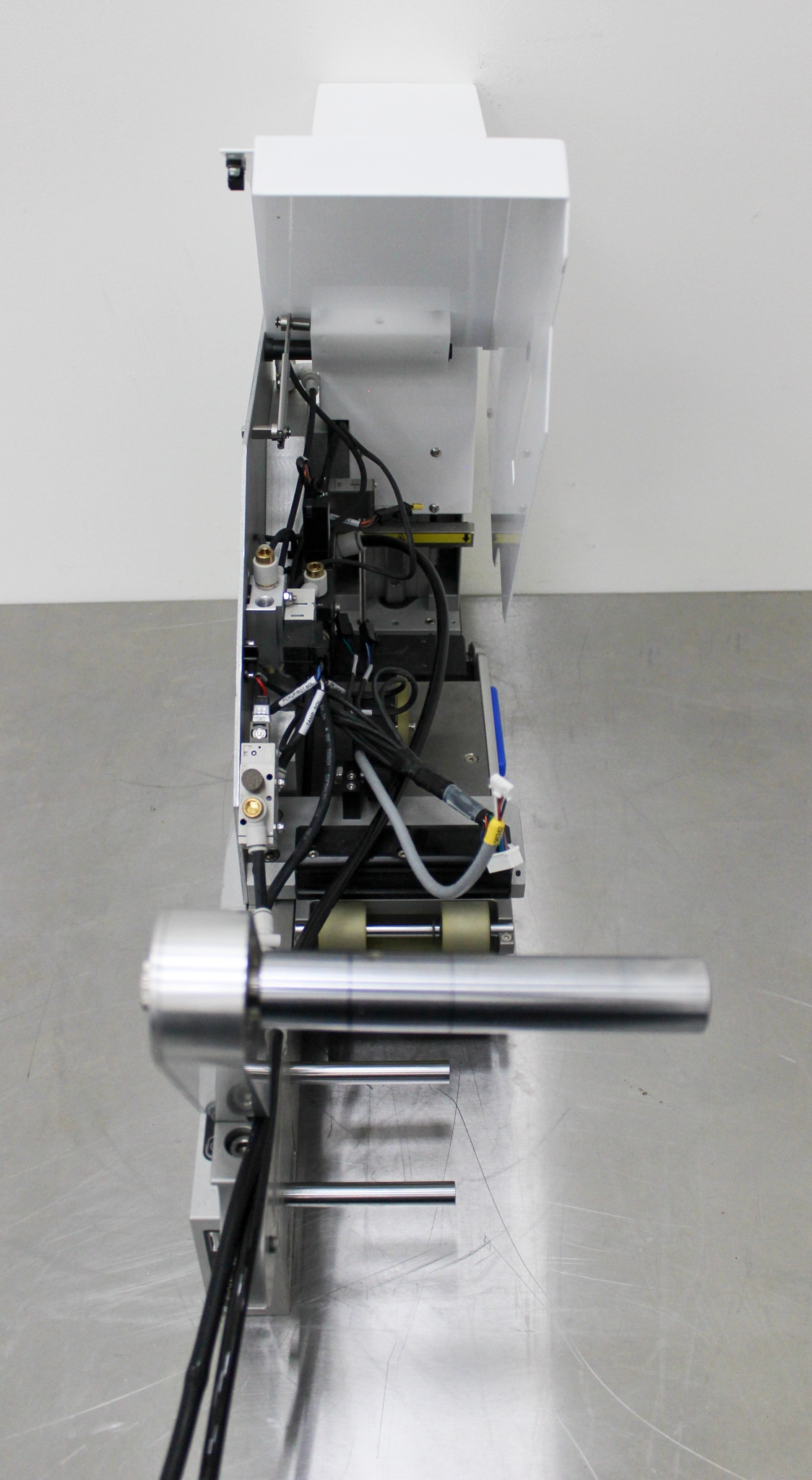

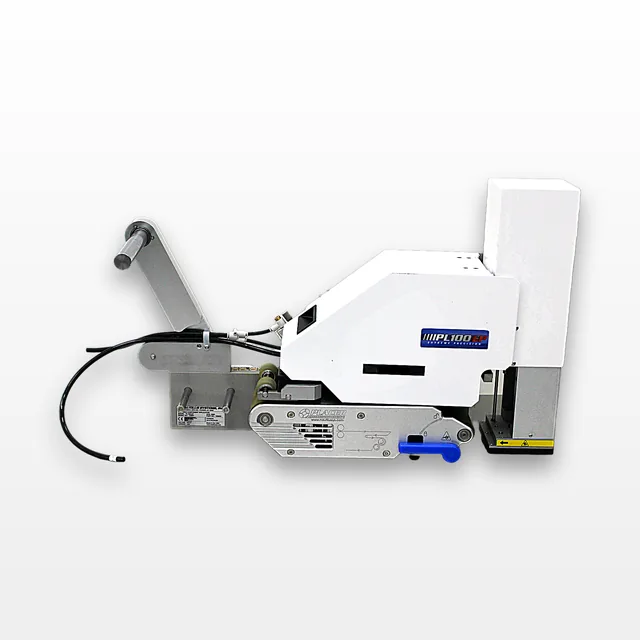

Nautilus Systems PL100i-EP Adhesive Component Applicator - Used, Fair Condition
Nautilus Systems
Details
-
CategoryOther
-
Dimension28.0in x 6.0in x 18.0in
-

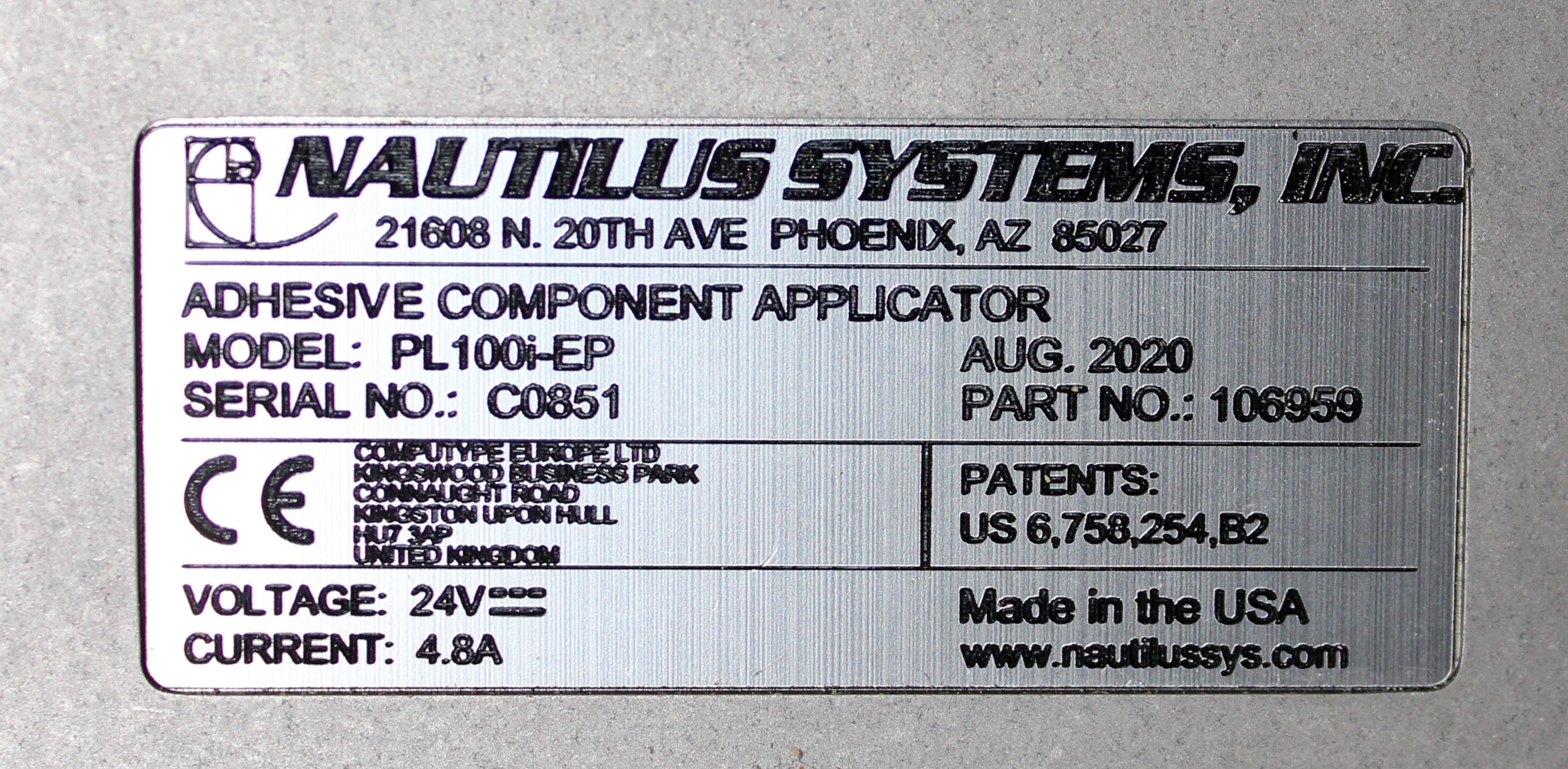

SerialC0851
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Nautilus Systems Adhesive Component Applicator Model PL100i-EP is engineered for precise placement of die-cut adhesive components, accommodating sizes up to 100 x 100mm. In fair used condition, this unit integrates into automated assembly solutions, with hardware for pneumatic precision-guided Tamp actuator assembly, Payoff, and Powered Take-Up (Rewind). Despite missing some accessories, its core function remains intact. Custom Component Tooling (CCT) allows rapid changeover, necessitating no tools for replacement. Utilizes EP Package for feedback accuracy of +/- 0.035mm, surpassing standard PL100i resolution.
Key Features
- Precise placement of die-cut adhesive components
- Accommodates up to 100 x 100mm
- Integration ready for automation
- Pneumatic precision-guided Tamp actuator
- Custom Component Tooling (CCT) for rapid changeover
- Closed-loop feedback system with EP accuracy +/- 0.035mm
Specifications
- Component Capacity: 100 x 100mm
- EP Accuracy: +/- 0.035mm
- Tamp Actuator: 150mm stroke
- Includes: Payoff and Powered Take-Up Assembly
- CCT Items: Vacuum Chuck, Blade Guide Pad, Liner Guide Roller
Weight
Imperial: 60.0 Pounds
Metric: 27.22 Kilograms
Shipping Dimensions
Imperial: 33.6 lb x 7.2 lb x 21.6 lb
Metric: 85.34 cm x 18.29 cm x 54.86 cm
Harmonized Code
8479899797
Harmonized Code Details
Code 8479899797 refers to specialized machinery not classified elsewhere. Chosen due to its specificity and mechanical nature of the adhesive applicator.
