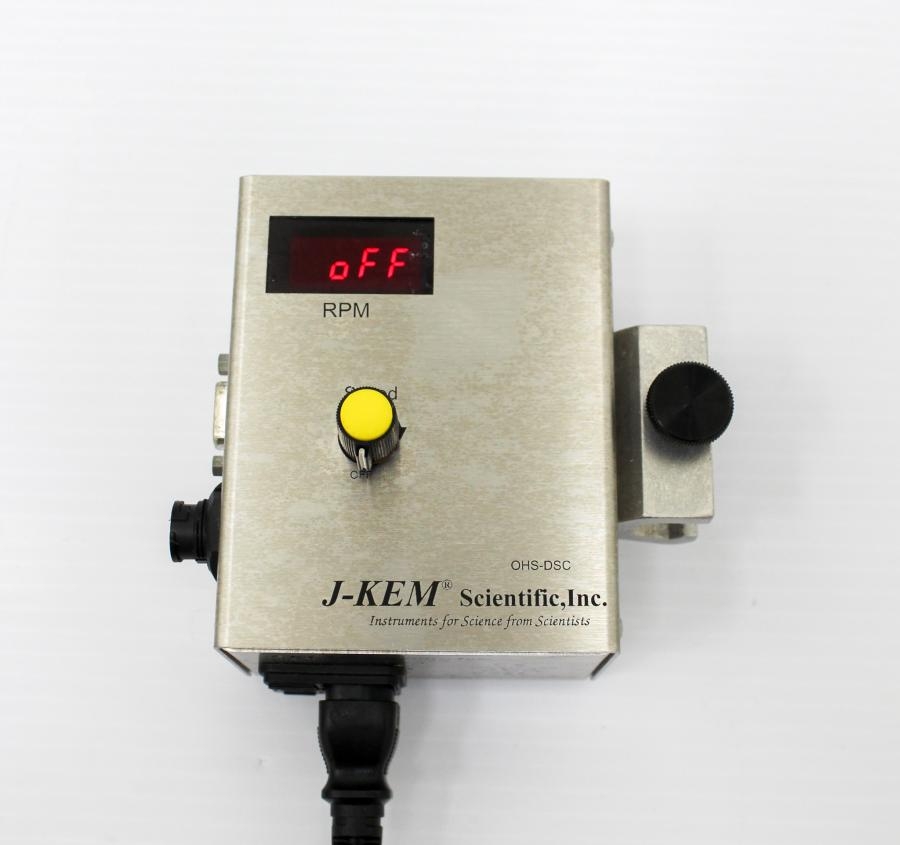

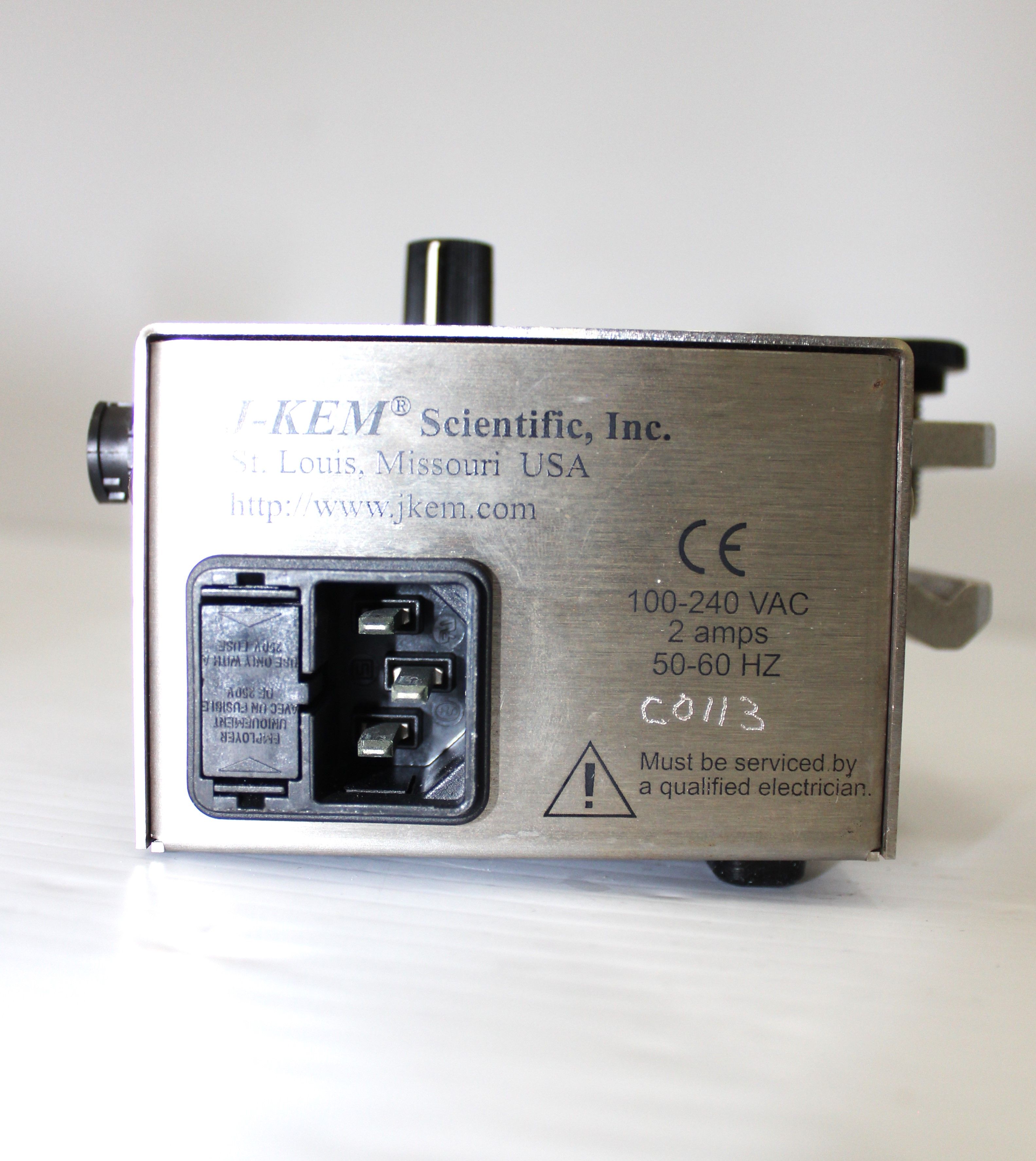

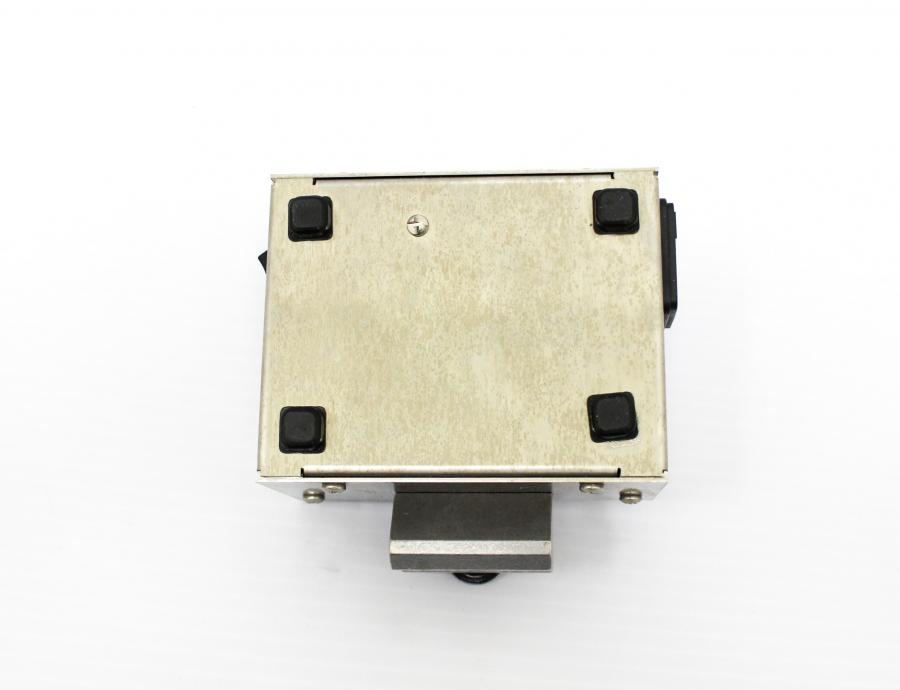

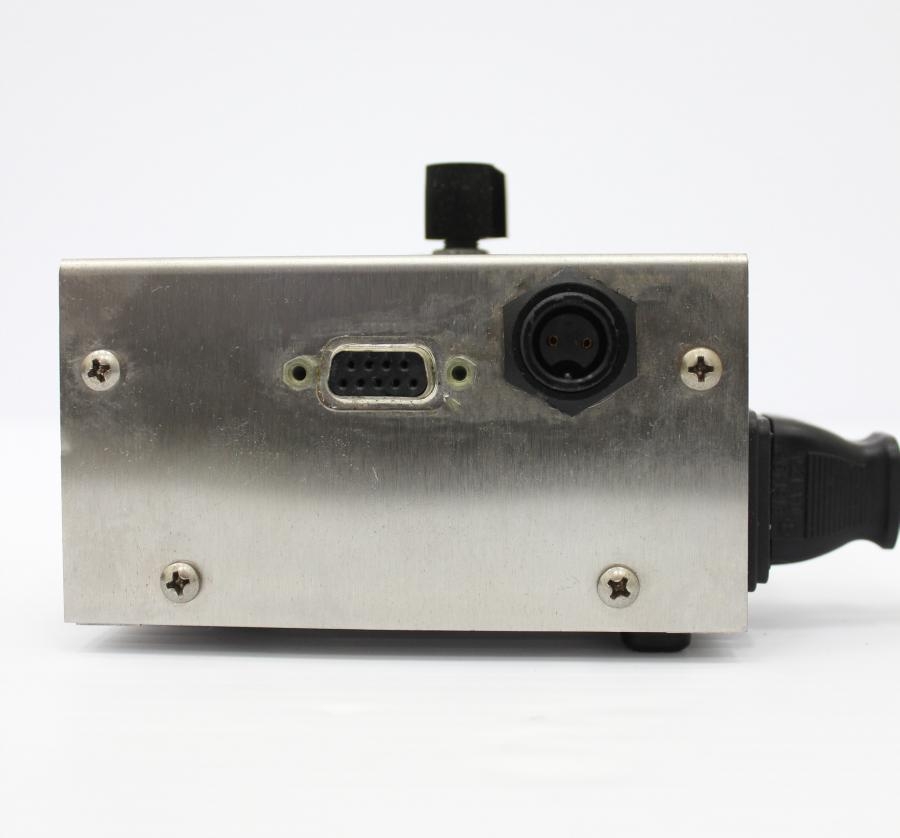

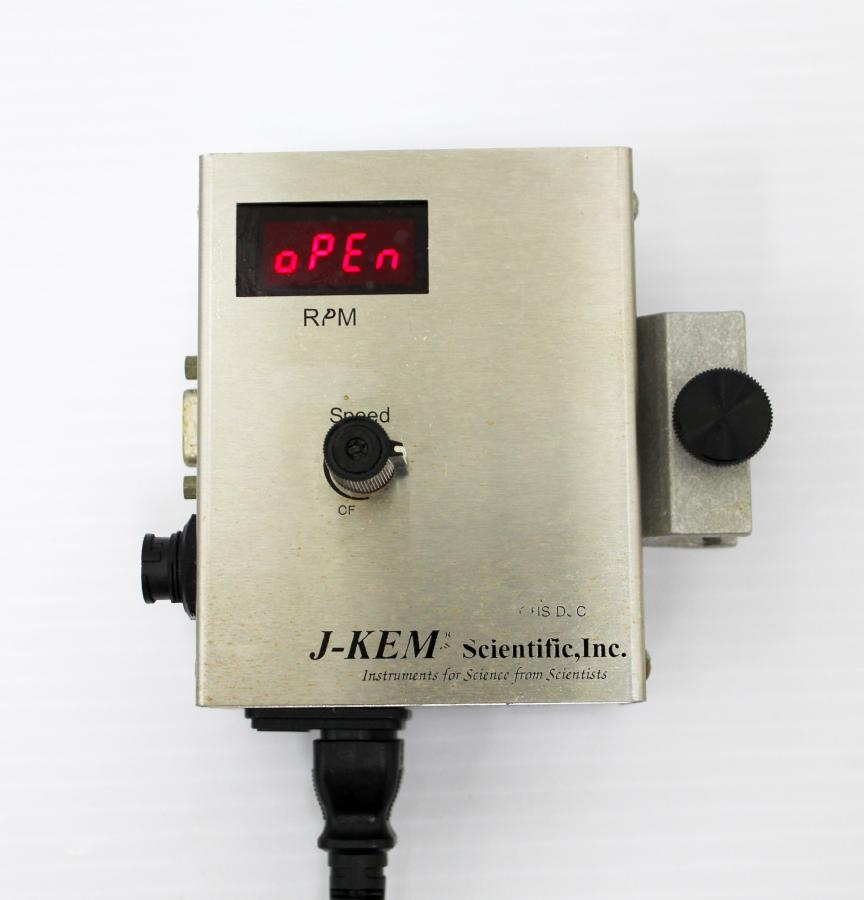

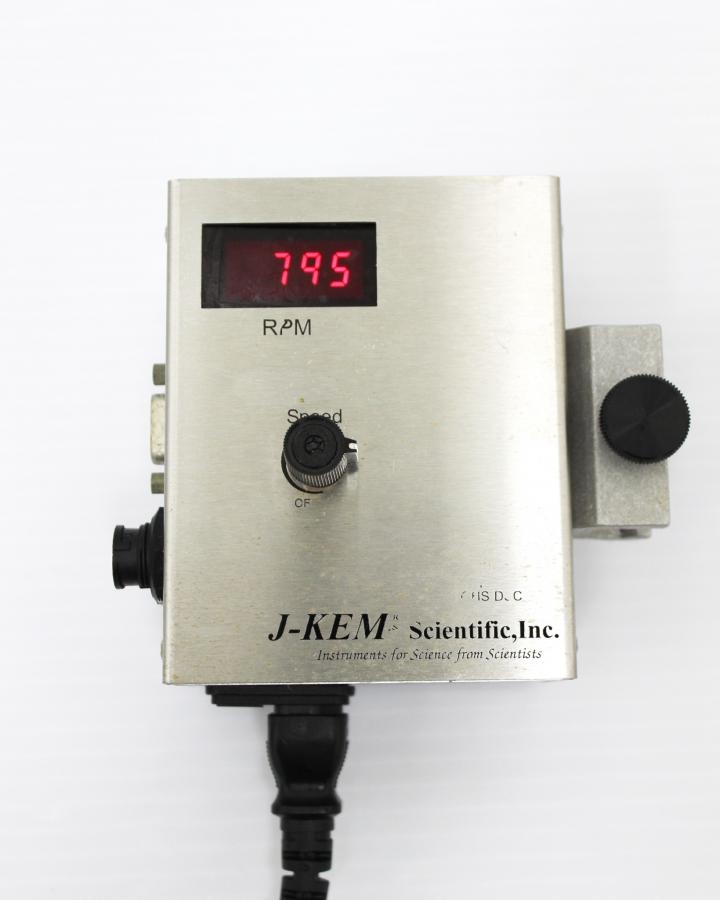

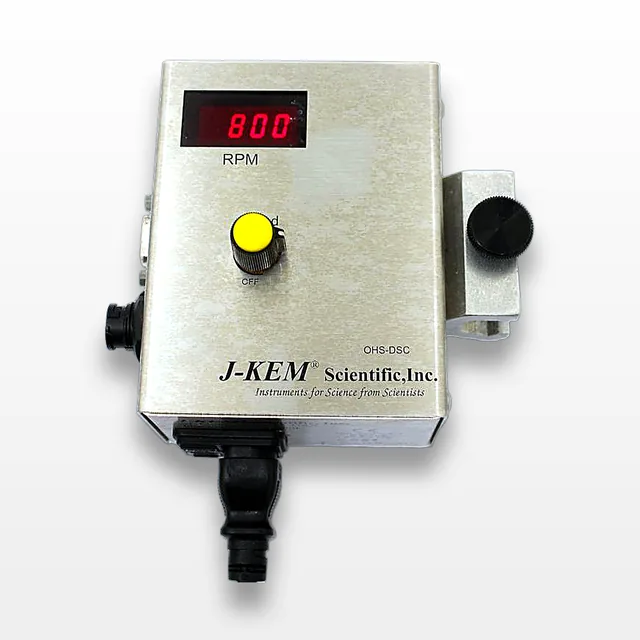

J-Kem OHS-DSC Speed Controller RPM Control Stainless Steel Unit 20-800RPM
J-Kem
Details
-
CategoryHomogenizer / Stirrer
-
Dimension5.0in x 5.0in x 4.0in
-
SerialC0113 / 644
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The J-Kem OHS-DSC Digital Speed Controller is a reliable and compact device designed for precision control in laboratory settings. Manufactured in the United States, this used unit is in very good condition, displaying only minor cosmetic wear from regular use. The controller is easy to handle, weighing under one pound, and offers superior power compared to larger models. It includes a side-mount clamp for convenient assembly and alignment with reaction flasks. Crafted with stainless steel material, it features a sealed housing and a 14 Vdc motor, ensuring enhanced safety and durability. The device operates at a voltage of 120V and supports 50Hz/60Hz frequency. Its maximum rotational speed ranges from 20 to 800 RPM, with rotational control precision at 1 RPM, providing users with exceptional precision for various stirring applications. Please note that while the unit includes a power cord, it does not come with additional power/data cables or user manuals.
Key Features
- Digital speed control from 20 to 800 RPM
- Compact design with a weight less than 1 lb
- Includes side-mount clamp for ease of use
- Stainless steel construction with sealed housing
- 14 Vdc motor ensuring reliable performance
- 120V operation, compatible with 50Hz/60Hz
Specifications
- Voltage to motor: 14 Vdc max
- Maximum torque: 91 in-oz
- Rotational speed: 20-800 rpm
- Rotational control: 1 rpm
- Material: Stainless steel
- Sealed housing for safety
Weight
Imperial: 2.4 Pounds
Metric: 1.09 Kilograms
Shipping Dimensions
Imperial: 6.0 lb x 6.0 lb x 4.8 lb
Metric: 15.24 cm x 15.24 cm x 12.19 cm
Harmonized Code
9032.89.20.00
Harmonized Code Details
9032.89.20.00 - Automatic regulating or controlling instruments and apparatus. This code is suitable as it pertains to equipment designed for controlling variables like RPM.
