Thermo RVT4104-115 SpeedVac VLP120 Ultra-Low Temp Concentration System
Thermo / Savant
Details
-
CategoryLyophilizer / Speed Vac
-
Dimension26.0in x 44.0in x 19.0in
-

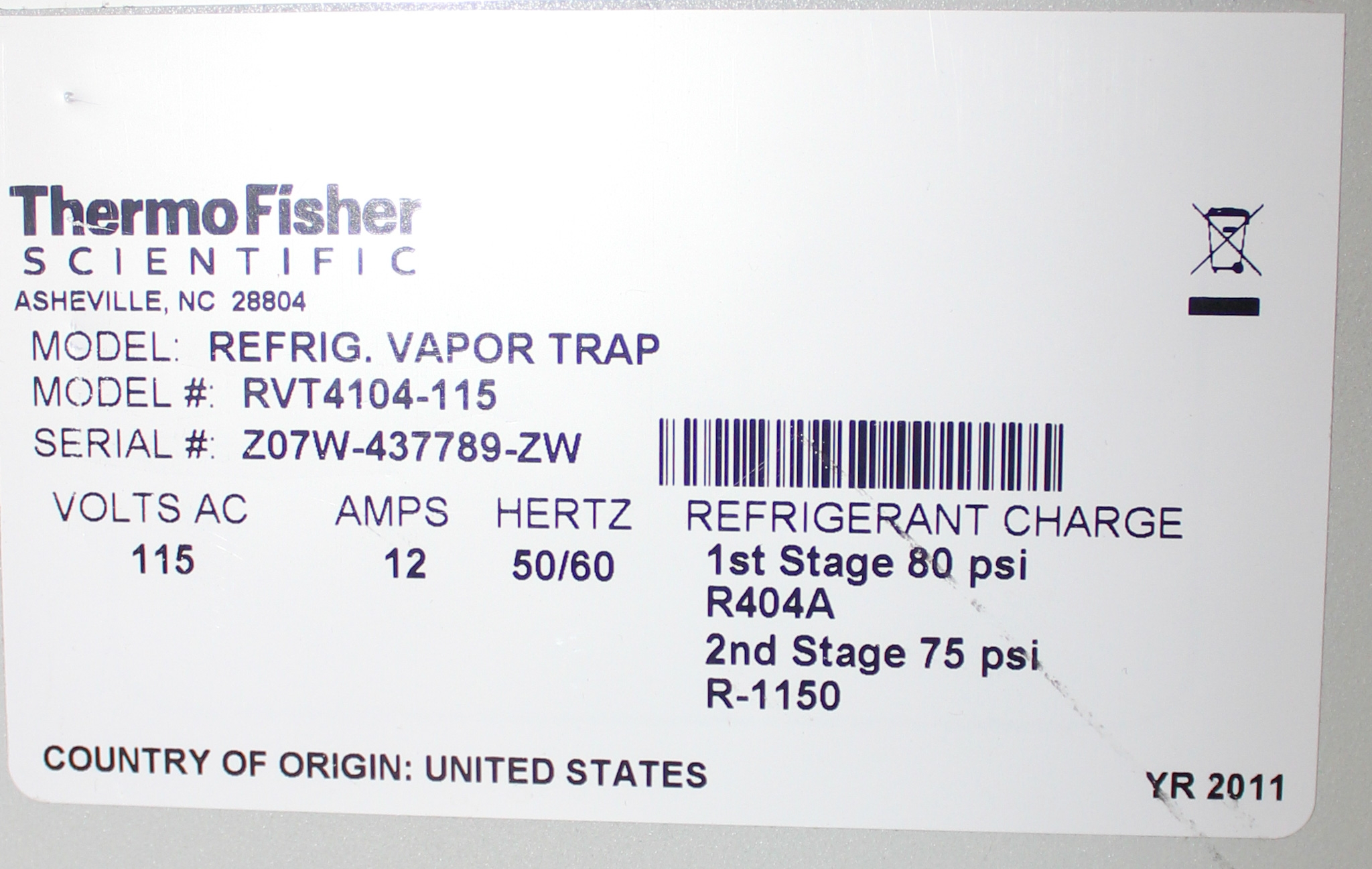

SerialZ07W-437789-ZW
-
Shipping TypeFreight
-
Manufacturing2011-01-01
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Thermo Savant SpeedVac Concentrator system, comprising the Savant RVT4104-115 Refrigerated Vapor Trap and VLP 120 Vacuum Pump, is perfect for pharmaceutical and analytical labs. Manufactured in the United States in 2011, the system is in very good condition with only slight cosmetic wear from regular use. Known for effectively concentrating high boiling point solvents, strong acids, and bases, it features a dual vacuum control, four IR heat lamps, and a heated glass lid to optimize drying processes and prevent sample bumping or freezing. This advanced system is suitable for applications such as solid phase extractions, evaporating dissolution solvents, and drying lipid extracts. With a temperature range of 0 to -104C and a capacity of 4 liters, this equipment efficiently traps various solvent vapors to protect vacuum pumps in evaporation tasks. Note that a power cord is included but no computer or software.
Key Features
- Dual vacuum control for flexibility
- Four IR heat lamps for high boiling point solvents drying
- Heated glass lid to reduce drying time
- Ultra-low temperature refrigerated vapor trap: 0 to -104C
- Digital display of parameters (time, temperature & vacuum)
- Corrosion-resistant vacuum pump
Specifications
- Voltage range: 115-120V, 50/60Hz
- Temperature range: 0 to -104C
- Max capacity: 4 liters
- Ultimate vacuum level: 1.5 mtorr
- Dimensions: Length 66cm, Width 112cm, Height 48cm
- Comes with UPC1 microplate carriers
- Refrigerants: CFC and HCFC-free
- Kalrez and PTFE coated materials for chemical resistance
Weight
Imperial: 330.0 Pounds
Metric: 149.69 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 52.8 lb x 22.8 lb
Metric: 79.25 cm x 134.11 cm x 57.91 cm
Harmonized Code
841960
Harmonized Code Details
841960 - Machinery for liquefying air or gas. Chosen due to the system's function in vapor trapping and solvent recovery through refrigeration and vacuum mechanisms.
