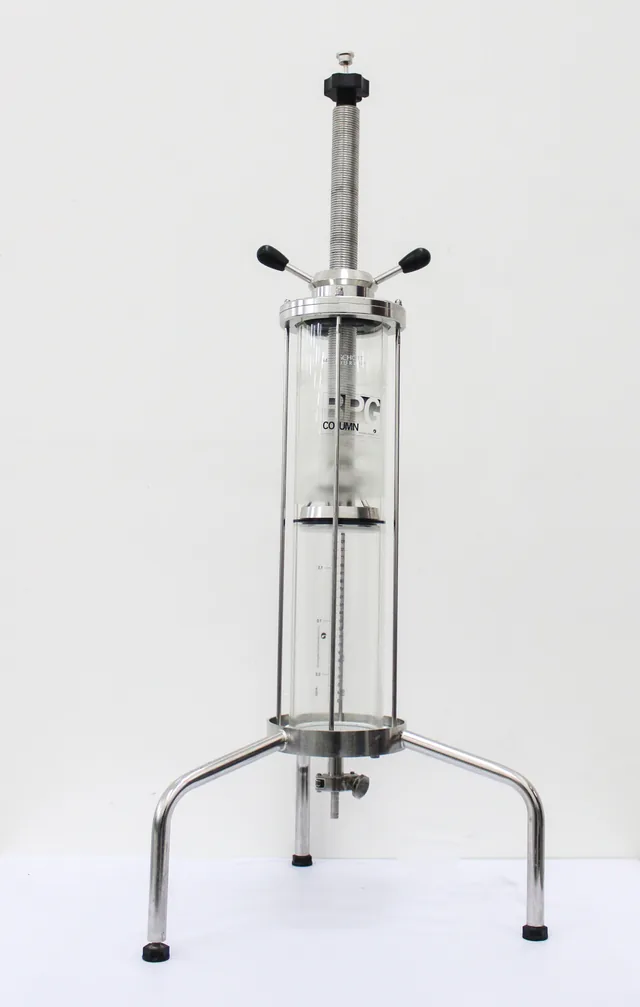

Amersham Biosciences BPG Column Chromatography 3.5L Process | Used
Amersham Biosciences
Details
-
CategoryBioprocessing
-
Dimension18.0in x 18.0in x 44.0in
-
SerialN/A
-
Shipping TypeFreight
Description
The Amersham Biosciences BPG Column model 56-1190-30 is a versatile chromatography column designed for process development and biopharmaceutical manufacturing. This used equipment features a 100/500mm glass borosilicate tube and is capable of handling scalable operations with an inner diameter range from 100 mm to 450 mm and bed volumes from 2 to 121 liters. Despite minor cosmetic blemishes, the column is in very good condition and fully functional, ready to facilitate reliable and efficient packing and operation. The unit is equipped with high-grade electropolished stainless steel, ensuring a hygienic design that inhibits microbial growth. Operating conditions include a pressure capacity from 2.5 to 8 bar and a temperature range from 4°C to 40°C, making it an ideal choice for laboratory applications requiring precision and reproducibility.
Key Features
- Glass borosilicate column tube
- Scalable i.d. from 100 mm to 450 mm
- Pressure rating from 2.5 bar to 8 bar
- Bed volumes from 2 to 121 liters
- Hygienic design to prevent microbial growth
- Manual adapter movement
- Autoclavable at 121°C for 30 min (except for the bed support)
Specifications
- Adapter Movement: Manual
- Autoclavable: 121°C for 30 min
- Bed Height: 1-26 cm
- Bed Height Packing With Extension Max.: 35 cm
- Bed Height Running With Extension Max.: 45 cm
- Bed Volume: 0.3-2 L
- Bed Volume Packing With Extension Max.: 2.7 L
- Bed Volume Running With Extension Max.: 3.5 L
- Column Cross Section Area: 78.5 cm²
- Connections: 25 mm TC
- Inlet Dimension i.d.: 4 mm
- Operating pressure max.: 8 bar (116.03 psi)
- Operating Temperature: 4°C - 40°C
- Outer Height: 1270 mm
- Porosity: 10 µm, 12 µm, 23 µm, and 54 µm
- Surface Finish, Stainless Steel Internal Wetted: Glass Ra < 0.4 µm
- Material (column tube): Glass Borosilicate 3.3
- Material (Stand): 316L Stainless Steel
Weight
Imperial: 42.0 Pounds
Metric: 19.05 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 21.6 lb x 52.8 lb
Metric: 54.86 cm x 54.86 cm x 134.11 cm
Harmonized Code
9027.90.54.00
Harmonized Code Details
Harmonized code 9027.90.54.00 corresponds to parts and accessories of instruments and apparatus for physical or chemical analysis (including spectrometers and chromatographs). This code is appropriate due to the nature and use of the BPG Column in laboratory processes for chromatographic analysis.
