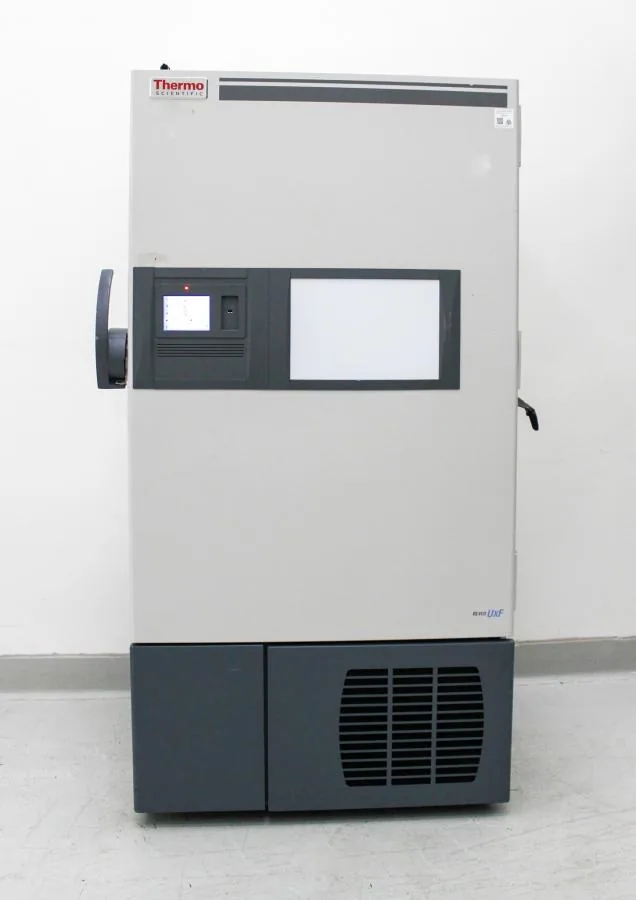

Thermo Revco UxF60086A Ultra Low Freezer Upright -86C 28.8 cu ft 115V USB Alarms

Thermo Revco UxF60086A upright ultra low temperature freezer, 28.8 cu ft 815 L, designed for secure long term storage from -50C to -86C. This used unit is in Good condition and powered on and ran overnight at our facility, reaching -71C; full verification was not performed. Expect minor cosmetic wear from normal use. The touch screen controller provides role based access, continuous health monitoring, and extensive event and temperature logging with USB export (up to 15 years). Efficient, CFC/HCFC free refrigerants, high efficiency compressor, brazed plate heat exchanger, and washable condenser filter support reliable performance and energy savings modes. Heated door gasket, five insulated inner doors with embedded magnets, pressure equalization port, and robust shelving enhance uniformity and recovery. Includes 30 day parts warranty and power cord. Electrical: 115 to 120 V, 60 Hz, single phase, 16 A, 1200 W.

• -50C to -86C operating range for long term sample preservation
• Large 28.8 cu ft 815 L capacity; holds up to 60,000 x 2 mL vials
• Touch screen LCD with role based access and onboard data logging
• USB port for event and temperature log export and data transfer
• Energy modes for high performance or up to 15 percent energy savings
• Heated door gasket with multiple seal zones to minimize frost
• Five insulated inner doors with embedded rare earth magnets
• High efficiency compressor and brazed plate heat exchanger
• Washable condenser filter for sustained performance
• 4 to 20 mA remote alarm output and rear access ports for probes
• Rapid door opening recovery and long warm up time for resilience
• Reinforced stainless steel shelves, high load capacity
• CFC HCFC free refrigerants; forced air cooled condenser
• Power management handles voltage variation
• Includes power cord; 30 day parts warranty

• Type: Upright ultra low temperature freezer
• Make and model: Thermo Revco UxF60086A
• Capacity: 28.8 cu ft 815 L
• Temperature range: -50C to -86C
• Performance at -80C: Peak variation +2.9C to -4.9C
• Door opening recovery: 33 minutes
• Warm up time: -80C to -50C in 240 minutes
• Controller: Touch screen LCD with user permissions
• Data logging: Onboard storage up to 15 years; USB export
• Alarms monitoring: Local alarms plus 4 to 20 mA remote alarm output
• Access ports: Two rear 1 in 25 mm ports for probes or instruments
• Inner doors: Five polystyrene insulated, magnetic closure
• Gasket: Heated door gasket with multiple seal zones
• Shelving: 4 reinforced stainless steel shelves
• Shelf load rating: Up to 245 lb 388 kg per shelf
• Vial capacity: Up to 60,000 x 2 mL vials 600 boxes
• Insulation: Vacuum panel and water blown polyurethane foam
• Condenser: Fin and tube, forced air cooled
• Refrigerants: CFC HCFC free
• Energy usage: Approx 17 to 21.3 kWh day depending on mode
• Electrical: 115 to 120 V, 60 Hz, 16 A, single phase; 1200 W
• Interior dimensions W x D x H: 34.4 x 28.3 x 51.2 in
• Footprint: 11.38 sq ft 1.06 sq m
• Condition: Used, Good; powered test to approximately -71C overnight; cosmetic wear
• Included: Power cord
• Warranty: 30 day parts warranty
• Country of origin: United States
• Serial number: 0132797601140320

Imperial: 1024.8 Pounds

Metric: 464.84 Kilograms

Imperial: 43.2 lb x 52.8 lb x 93.6 lb

Metric: 109.73 cm x 134.11 cm x 237.74 cm

8418.69

HS 8418.69 covers other refrigerating or freezing equipment. Laboratory ultra low temperature freezers not classified as household appliances are typically reported under this heading.
