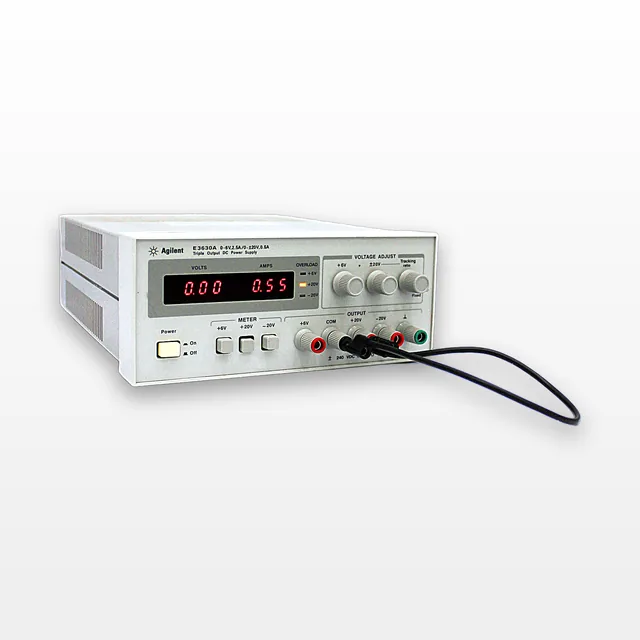

Agilent E3630A Triple Output DC Power Supply 0-20V 0-0.5A VG Condition
Agilent
Details
-
CategoryComputer / IT
-
Dimension13.0in x 9.0in x 4.0in
-
SerialMY40012661 / KR51305391
-
Shipping TypeFedEx Ground
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Agilent E3630A is a versatile 35-watt triple-output DC power supply, ideal for laboratory and testing purposes. Featuring three outputs, it delivers 0 to 6V with 0 to 2.5A and 0 to ±20V with 0.5A. With its auto-tracking feature, you can control the +20V and -20V outputs simultaneously, ensuring balanced voltages. The unit is in very good used condition, functioning as intended and boasting reliable performance with slight cosmetic signs due to normal usage. All functional tests are passed, making it a dependable choice for precise voltage control applications. Please note that this unit includes a power cord but no additional power/data cables or software.
Key Features
- Triple output: 0-6 V, 0 to 2.5 A and ±20V, 0 to 0.5 A
- 35W maximum power
- Auto-tracking capability
- 10-turn voltage and current control
- Low noise & excellent regulation
Specifications
- Output 1: 0 to +20 Vdc, 0 to 0.5 A
- Output 2: 0 to -20 Vdc, 0 to 0.5 A
- Output 3: 0 to 6 Vdc, 0 to 2.5 A
- Power (max): 35 W
- Load Regulation: 0.01% + 2mV
- Ripple & Noise (20 Hz to 20 MHz): Normal Mode Voltage RMS: 350 V
- Ripple & Noise (20 Hz to 20 MHz): Peak-to-Peak: 1.5 mV
- Control mode: CV/CL (20 V), CV/CF (6 V)
- Input power: 115 Vac, 10%, 47 to 63 Hz
Weight
Imperial: 10.8 Pounds
Metric: 4.9 Kilograms
Shipping Dimensions
Imperial: 15.6 lb x 10.8 lb x 4.8 lb
Metric: 39.62 cm x 27.43 cm x 12.19 cm
Harmonized Code
850440
Harmonized Code Details
850440 - Electrical transformers, static converters and inductors; justified due to the nature of the equipment as a DC power supply with electrical conversion and regulation functions suitable for laboratory environments.
