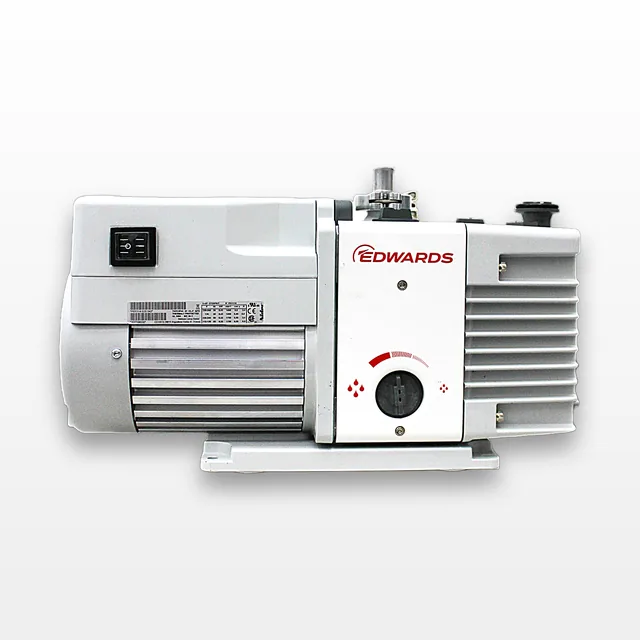

Edwards RV3 Finnigan Vacuum Pump High Performance 60Hz 1800rpm 300W NW25
Edwards
Details
-
CategoryPump
-
Dimension17.0in x 7.0in x 10.0in
-
Serial200455884
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Edwards RV3 Finnigan Vacuum Pump, made in the United States, is a high-performance rotary vane pump designed for the most demanding research and scientific applications. With over 300,000 units produced, this pump delivers excellent ultimate vacuum pressure down to 2.0 x 10-3 mbar and high pumping speeds of 4.5 m3h-1 at 60 Hz. Tested to specifications, it achieves a vacuum pressure of 5 microns (pressure gauge not included). Despite slight cosmetic blemishes, the RV3's functionality and reliability in handling vapors are uncompromised, making it ideal for various settings. The pump features a unique mode selector switch suitable for high vacuum or high throughput tasks, a controlled opening valve, and a high-quality universal motor. It offers a quiet operation at just 48 dB(A) and has interchangeable components for easy maintenance. The power connector is the IEC EN60320 C13, with an oil capacity ranging from 0.42 to 0.7 liters. See photos for cosmetic details.
Key Features
- High ultimate vacuum pressure down to 1.5 x 10-3 Torr
- Pumping speed of 4.5 m3h-1 at 60 Hz
- Quiet operation at 48 dB(A)
- Unique mode selector switch for high vacuum or throughput
- Controlled opening valve on startup
- Interchangeable components for easy maintenance
- Rated for 250-300W motor power
Specifications
- Voltage: 120V, Hertz: 50Hz/60Hz
- Nominal rotation speed: 1500 / 1800 rpm
- Oil capacity: 0.42 to 0.7 liters (UltraGrade 19 recommended)
- Noise level: 48 dB(A) @ 50 Hz
- Operating temperature range: 12 to 40 °C
- Inlet/Exhaust flange: NW25
- Tested vacuum pressure: 5 microns
Weight
Imperial: 68.4 Pounds
Metric: 31.03 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 8.4 lb x 12.0 lb
Metric: 51.82 cm x 21.34 cm x 30.48 cm
Harmonized Code
841410
Harmonized Code Details
841410: Vacuum pumps. This code suits the Edwards RV3 Finnigan Vacuum Pump due to its specific function as a vacuum pump, commonly used in scientific and industrial applications.
