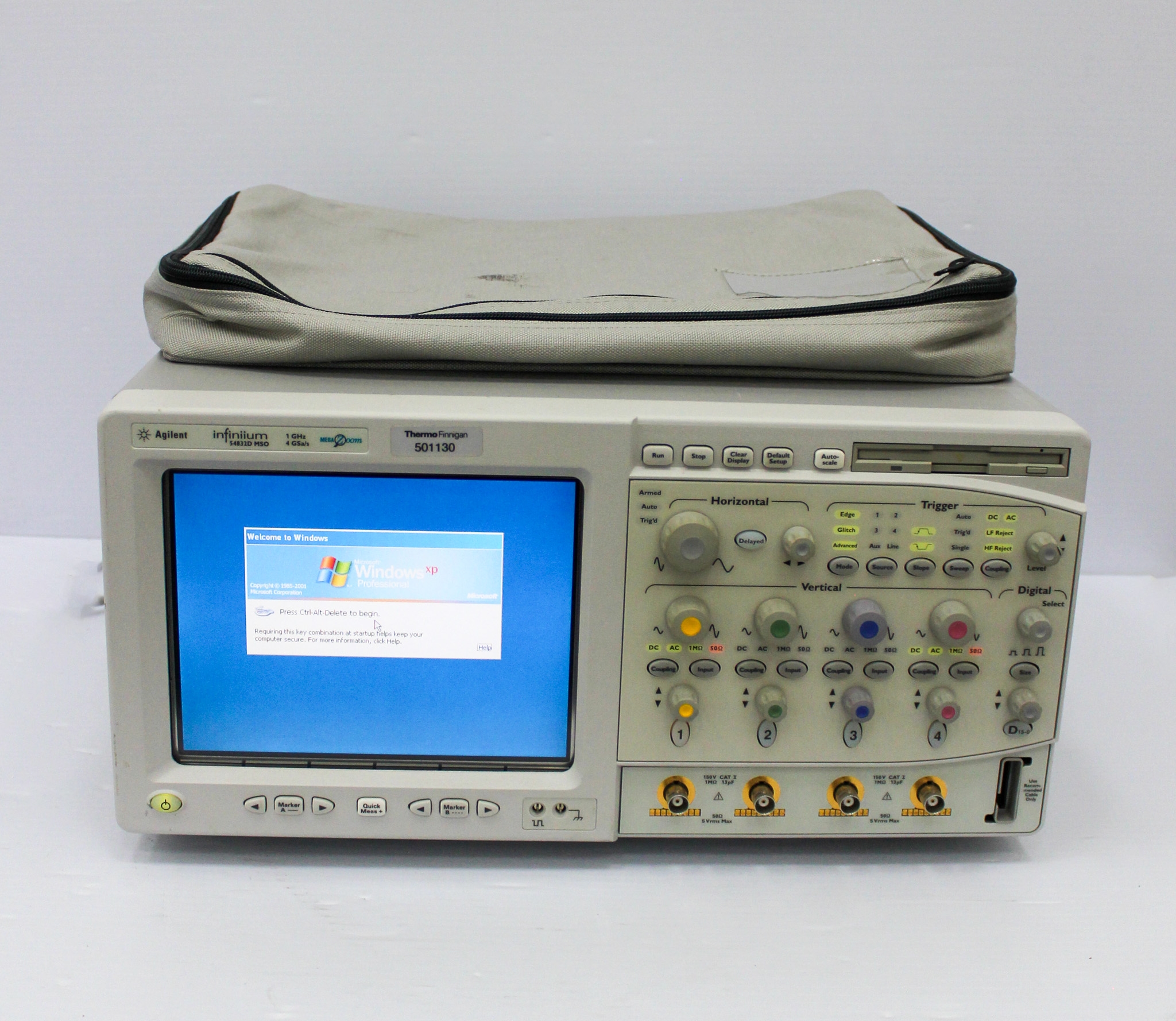

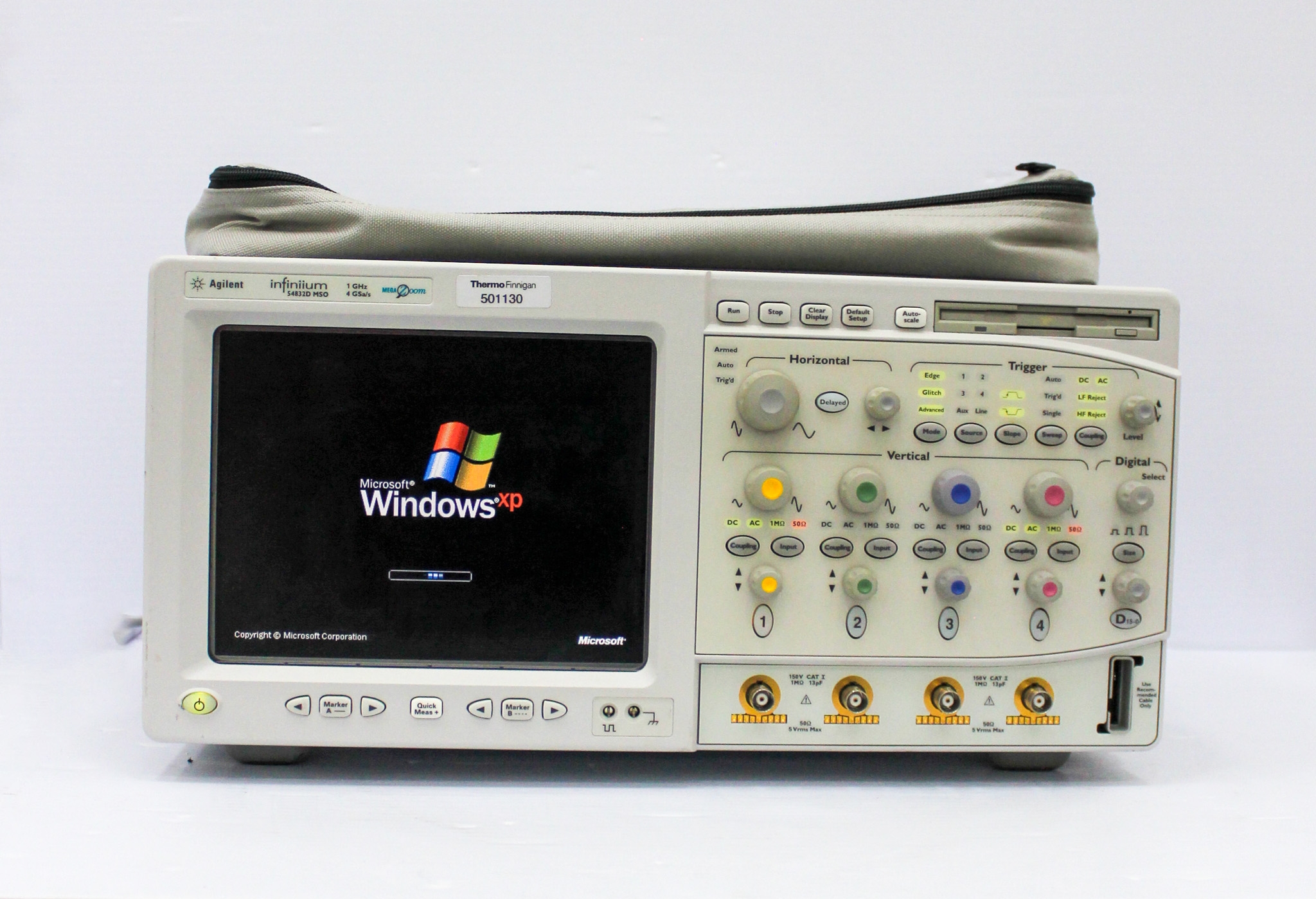

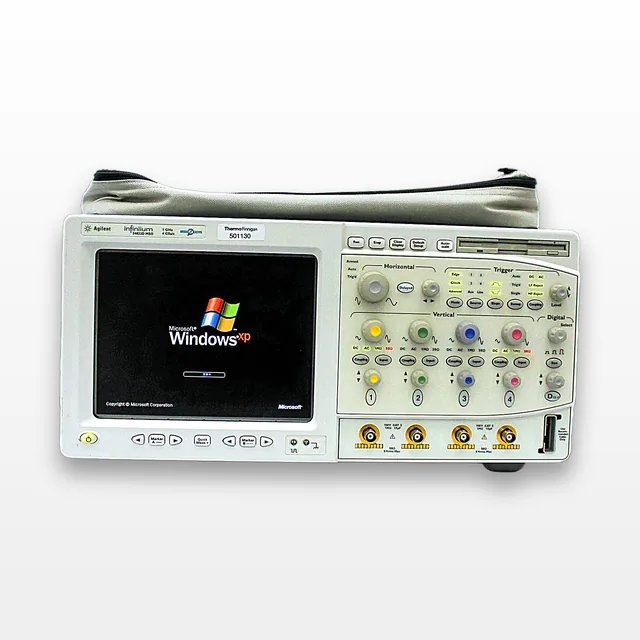

Agilent 54832D MSO Oscilloscope 1GHz/4GSa/s Mixed Signal Testing Equipment
Agilent
Details
-
CategoryTesting Equipment
-
Dimension18.0in x 18.0in x 9.0in
-

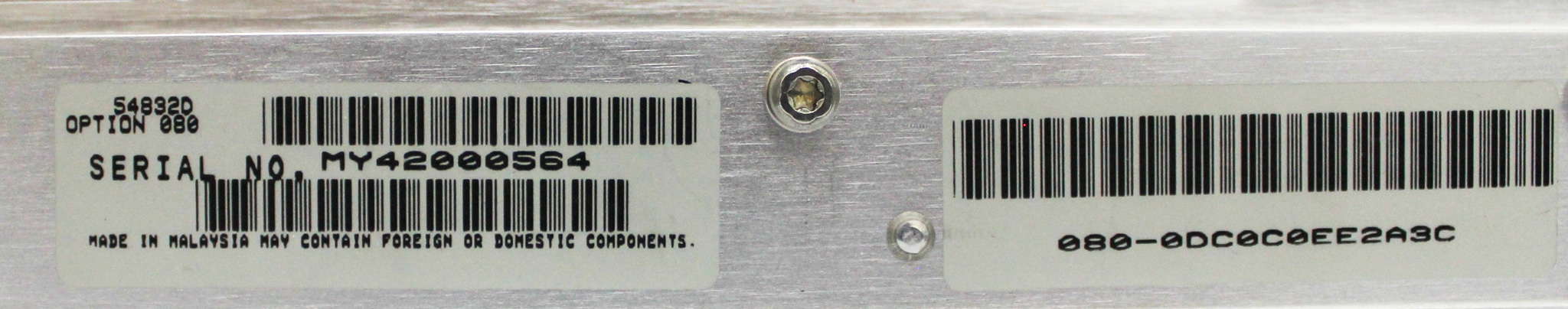

SerialMY42000564
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Agilent infiniium 54832D Mixed Signal Oscilloscope (MSO) is designed to enhance detailed signal analysis with 4 scope channels and 16 timing channels, integrating the functionalities of a logic analyzer and digital oscilloscope in one system. With a 1 GHz bandwidth and a sample rate up to 4 GSa/s, it allows for simultaneous display of analog and digital signals, aligning events in time for effective problem-solving in mixed-signal environments. Sporting MegaZoom technology, the 54832D handles data with a fast response thanks to a deep memory capability of up to 128 Mpts. Catering to various testing needs, it supports options for different analysis software including FPGA Dynamic Probe, High-Speed Serial Data Analysis, Jitter Analysis, and more. Although used, it is functional and includes passive probes along with logic cables. It is a versatile tool well-suited for laboratories requiring precise mixed-signal analysis.
Key Features
- 1-GHz Bandwidth Mixed Signal Oscilloscope
- 4 scope channels and 16 digital channels
- MegaZoom technology with up to 128 Mpts memory
- Up to 4 GSa/s sample rate
- Digital and analog event time alignment
- Various software options for additional analysis
Specifications
- Bandwidth: 1 GHz
- Scope Channels: 4
- Timing Channels: 16
- Sample Rate: Up to 4 GSa/s
- Memory: Standard 4 Mpts, up to 128 Mpts optional
- Front Panel: Analog-like with Windows GUI
- Software Options: Jitter Analysis, Serial Data Analysis, more
- Probes: Passive probes ordered separately (logic cable and probe included)
Weight
Imperial: 43.2 Pounds
Metric: 19.6 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 21.6 lb x 10.8 lb
Metric: 54.86 cm x 54.86 cm x 27.43 cm
Harmonized Code
9030.20.00
Harmonized Code Details
Oscilloscopes and oscillographs. Chosen based on the main function of the equipment in line with its waveform analysis capabilities.
