Edwards RV3 A65201903 Rotary Vane Vacuum Pump High Performance, Quiet Operation
Edwards
Details
-
CategoryPump
-
Dimension17.0in x 7.0in x 10.0in
-

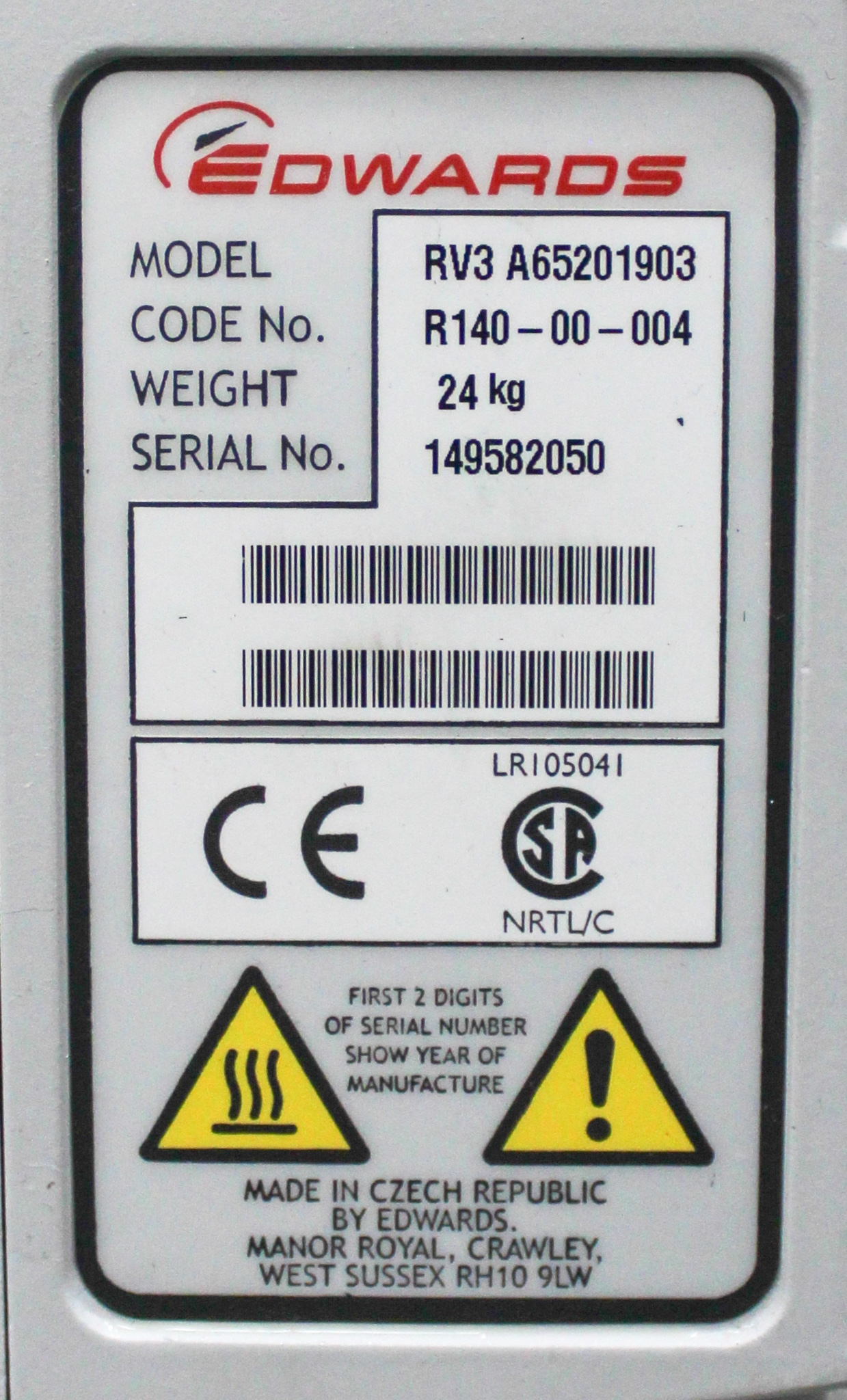

Serial149582050
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Edwards RV3 A65201903 rotary vane vacuum pump is a high-performance mechanical pump that delivers excellent ultimate vacuum pressure with high pumping speeds and superior vapor handling capabilities, ideal for R&D and scientific applications. This used unit is in very good condition with minor cosmetic blemishes from normal use. Operating at a noise level of 48 dBA, it offers a quiet work environment and reliable performance with features like fast-acting inlet valves for anti-suck back protection and a three-position gas ballast for optimized pumping efficiency under various conditions. Suitable for applications such as analytical instruments, leak detection, and freeze drying.
Key Features

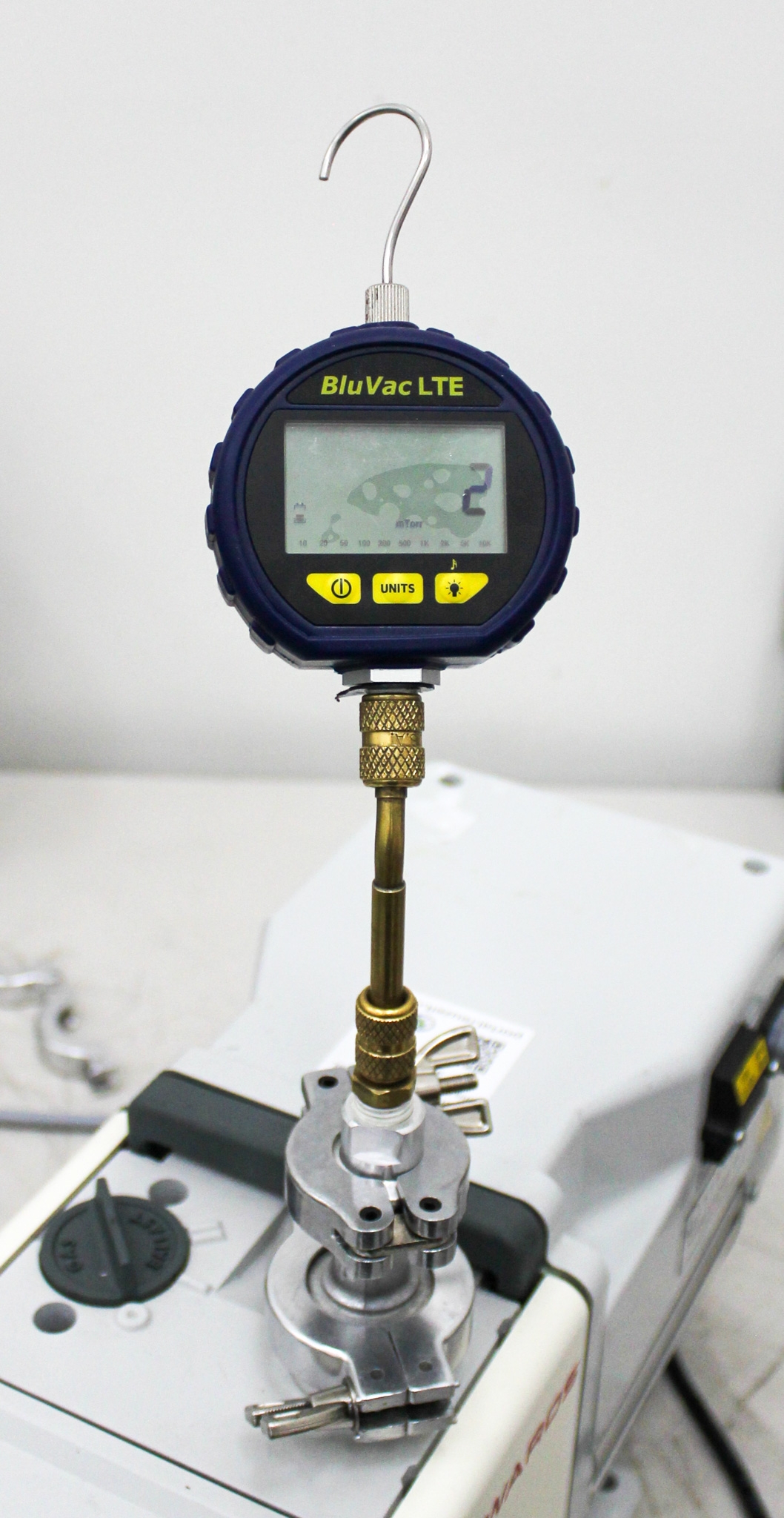

- Tested to specifications with ultimate vacuum pressure at 2 microns
- High reliability with fast-acting inlet valve for anti-suck back protection
- Quiet operation at 48 dB(A)
- Three-position gas ballast for optimized performance
- Universal motor for wide voltage and frequency range
- NW25 inlet and outlet connections
Specifications
- Voltage: 120V, Frequency: 50Hz/60Hz
- Ultimate pressure: 2.0 x 10-3 mbar / 1.5 x 10-3 Torr
- Motor power 50/60Hz: 450 / 550W
- Noise level: 48 dB(A) / 50 Hz
- Max inlet pressure for water vapour: 80 mbar / 60 Torr
- Max water vapour pumping rate GB I: 60 gh-1, GB II: 220 gh-1
- Oil capacity min/max: 0.42/0.7 litres
- Nominal rotation speed 50/60Hz: 1500 / 1800rpm
Weight
Imperial: 68.4 Pounds
Metric: 31.03 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 8.4 lb x 12.0 lb
Metric: 51.82 cm x 21.34 cm x 30.48 cm
Harmonized Code
84141000
Harmonized Code Details
84141000: Vacuum pumps. This code is applied due to the equipment's primary function as a vacuum pump, which fits within the mechanical appliance category.
