sku: 3376276
1 In Stock

Edwards

Next240 IIT Horizontal
US REUZEit West Coast US - R
30-Day Warranty On Part
$2,299.00
$2,500.00
-8% OFF
Apply For Finance Make Offer Enquiry Here
Add to cart Download flyer

Details

  • Category
    Pump
  • Dimension
    14.0in x 8.0in x 7.0in

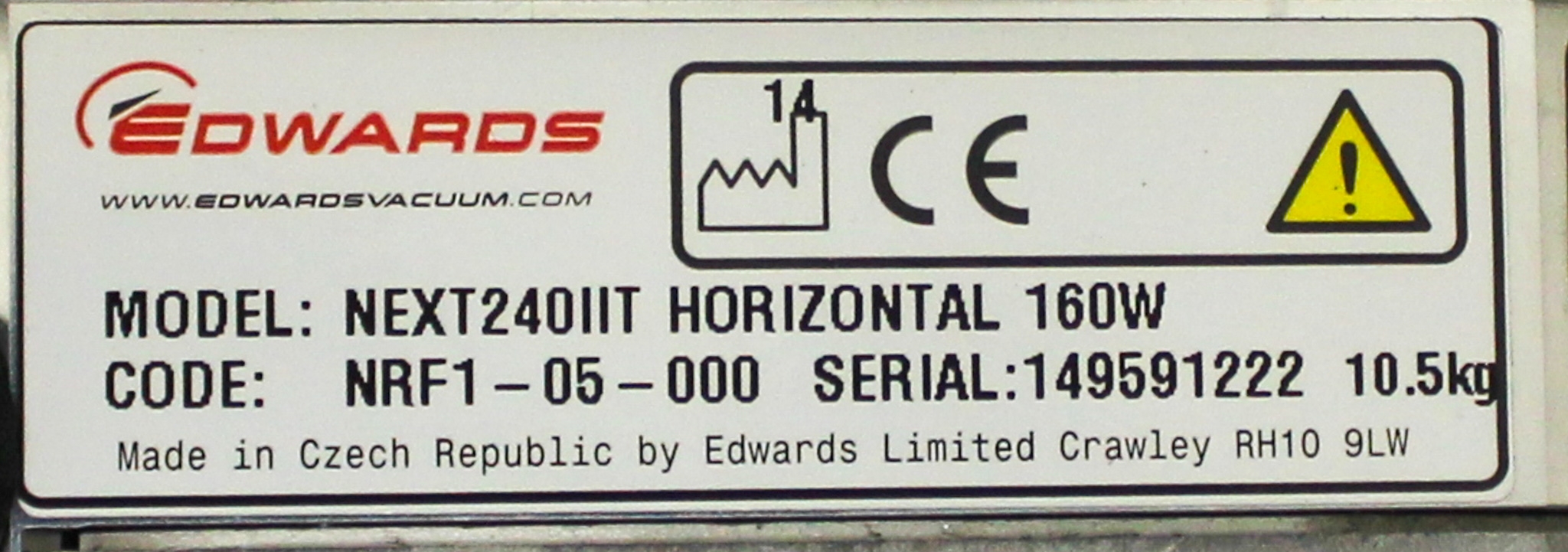

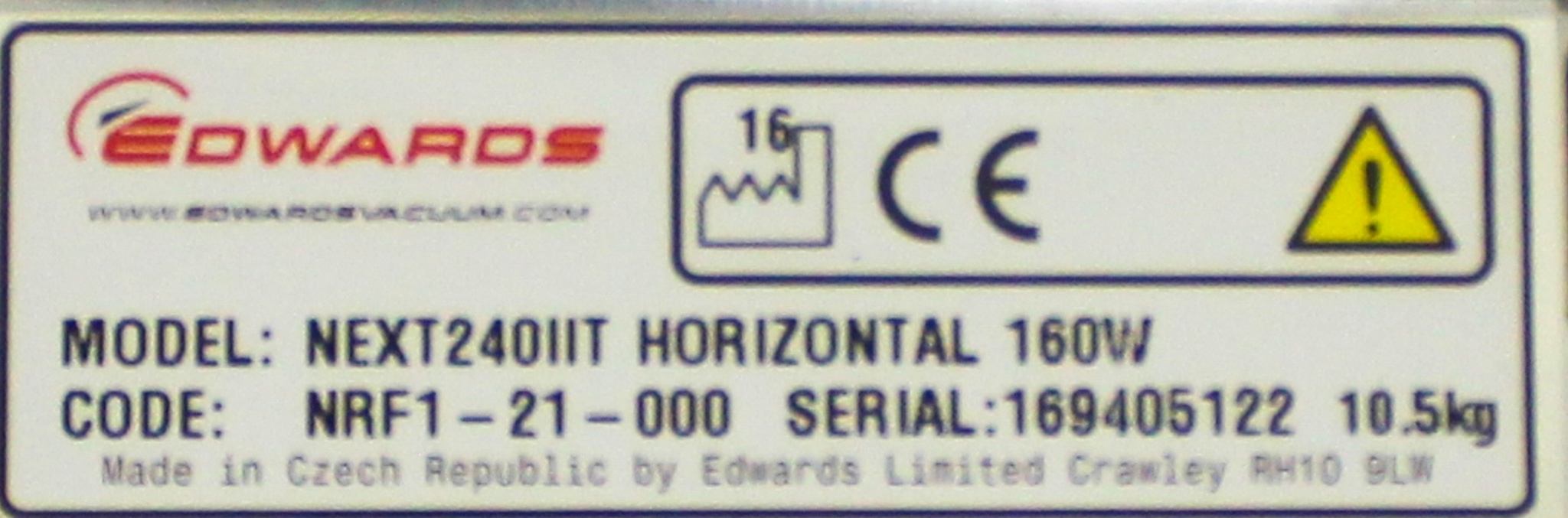

  • Serial

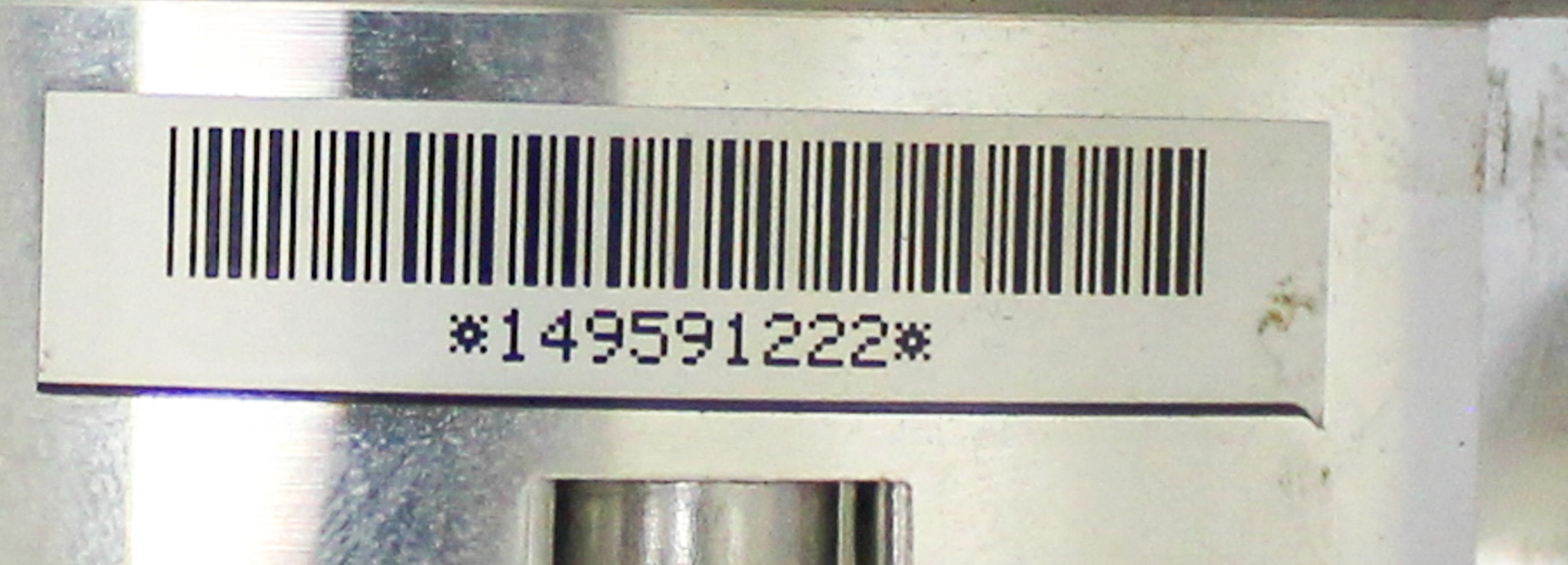

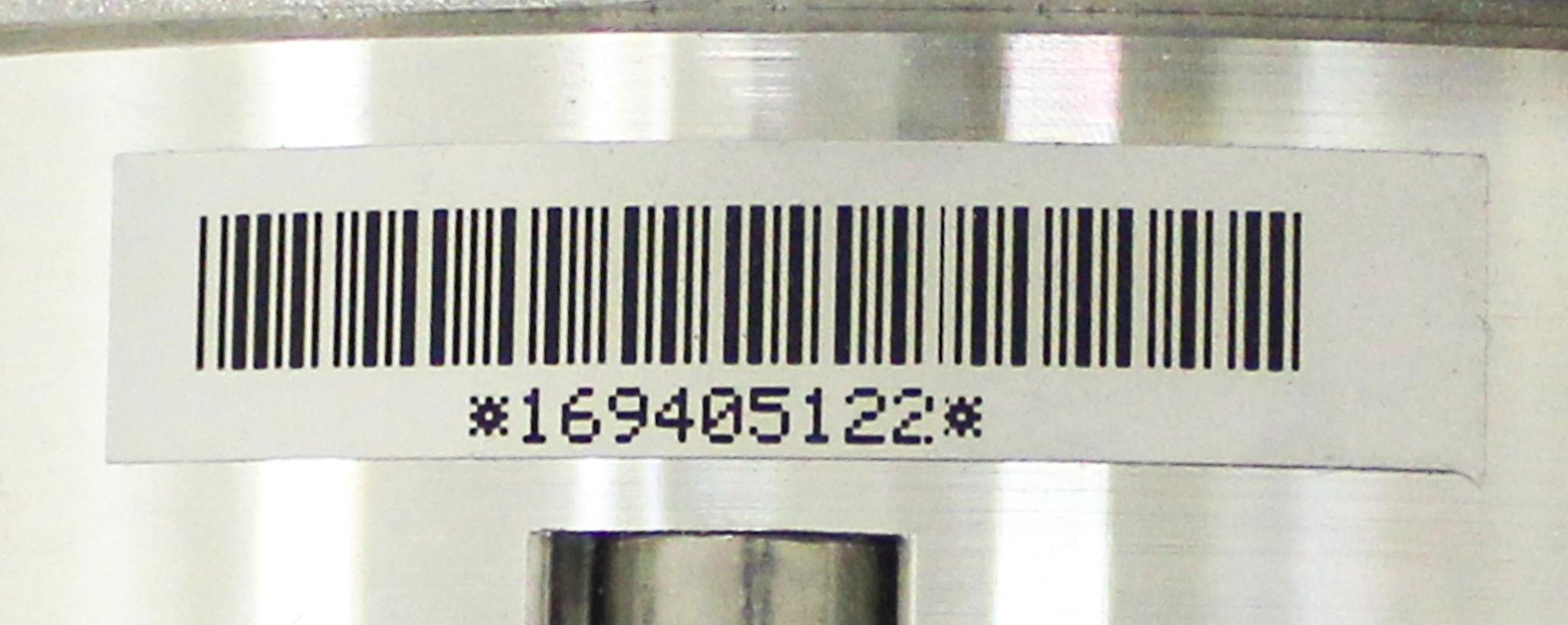

    149591222/ 169405122
  • Shipping Type
    FedEx Ground
  • Manufacturing
    Does Not Apply
  • Voltage / Hertz
    Does Not Apply / Does Not Apply

Description

Product Information

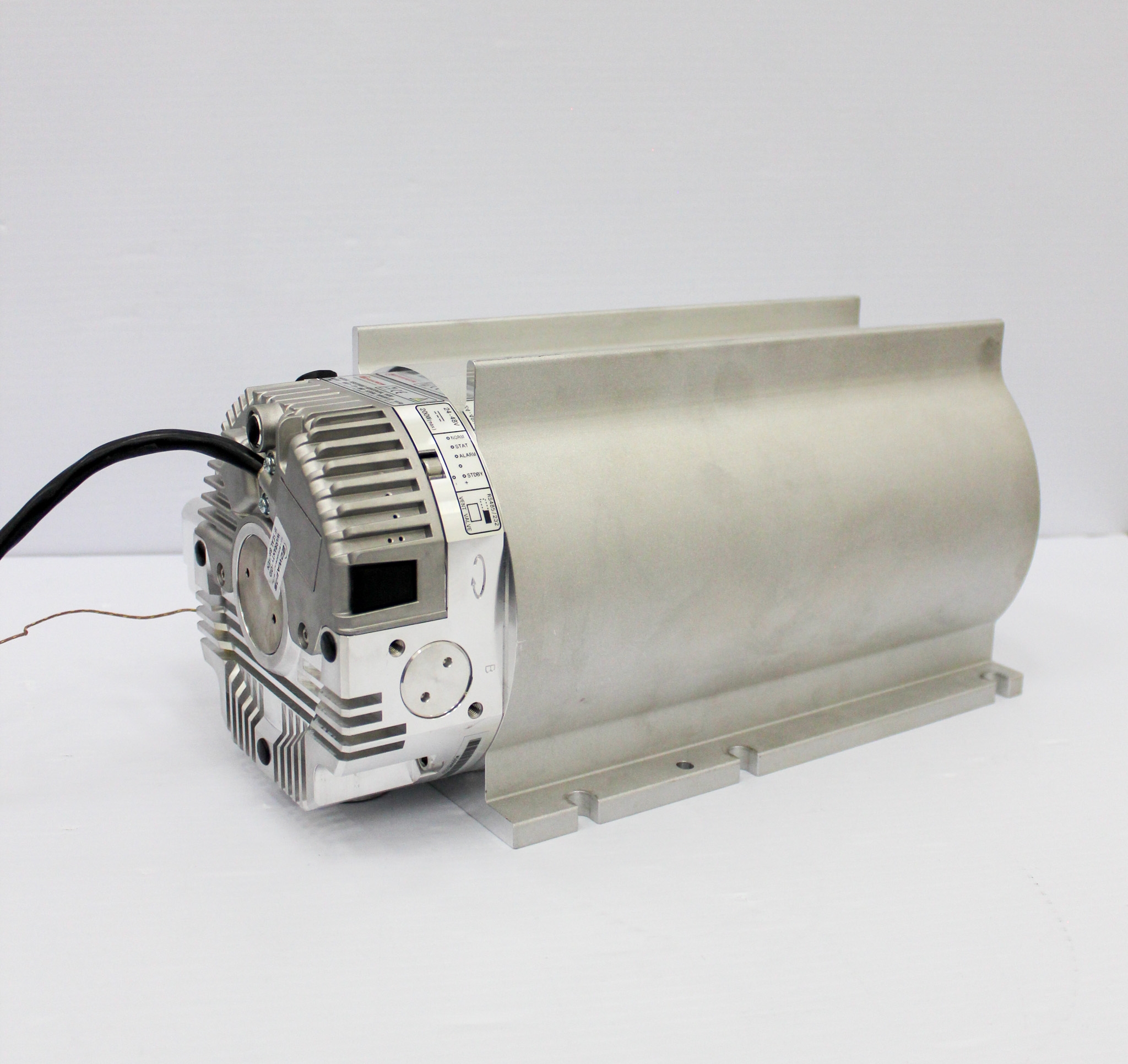

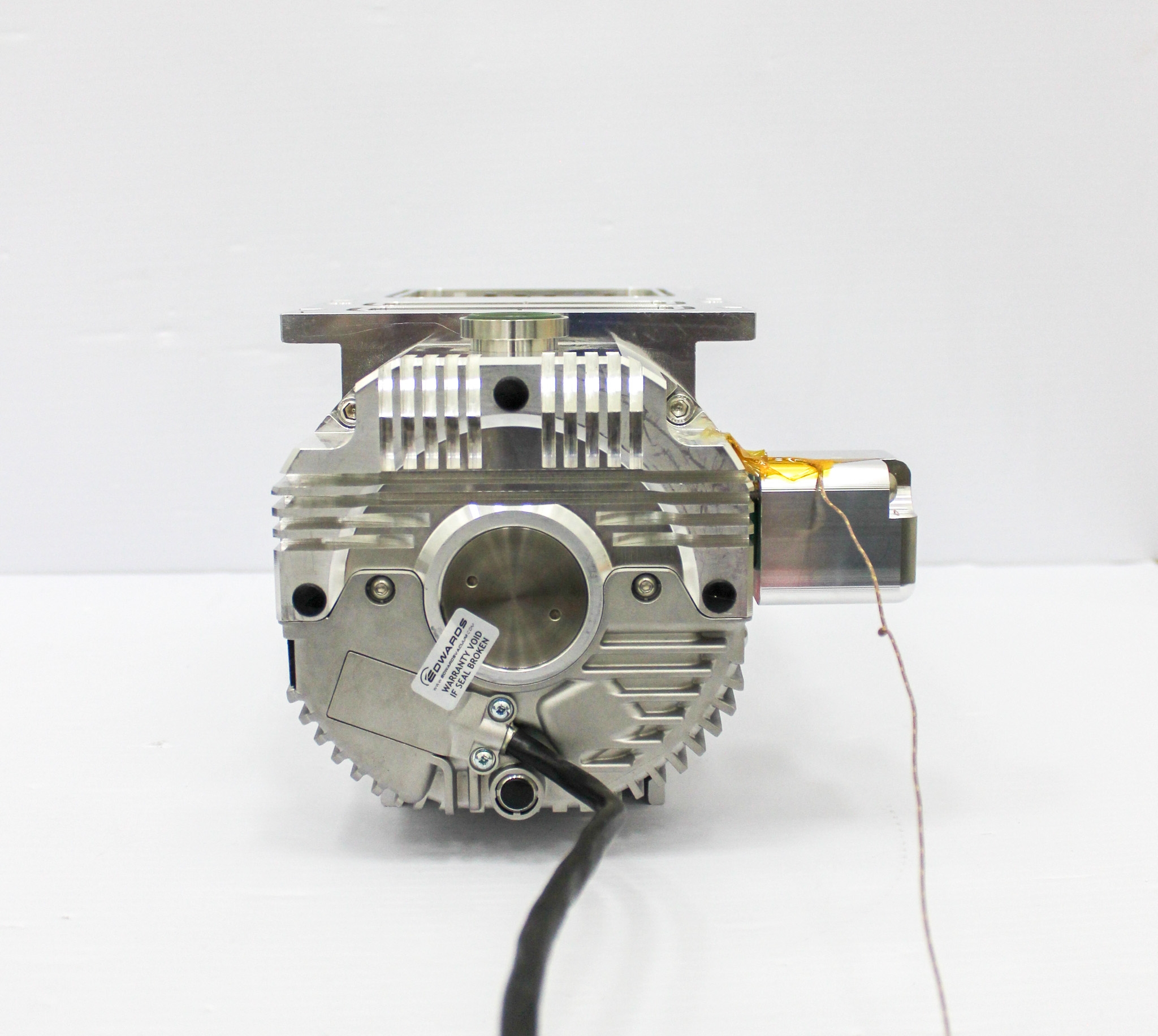

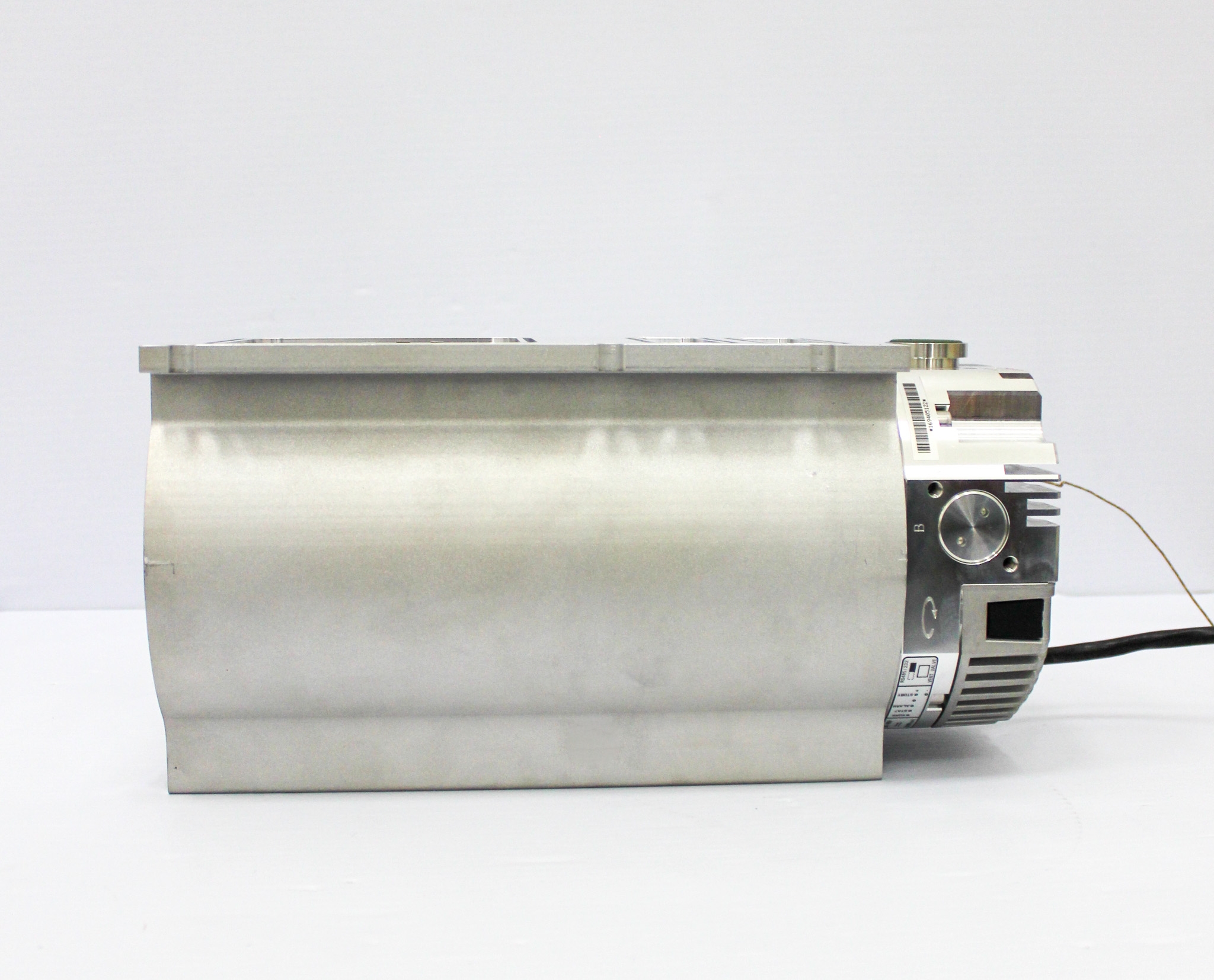

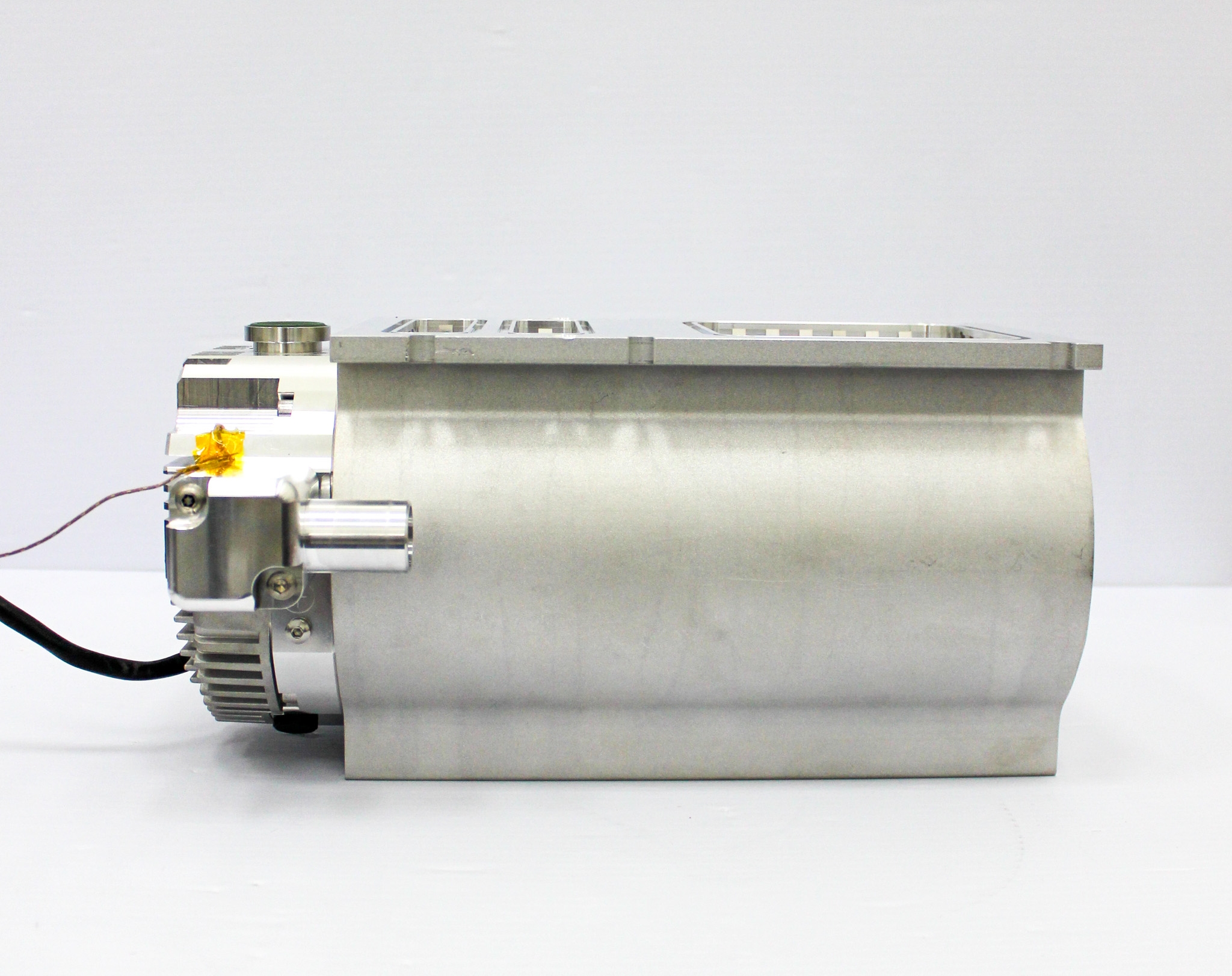

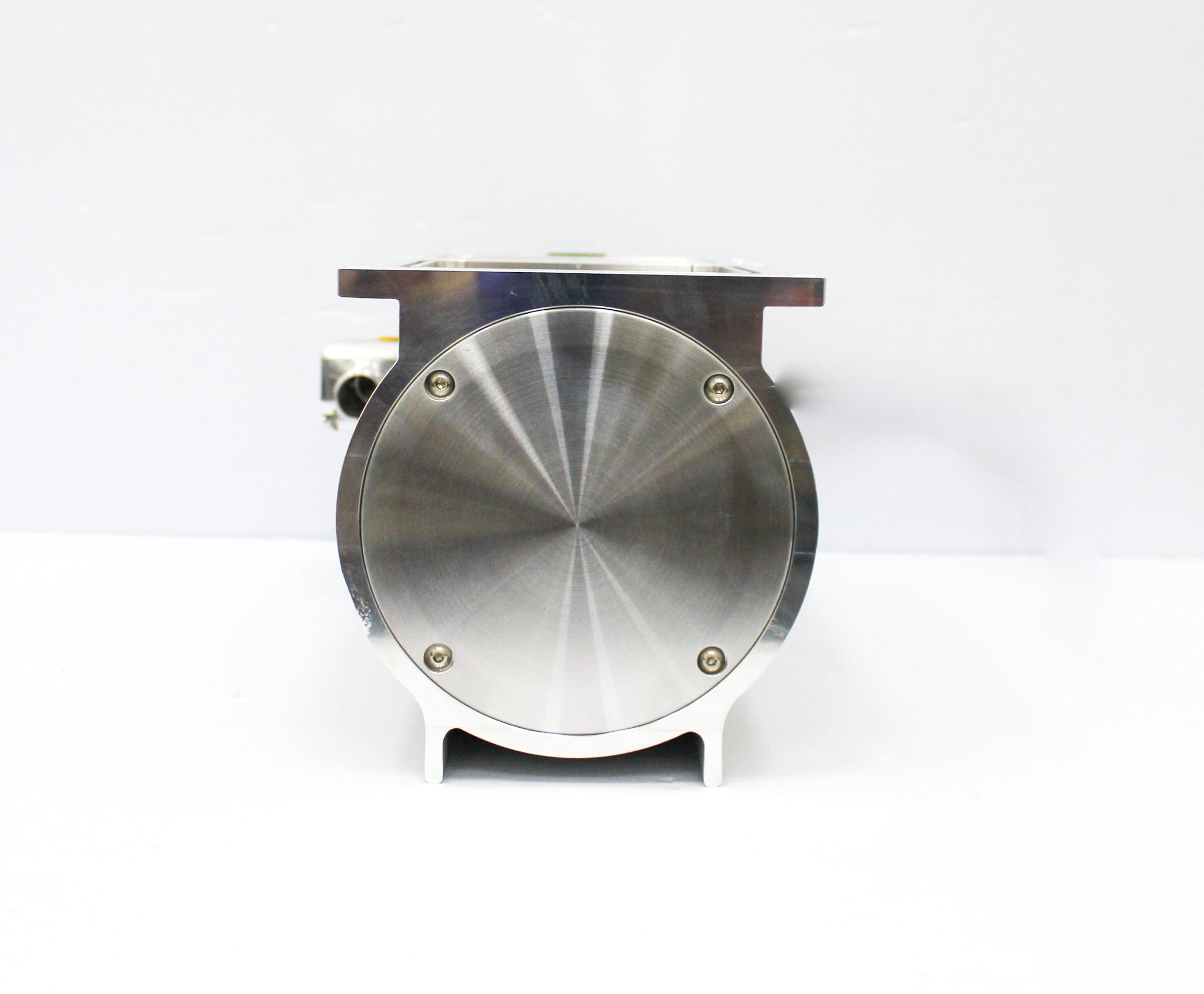

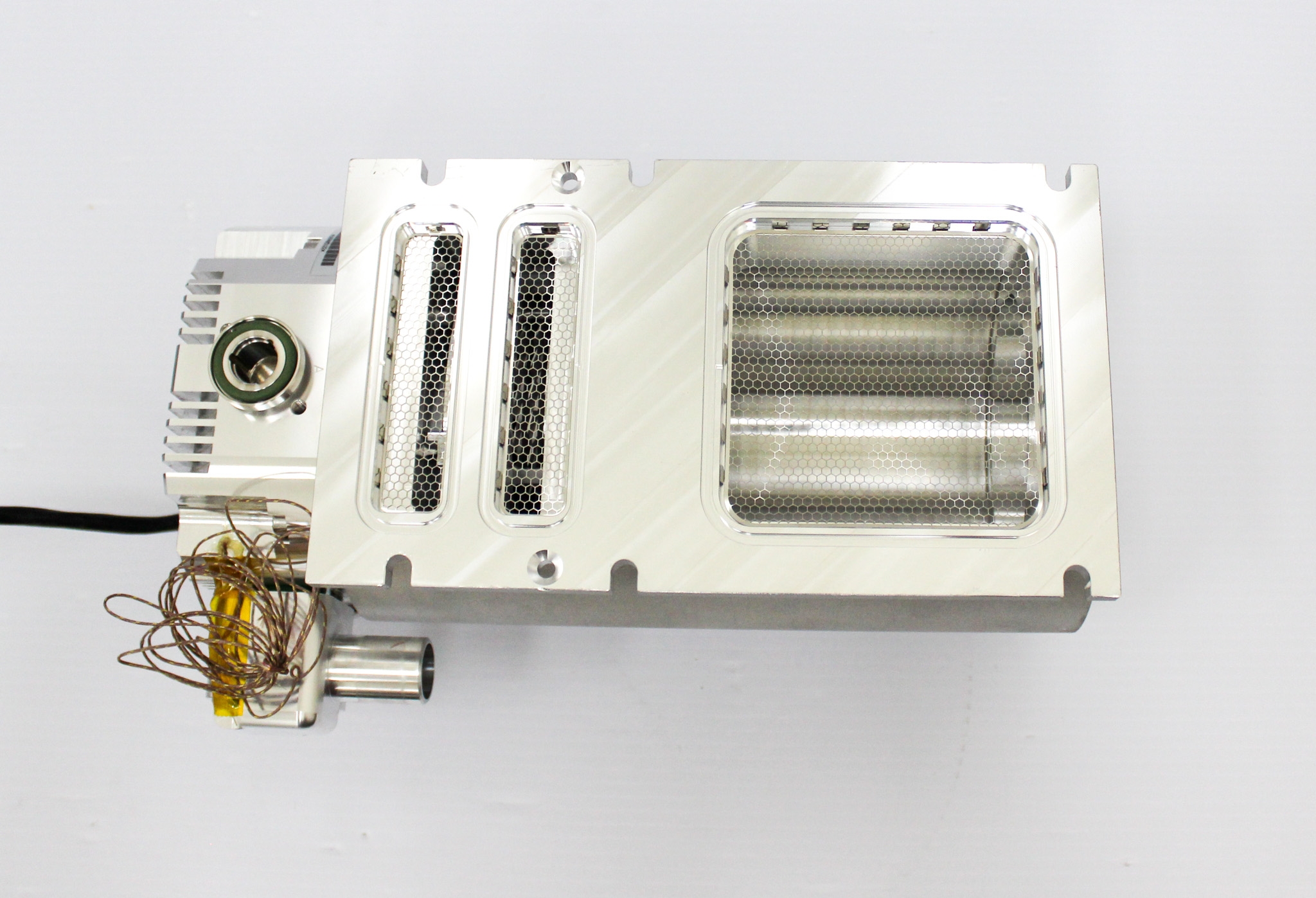

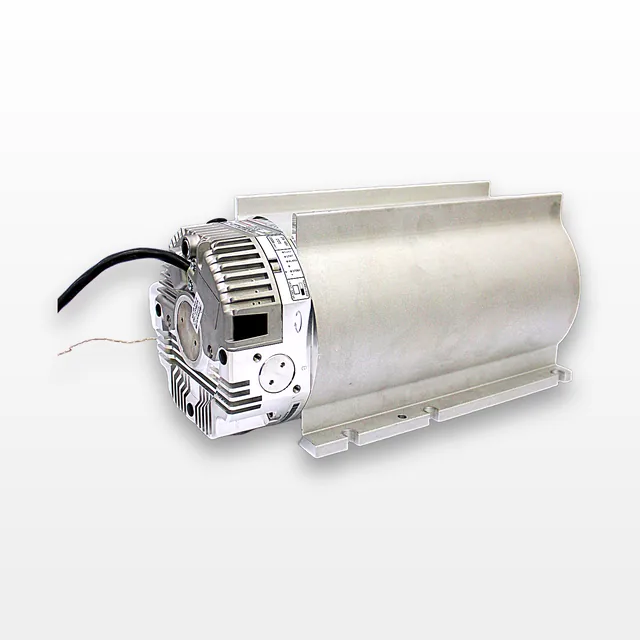

Presenting the Edwards Next240 II T Horizontal Turbomolecular Pump, a high-performance unit engineered with hybrid bearing technology. While this item is used, it demonstrates promising functionality, going through basic tests successfully. The pump combines oil-lubricated ceramic lower bearing with a dry permanent magnetic upper bearing, optimizing rotor design for enhanced speed and compression. Ideally suited for various applications, the nEXT delivers improved pumping speeds, ranging from 47 to 1250 ls-1, and includes an integrated controller compatible with TAG and TIC systems. This unit is designed to be user-serviceable, allowing field changes of oil cartridges and bearings with minimal tooling. Made in the USA, this turbomolecular pump is perfect for high-precision, high-efficiency laboratory operations.


Key Features
  • Hybrid bearing technology
  • Oil-lubricated ceramic lower bearing
  • Dry permanent magnetic upper bearing

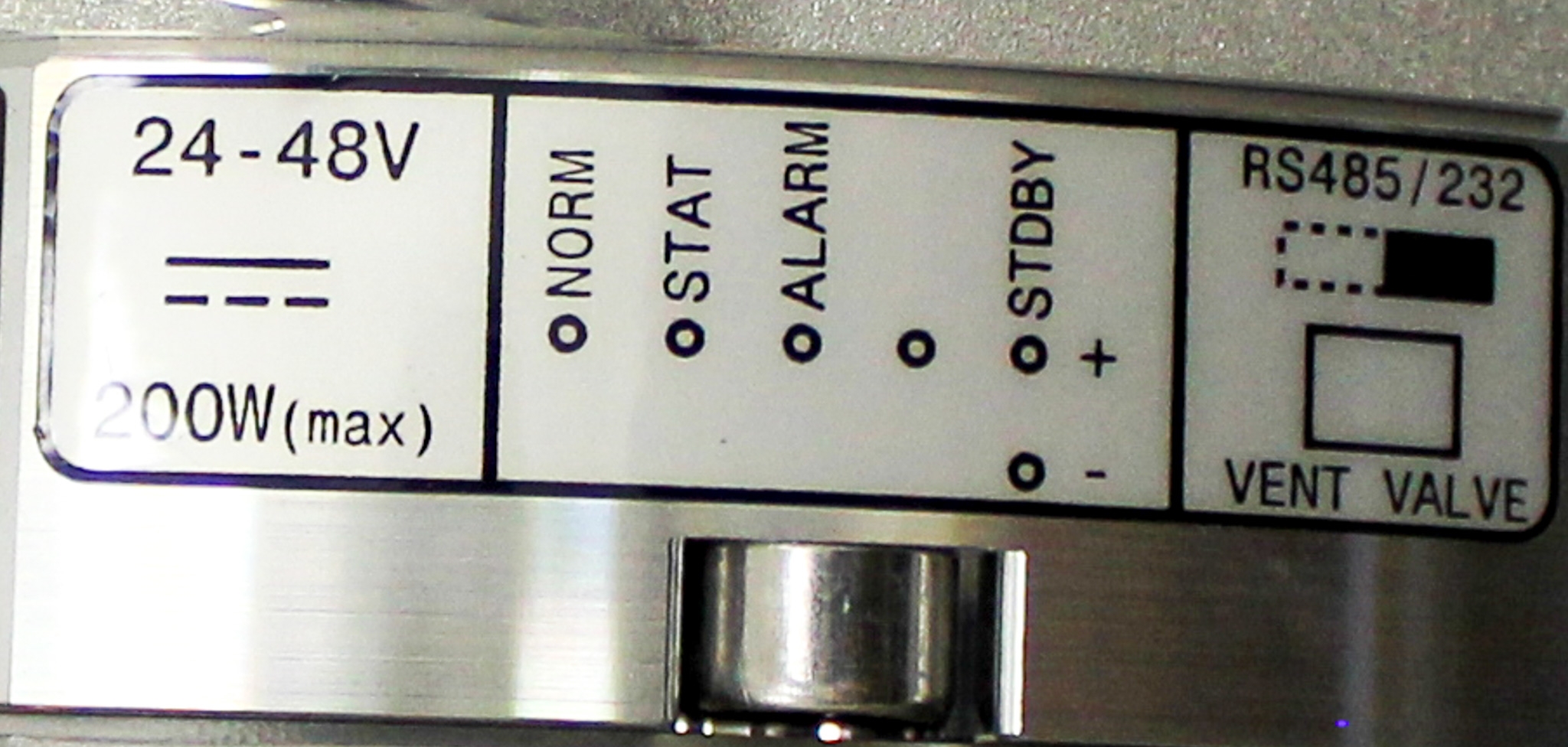

  • Integrated controller compatible with TAG and TIC
  • Pumping speed from 47 to 1250 ls-1
  • User-serviceable oil cartridge and bearings

Specifications
  • Power Total Rated: 160W
  • Pumping Speed Nominal: 1439.99 l/min
  • Pressure Ultimate: 3.750 x 10⁻¹⁰ Torr
  • Pressure Backing Max.: 15 Torr
  • Rotational Speed Nominal: 1000 Hz
  • Ramp Up Time: 150 seconds
  • Compression Ratio N2: 1 x 10¹¹
  • Compression Ratio He: 1 x 10⁸
  • Compression Ratio H2: 15000
  • Pumping Speed Helium Nominal: 1379.99 l/min
  • Pumping Speed H2 Nominal: 989.99 l/min
  • Flow Volume Gas Ballast Purge: 0.045 Pam/s

Weight

Imperial: 28.8 Pounds

Metric: 13.06 Kilograms


Shipping Dimensions

Imperial: 16.8 lb x 9.6 lb x 8.4 lb

Metric: 42.67 cm x 24.38 cm x 21.34 cm


Harmonized Code

84141000


Harmonized Code Details

84141000 - Vacuum pumps; the nEXT240 II T is classified under this code as it falls under machinery that aids in creating a vacuum, suitable for industrial applications.
