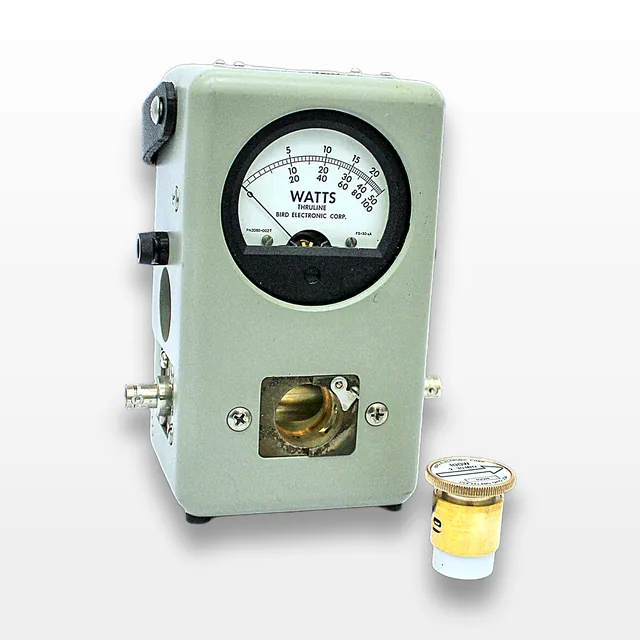

Bird 43 RF Wattmeter Portable Thruline Accurate Power Readings
Bird
Details
-
CategoryTesting Equipment
-
Dimension6.0in x 3.0in x 7.0in
-
Serial177192
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Bird Model 43 Portable Thruline RF Wattmeter is a field-proven, insertion-type instrument designed for accurate measurement of forward and reflected continuous wave (CW) power in 50 Ohm coaxial transmission lines under various load conditions. Manufactured by Bird, this versatile wattmeter offers full-scale accuracy of 5% and utilizes quick change (QC) type connectors for ease of use. Despite being used, this unit powers on and passes basic tests, with only minor cosmetic signs of wear. It is tailored for demanding environments, featuring a rugged metal housing. The Model 43 can measure power ranging from 100 mW to 10 kW over a frequency range of 450 kHz to 2.7 GHz using standard Bird plug-in elements (not included). Two additional elements can be stored in its housing. Ideal for continuous monitoring or instant readings in RF applications.
Key Features
- Insertion-type instrument for RF power measurement
- Measures forward and reflected CW power
- Full-scale accuracy of 5%
- Rugged metal housing
- Quick Change type connectors
Specifications
- Power range: 100 mW to 10 kW
- Frequency range: 450 kHz to 2.7 GHz
- Full-scale accuracy: ±5%
- Housing storage for two extra elements
- Insertion VSWR: 1.05 max. to 1000 MHz with N Connectors
Weight
Imperial: 4.8 Pounds
Metric: 2.18 Kilograms
Shipping Dimensions
Imperial: 7.2 lb x 3.6 lb x 8.4 lb
Metric: 18.29 cm x 9.14 cm x 21.34 cm
Harmonized Code
9030890000
Harmonized Code Details
9030890000: Instruments and apparatus for measuring or testing electrical quantities. This code is used as the Bird Model 43 Wattmeter is specifically designed for measuring RF power in electrical systems.
