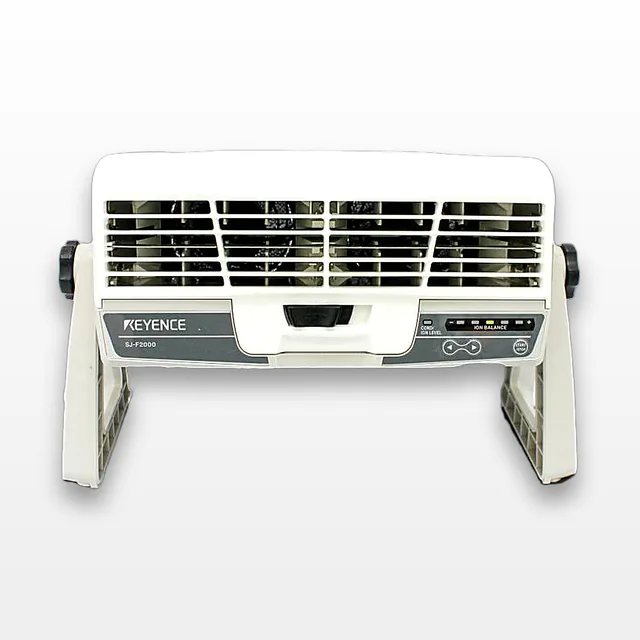

Keyence SJ-F2000 Static Elimination Blower, High-Speed Wide-Area, 7000V
Keyence
Details
-
CategoryMiscellaneous
-
Dimension13.0in x 5.0in x 8.0in
-
Serial6A810183A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Keyence SJ-F2000 Static Elimination Blower, manufactured in the United States, is a high-speed, high-precision machine designed to effectively eliminate static across wide areas. This pre-owned unit operates efficiently with minimal cosmetic wear, confirmed by functional testing. Equipped with advanced pulse AC technology, it applies a voltage of 7000V to achieve an ion balance of ±5V and a rapid static elimination time of approximately 1 second. Ideal for industrial settings, it works at an operating distance of 50mm and offers a maximum air volume of 2.5m³/min (88.29 CFM). It can utilize either a KEYENCE AC Adapter or a DC option, operating at 24 VDC ± 10%. Dimensions are 300mm wide, offering flexible installation options in various workspaces. This unit is rated for a temperature range of 0 to +50°C and relative humidity of 35 to 65% RH.
Key Features
- Brand: Keyence
- Model: SJ-F2000
- Voltage: 7000V
- Ion balance: ±5V
- Static elimination time: Approx. 1 sec
- Maximum air volume: 2.5m³/min (88.29 CFM)
- Voltage application method: Pulse AC
- Operating distance: 50mm
- Power source input: KEYENCE AC Adapter or DC Option
- Temperature range: 0 to +50°C
Specifications
- Model: SJ-F2000
- Type: 300 mm
- Voltage application method: Pulse AC method
- Applied voltage: 7000V
- Ion balance control method: I.C.C.
- Ion balance: ±5 V
- Static elimination time: Approx. 1 sec
- Operating distance: 50 mm
- Maximum wind speed: 3.5 m/s (11.48 ft/s)
- Maximum air volume: 2.5 m³/min (88.29 CFM)
- Ozone density: 0.005 ppm max.
- Power voltage: 24 VDC ± 10%
- Current consumption: 0.9 A
- Pollution degree: 2
- Ambient temperature: 0 to +50°C (32 to 122°F)
- Relative humidity: 35 to 65 % RH
Weight
Imperial: 6.0 Pounds
Metric: 2.72 Kilograms
Shipping Dimensions
Imperial: 15.6 lb x 6.0 lb x 9.6 lb
Metric: 39.62 cm x 15.24 cm x 24.38 cm
Harmonized Code
85437090
Harmonized Code Details
Harmonized code 85437090 covers electrical machines and apparatus with individual functions, not specified or included elsewhere. It is applicable for specialized industrial equipment such as a static elimination blower due to its unique and specific operational function.
