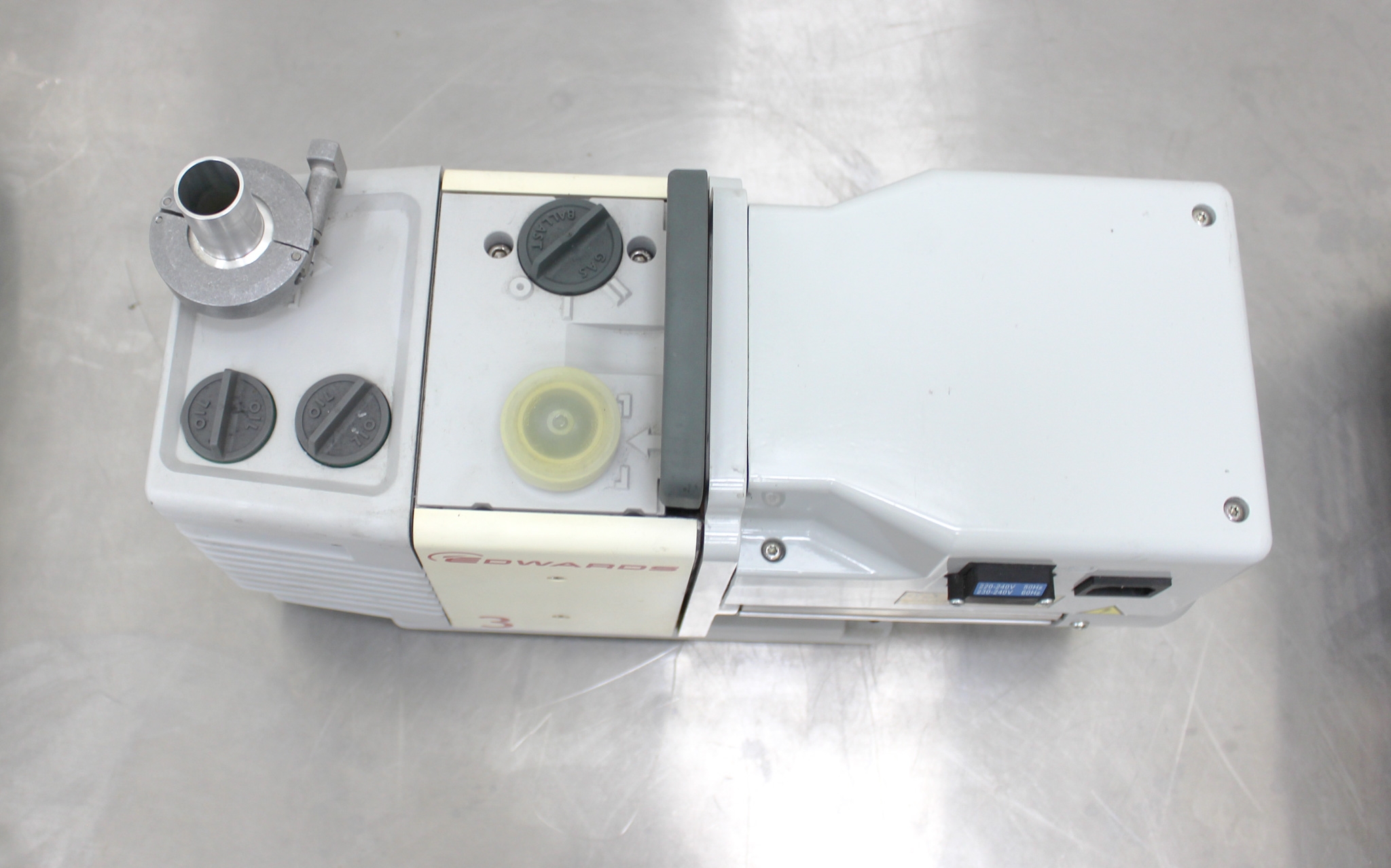

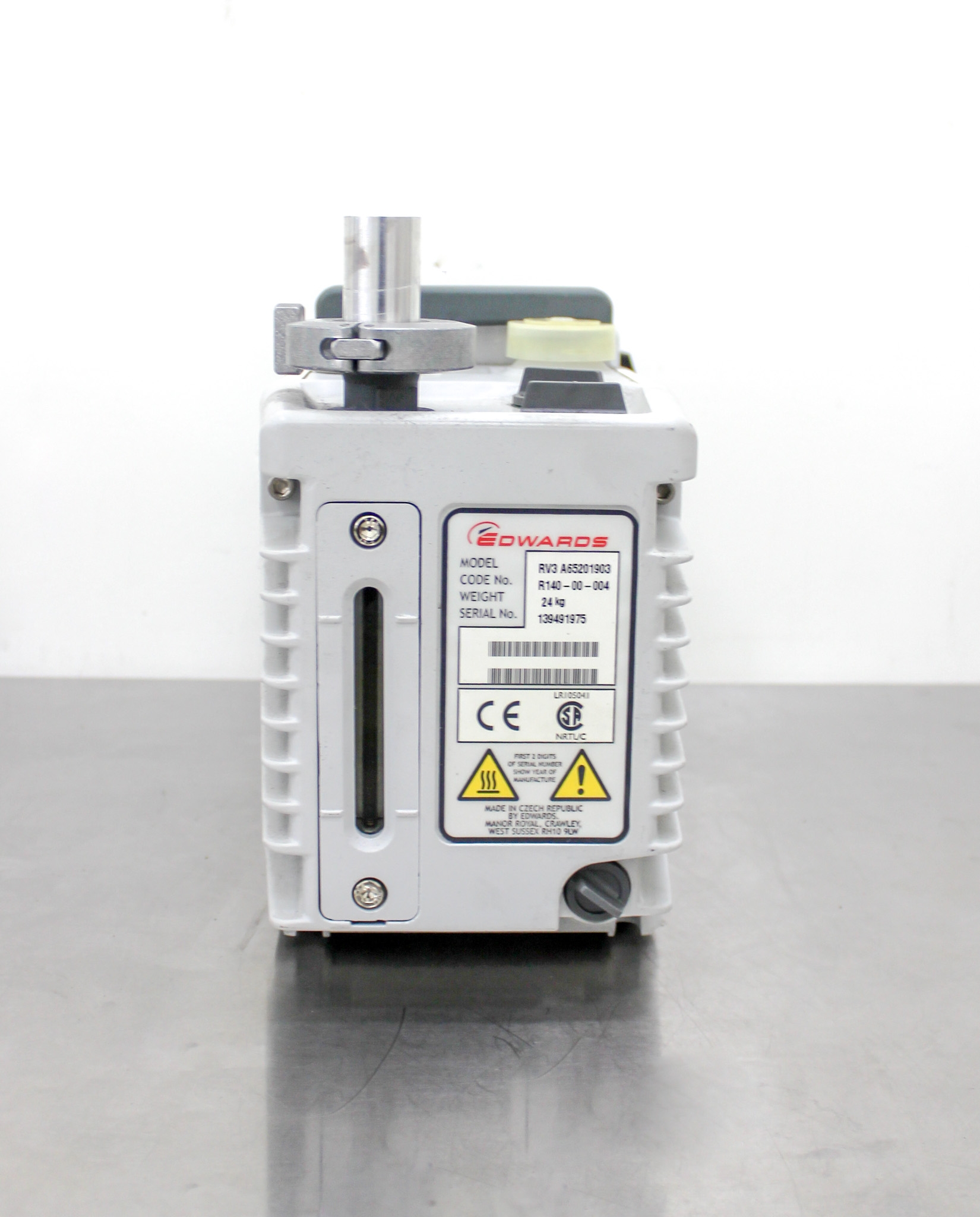

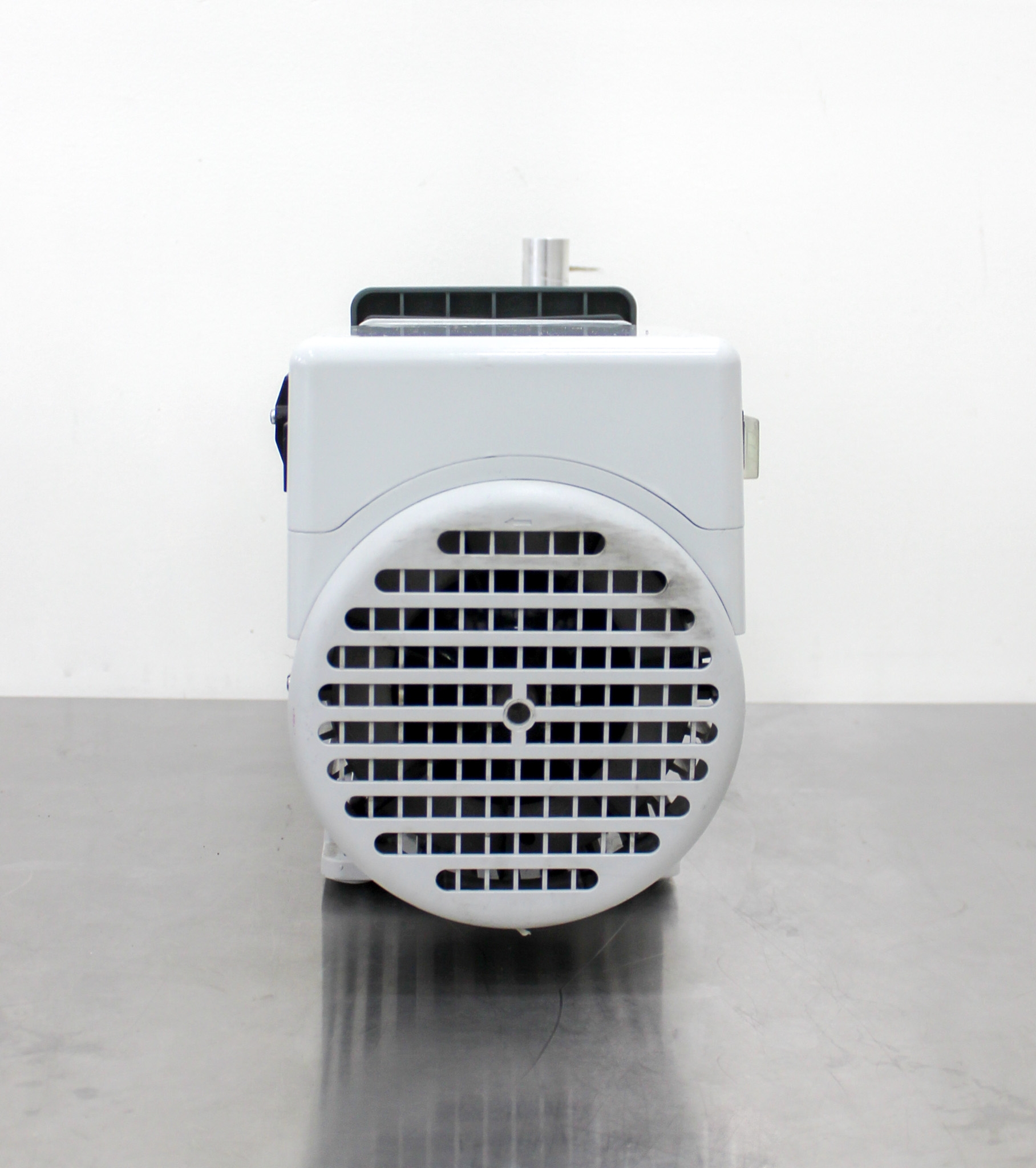

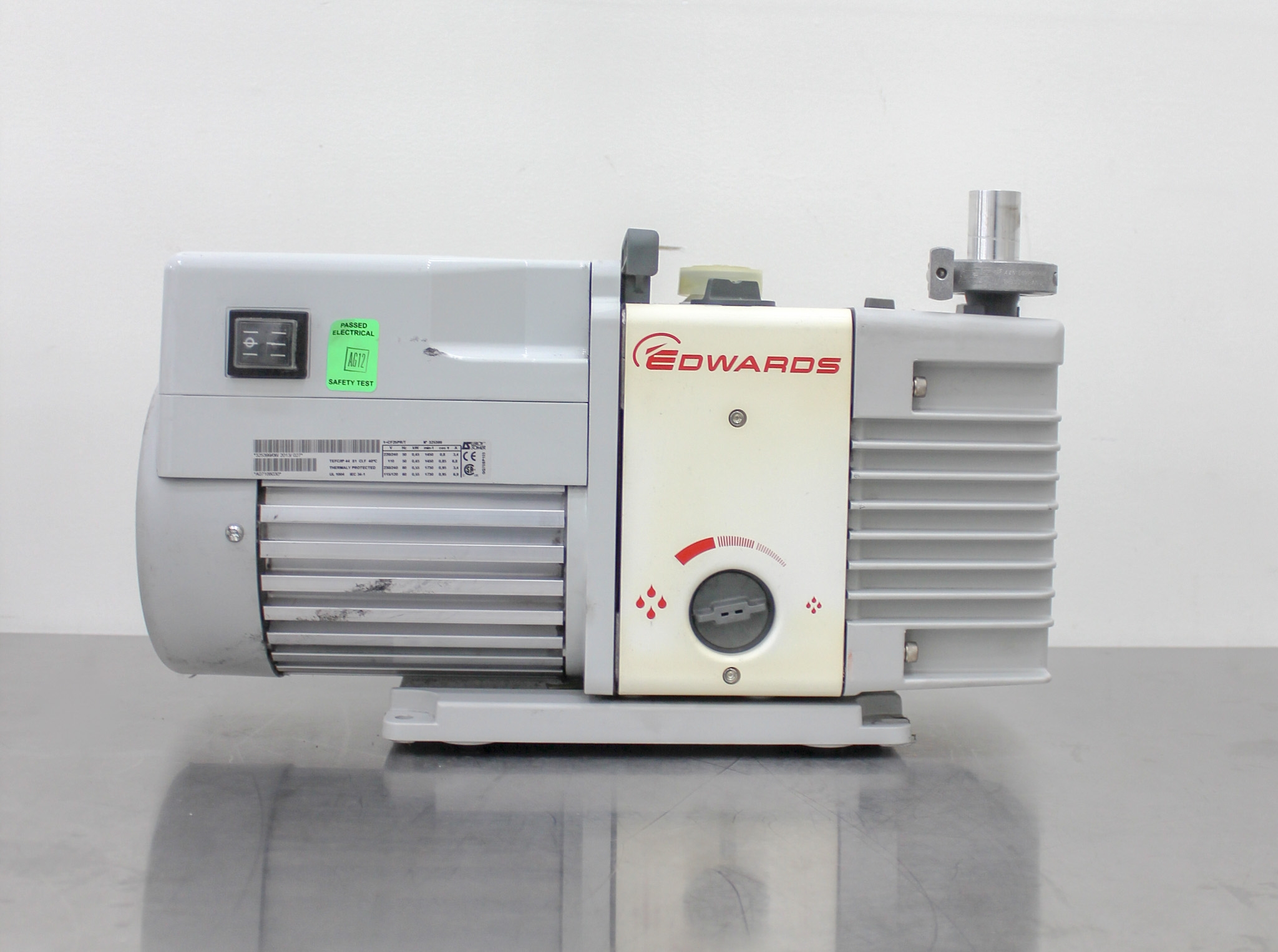

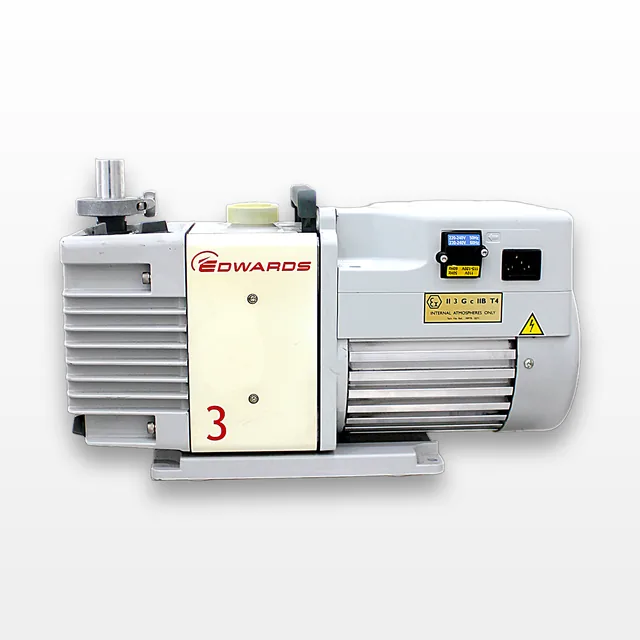

Edwards RV3- A65201903 Rotary Vane Vacuum Pump, High Performance, 220V
Edwards
Details
-
CategoryPump
-
Dimension28.0in x 28.0in x 18.0in
-

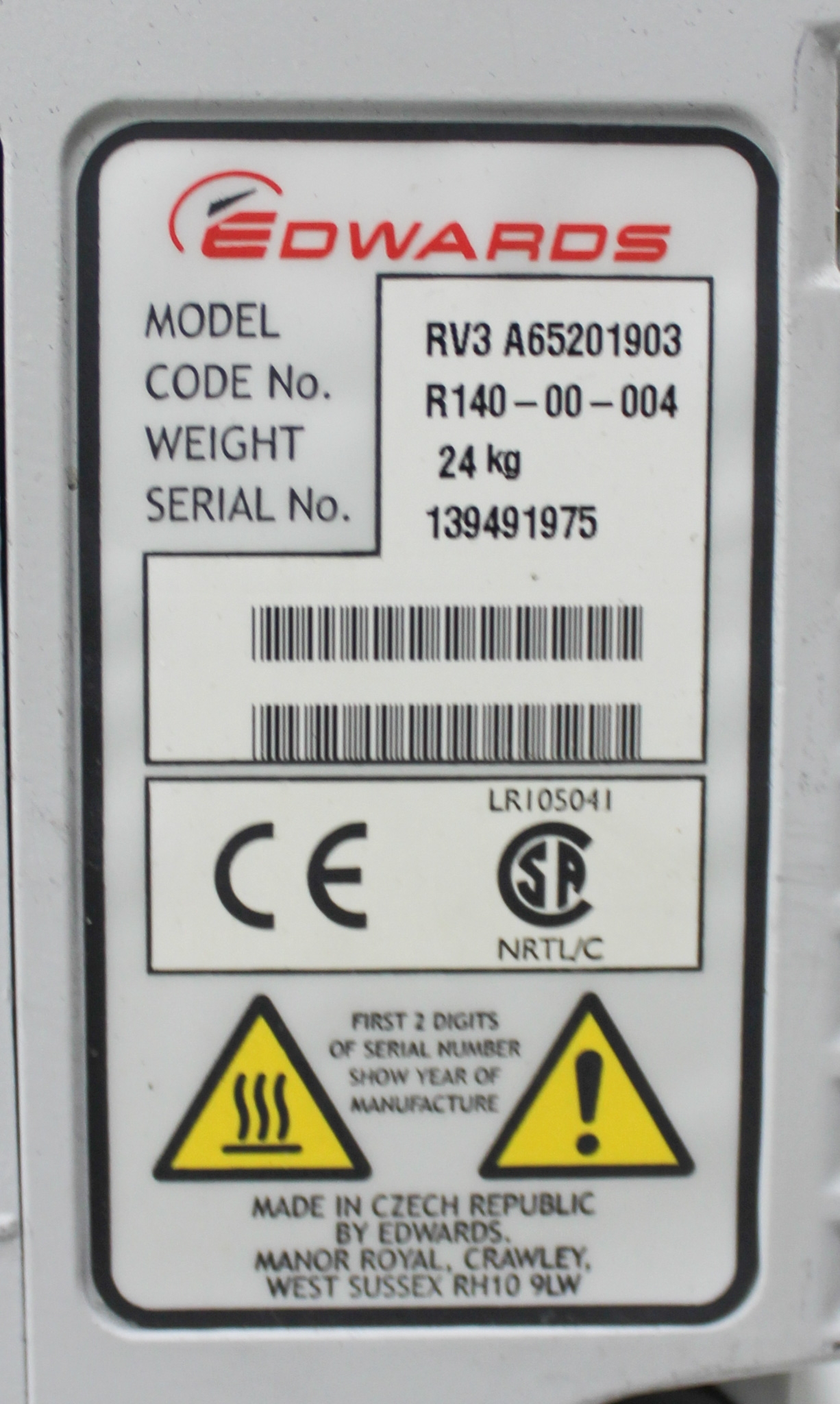

Serial139491975
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 50Hz/60Hz
Description
The Edwards RV3 Model A65201903 is a high-performance rotary vane vacuum pump, offering exceptional ultimate vacuum pressure and superior vapor handling. Manufactured by Edwards, this used unit is in very good condition with only minor cosmetic blemishes from normal use. It has been tested and delivers vacuum pressure at 2 microns, ideal for R&D and scientific applications. Operating quietly at noise levels of 48 dBA, the RV3 is versatile, with a mode selector for high vacuum and high throughput configurations. Suitable for analytical instruments, electron microscopes, distillation, laboratory furnaces, and more, this pump is equipped with a fast-acting inlet valve for antisuck back protection. Universal motor compatibility from 220V ensures adaptability to various voltage settings.
Key Features
- High performance vacuum pump

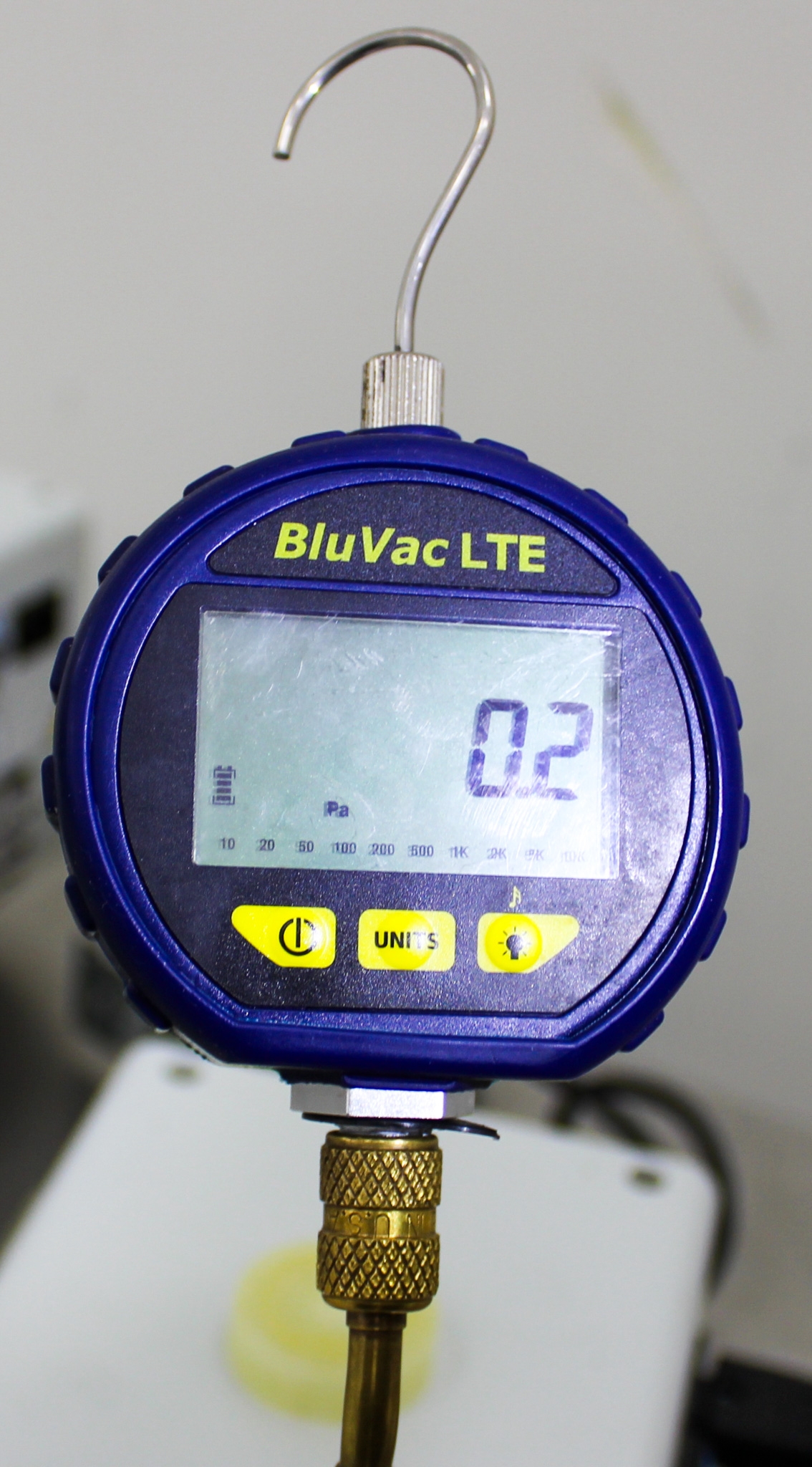

- Tested to deliver 2 microns vacuum pressure
- Versatile high vacuum and throughput modes
- Quiet operation at 48 dBA
- Fast-acting anti-suck back protection
Specifications
- Ultimate pressure: 2.0 x 10-3 mbar / 1.5 x 10-3 Torr
- Max water vapor pumping rate: GB I 60 gh-1, GB II 220 gh-1

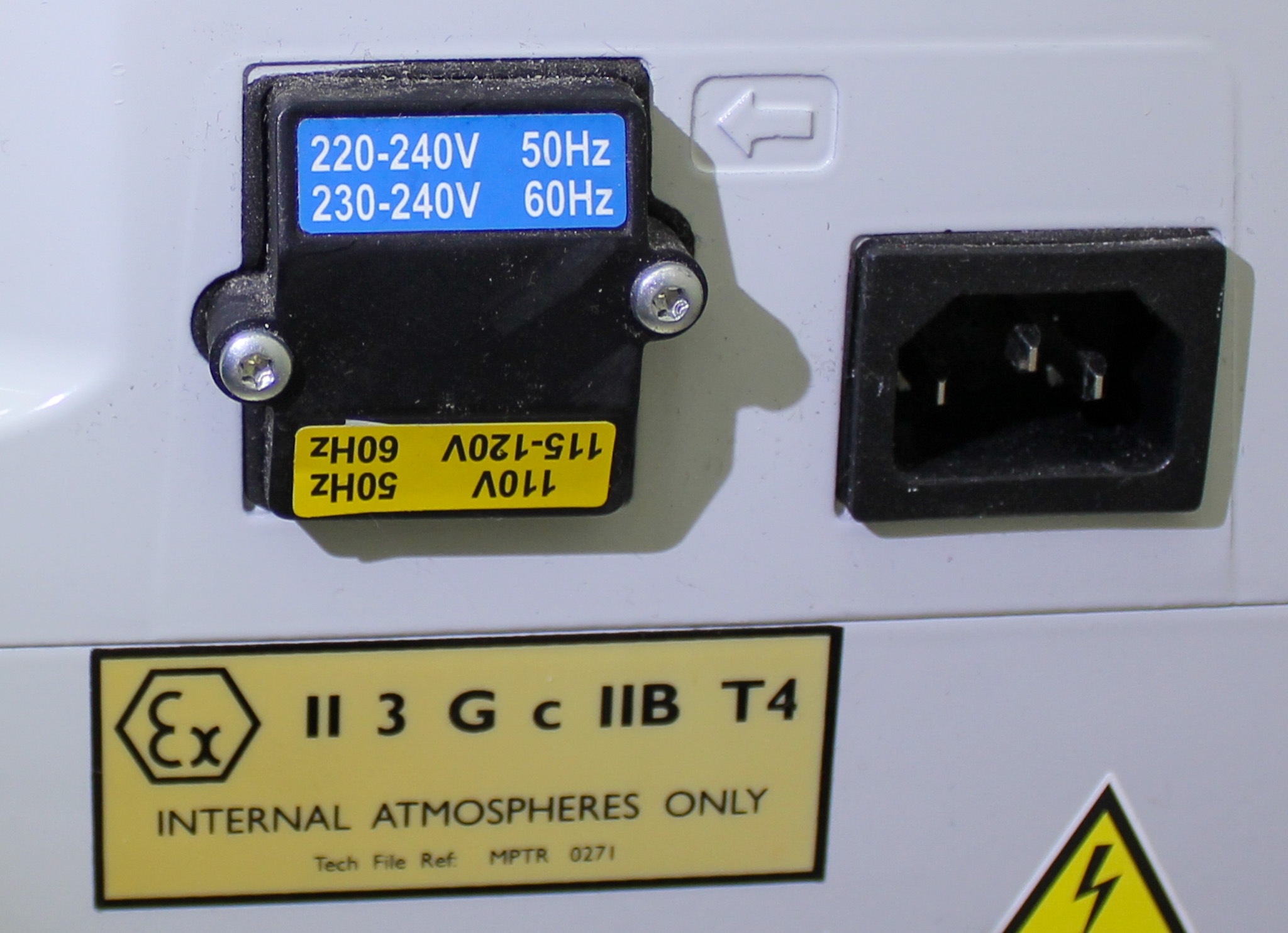

- Voltage: 220V, Frequency: 50Hz/60Hz
- Noise level: 48 dB(A) / 50 Hz
- Motor power: 450/550W
- Nominal rotation speed: 1500/1800rpm
- Inlet/Exhaust flange: NW25
- Oil capacity min/max: 0.42/0.7 litres, Recommended oil: Ultragrade 19
Weight
Imperial: 60.0 Pounds
Metric: 27.22 Kilograms
Shipping Dimensions
Imperial: 33.6 lb x 33.6 lb x 21.6 lb
Metric: 85.34 cm x 85.34 cm x 54.86 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 - Vacuum pumps; This code applies as the product in question is a rotary vane vacuum pump, specifically designed for laboratory and scientific applications.
