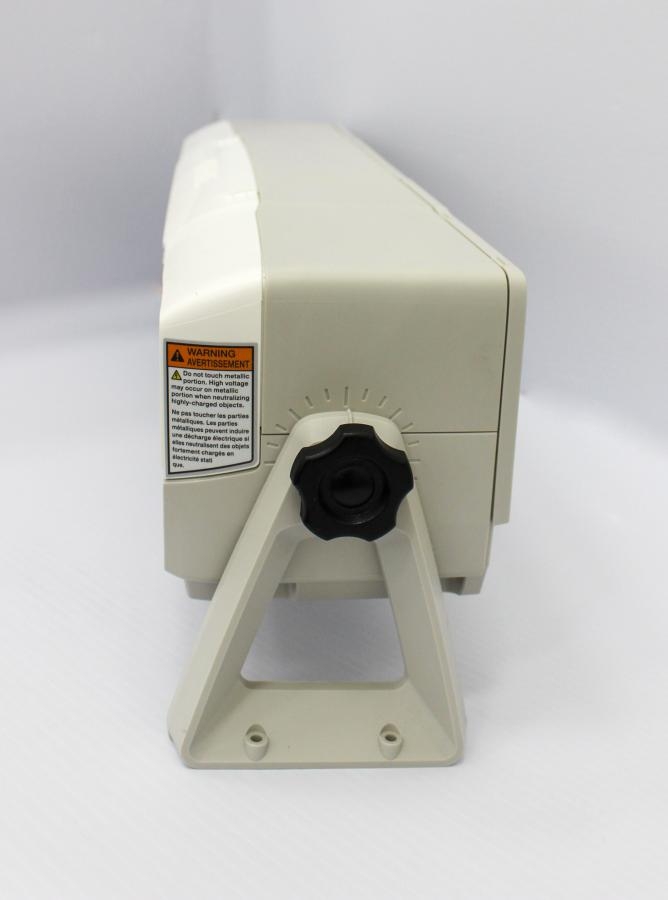

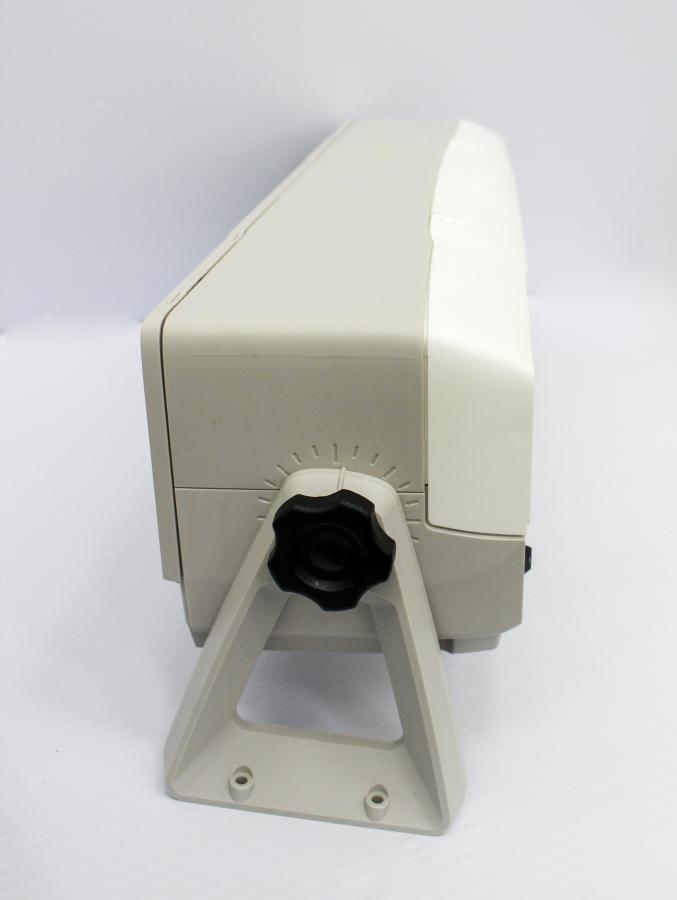

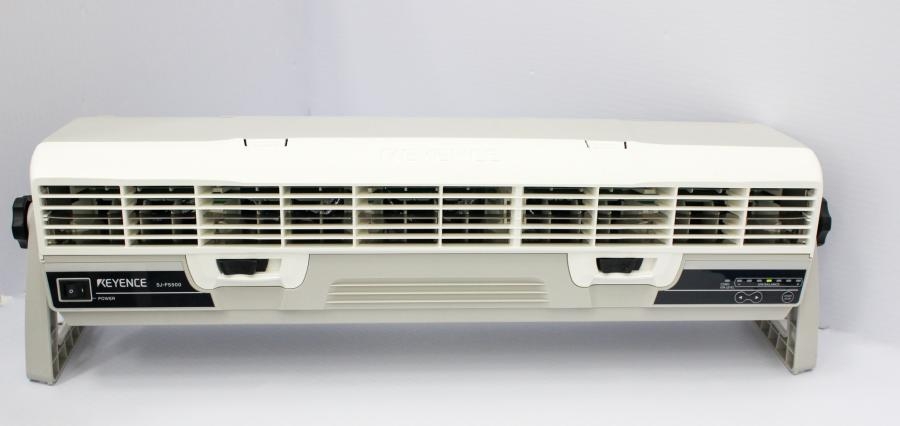

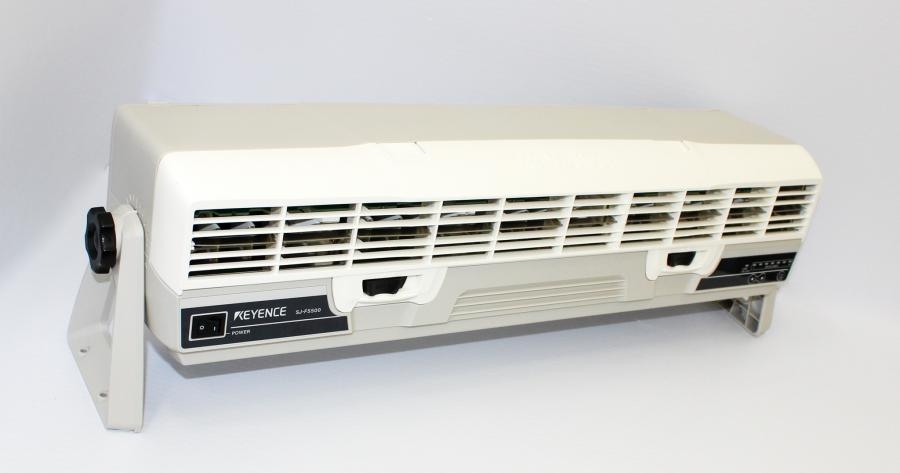

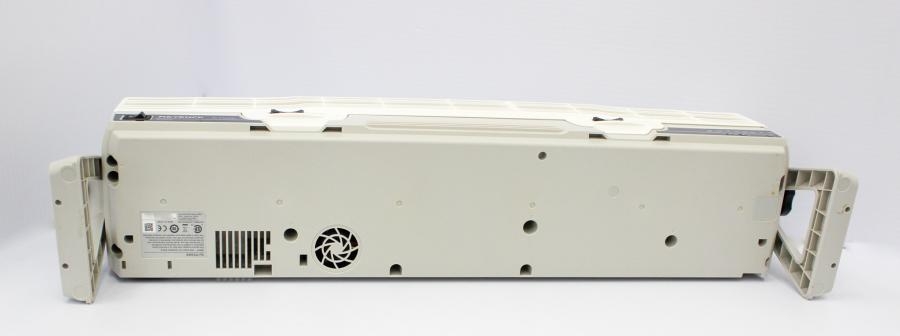

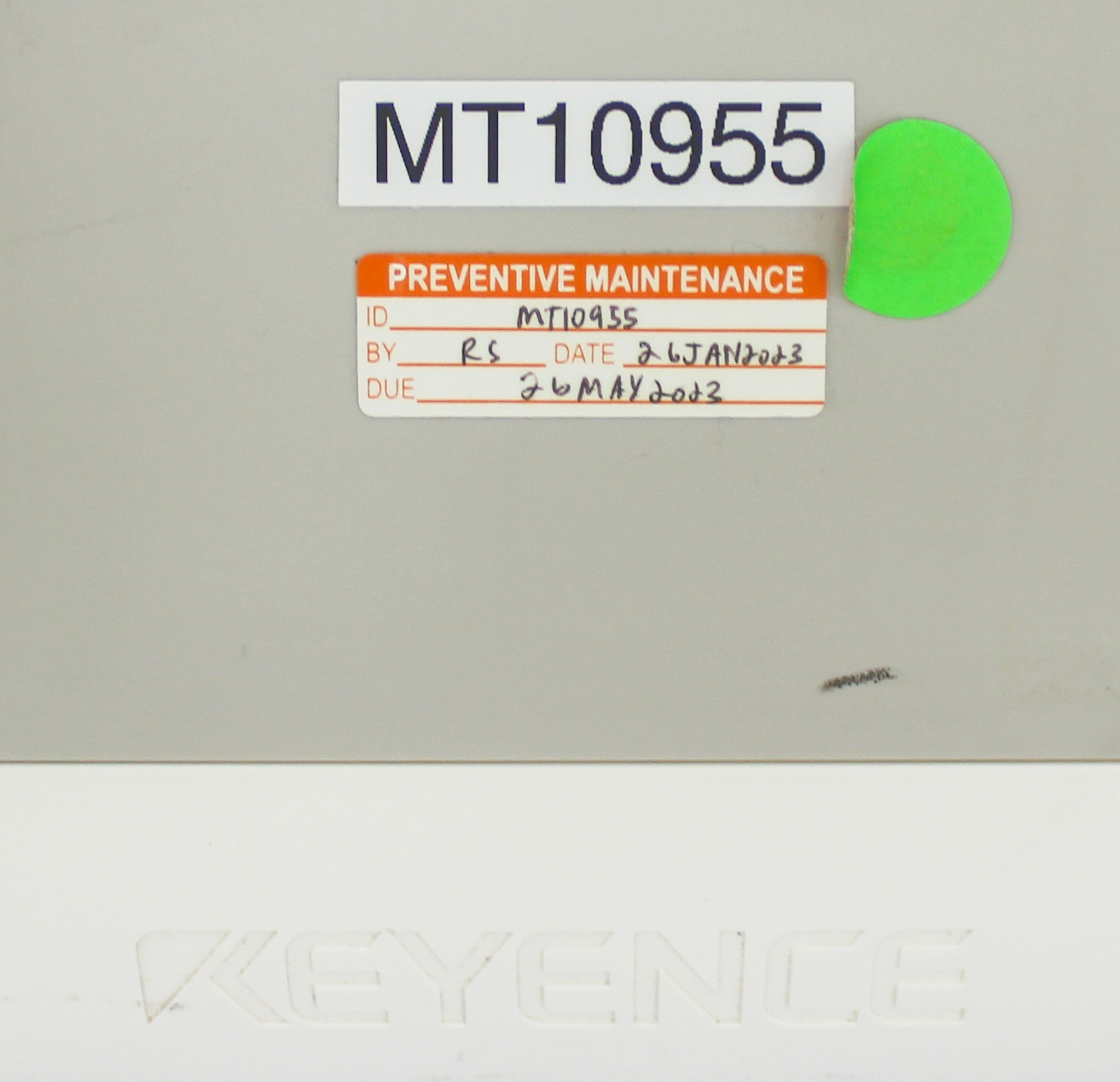

Keyence SJ-F5500 Static Eliminator Blower High-Speed Precision 7000V Output
Keyence
Details
-
CategoryMiscellaneous
-
Dimension6.0in x 25.0in x 7.0in
-

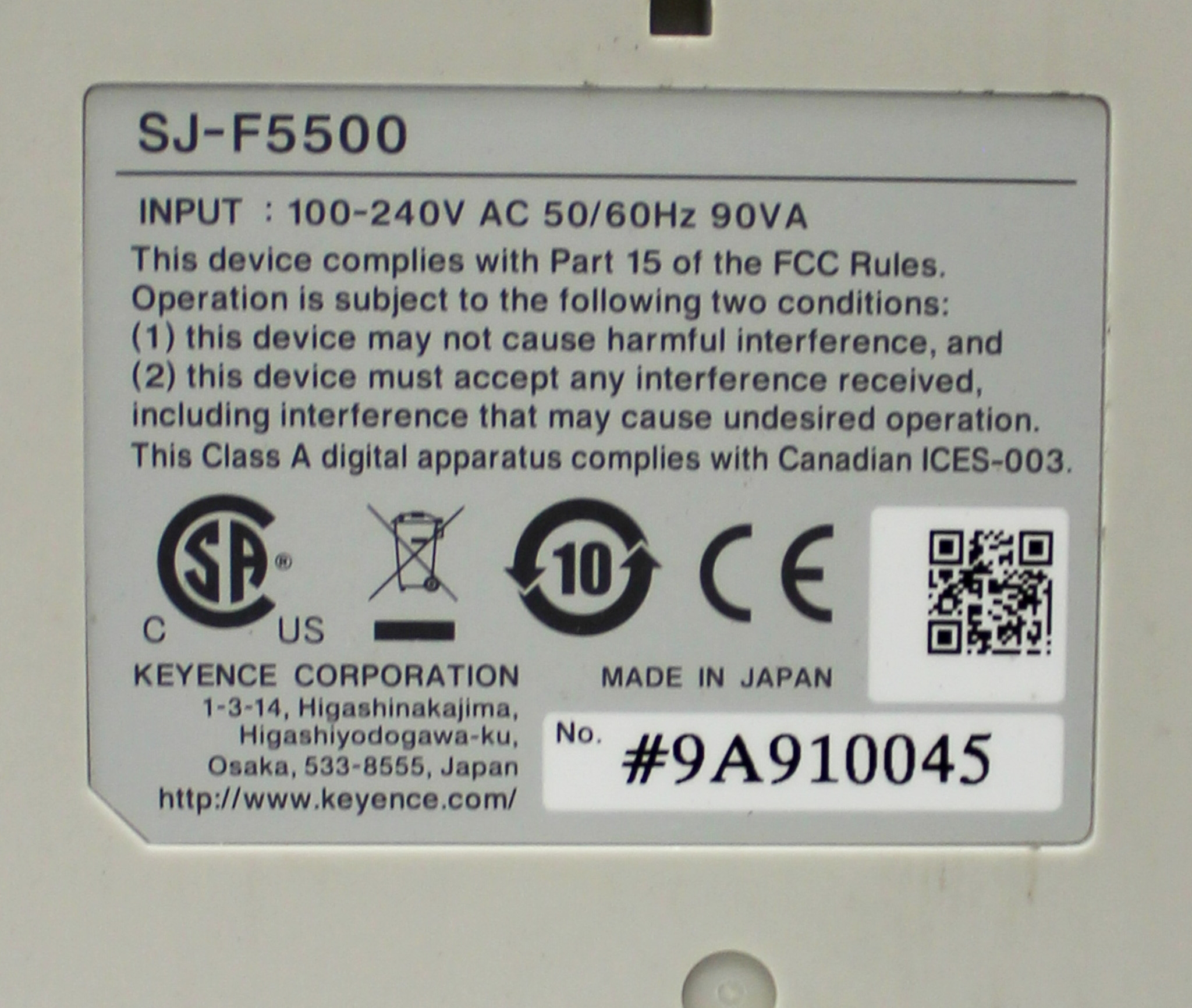

Serial9A910045
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Keyence SJ-F5500 Static Eliminator Blower is a used, high-performance device designed to combat static electricity issues in industrial and laboratory settings. It offers a 7000V applied voltage using the pulse AC method and maintains a swift static elimination time of approximately 0.6 seconds, ensuring efficient static control. Featuring an ion balance control method (I.C.C.) and a remarkable ion balance of 5V, this blower effectively prevents dust adhesion and equipment malfunction due to static discharge. While it has minor cosmetic blemishes from normal use, the SJ-F5500 remains fully functional and has successfully passed functional tests. Operates at 120V and is ideal for various industrial applications where static electricity can hinder processes.
Key Features
- High-speed static elimination
- 7000V output voltage
- Pulse AC voltage application method

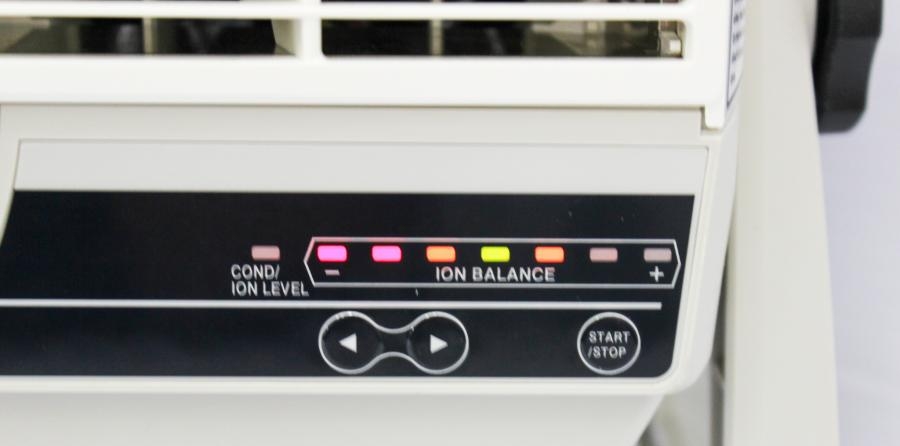

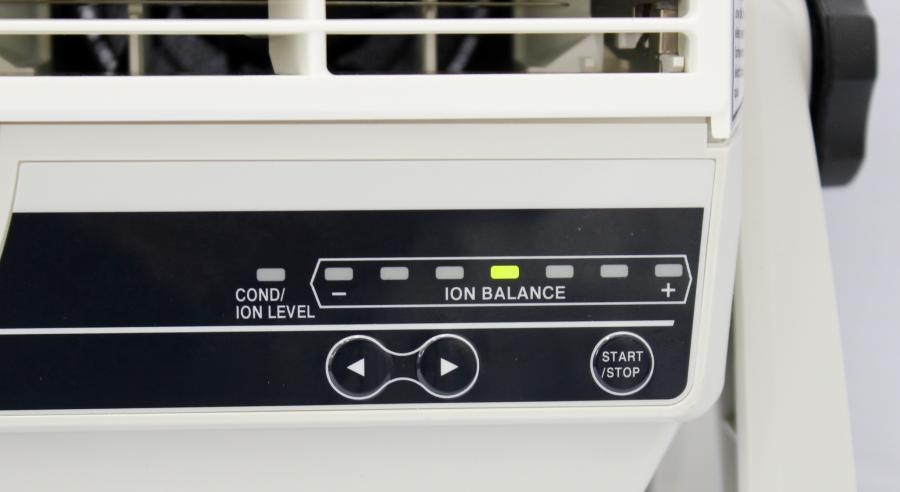

- Ion balance control method: I.C.C.
- Rapid elimination time: Approx. 0.6 sec
- Operating distance: Minimum 50 mm
- Maximum wind speed: 5.7 m/s
- Ambient temperature: 0 to +50°C
- Maximum air volume: 10.0 m3/min
- AC cord input power source
Specifications
- Model: SJ-F5500
- Type: 600 mm (23.62 inch) type
- Applied voltage: 7000V
- Ion balance: 5V
- Static elimination time: Approx. 0.6 sec
- Operating distance: Min. 50 mm (1.97 inch)
- Maximum wind speed: 5.7 m/s (18.70 ft/s)
- Ambient temperature: 0 to +50°C (32 to 122°F)
- Relative humidity: 35 to 65% RH
- Maximum air volume: 10.0 m3/min (353.15 CFM)
- Ozone density: 0.005 ppm max.
- Power voltage: 100 to 240 VAC, 50/60 Hz
- Power consumption: 90 VA
- Pollution degree: 2
Weight
Imperial: 13.2 Pounds
Metric: 5.99 Kilograms
Shipping Dimensions
Imperial: 7.2 lb x 30.0 lb x 8.4 lb
Metric: 18.29 cm x 76.2 cm x 21.34 cm
Harmonized Code
8509.80.50
Harmonized Code Details
8509.80.50 - Electrical machines and apparatus, having individual functions, not specified or included elsewhere in this chapter: Other machines and apparatus: Other. This classification is appropriate due to the device's function as a specialized electrical apparatus designed for static elimination.
Comments 0
There are currently no public comments.
