Wave Bioreactor 20/50EH Cell Culture Protein Manufacture Used 50L System
Wave Biotech
Details
-
CategoryBioreactor / Fermenter
-
Dimension24.0in x 22.0in x 10.0in
-
Serial0247.0803.2050EH
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

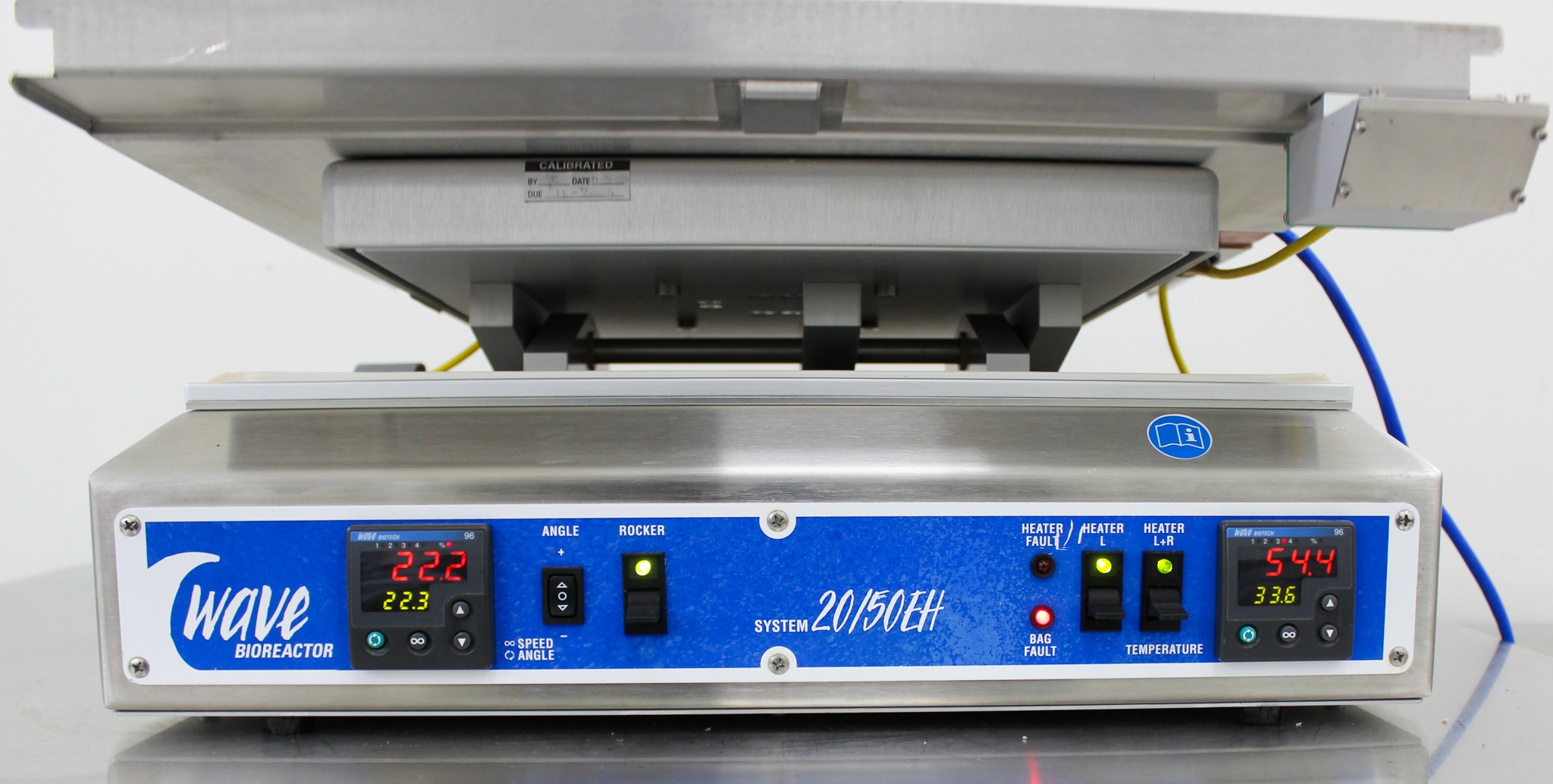

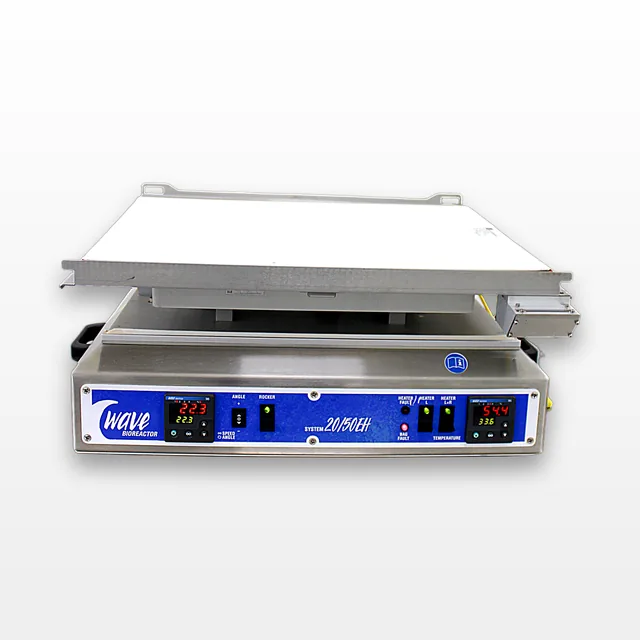

The GE Wave Bioreactor Platform System 20/50EH (Model: 20/50EH) offers an efficient solution for applications such as cell culturing, protein manufacturing, and CHO cell cultivation. Designed with flexibility, it features a modular base rocker and interchangeable trays for 20 to 50-liter capacities, ensuring seamless operation without cross-contamination. The touch screen controller adjusts rocking speed (25-40 rpm), temperature (10C above ambient to 50C), and time for user-defined operations. This used unit, in good condition, powers on successfully but requires additional accessories for full functionality. Built for user convenience, it facilitates thawing, warming, and maintaining biological fluids' temperatures. Its benchtop design minimizes space usage while providing reliable results and is ideal for laboratory environments seeking scalable, hassle-free mixing solutions. Protective lids and pre-sterilized wave bags further enhance operational safety and efficiency.
Key Features
- GE Wave Bag Bioreactor 20/50EH
- Modular design with base rocker
- Interchangeable trays for 20 or 50-liter capacity
- Non-invasive motion and gas transfer
- Eliminates risk of cross-contamination

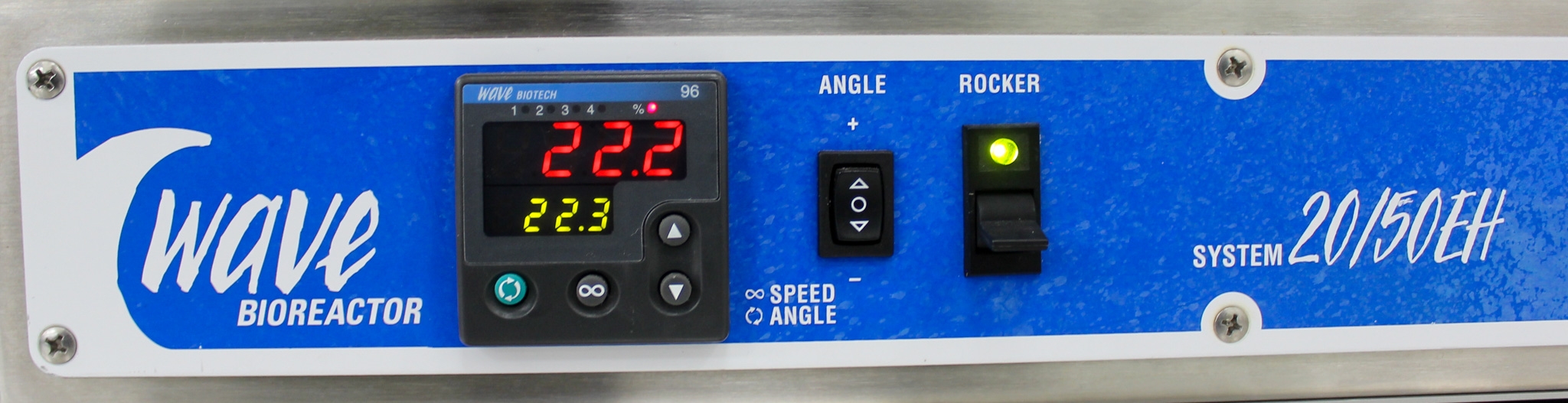

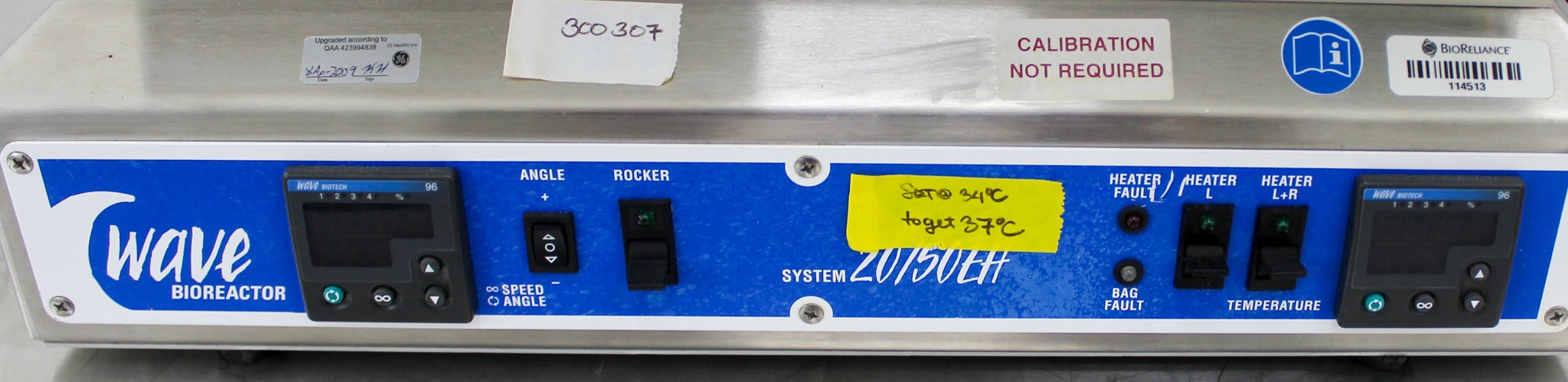

- Touch screen with controls for temperature, time, and rocking speed
- Integrated safeguards for alert settings
- Ideal for protein manufacturing and cell culturing
Specifications
- Model: WAVE Bioreactor 20/50EH
- Part No.: BASE2050EH
- Serial No.: 0415.0604.2050EH
- Ingression protection: IP 20
- Voltage: 100-120 VAC or 220-240 VAC, 50 to 60 Hz
- Power: 630 VA
- Fuse: T 4AL, 250V
- Dimensions with Cellbag holder KIT20EHT: 254 x 711 x 575 mm
- Dimensions with Cellbag holder KIT50EHT: 254 x 775 x 700 mm
- Acoustic noise level: < 70 dB
- Ambient temperature range: 0C to 50C
- Storage temperature: -40C to +80C
- Relative humidity tolerance: < 95%, non-condensing
Weight
Imperial: 43.2 Pounds
Metric: 19.6 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 26.4 lb x 12.0 lb
Metric: 73.15 cm x 67.06 cm x 30.48 cm
Harmonized Code
84798200
Harmonized Code Details
Harmonized Code 84798200 corresponds to 'Mixing, kneading, crushing, grinding, screening, sifting, homogenising, emulsifying or stirring machines'. This code is justified given the bioreactor's primary function for mixing and stirring biological materials.
