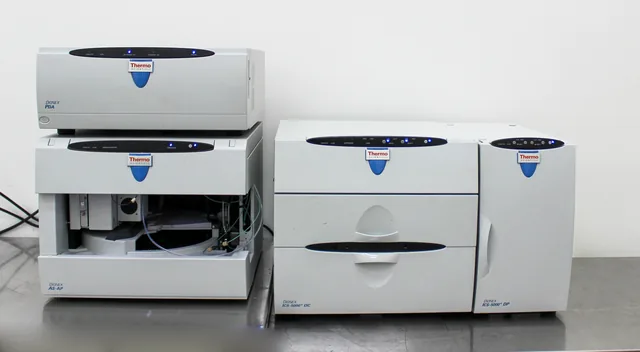

Thermo Dionex ICS-5000 HPLC System Ion Chromatography PDA-1 AS-AP 120 220V DP DC

Thermo Dionex ICS-5000 HPLC System configured for ion chromatography and supplied with PDA-1 detector, AS-AP autosampler, ICS-5000+DP pump, and ICS-5000+DC chromatography compartment. Used, Good condition: powers on, passes basic checks, and the AS-AP autosampler boots without errors; minor cosmetic wear from prior use. The AS-AP enables high precision automated sampling with all-PEEK flow paths, moving-needle reliability, chemistry switching, and high capacity vials or well plates. The PDA-1 offers 1 nm resolution, self-calibrated wavelength accuracy, and tungsten and deuterium lamps for stable detection of complex analytes. Universal power 120 220 V, 50 60 Hz. Power cord included. Computer is not included. Software is not included. Backed by a 30-day parts warranty. Country of origin: United States.

• Complete IC HPLC configuration: AS-AP autosampler, PDA-1 detector, ICS-5000+DP pump, ICS-5000+DC compartment
• AS-AP autosampler: high precision injections with RSD <0.3 percent fixed loop at 20 uL
• Variable injection volume: 1 to 100 uL in 0.1 uL steps, 100 to 7500 uL in 1 uL steps
• High sample capacity: 81 x 10 mL vials, 120 x 1.5 mL vials, or 3 x 96 or 3 x 384 well plates
• Minimal carryover: <0.01 percent with 500 uL flush; moving-needle design for reliable sampling
• All-PEEK wetted flow paths to reduce metal contamination and support aqueous and reversed-phase eluents
• Optional chemistry switching for two independent IC applications on the same system
• Optional sample tray temperature control 4 to 60 C for thermally sensitive samples
• PDA-1 detector: 1024-diode array, 1 nm resolution, 1 nm wavelength accuracy with self-calibration
• PDA-1 lamps: tungsten and deuterium; stable baseline with integrated temperature control
• PDA-1 flow cell: 10 mm path length, 13 uL volume; PEEK and SST cells available
• Universal power: 120 220 V, 50 60 Hz; power cord included

• Make and model: Thermo Dionex ICS-5000 ion chromatography HPLC system
• Included modules and P N: PDA-1 detector (070238), AS-AP autosampler (074925), ICS-5000+DC detector chrom compartment (075940), ICS-5000+DP pump (079976)
• System condition: Used, Good; powers on, basic tests passed; AS-AP powers on without errors
• Warranty: 30-day warranty on part
• AS-AP sample capacity: 81 x 10 mL vials; 120 x 1.5 mL vials; well plates 3 x 96 or 3 x 384
• AS-AP injections per vial: up to 199
• AS-AP min sample volume: 10 uL from 300 uL microvial; 20 uL from 500 uL microvial
• AS-AP injection precision: fixed loop <0.3 percent RSD at 20 uL; partial loop <0.5 percent RSD at 20 uL
• AS-AP dilution precision: <1.0 percent RSD for 1:10 dilution; dispensing precision <0.2 percent RSD
• AS-AP carryover: <0.01 percent with 500 uL flush volume
• AS-AP operating temperature: 4 to 60 C; optional tray cooling and temperature control
• AS-AP power: 90 to 265 V AC, 47 to 63 Hz
• PDA-1 detector noise: 10 AU at 254 nm, 15 AU at 520 nm, 2 s rise time
• PDA-1 drift: <500 AU per hour
• PDA-1 wavelength accuracy and resolution: 1 nm accuracy with deuterium self-calibration; 1 nm resolution
• PDA-1 array: 1024 photodiodes; pixel resolution 0.7 nm; optical resolution 1.0 nm
• PDA-1 analog outputs: four outputs, 0 to 3 AU, 1000 mV range
• PDA-1 flow cell materials: PEEK, fused silica, stainless steel; path length 10 mm; volume 13 uL
• PDA-1 flow cell pressure limits: up to 2 MPa PEEK approx 300 psi and up to 3 MPa SST approx 500 psi
• ICS-5000+DC: compartment organizes valves and detector modules and provides precise temperature control to improve stability and sensitivity
• Pump and pressure: ICS-5000+DP dual pump module installed typical for IC applications; see OEM literature for method specific flow and pressure limits
• Wetted materials: all-PEEK flow paths for corrosion resistance and low adsorption
• Applications: anion and cation analysis, environmental water testing, food and beverage, pharma QC, process monitoring
• Power requirements: 120 220 V, 50 60 Hz universal input
• Connectivity and outputs: analog detector outputs; system integrates within the Thermo ICS platform
• Included items: listed modules and standard power cord
• Not included: Computer is not included; Software is not included; no additional data cables provided
• Country of origin: United States
• Serial number: NA

Imperial: 60.0 Pounds

Metric: 27.22 Kilograms

Imperial: 25.2 lb x 21.6 lb x 16.8 lb

Metric: 64.01 cm x 54.86 cm x 42.67 cm

9027.20.00

9027.20.00 - Chromatographs and electrophoresis instruments. This system is an ion chromatography HPLC platform with autosampler and PDA detector, which fits the chromatographs category.
