ACRO Associates 935CN-SABP8-160-1000 Pneumatic Actuated Pinch Valves 30 Pack
ACRO Associates Inc.
Details
-
CategoryMiscellaneous
-
Dimension13.0in x 14.0in x 12.0in
-
SerialL53921
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

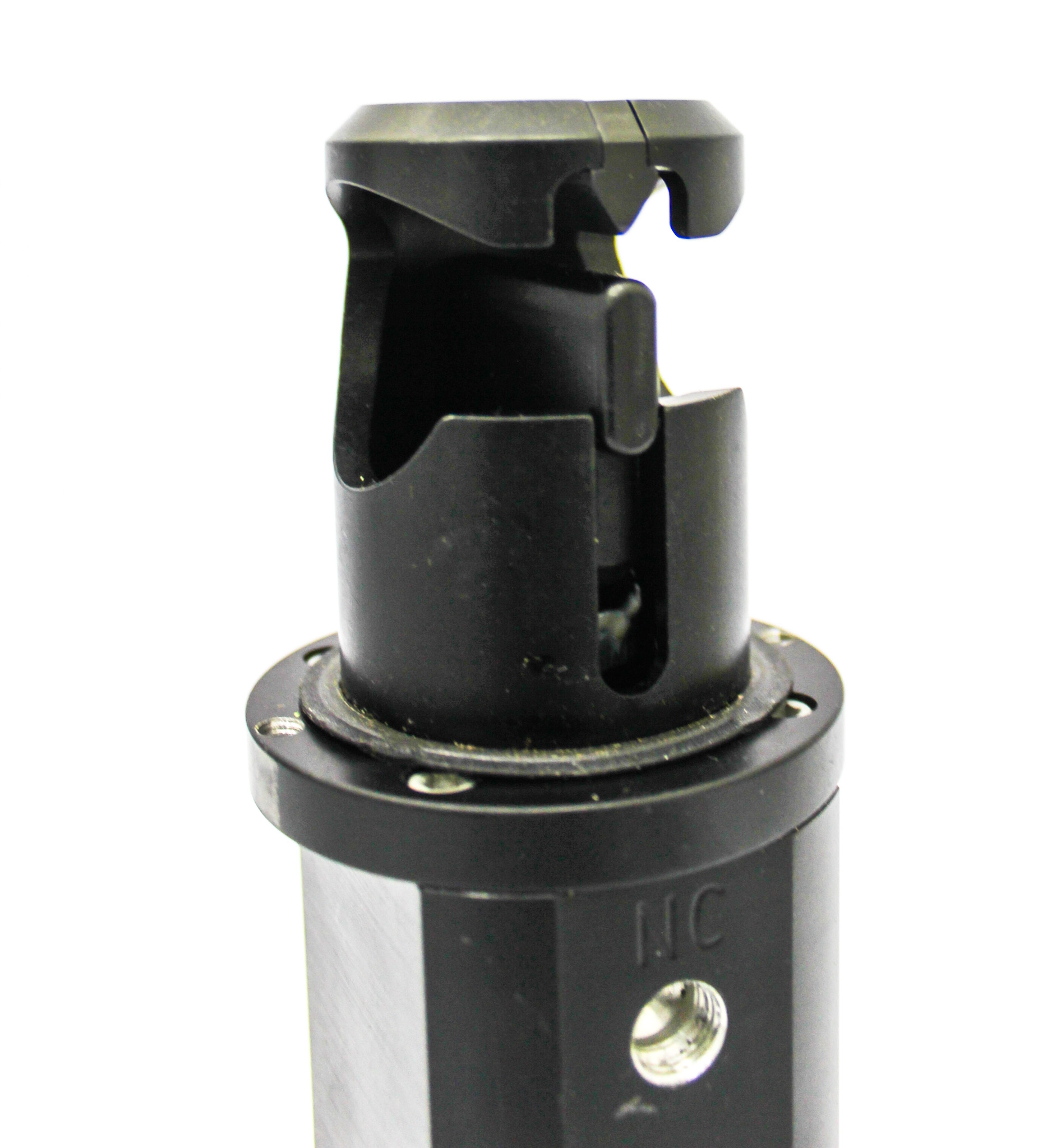

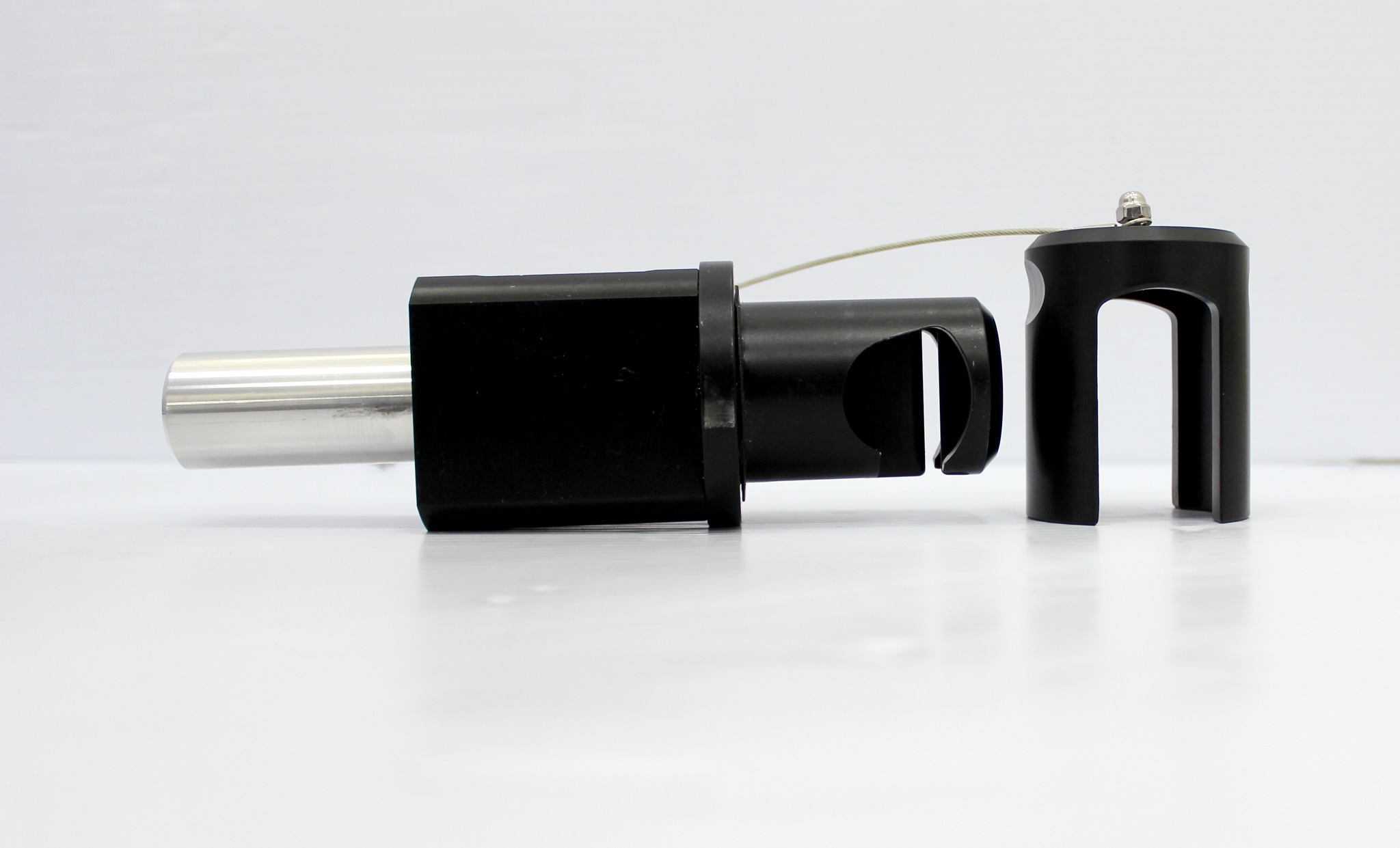

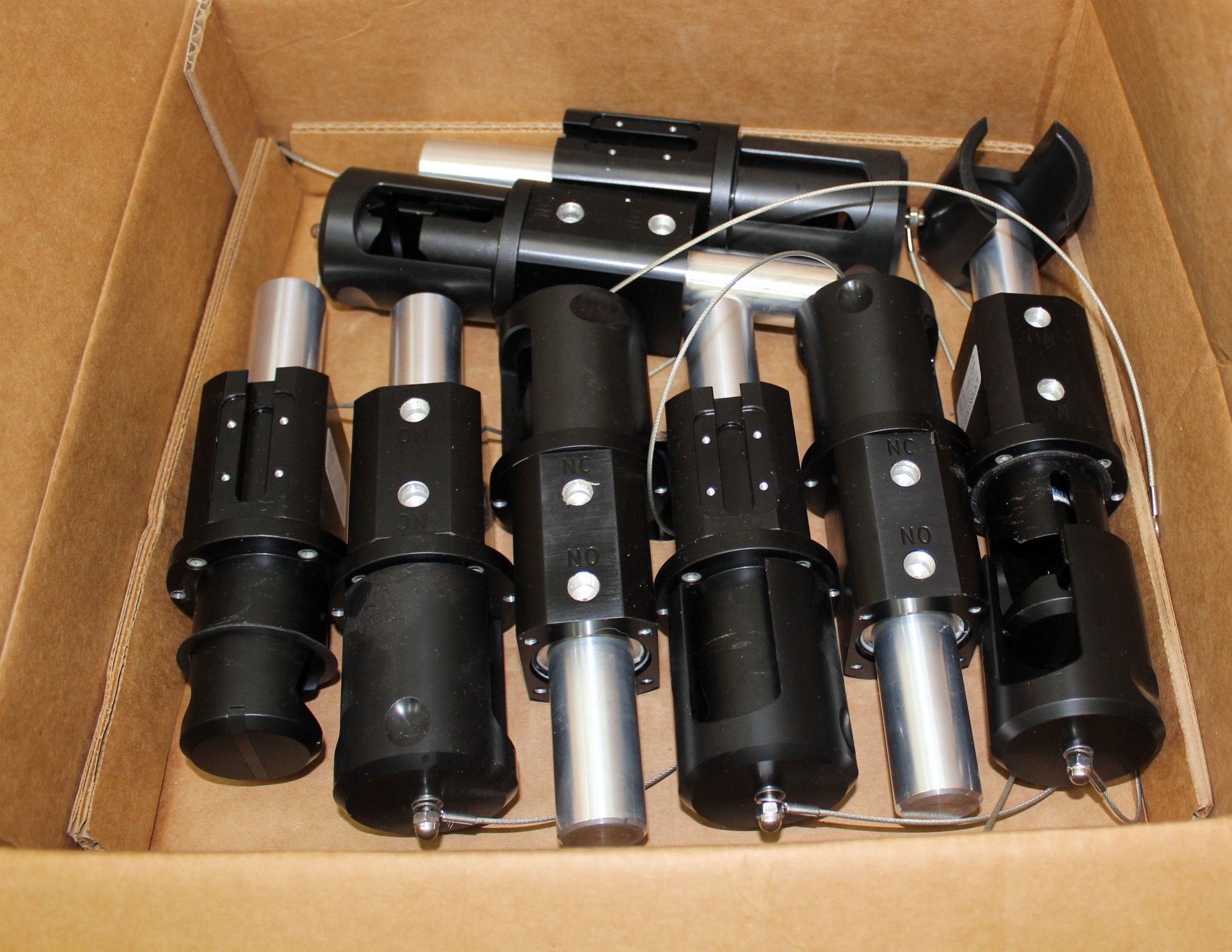

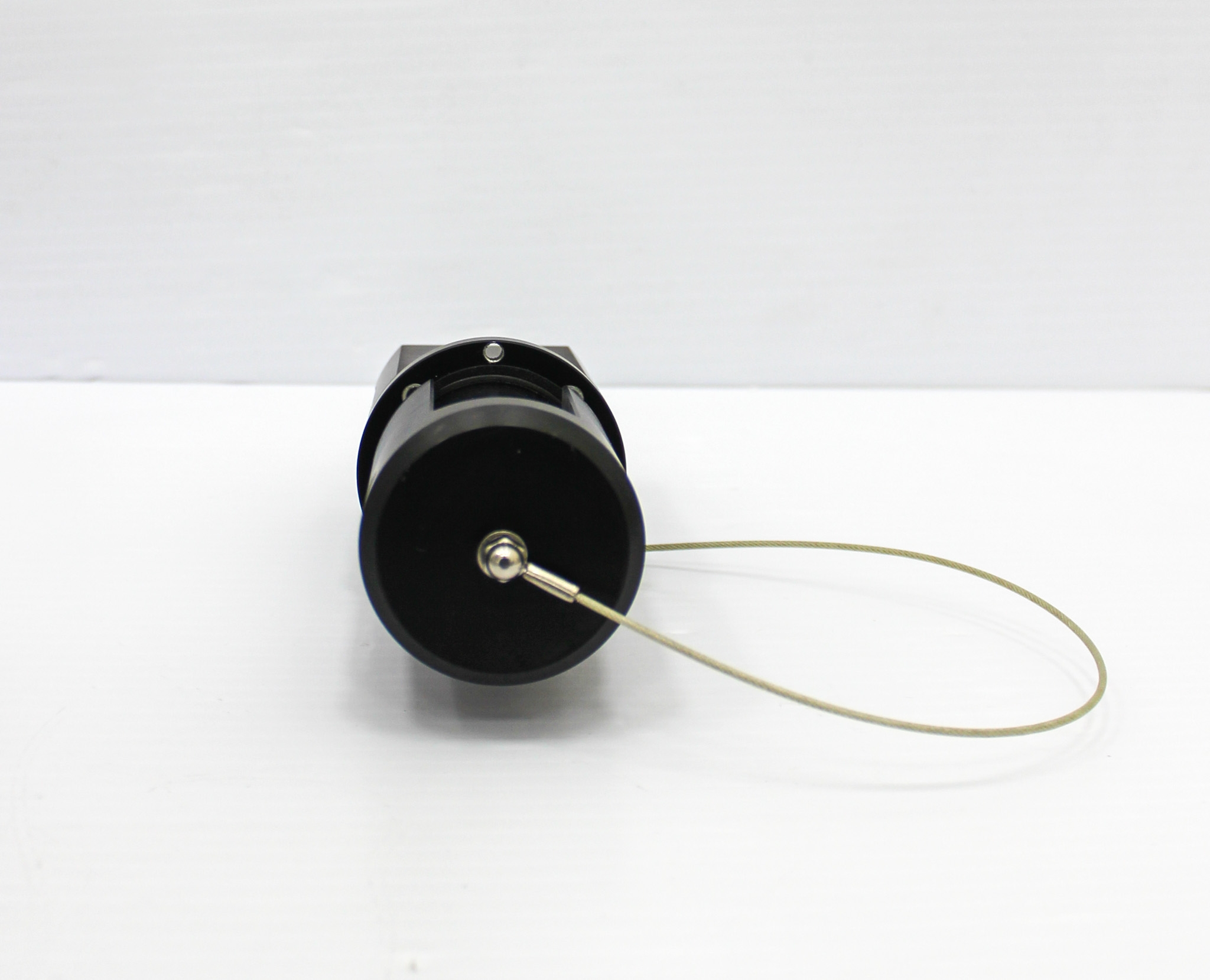

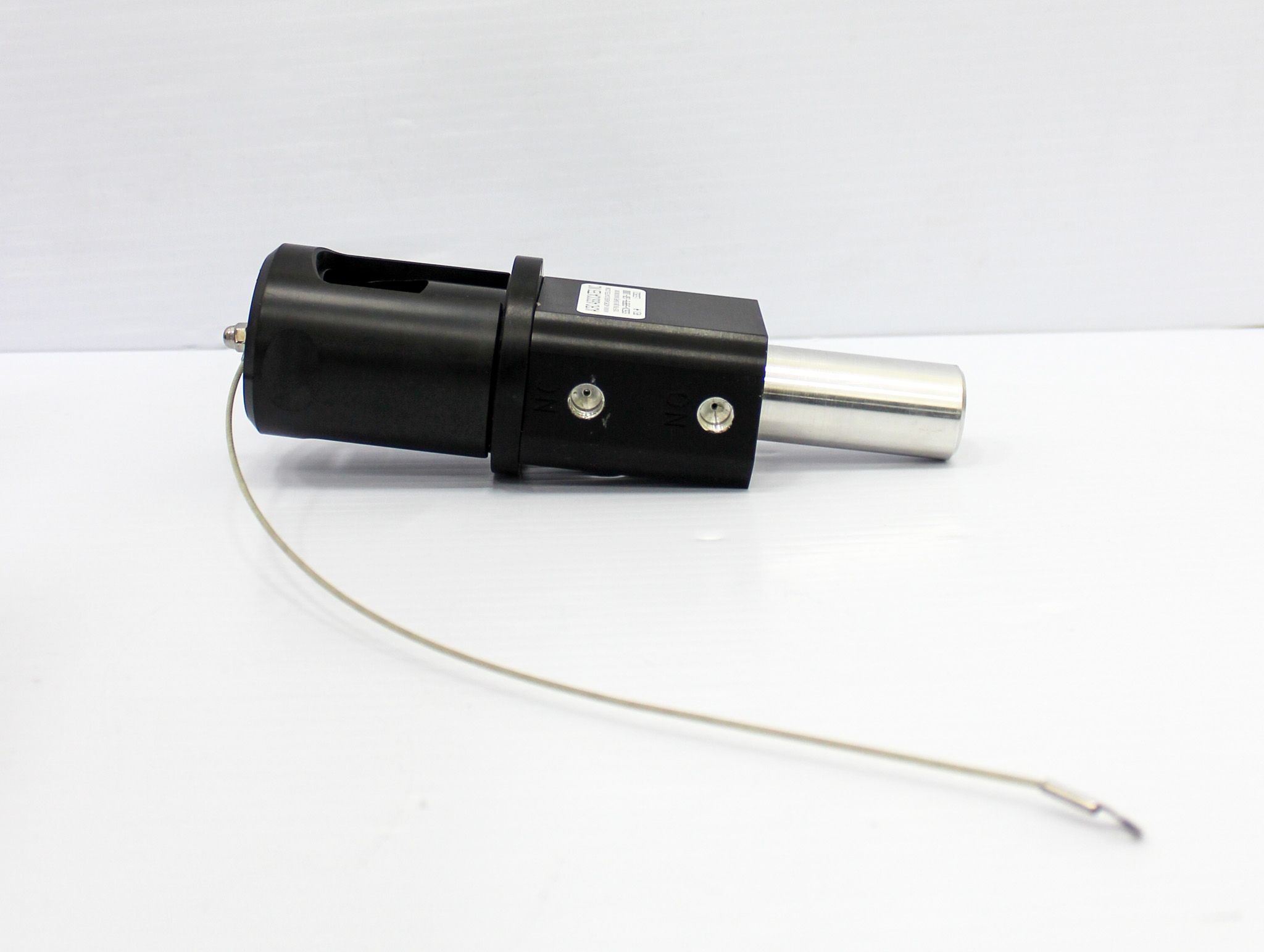

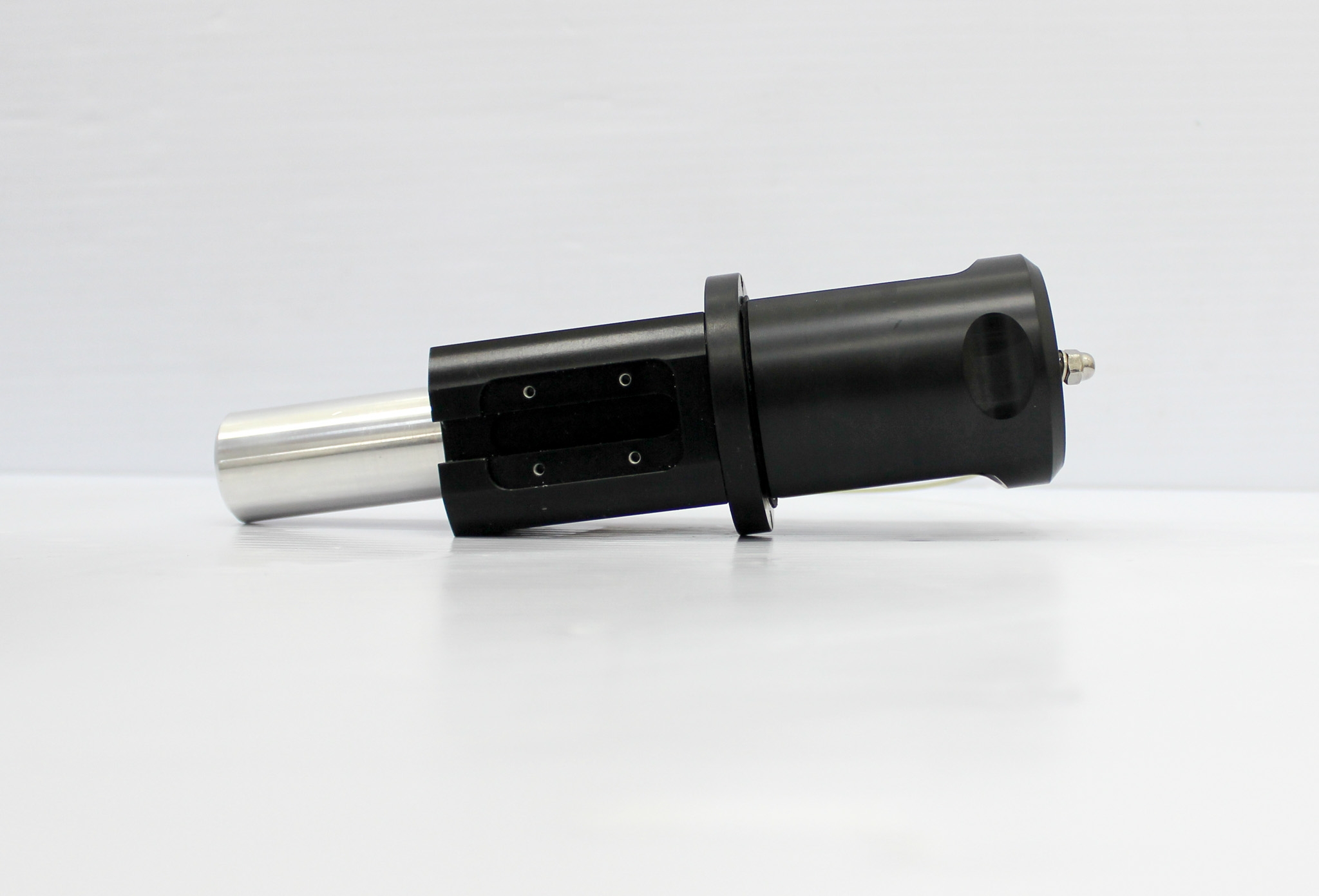

This listing features a box of 30 ACRO Associates Inc. 935CN-SABP8-160-1000 pneumatic actuated pinch valves, designed specifically for biopharmaceutical processing, food and beverage, and industrial applications requiring sterility and washdown procedures. These valves are part of the Bimba/Across '900' series, featuring a normally closed (NC) configuration with a compact design. The units are characterized by their 1-inch pinch cylinder stroke and are suitable for tubing diameters ranging from 0.94 to 1 inch in outside diameter. Constructed with a black anodized aluminum body, the valves are pneumatically actuated and equipped with 1/8-inch NPT threaded NO/NC pneumatic ports. Despite slight cosmetic blemishes due to previous use, these valves are believed to be fully functional, having passed basic operational checks. The package does not include power/data cables, computer, or user manuals. Please refer to the photos for additional details and contact us for specific inquiries.
Key Features
- Pneumatically actuated pinch valves
- Normally closed (NC) design
- Compact and durable construction
- 1" pinch cylinder stroke
- Aluminum black body for washdown applications
- Suitable for biopharmaceutical and industrial use
Specifications

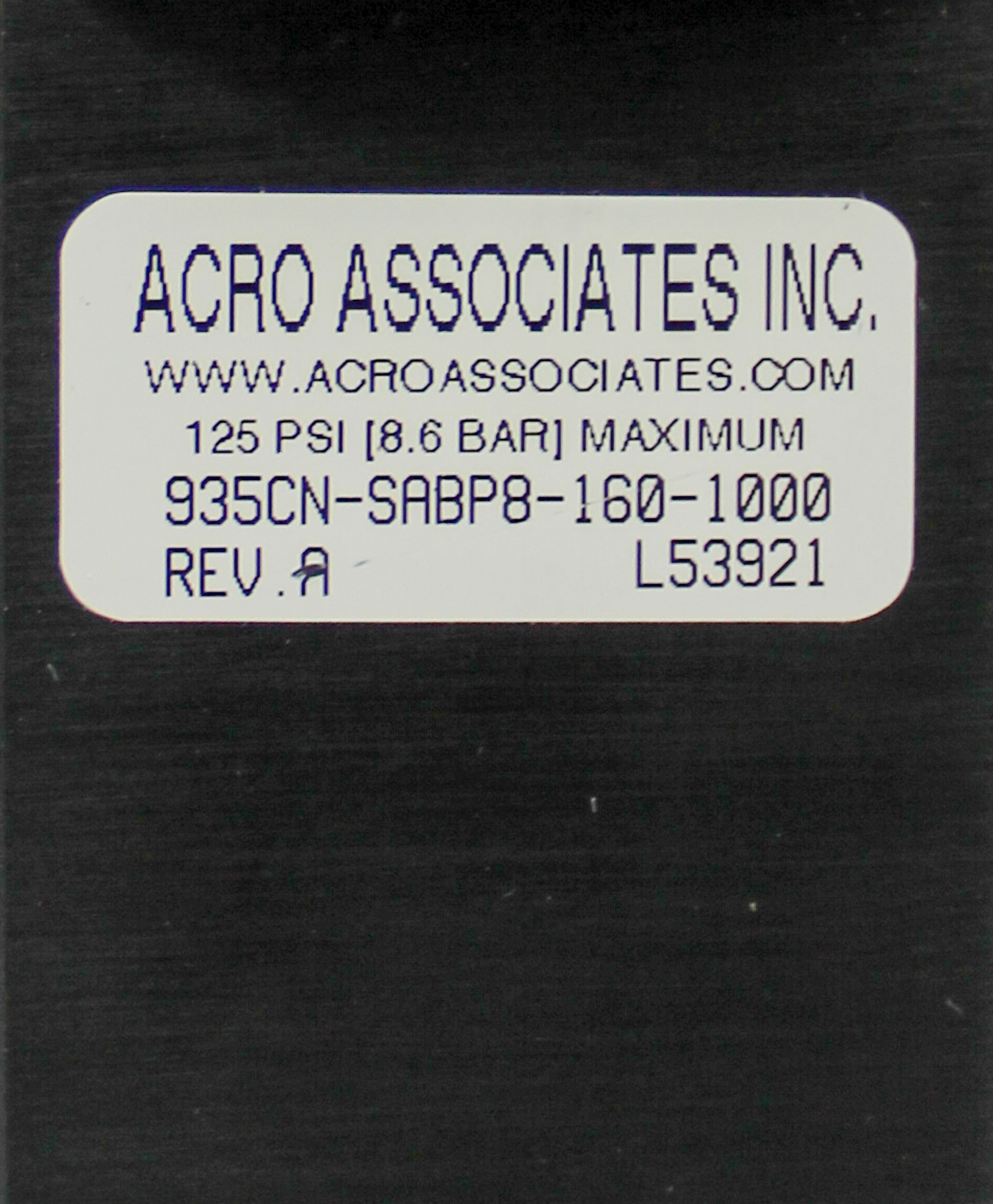

- Brand: ACRO Associates Inc.
- Model: 935CN-SABP8-160-1000
- Configuration: Normally Closed (NC)
- Actuation: Pneumatic
- Material: Black anodized aluminum
- Operating Pressure: 80...+125psi
- Pinch Cylinder Stroke Length: 1 in / 25.4 mm
- Tubing Diameter Compatibility: 0.94-1" O.D.
- 1/8" NPT threaded NO/NC ports
- Max Pinching Force: 8 lbf
Weight
Imperial: 60.0 Pounds
Metric: 27.22 Kilograms
Shipping Dimensions
Imperial: 15.6 lb x 16.8 lb x 14.4 lb
Metric: 39.62 cm x 42.67 cm x 36.58 cm
Harmonized Code
8481.10.00
Harmonized Code Details
8481.10.00 is used for pneumatic valves. This code applies to valves that control the flow of gases and are pneumatically actuated, fitting the product description of ACRO Associates valves.
