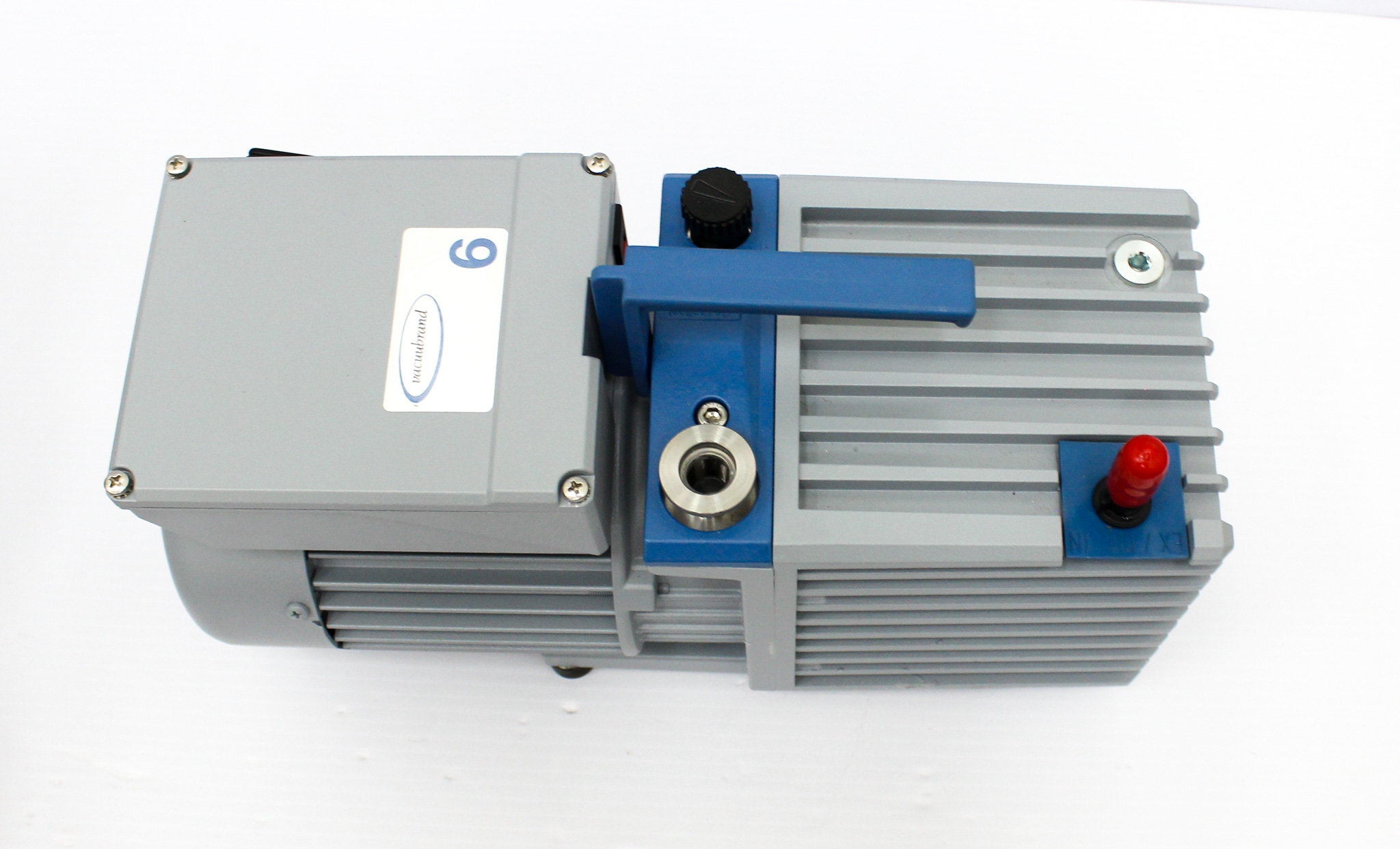

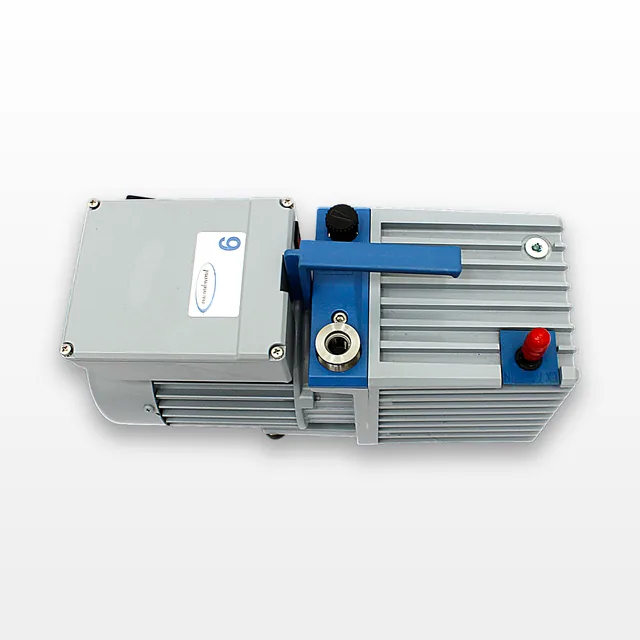

Vacuubrand RE 6W Vacuum Pump Rotary Vane Low Ultimate Vacuum Chem Use
Vacuubrand
Details
-
CategoryPump
-
Dimension15.0in x 6.0in x 10.0in
-
Serial37989806
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Vacuubrand Rotary Vane Vacuum Pump RE 6W is in excellent condition and is ideal for laboratory and process applications. With a maximum permissible inlet pressure of 16 psi, this compact and lightweight pump achieves a low ultimate vacuum with a maximum speed of 4.0 cfm. It has been tested to achieve a vacuum pressure of 5 microns. This used model shows slight cosmetic signs of use but remains highly functional. The RE 6W is perfect for degassing, lyophilization, fine vacuum distillation, and more. Its high water vapor tolerance and efficient gas ballast ensure superior performance and long maintenance intervals. It operates in a wide range of ambient temperatures and offers enhanced safety features specific to chemical laboratories, making it a reliable choice for tasks involving large volumes of condensable vapors.
Key Features
- Compact and lightweight design
- Vacuum pressure tested to 5 microns
- High flow rates at ultimate vacuum levels
- Efficient gas ballast for high water vapor tolerance
- Large oil volume for extended maintenance intervals
- Telescopic design for easy maintenance
Specifications
- Max. permissible inlet pressure: 16 psi (1.1 bar)
- Max. permissible pressure at gas ballast valve: 17.5 psi
- Storage/operation temperature: -10°C to 60°C / 12°C to 40°C
- Max. installation altitude: 6500 ft
- Max. pumping speed at 50 Hz: 5.7 m³/h
- Max. pumping speed at 60 Hz: 4.0 cfm
- Ultimate vacuum without gas ballast: 4 x 10^-4 mbar
- Ultimate vacuum with gas ballast: 1 x 10^-2 mbar
- Number of stages: 2
- Noise level: 50 dBA
- Rated motor speed: 1500-1800 rpm
- Oil capacity: 0.34-0.65 L
- NRTL certified: Yes
Weight
Imperial: 42.0 Pounds
Metric: 19.05 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 7.2 lb x 12.0 lb
Metric: 45.72 cm x 18.29 cm x 30.48 cm
Harmonized Code
841430
Harmonized Code Details
Code 841430, which covers air or vacuum pumps of a kind used for air or other gases, is suitable for the nature of the Vacuubrand RE 6W given its vacuum pumping functionality in laboratory environments.
