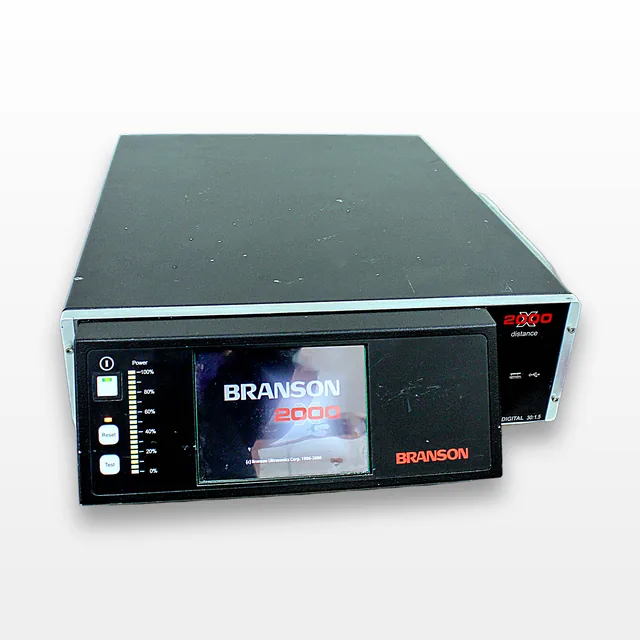

Branson 2000xdt Ultrasonic Welding Base Unit Needs Repair, 30kHz, 1500W
Branson
Details
-
CategoryProduction / Manufacturing
-
Dimension25.0in x 18.0in x 6.0in
-

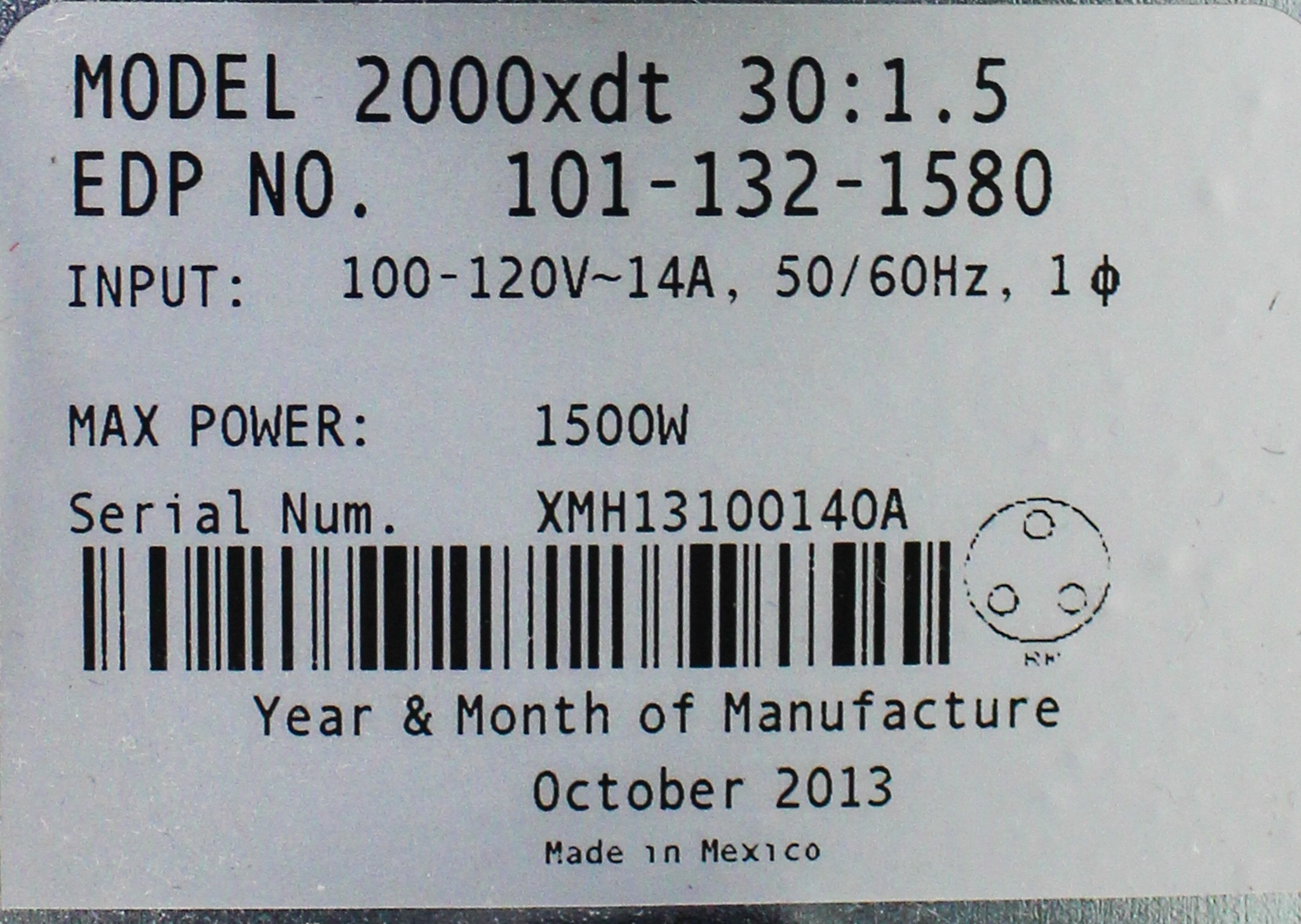

SerialXMH13100140A
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

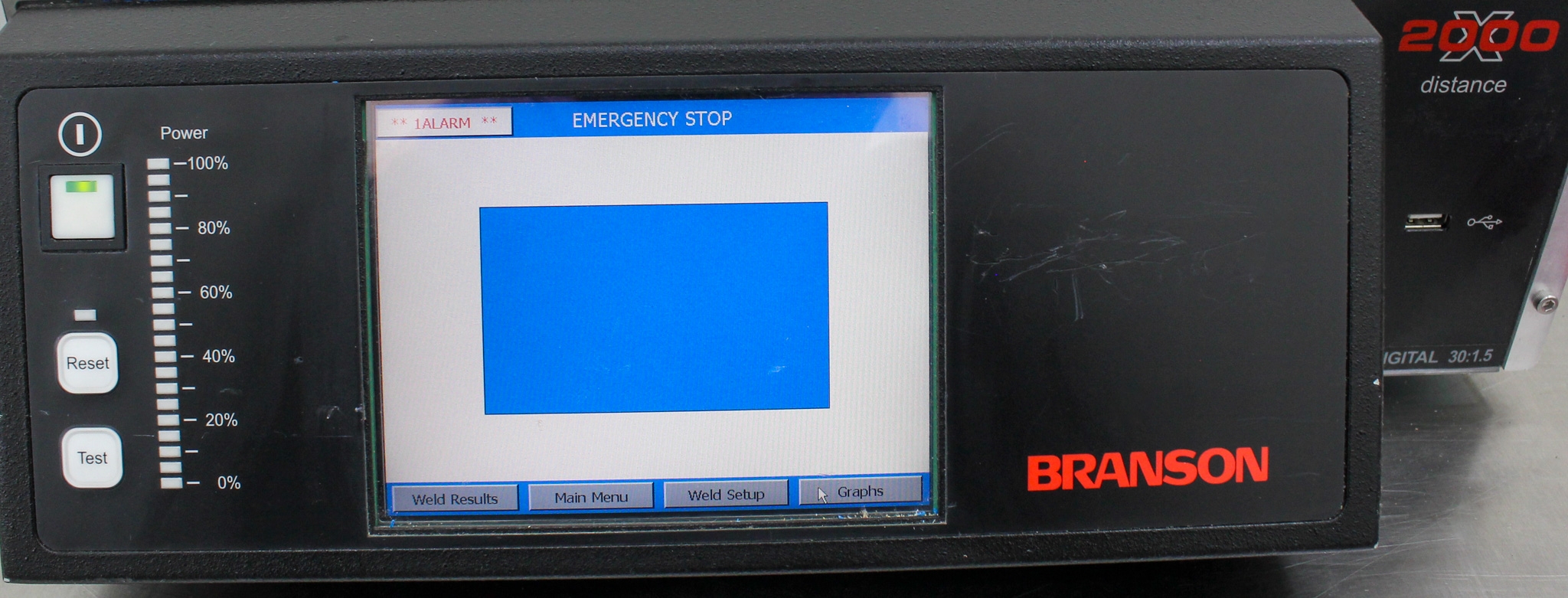

The Branson 2000xdt Ultrasonic Digital Welding Base Unit, originating from the United States, is a device designed for precision-control plastic welding technology. Unfortunately, this unit is not currently operational and will require repairs. It powers on, but an emergency stop alarm is present, indicating the need for technical attention. The unit features digital technology with multiple weld mode controls, including time, energy, peak power, and more. It offers complete control over amplitude with adjustable starting ramps and energy braking features. The 2000X series allows for customizable configurations to fit specific application needs. Despite its current non-functional status, the unit's robust build and specifications, such as 1500 Watts output power and compatibility with various actuators, make it valuable for those capable of conducting necessary repairs.
Key Features
- Digital, Customizable Plastic Welding Technology
- Multiple Weld Modes: Time, Energy, Peak Power, Distance
- Output Frequencies: 20, 30, 40 kHz
- True Digital Autotune with Memory
- Programmable Starting Ramp
- Self-diagnostics and Monitoring
Specifications
- Type: 2000xdt
- Output Power: 1500 Watts
- Input Voltage: 120V
- Frequency: 30 kHz
- Operating Voltage: 200-240 V AC, 50/60 Hz, 10A
- Max. Current: 26 amps
- Max. Cycle Rate: 80 cpm
- Ambient Temperature Range: 41-122 °F (5-50 °C)
Weight
Imperial: 48.0 Pounds
Metric: 21.77 Kilograms
Shipping Dimensions
Imperial: 30.0 lb x 21.6 lb x 7.2 lb
Metric: 76.2 cm x 54.86 cm x 18.29 cm
Harmonized Code
8515.80.40
Harmonized Code Details
8515.80.40 - Ultrasonic welding machines. This code is appropriate given the equipment's application in welding plastic materials using ultrasonic technology.
