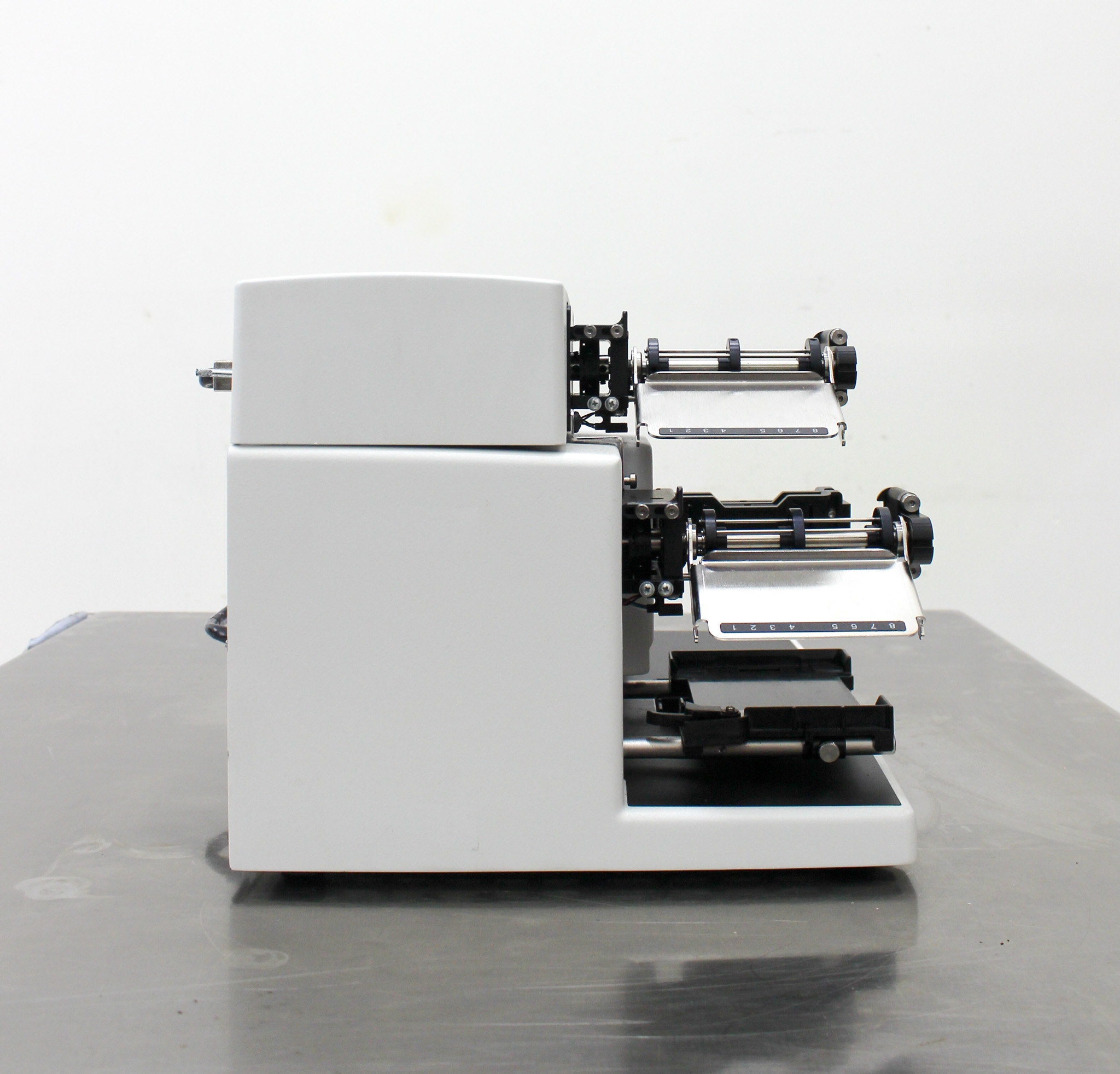

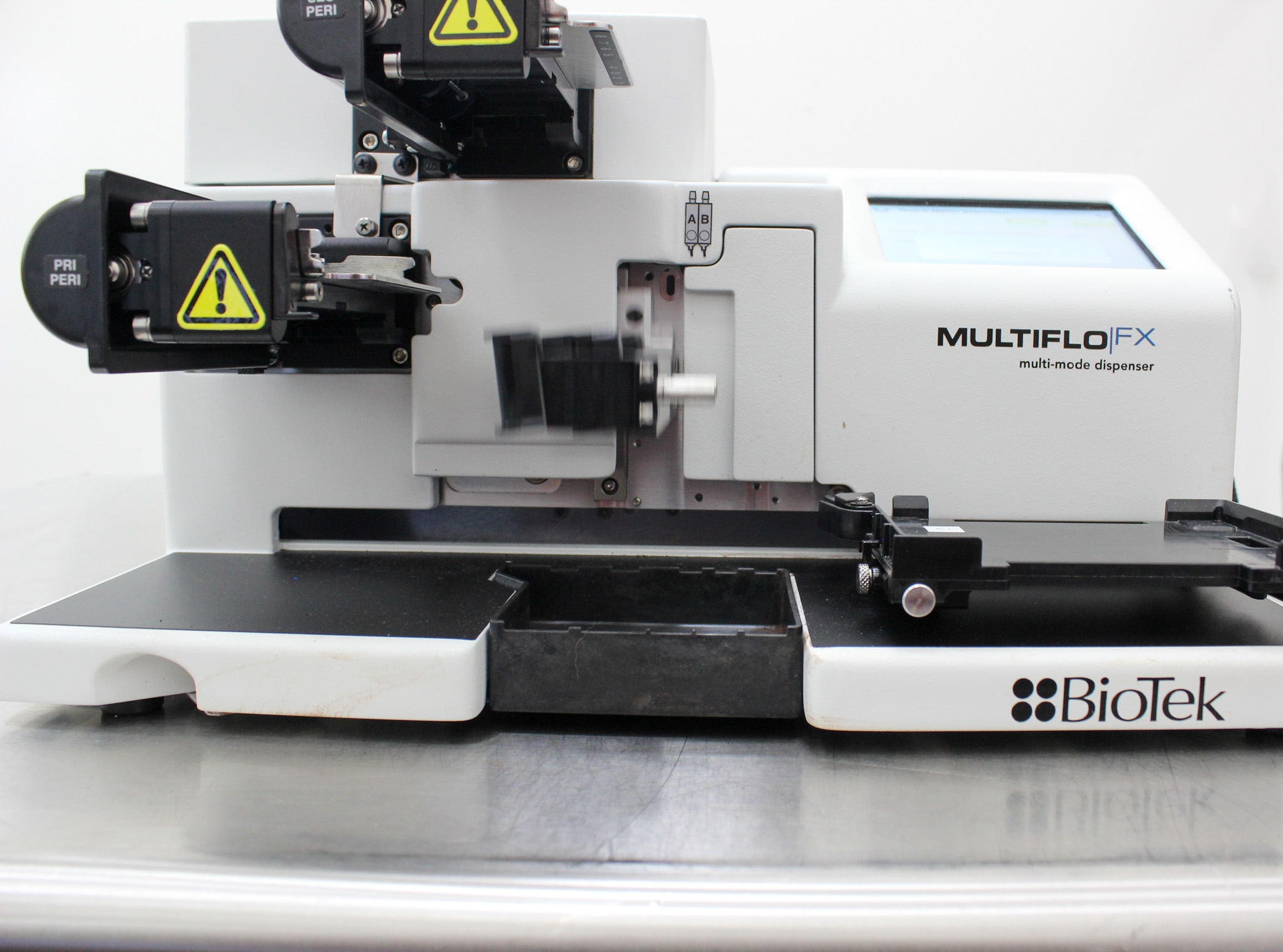

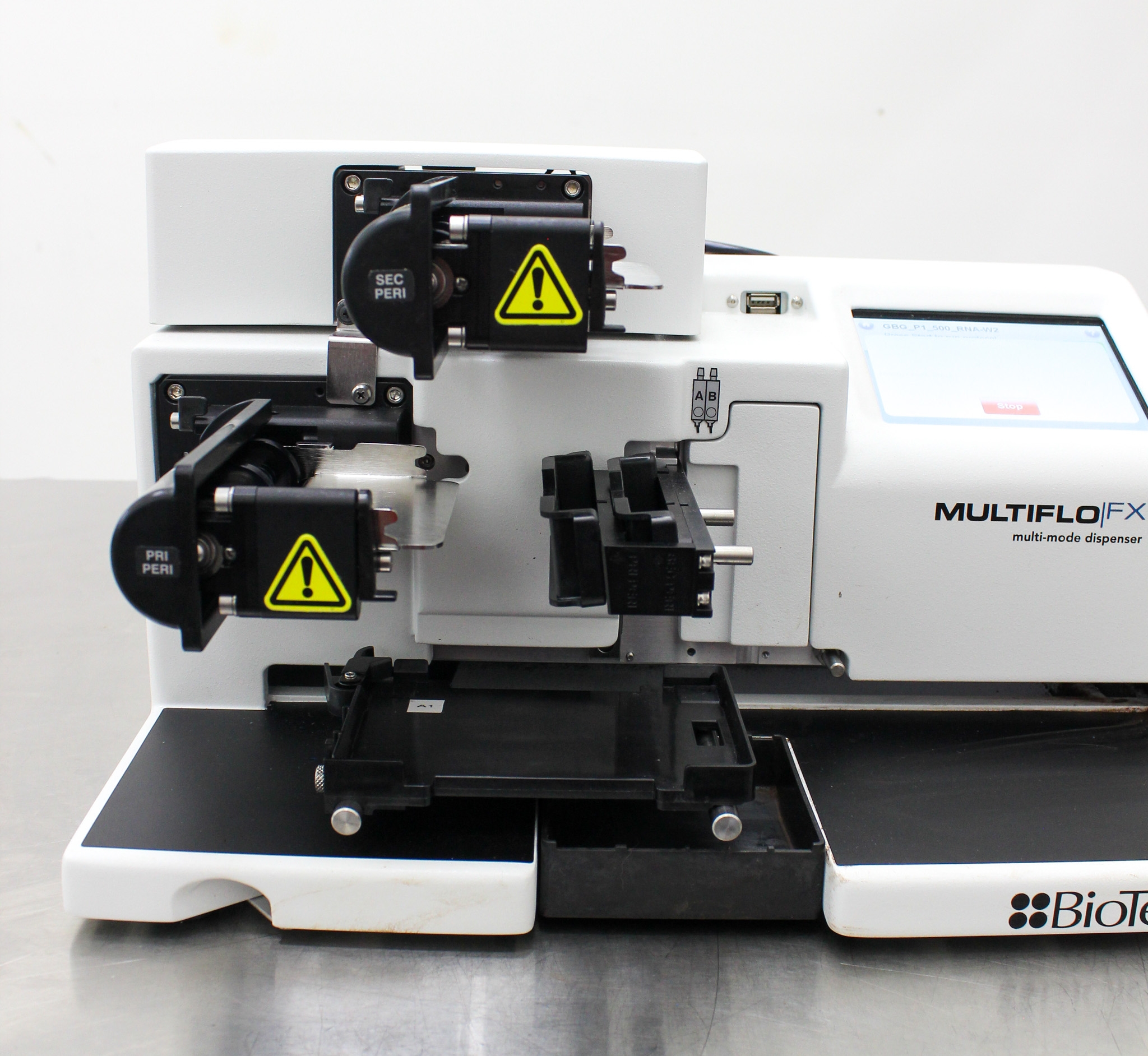

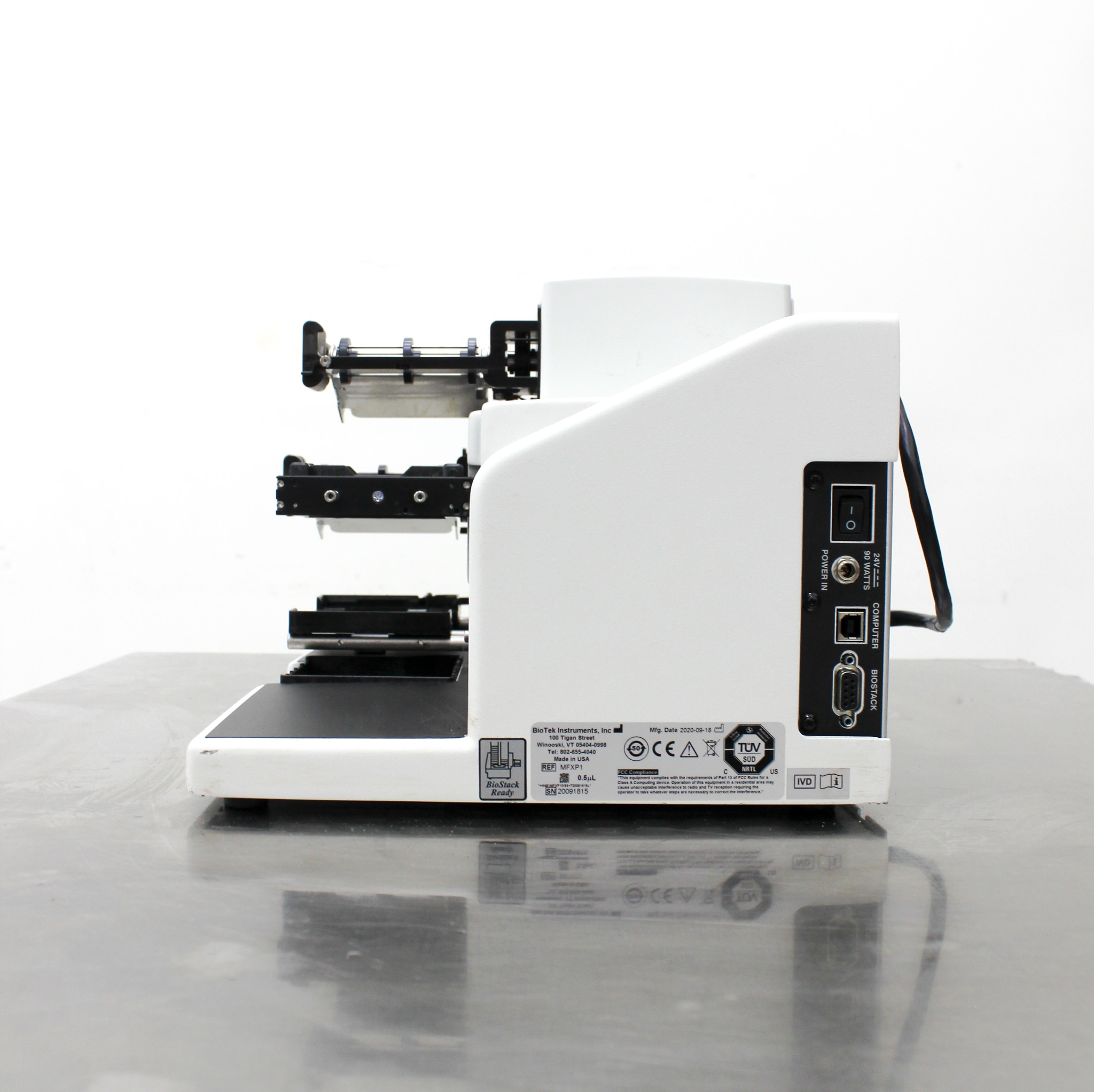

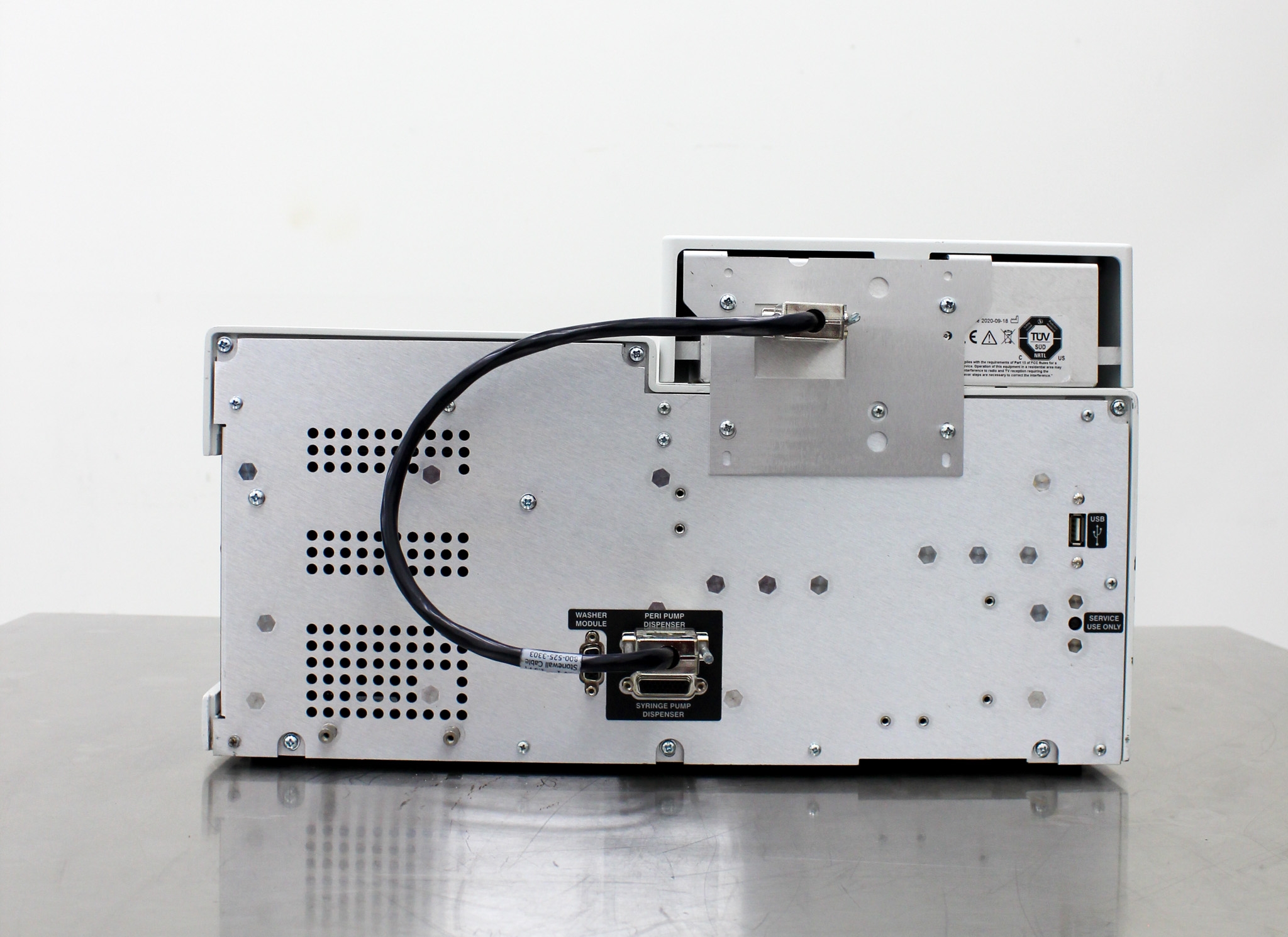

BioTek MFXP1 Multi-mode Dispenser 3D Culture Normalization Used
BioTek Instruments, Inc.
Details
-
CategoryLiquid Handling
-
Dimension17.0in x 12.0in x 10.0in
-
Serial20091815
-
Shipping TypeFedEx Ground
-
Manufacturing2020-09-18
-
Voltage / Hertz120V / 50Hz/60Hz
Description

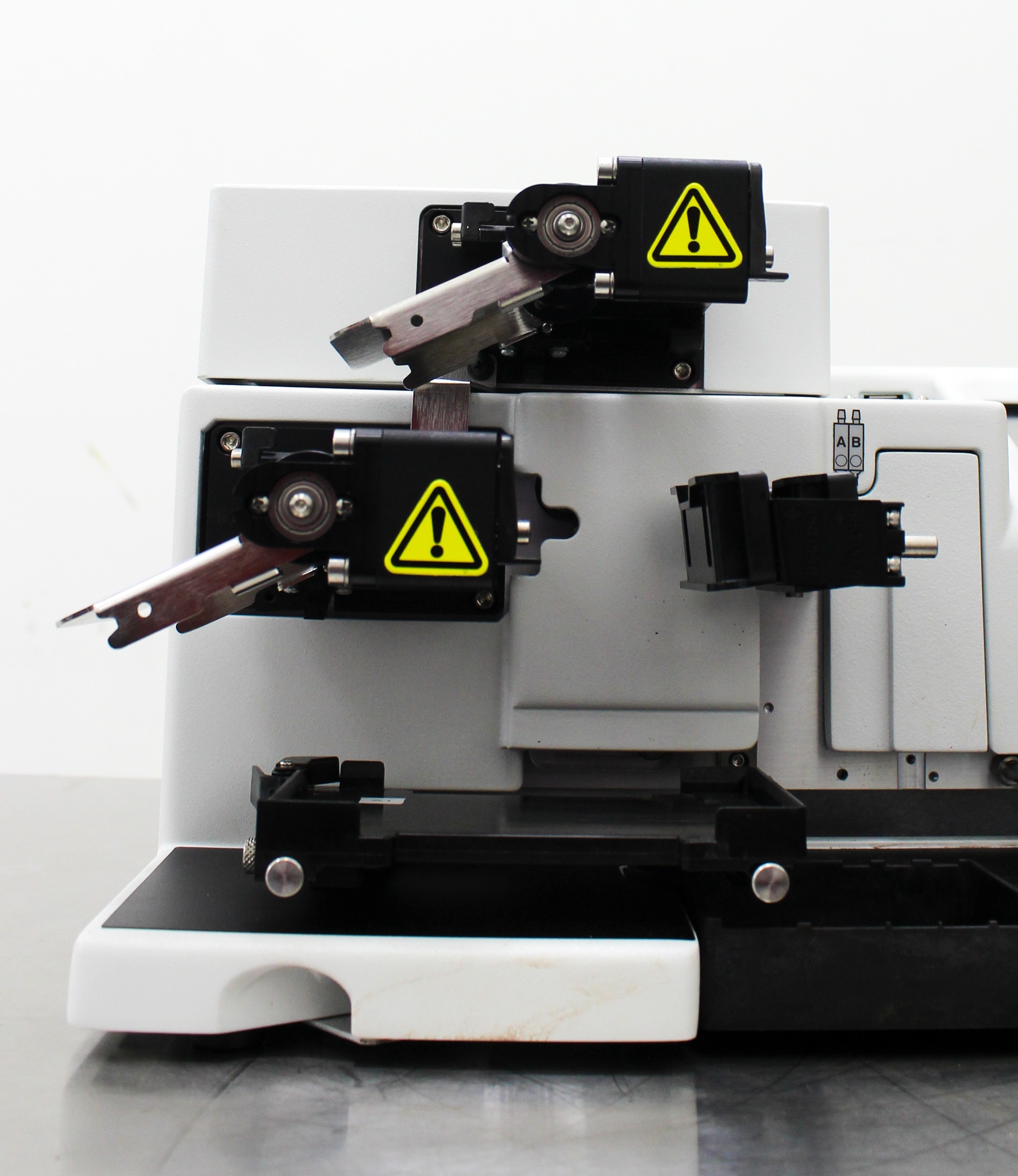

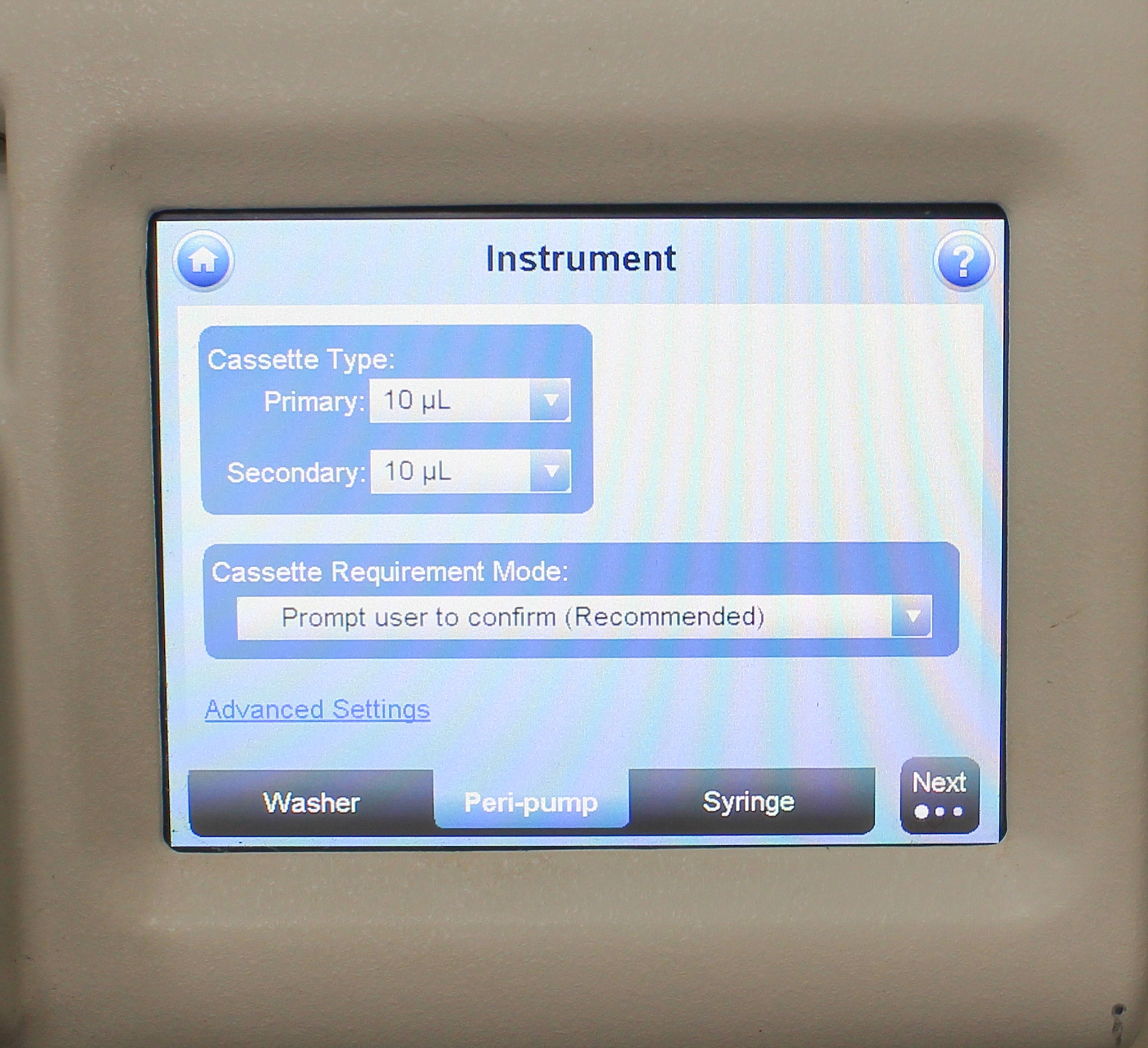

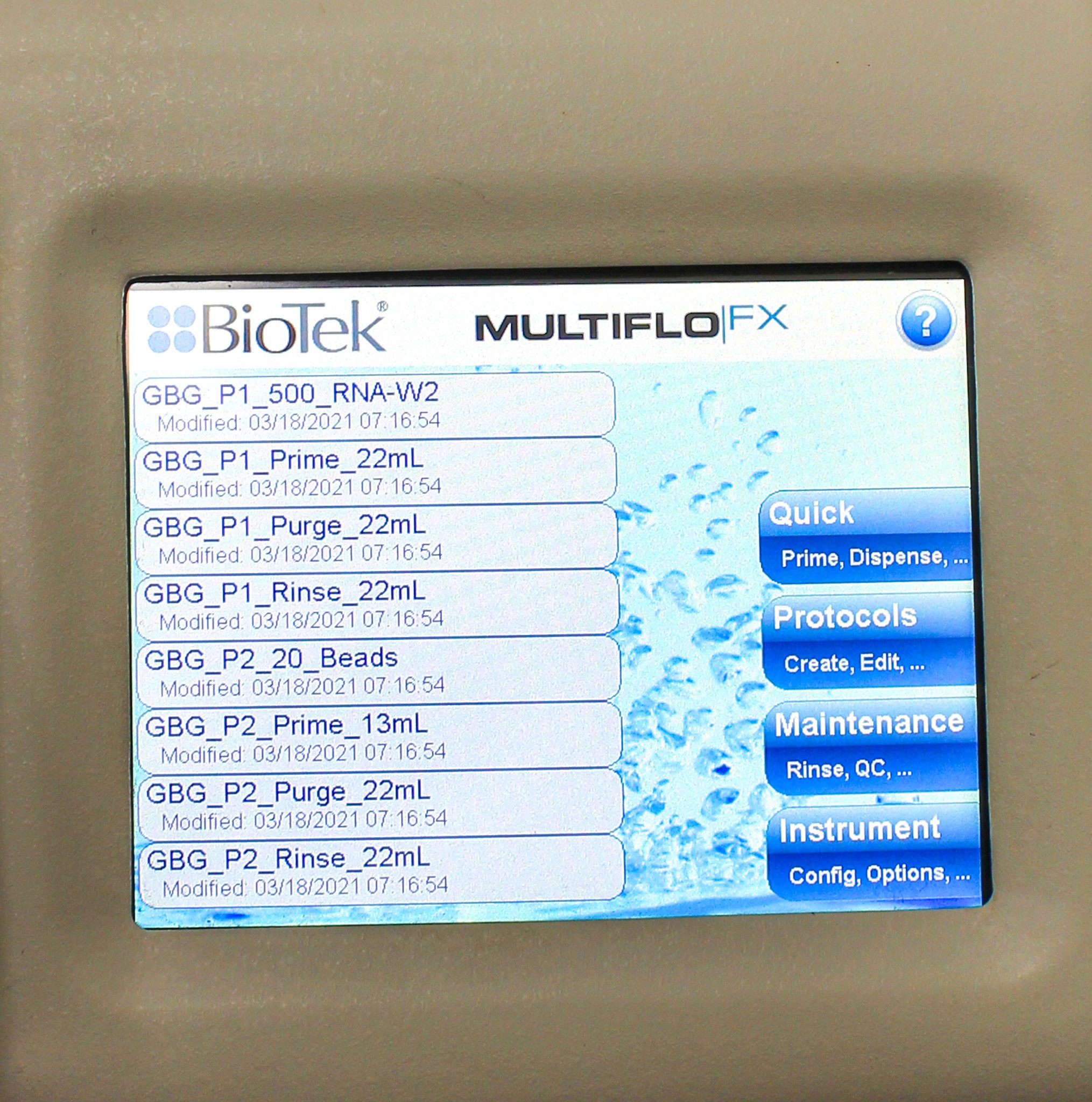

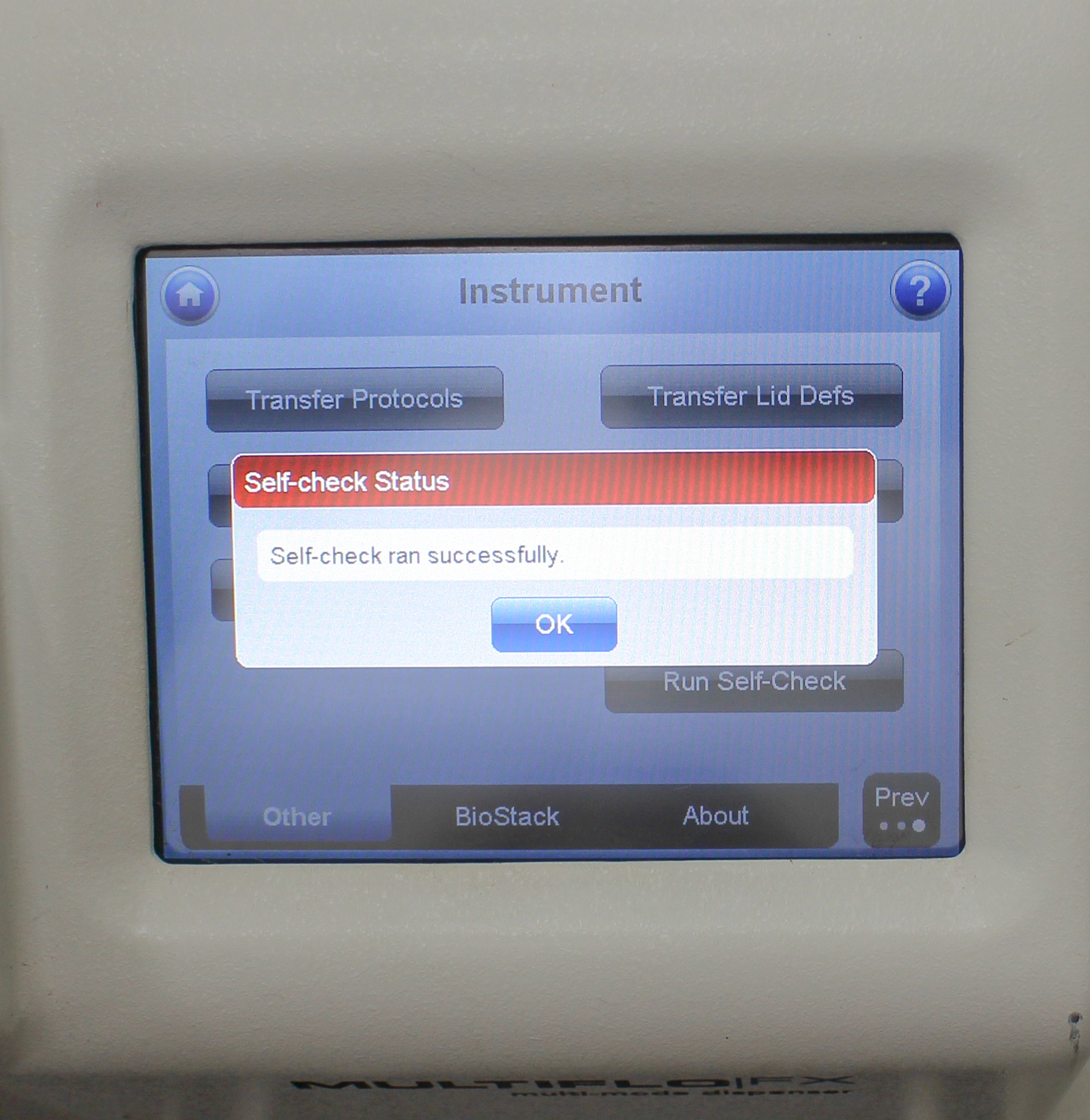

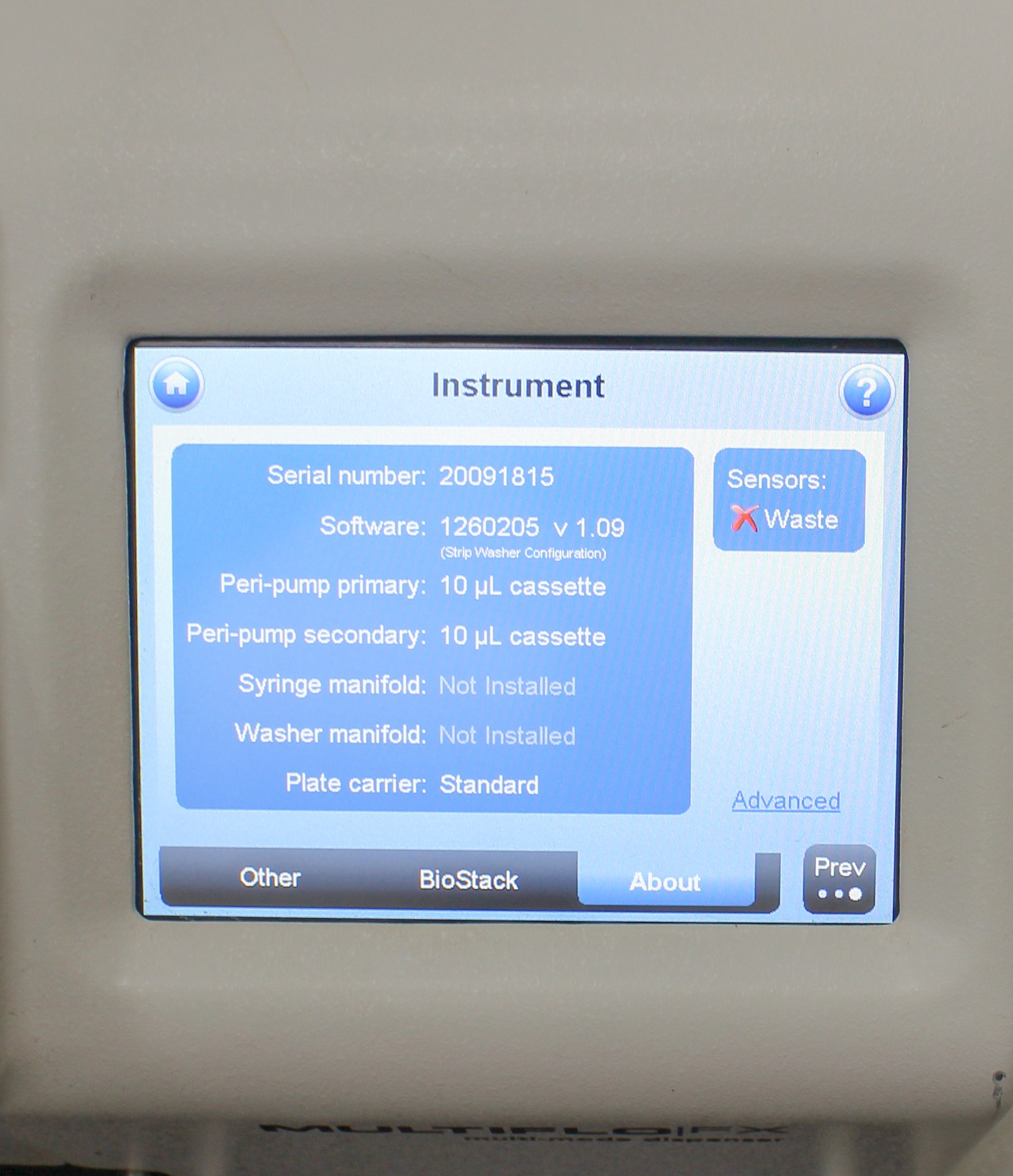

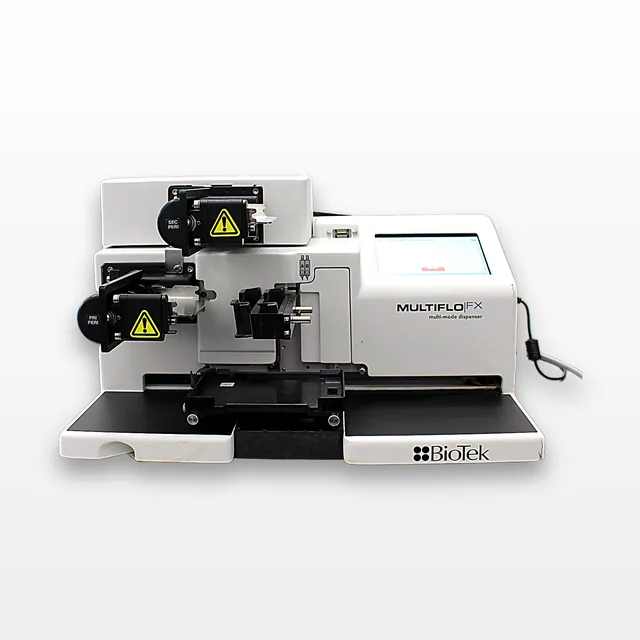

Manufactured by BioTek Instruments, Inc. in 2020, the MultiFlo FX model MFXP1 is a used, versatile multi-mode dispenser designed for applications in 6- to 1536-well microplates, ideal for ELISA, bead-based assays, and 2D and 3D cell culture. This unit, while sporting minor cosmetic blemishes from regular use, functions as intended and passes function tests with no error messages. Featuring Parallel Dispense, RAD, and AMX modules that facilitate random access dispensing and automated media exchange, it is well-suited for high-throughput liquid handling, precision concentration normalization assays, and more. Compact and efficient, it integrates into workflows to potentially replace up to five liquid handlers, saving on space and budget. The unit includes one peristaltic dispense pump and one peri-pump cassette with plastic tips, supporting a range of applications with precision and efficiency.
Key Features
- Automated multi-mode reagent dispenser
- Modular design with Parallel Dispense, RAD, AMX
- Handles 6- to 1536-well microplates
- Supports 2D/3D cell culture, ELISA, bead-based assays
- Precision concentration normalization assays
- Replaces up to five liquid handlers
Specifications
- Accuracy: 5% at 1 µL, 2% at 5 µL, 2% at 10 µL
- Precision: <5% CV at 1 µL, <2.5% CV at 5 µL, <2% CV at 10 µL
- Speed: 96 wells, 10 µL/well in 3.5 seconds; 1536 wells, 1 µL/well in 21 seconds
- Volume: 500 nL to 3000 µL/well, 1 µL increments
- Electrical: 120V, 50/60Hz, max 90W
- Certifications: CE, TUV, RoHS compliant
- Optional software: LHC2, LHC2 Secure, SiLA compliant driver
Weight
Imperial: 27.6 Pounds
Metric: 12.52 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 14.4 lb x 12.0 lb
Metric: 51.82 cm x 36.58 cm x 30.48 cm
Harmonized Code
8479820070
Harmonized Code Details
Harmonized code 8479820070 applies to machinery for mixing or kneading, incorporating technologies like the MultiFlo FX that handle complex liquid dispensing and mixing tasks across scientific applications.
