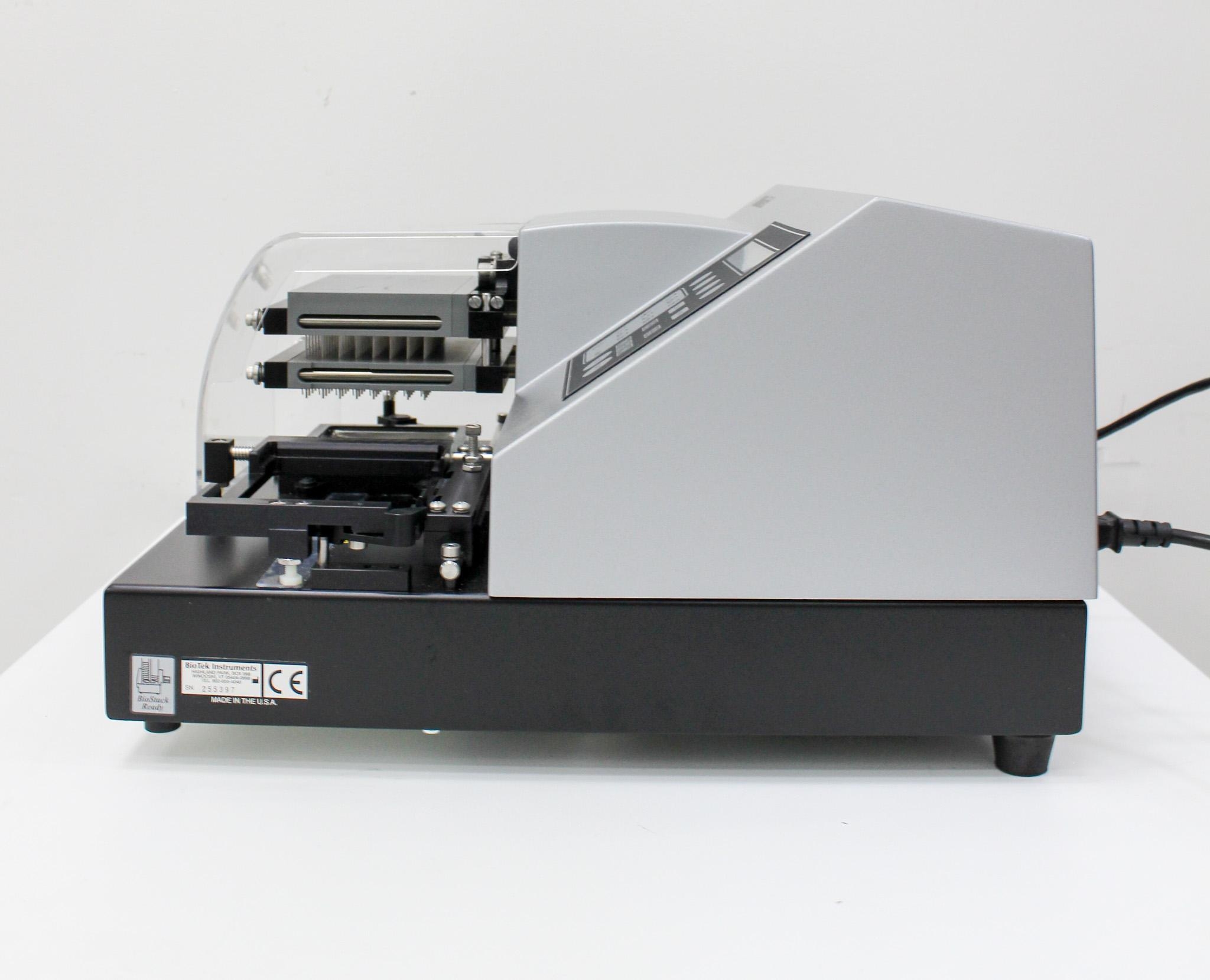

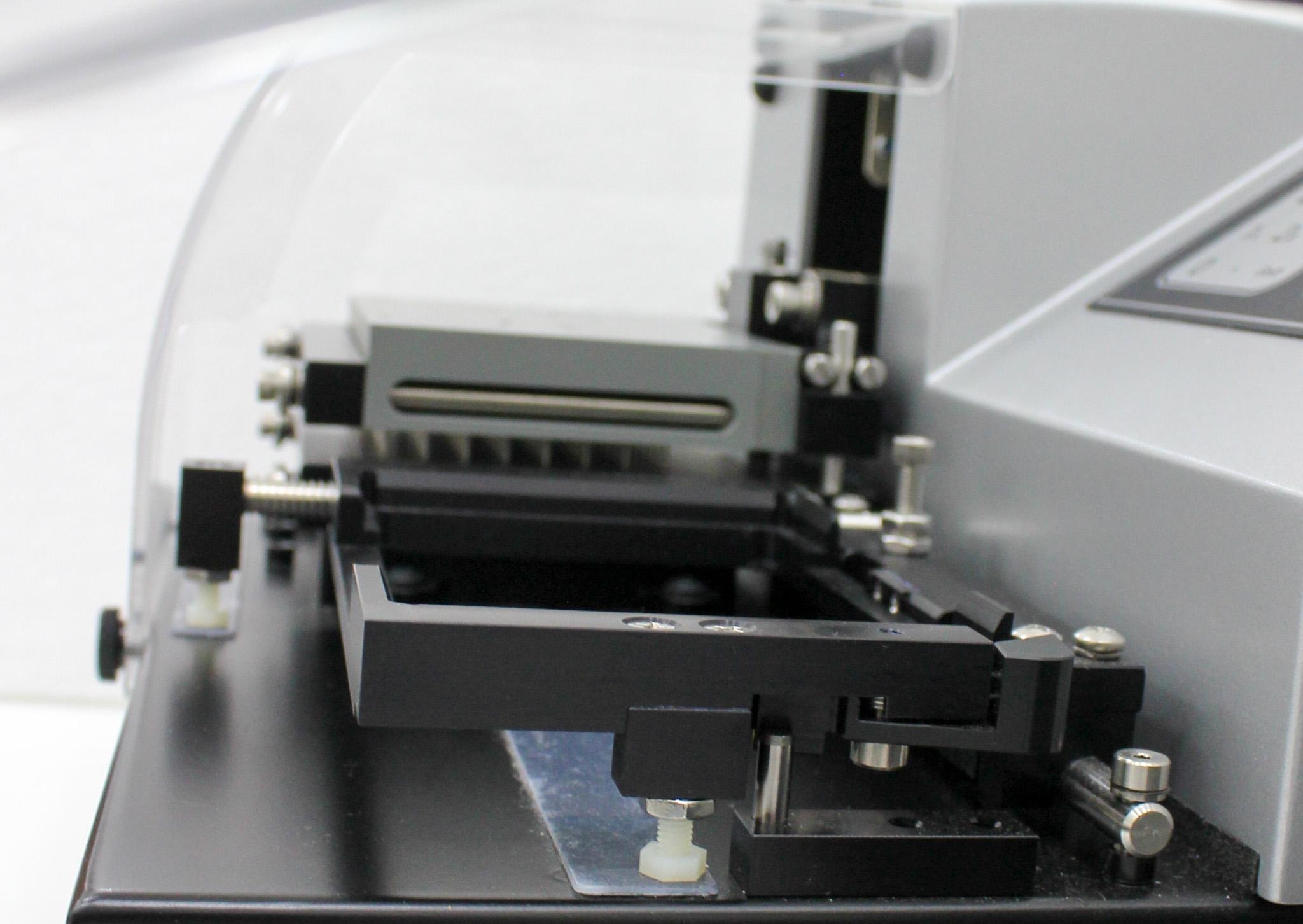

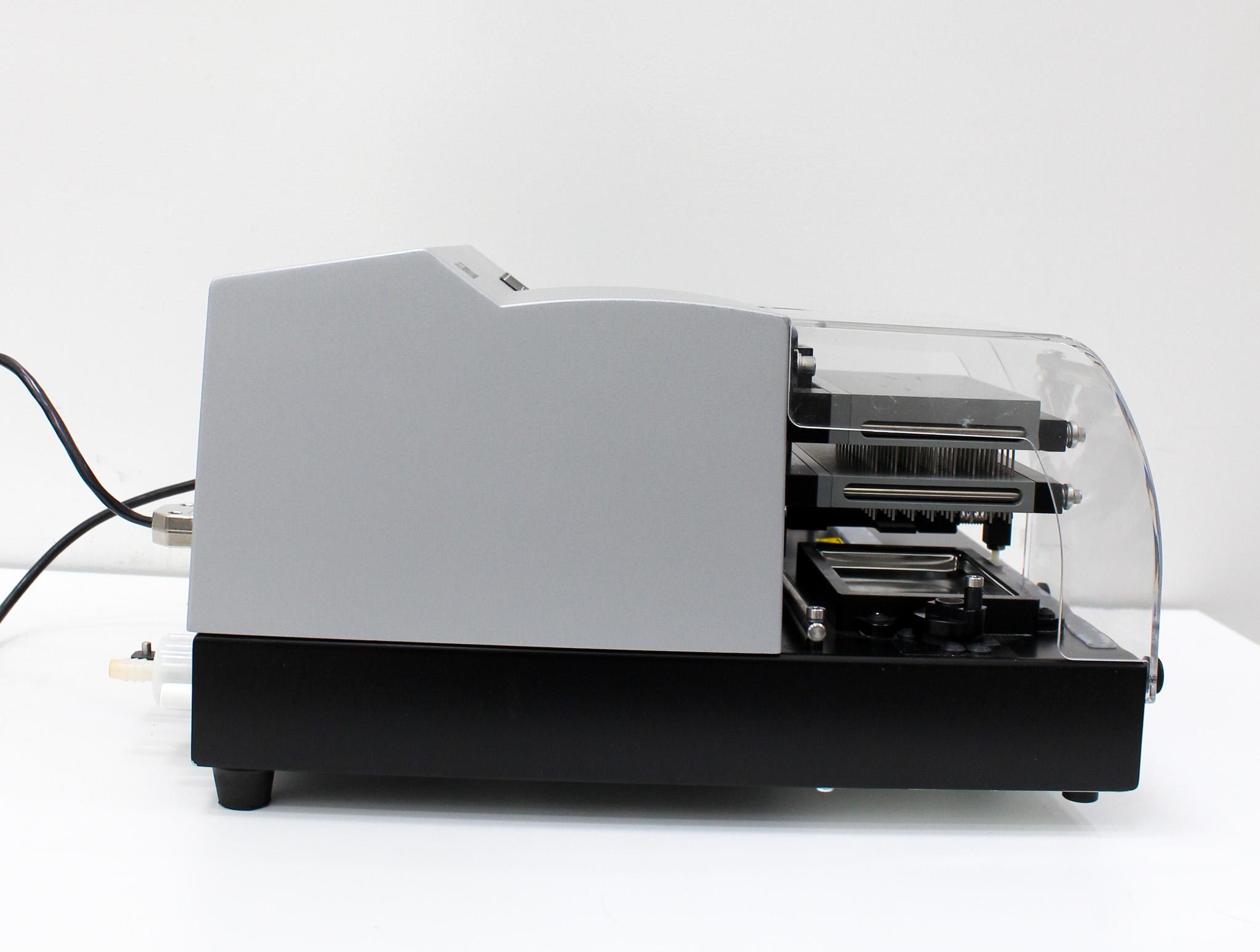

Biotek ELx405 Select Microplate Washer 96-384 Well Deep Well Aspiration
Bio-Tek
Details
-
CategoryLiquid Handling
-
Dimension14.0in x 17.0in x 10.0in
-

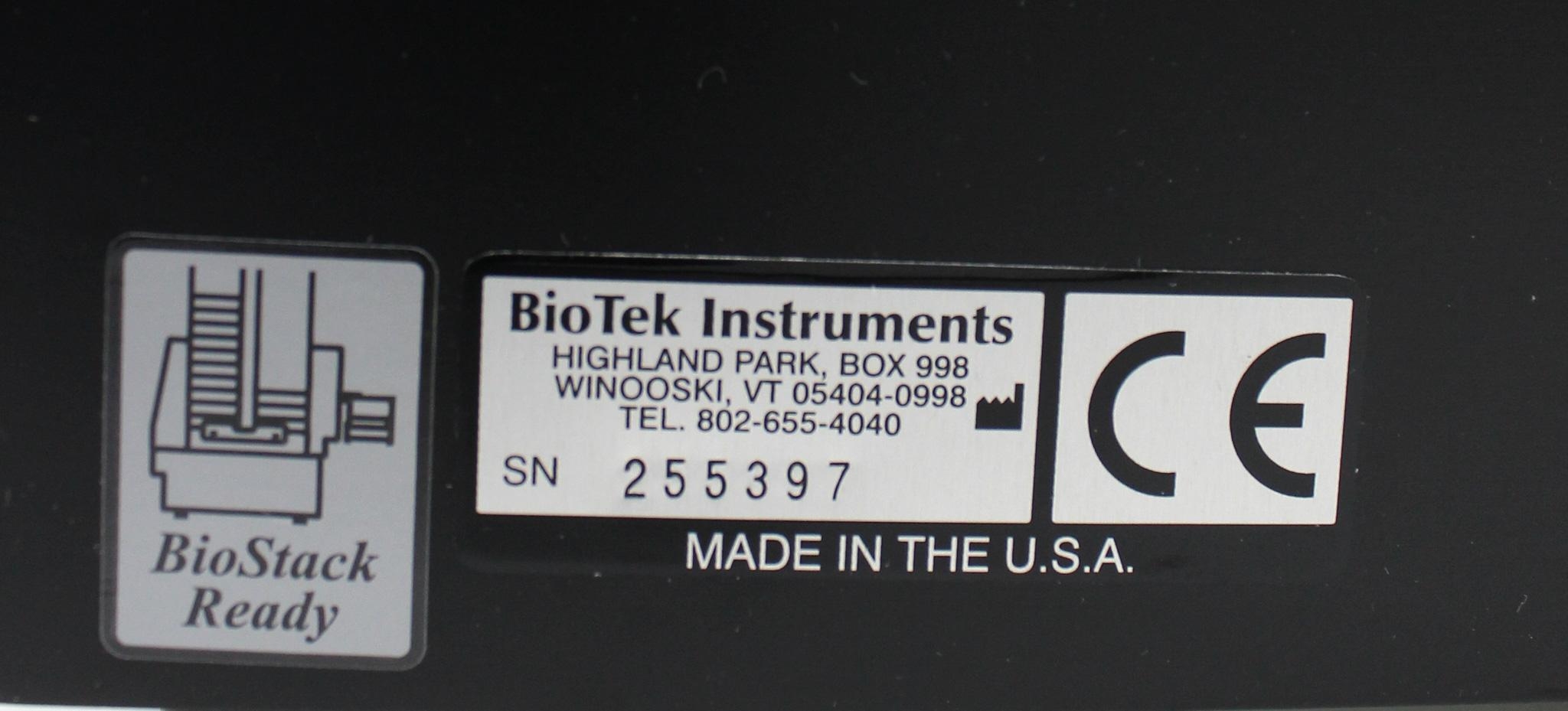

Serial255397
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

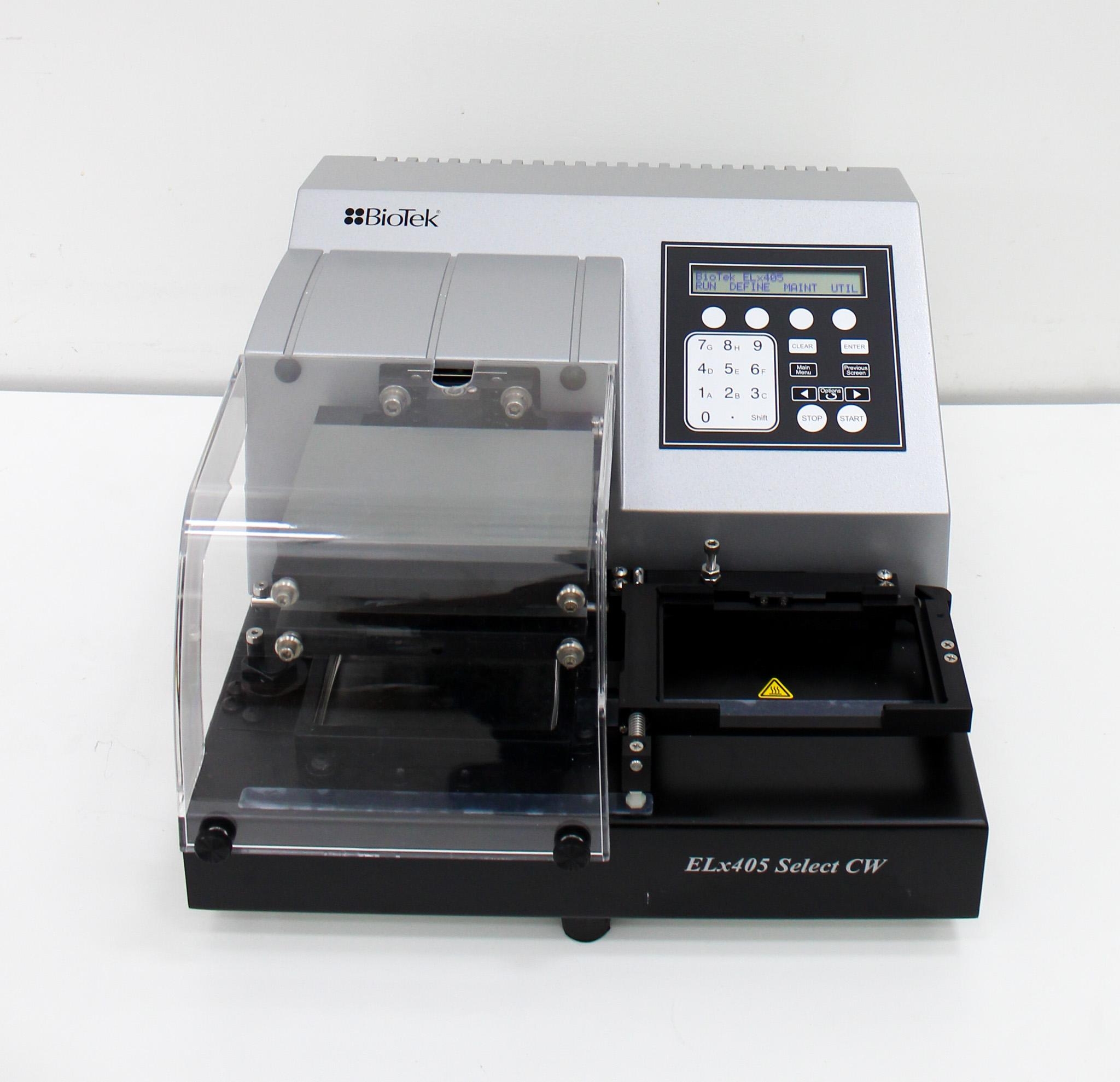

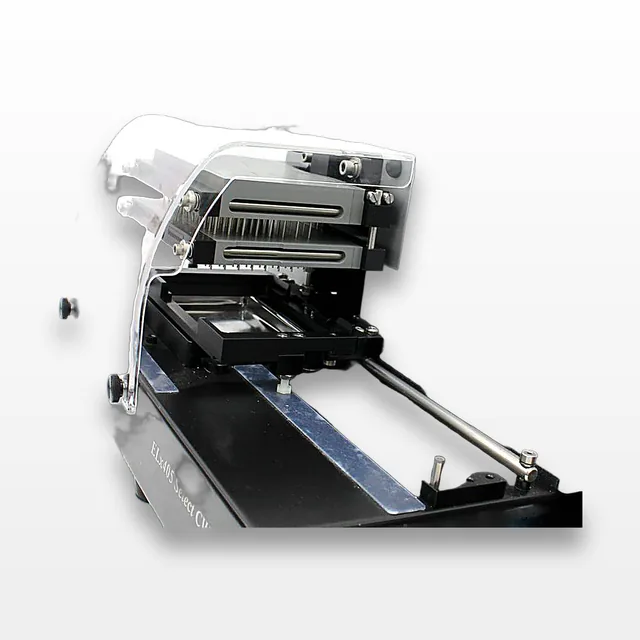

The BioTek ELx405 Select CW Microplate Washer, a versatile and efficient device tested to specifications, offers excellent performance in various laboratory settings. Manufactured by Bio-Tek, the ELx405 Select CW handles washing for 96- and 384-well plates, effectively managing both deep well and standard height microplates. This device is ideal for applications such as ELISA, cell-based assays, plasmid DNA purification, and cell culture wash processes. Featuring an innovative Dual-Action manifold for precision aspiration and dispensing, this microplate washer streamlines maintenance with its patented Ultrasonic Advantage system, which automates the cleaning of manifold tubes, eliminating salt and protein build-up. The ELx405 also supports magnetic and polystyrene bead protocols, making it adaptable for various scientific needs without the requirement for specialized manifolds. Offering high flow to low flow rate options and chemical sterilization, it allows flexibility to optimize for different cell assays.
Key Features
- Tested to specifications for reliability
- Compatible with 96- and 384-well deep well and standard plates
- Automates wash processes for ELISA, cell-based assays, and plasmid DNA purification

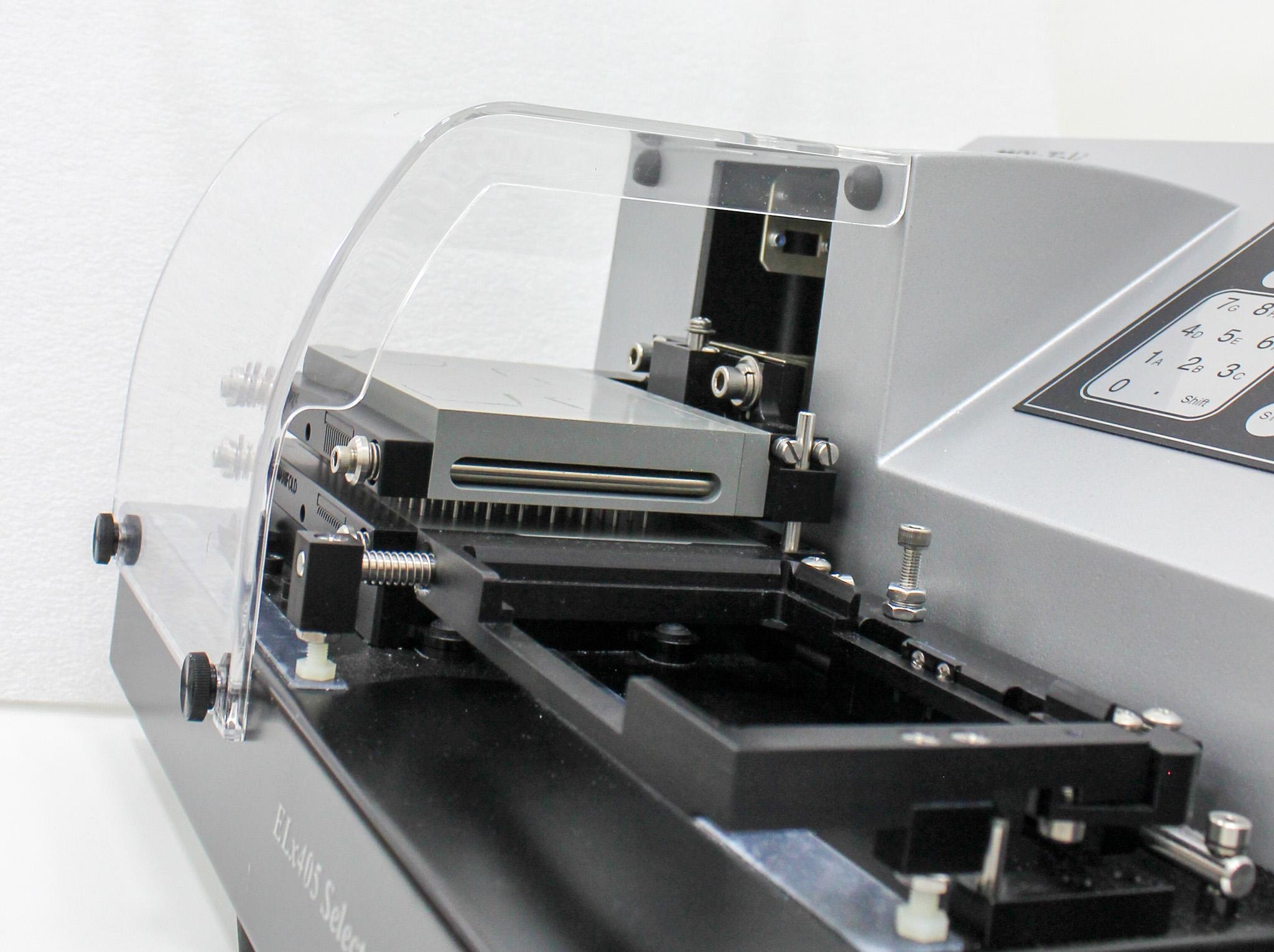

- Dual-Action manifold allows customizable aspiration and dispensing
- Ultrasonic Advantage for easy maintenance
Specifications

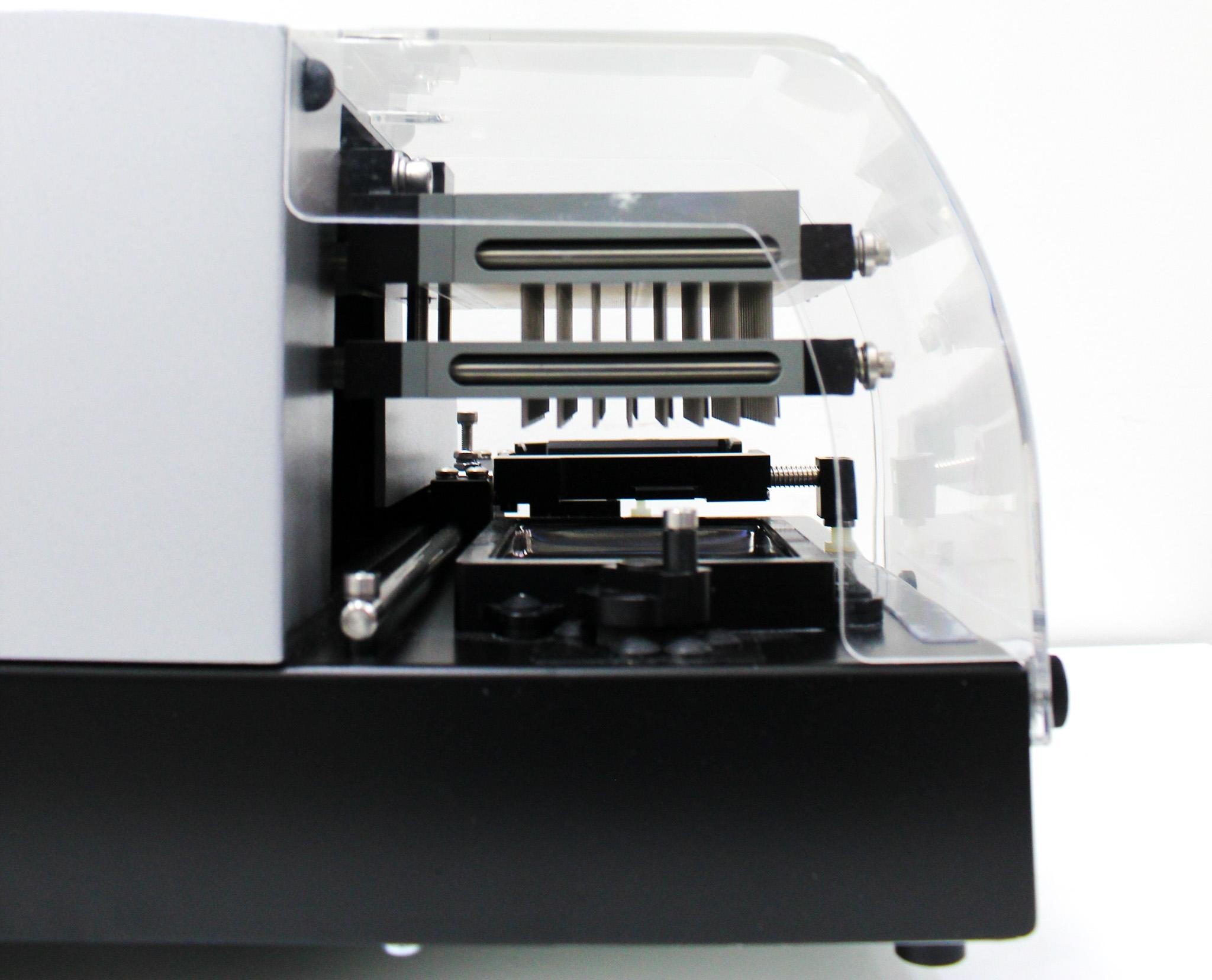

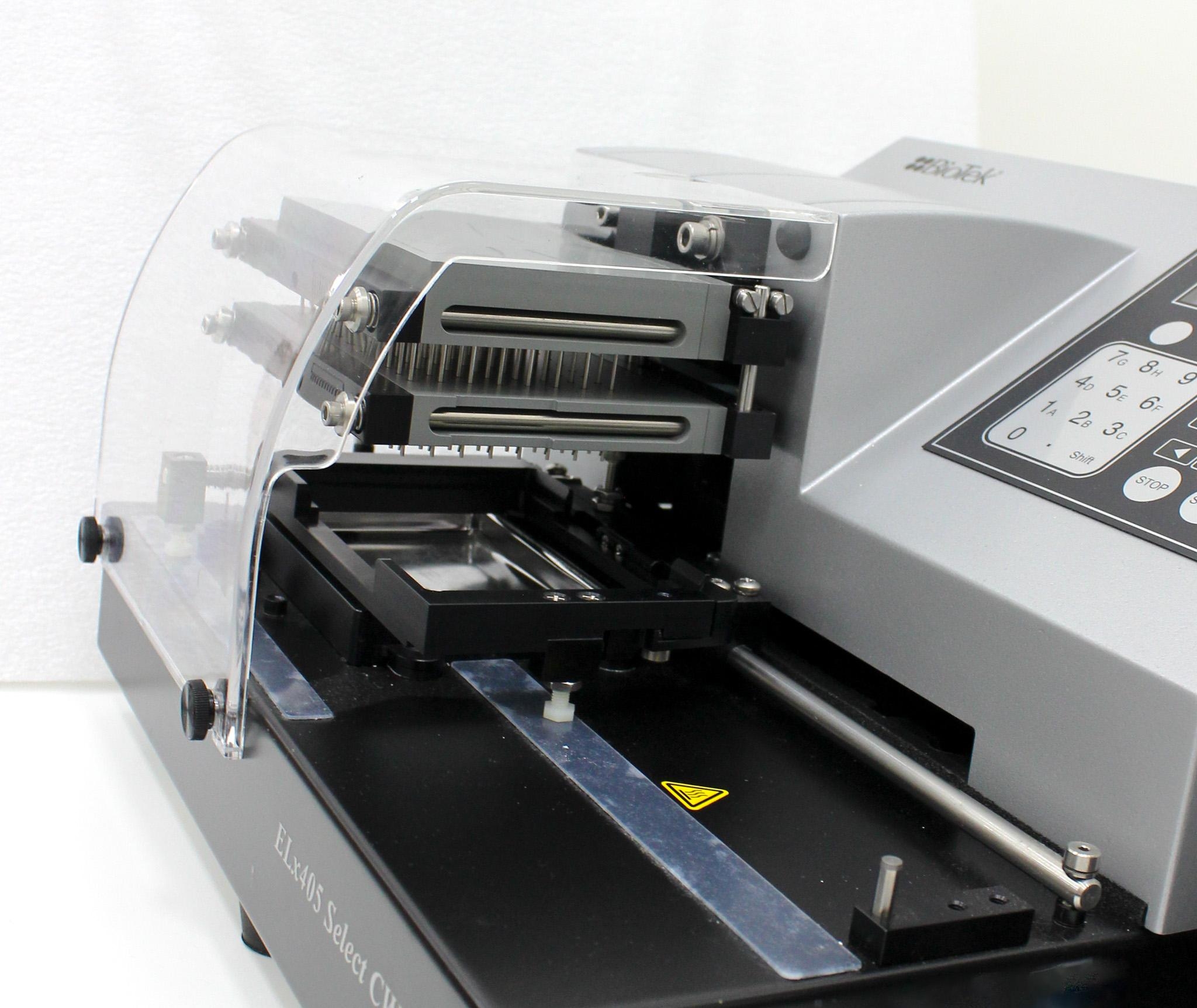

- Manifold types: 96-tube Dual-Action for 96- & 384-well
- Volume range: 50 - 3000 µL/well, 1 µL increments
- Wash cycles: 1 - 10
- Buffer/reagent selection: Auto switching for up to 4 buffers
- Supply bottle: 4 L or 10 L options
- Dispense precision: 3% CV for 300 µL/well
- Residual volume: <2 µL/well
- Wash speed: 96-wells, 300 µL/well, 3 cycles in <30 seconds
- Sterilization method: Chemical

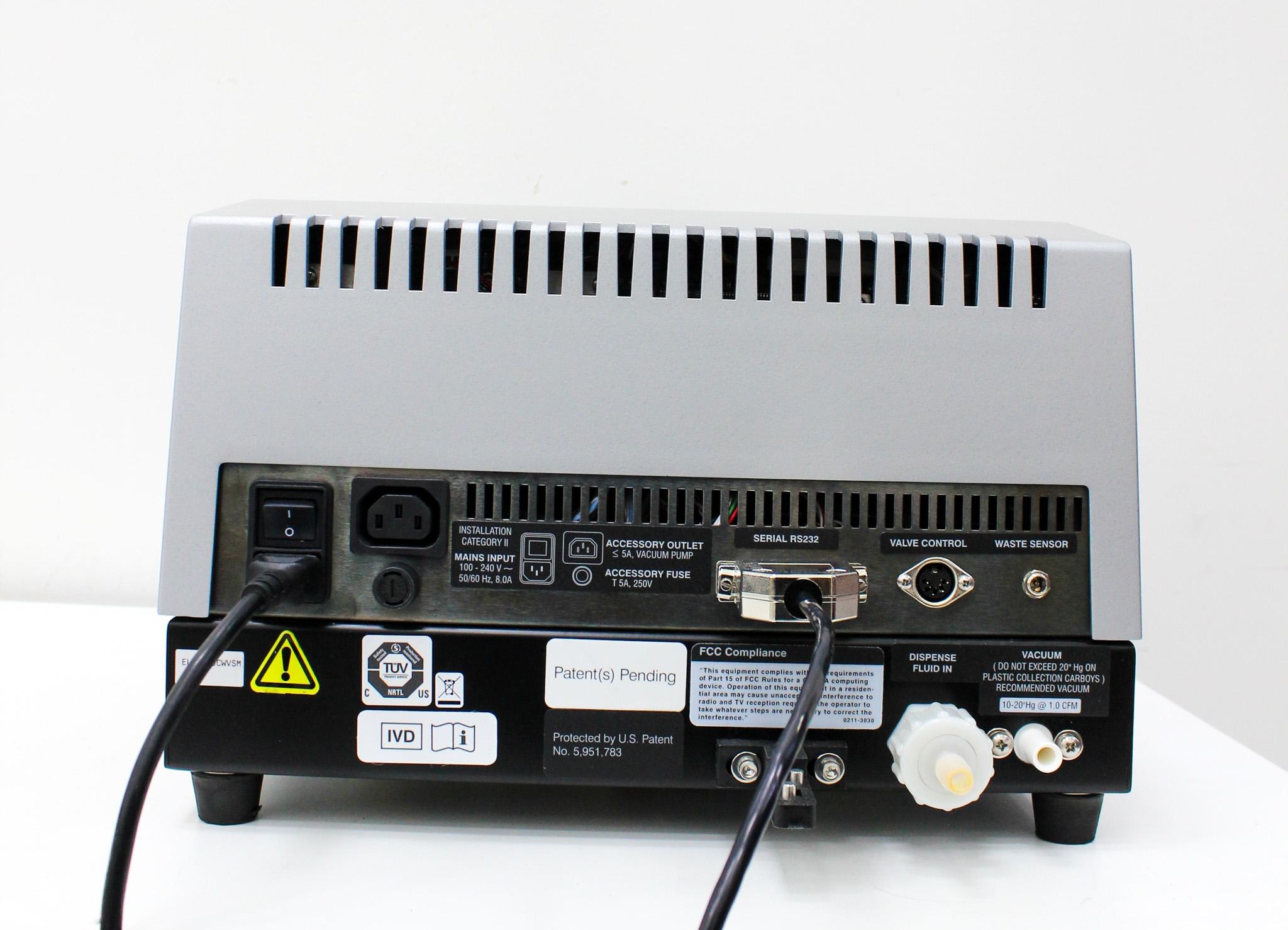

- Power requirements: 100-240 V, 50/60Hz, 8.0A
Weight
Imperial: 30.0 Pounds
Metric: 13.61 Kilograms
Shipping Dimensions
Imperial: 16.8 lb x 20.4 lb x 12.0 lb
Metric: 42.67 cm x 51.82 cm x 30.48 cm
Harmonized Code
8421.19.9045
Harmonized Code Details
The code 8421.19.9045 covers apparatus for filtering or purifying liquids, specifically designed for scientific use, which fits the BioTek ELx405's functionality as a microplate washer for laboratories.
