Fluid Impression 20-2102-A Barcode Scanner for 2D Racked Tubes, USB Support
Fluid Impression
Details
-
CategoryAnalytical
-
Dimension7.0in x 12.0in x 3.0in
-

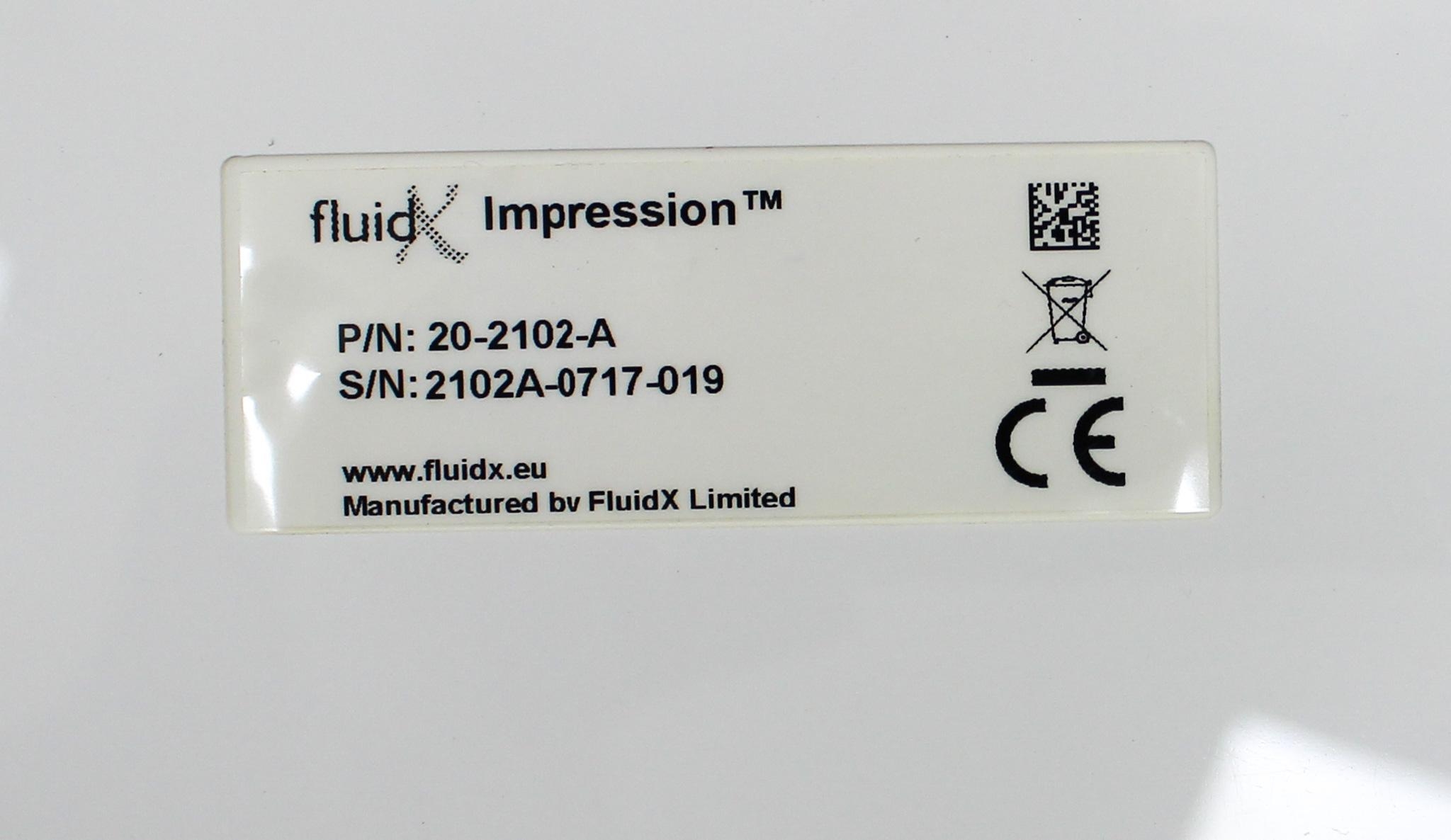

Serial2102A-0717-019
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

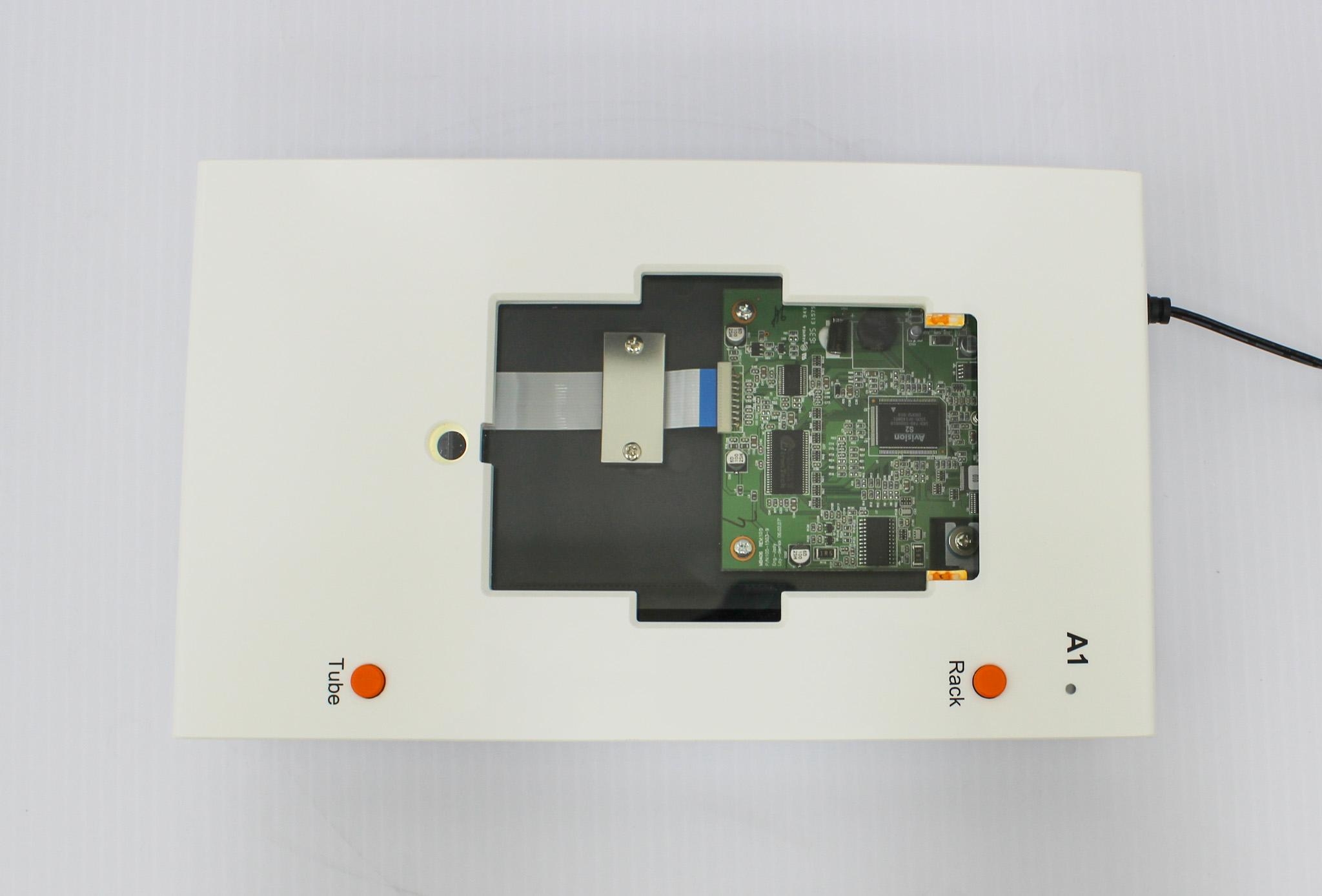

The Fluid Impression 20-2102-A is a sophisticated Enhanced Optic Rack Barcode Scanner designed to provide automatic and simultaneous scanning of 2D data matrix barcodes in SBS footprint racks. Manufactured in the United States, this used device powers on successfully and performs basic self-tests, showing no known functionality issues despite minor cosmetic blemishes. It operates with an integrated mirror linear barcode reader and features a rapid eight-second read time using a CCD image sensor and CCFL light source. Compatible with a wide range of 2D barcoded tubes across various formats, the scanner's compact bench-top design is ideal for biobanks and high-throughput storage environments. It supports USB 2.0/1.1 and includes a FluidX GUI interface for streamlined operation. The device requires a 120V power source and is constructed for ambient temperatures between 5C and 55C.
Key Features
- Automatic and simultaneous scanning
- Compatible with 2D data matrix labelled tubes in SBS racks
- Rapid 8-second read time
- FluidX GUI with USB support
- Compact bench-top scanner
- Integrated mirror linear barcode reader
Specifications
- Model: 20-2102-A
- Condition: Used, Good
- Supported Formats: 2D data matrix, ISO 16022, ECC200
- Tube Compatibility: 24, 48, 96, 240, and 384 SBS-format racks
- Light Source: CCD with CCFL
- Power Requirements: AC +12V, 100 to 240V
- Operating Temperature: 5C to 55C

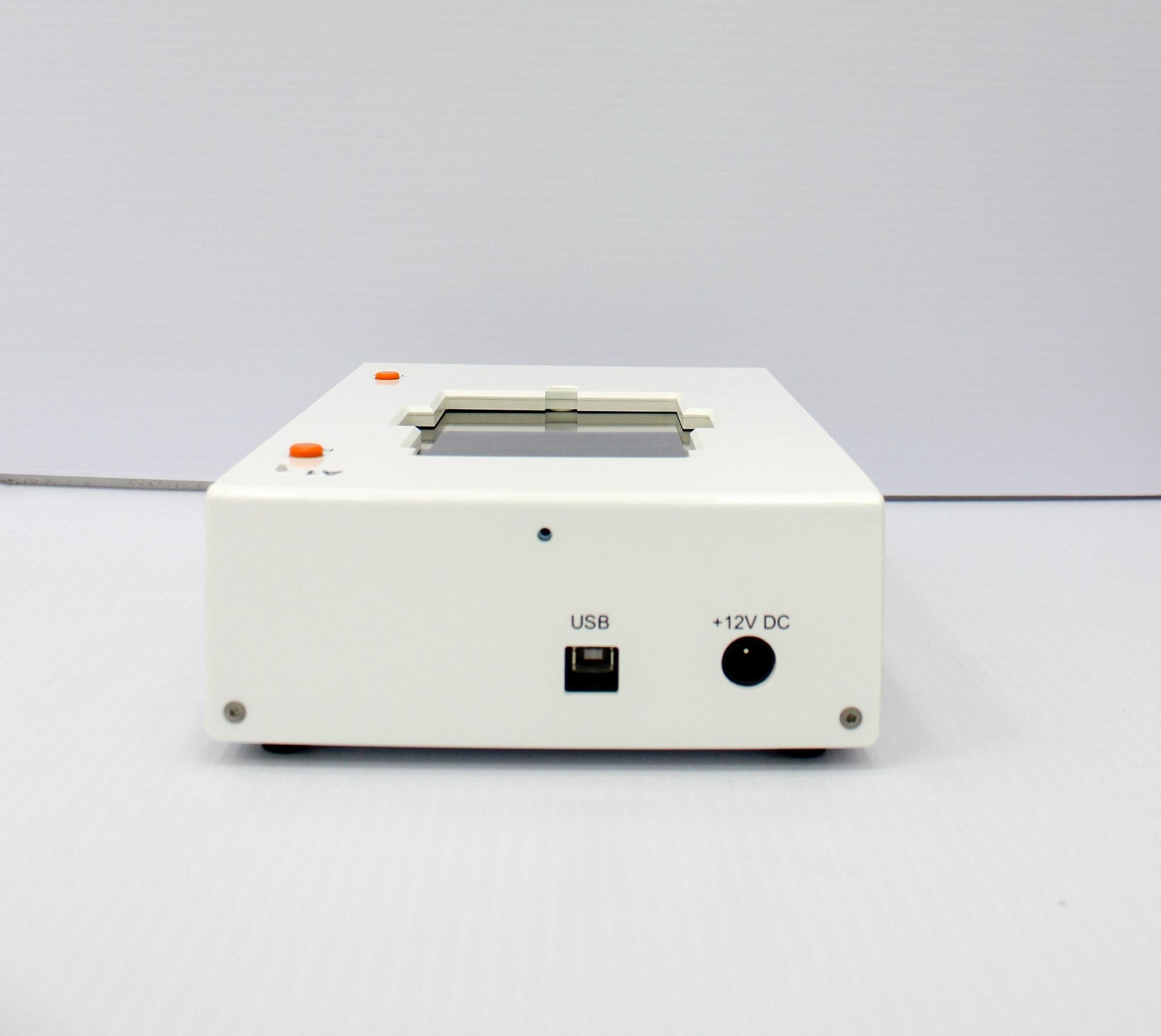

- Interface: USB 2.0/1.1 with FluidX GUI
Weight
Imperial: 4.8 Pounds
Metric: 2.18 Kilograms
Shipping Dimensions
Imperial: 8.4 lb x 14.4 lb x 3.6 lb
Metric: 21.34 cm x 36.58 cm x 9.14 cm
Harmonized Code
847190
Harmonized Code Details
Harmonized Code 847190 covers machines for input or output, with data-processing functions, specifically fitting devices that interact with computer systems. This code is appropriate due to the barcode scanner's connectivity and data interface capabilities.
