Pilot Pilot 5000 Diaphragm Vacuum Pump TLD5000 Near New, PTFE Coated
Pilot
Details
-
CategoryPump
-
Dimension9.0in x 10.0in x 11.0in
-
Serial032000000449
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

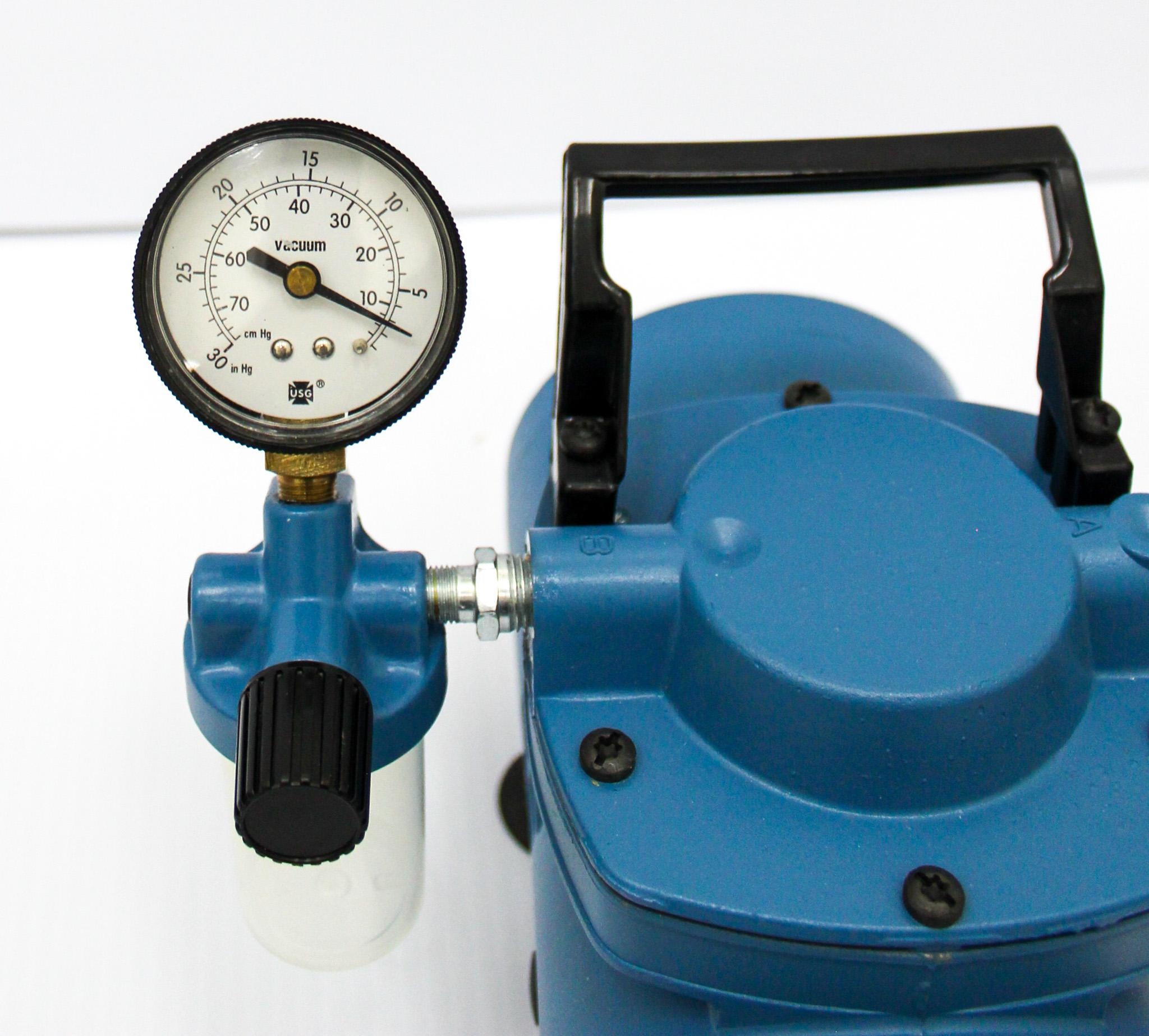

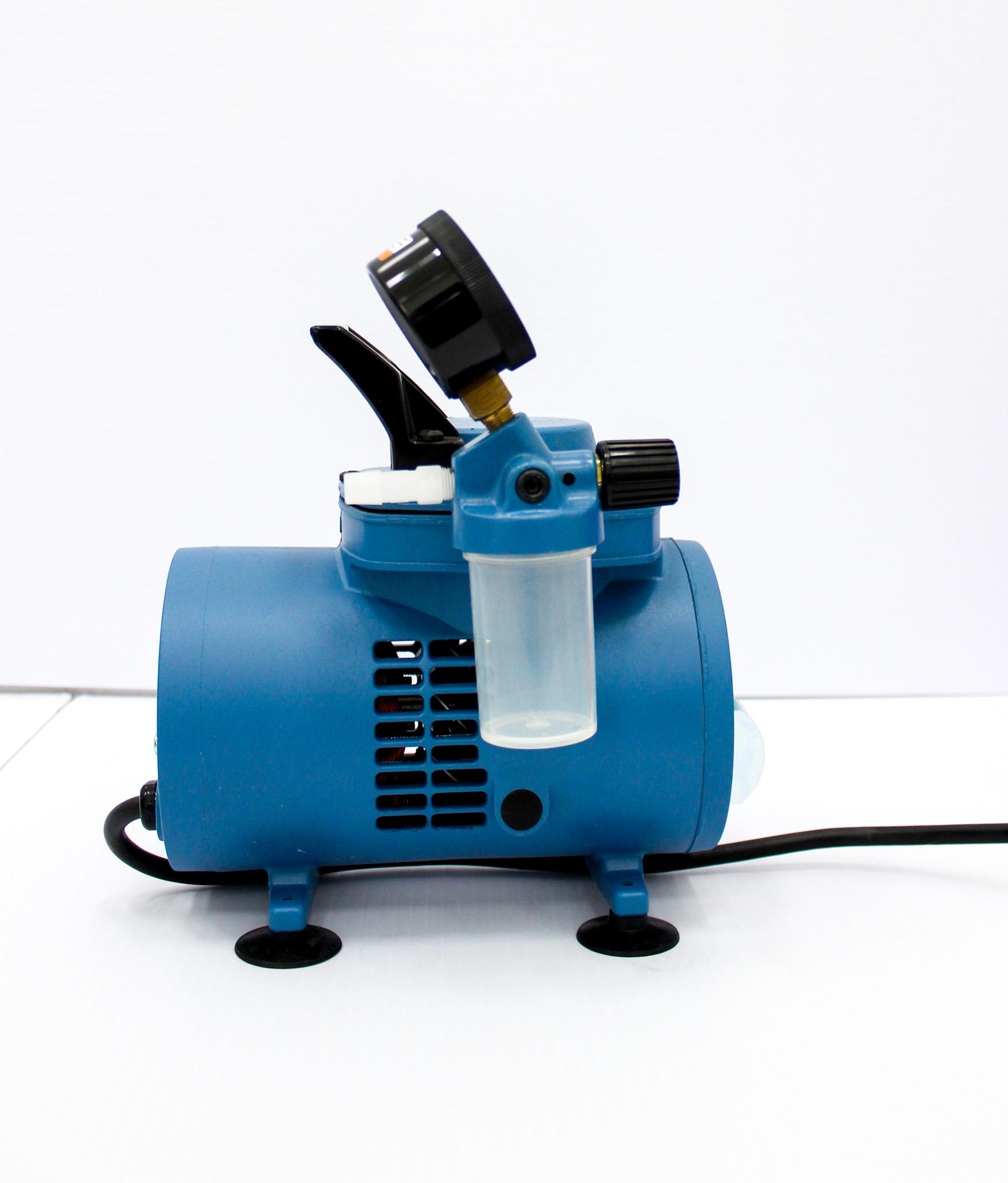

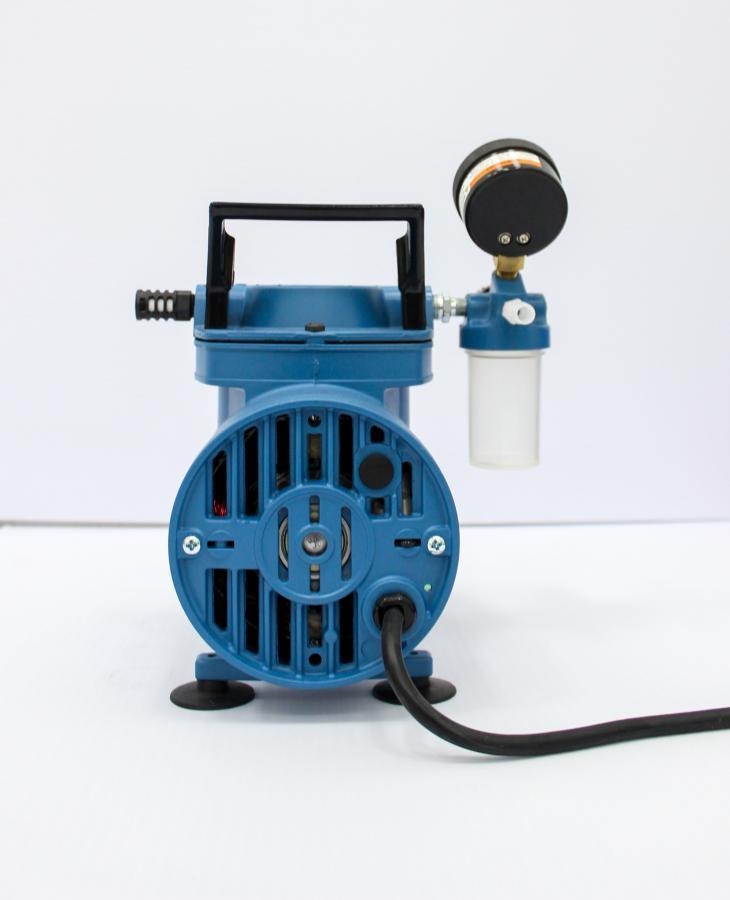

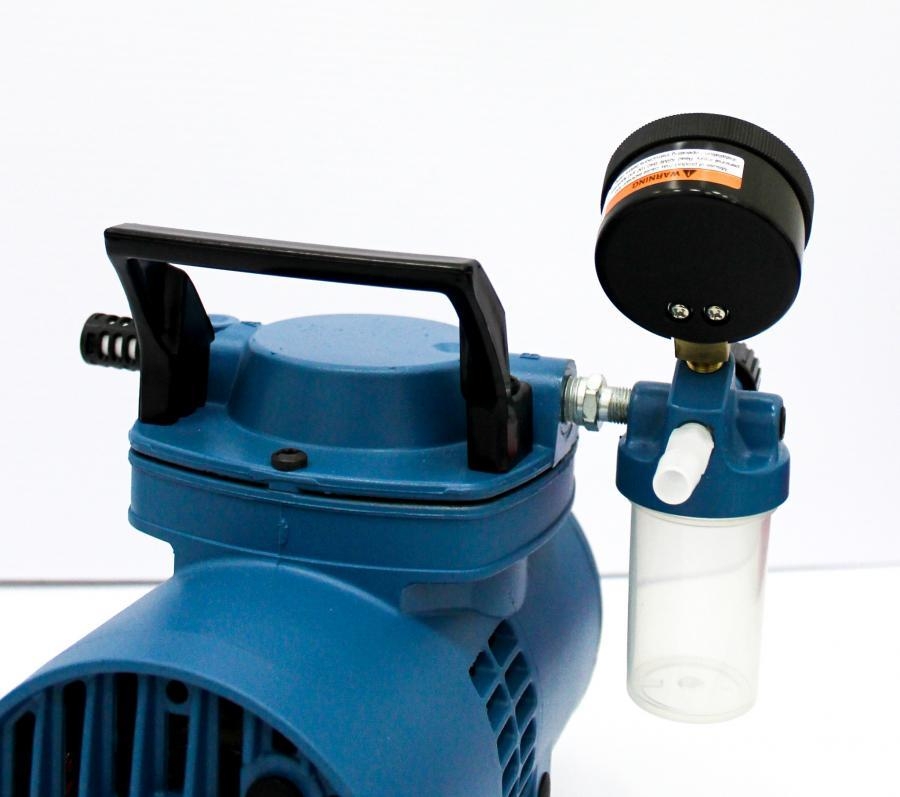

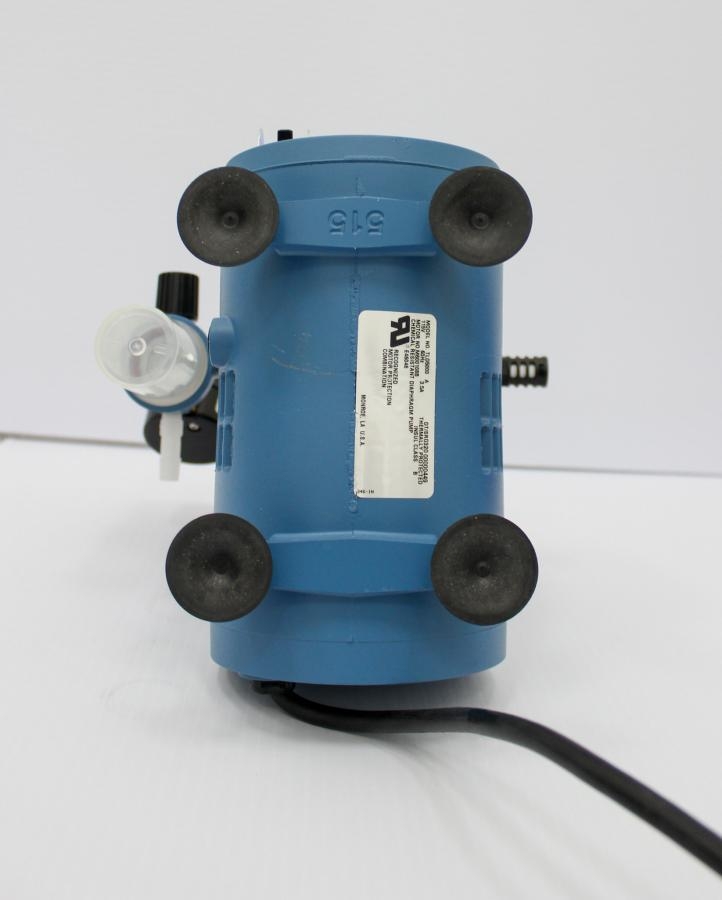

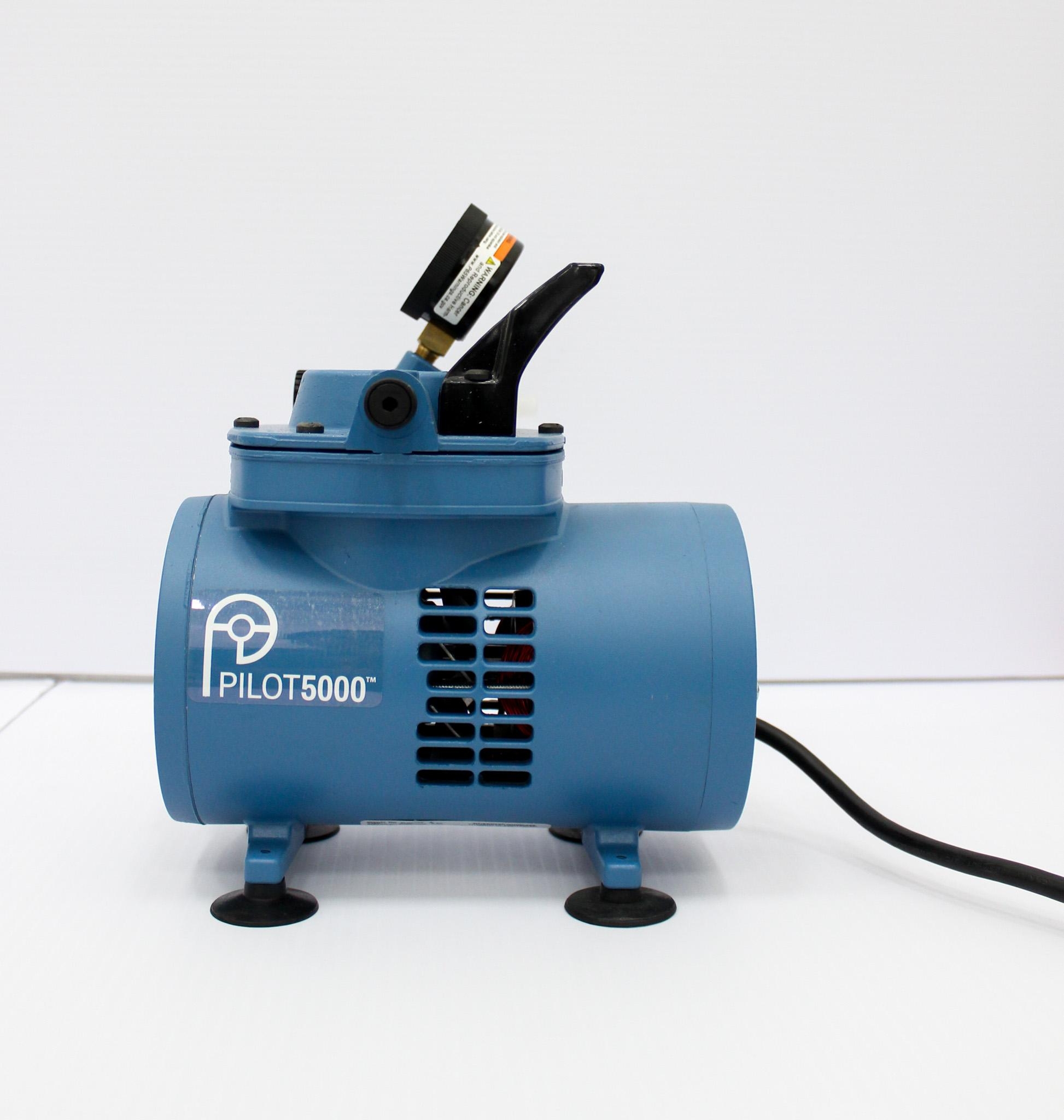

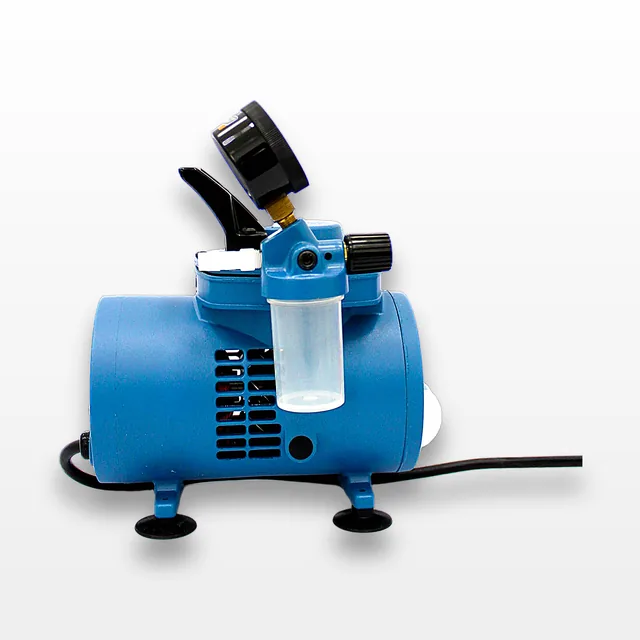

The Pilot Pilot 5000 Diaphragm Vacuum Pump TLD5000 is in excellent condition with minimal use. This durable, chemical-resistant vacuum pump features PTFE-coated contact surfaces and is bleach and acetone vapor resistant, ideal for cell culture decontamination protocols. Equipped with a liquid inlet trap, vacuum regulator, and exhaust muffler, it is perfect for vacuum filtration, desiccation, microbiology, and similar applications. This model offers a maximum vacuum of 24" Hg and a flow rate of 37 L/min. At 115V, 60Hz, the pump supports a maximum continuous pressure of 18 PSIG. It includes a North American 115V plug and convenient power switch, offering a reliable solution for operations involving organic and aqueous solvents.
Key Features
- Durable and chemical-resistant construction
- PTFE-coated contact surfaces
- Resistant to bleach and acetone vapors
- Maximum vacuum of 24" Hg
- Flow rate of 37 L/min
- Includes liquid inlet trap and vacuum regulator
- 115V, 60Hz with North American plug
Specifications
- Free Air Displacement: 1.3 CFM (37 L/min) @ 60Hz
- Maximum Vacuum: 24" Hg
- Ultimate Pressure: 150 Torr (200 mbar)
- Maximum Continuous Pressure: 18 PSIG
- Tubing Needed: 1/4" I.D.
- Weight: 10.2 lbs (4.6 kg)
- Motor Power: 1/5 H.P., 160W
- Voltage & Frequency: 115V, 60Hz, 1 Phase
- Motor Amps: 3.5
Weight
Imperial: 13.2 Pounds
Metric: 5.99 Kilograms
Shipping Dimensions
Imperial: 10.8 lb x 12.0 lb x 13.2 lb
Metric: 27.43 cm x 30.48 cm x 33.53 cm
Harmonized Code
8414100000
Harmonized Code Details
8414100000 - Vacuum pumps; this code is applicable for diaphragm vacuum pumps used in scientific and industrial applications.
