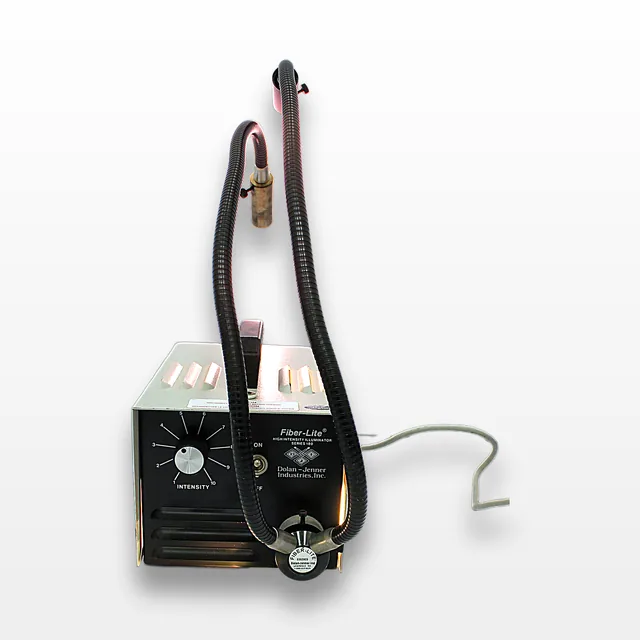

Dolan Jenner Model 180 High Intensity Illuminator 3250K EKE Bulb 150W 200hr
Dolan Jenner
Details
-
CategoryMicroscope / Imager
-
Dimension14.0in x 6.0in x 12.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Dolan Jenner Model 180 High Intensity Illuminator is an essential tool for laboratories requiring a reliable and effective light source. This used illuminator, in very good condition, has been thoroughly tested for functionality. Designed to deliver cold illumination, it features a quartz halogen light source with a removable outer casing for easy access to internal components. It is UL and CSA approved, utilizing a 150W EKE bulb with an impressive lifespan ranging from 200 to 10,000 hours depending on the intensity setting. This unit features a simple On/Off rocker switch, operates quietly at less than 25 dB due to an efficient cooling fan, and provides an adjustable intensity control (50 - 100%) utilizing a rheostat. Voltage requirements are 115 VAC, 50/60 Hz, with safety ensured by a 2.5A 250V 3AB slow-blow fuse. Compact in size with dimensions of 5.87" x 6.5" x 9", it supports a fiber input diameter of 1.00". A power cord is included.
Key Features
- Quartz halogen light source
- Cold illumination
- 150W EKE bulb
- Adjustable intensity control 50-100%
- UL and CSA approved
- Low audible noise <25 dB
- Cooling fan included
- Removable outer casing
- Compact dimensions: 5.87" x 6.5" x 9"
Specifications
- Lamp Type: EKE, 21 Volt, 150 Watt
- Lamp Life: 200 Hours (40 Hours at full intensity)
- Color Temperature: EKE 3250K (EJV 3350K optional)
- Voltage: 115 VAC, 50/60 Hz
- Intensity Control: Rheostat, 50 - 100%
- Fuse: 2.5A 250V 3AB slow blow (115 VAC)
- Noise Level: < 25 dB
- Fiber Input Diameter: 1.00 inch
- Dimensions: 5.87" x 6.5" x 9"
Weight
Imperial: 13.2 Pounds
Metric: 5.99 Kilograms
Shipping Dimensions
Imperial: 16.8 lb x 7.2 lb x 14.4 lb
Metric: 42.67 cm x 18.29 cm x 36.58 cm
Harmonized Code
902710
Harmonized Code Details
Harmonized code 902710 corresponds to 'Instruments and apparatus for physical or chemical analysis', which includes equipment like optical illuminators used for scientific and industrial applications, making it appropriate for this product's classification.
