Prince Technologies CE Systems Capillary Electrophoresis 0500.016/CL
Prince Technologies
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension14.0in x 22.0in x 21.0in
-
Serial54-17-07-4-043
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

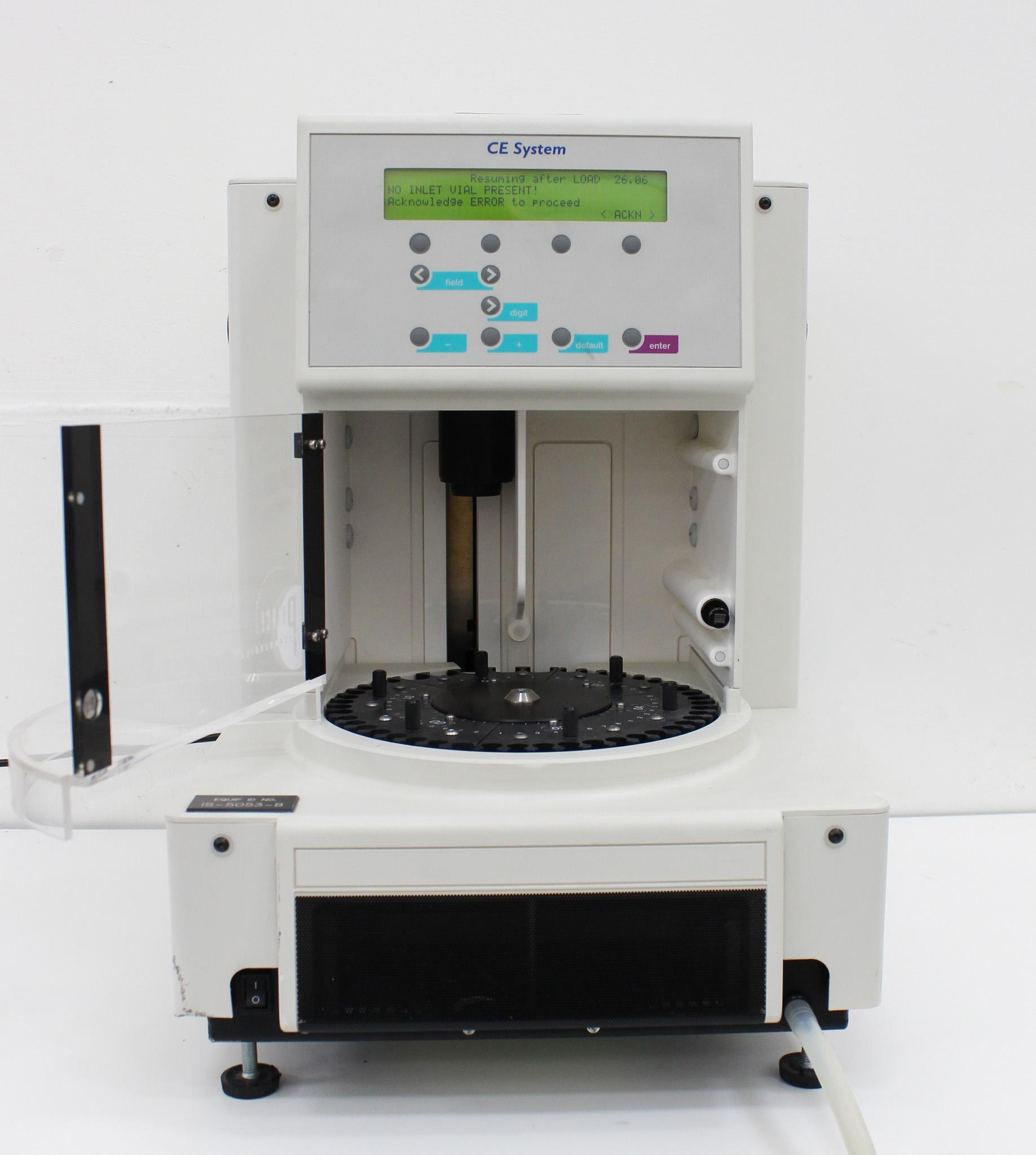

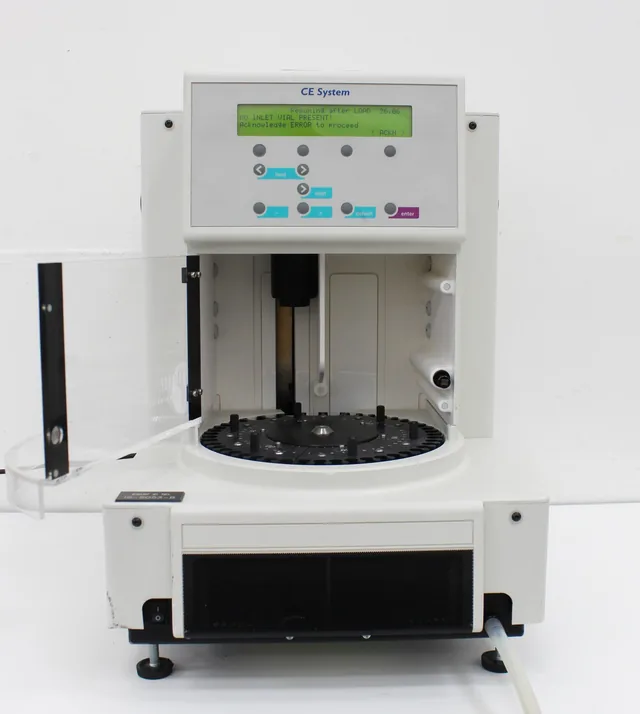

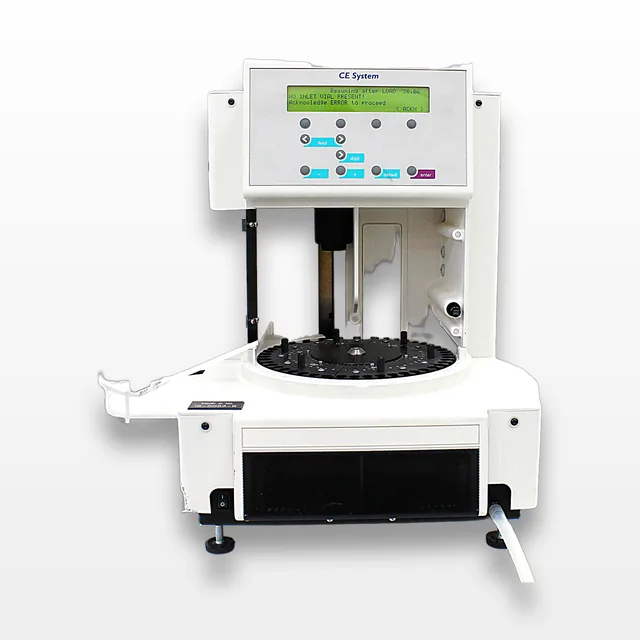

The Prince Technologies CE Systems Capillary Electrophoresis 0500.016/CL is a highly efficient and versatile autosampler system, designed for extensive analytical applications. This used unit is in very good condition, having undergone thorough testing, and functions as intended. Despite some cosmetic imperfections such as a bent left corner and damaged back adjustable feet, it remains operational and is compatible with various external CE detectors, including UV/VIS, CD, LIF, and MS. Notable features include high separation efficiency, large buffer vials that reduce downtime, modular flexibility, and comprehensive temperature control ranging from 5°C below ambient to 60°C. The system supports up to 8 channels and is equipped with a sophisticated control mechanism for temperature and pressure, offering an analysis duration of up to 650 minutes. As a standalone piece, this equipment does not include power/data cables, a computer, or software but does come with a power cord.
Key Features
- High separation efficiency
- Short analysis time
- Modular and flexible design
- Compatible with UV/VIS, CD, LIF, MS detectors
- Large buffer vials
- Temperature control: 5°C below ambient to 60°C
Specifications
- Analysis Duration: Up to 650 minutes, 0.01 minutes resolution
- Hydrodynamic Pressure: 180 to 250 mbar, 1 mbar resolution
- Electrokinetic: -30 to +30 kV
- Flush Range: 0 to +3500 mbar, up to 10 bar by external pressure
- Temperature Control: 4-40°C
- Sample Volume: Minimum 10 µL, maximum 4 mL
- Buffer Volume: Maximum 4 mL
- Capillary Standard Length: Minimum effective length 8.5 cm, total length 30 cm
- Capillary Optional: Minimum effective length 7.2 cm, total length 30 cm
- Wavelength Accuracy: < 0.3 nm
- Repetitive Accuracy: < 0.1 nm
- Noise Level: < 3*10^-5 AU
- Integration Time: 6 ms to 10 s
- Channels: Up to 8
- Power Requirements: 115/230 V, 50/60 Hz, 300 VA
Weight
Imperial: 96.0 Pounds
Metric: 43.54 Kilograms
Shipping Dimensions
Imperial: 16.8 lb x 26.4 lb x 25.2 lb
Metric: 42.67 cm x 67.06 cm x 64.01 cm
Harmonized Code
9027.20.1000
Harmonized Code Details
Harmonized code 9027.20.1000 is used for chromatographs and electrophoresis instruments. This code is appropriate for the Prince Technologies CE Systems as it is a capillary electrophoresis apparatus used in chemical analysis.
