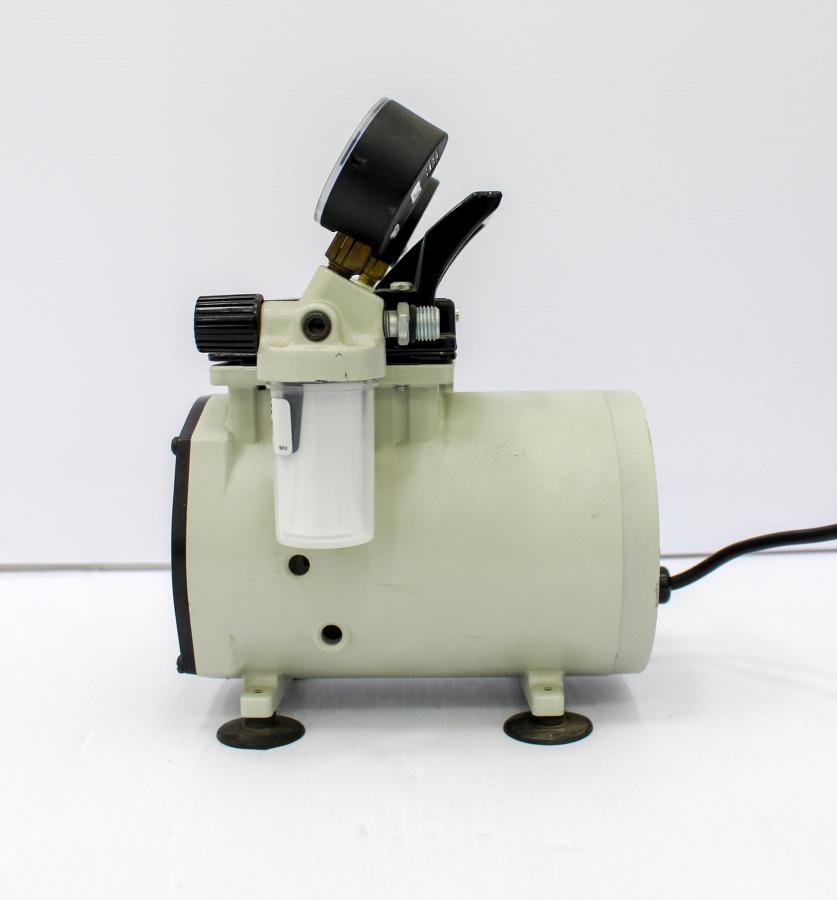

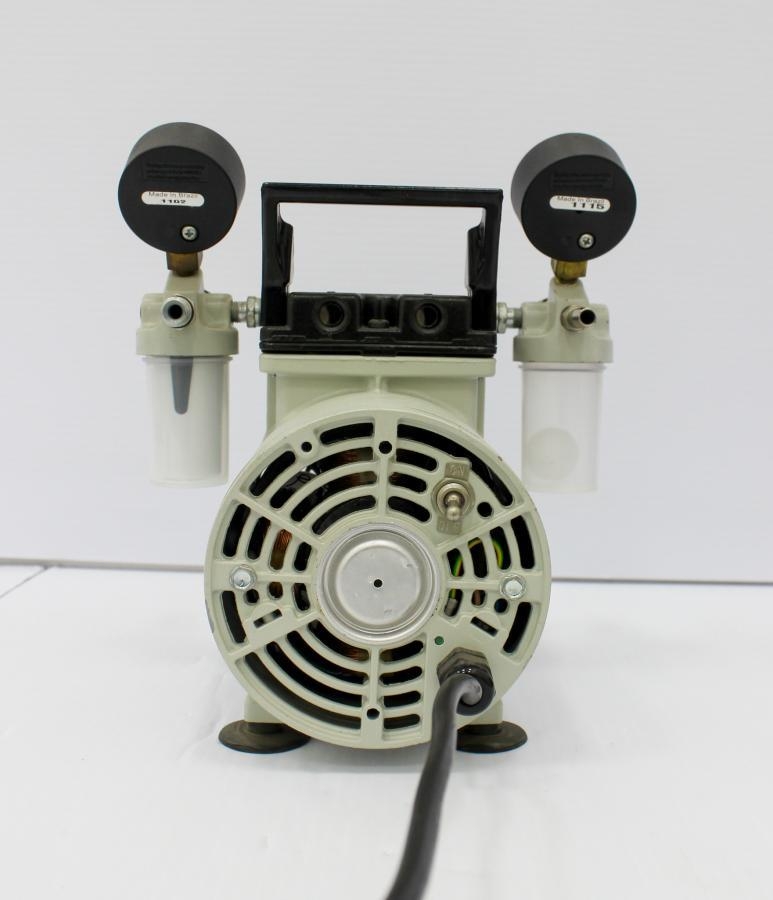

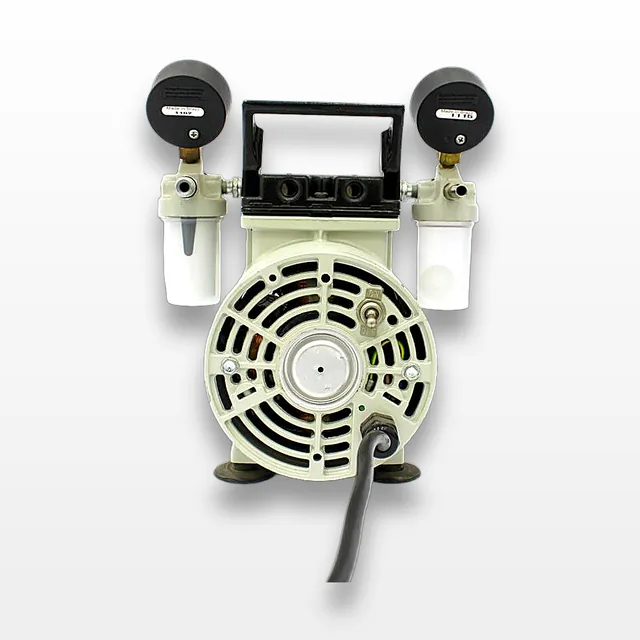

Welch 2522C-10 Vacuum Pump Compressor Oil-Free 230V, 1.6 CFM, 100 PSI
Welch
Details
-
CategoryPump
-
Dimension10.0in x 10.0in x 11.0in
-
Serial091100001032
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 50Hz/60Hz
Description
The Welch Vacuum Pump model 2522C-10 is a reliable and efficient unit in very good condition, delivering consistent performance in various applications. Designed with a rocking piston mechanism, this vacuum pump facilitates higher airflow compared to reciprocating pistons, making it suitable for the food, beverage, and medical industries. Operates continuously without oil, emphasizing the oil-free pump's low maintenance requirements. The device is powered by a single-phase, 0.25 hp motor, ensuring a maximum continuous pressure of 100 psi and a maximum vacuum of 27.6 in Hg. It functions at 1.6 cubic feet per minute (cfm) of free airflow and includes an electrical cord with plugs. Its slight cosmetic wear does not affect functionality, and it performs impeccably in tests. Intended for use in dispensing and ventilation systems.
Key Features
- Rocking piston design for higher airflow
- Oil-free continuous operation
- Suitable for food, beverage, and medical industries
- 0.25 hp motor, single-phase
- 1.6 cfm free airflow, 230V, 60Hz operation
- 100 psi max continuous pressure
- 27.6 in Hg max vacuum
Specifications
- Brand: WELCH
- Model: 2522C-10
- Tank Style: Tankless
- Current Rating: 1.7 A
- Cylinder Material: Aluminum
- Duty Cycle: Continuous
- Electrical Connection: Cord With Plugs
- Free Air Flow Rate: 1.6 cfm
- Frequency: 60 Hz
- Inlet Size: 1/4 in
- Lubrication Type: Oil Free
- Max Continuous Pressure: 100 psi
- Max Vacuum: 27.6 in Hg
- Number of Cylinders: 1
- Phase: Single
- Voltage: 230V AC
Weight
Imperial: 15.6 Pounds
Metric: 7.08 Kilograms
Shipping Dimensions
Imperial: 12.0 lb x 12.0 lb x 13.2 lb
Metric: 30.48 cm x 30.48 cm x 33.53 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps; this code is appropriate as it pertains to pumps, specifically designed for the creation of vacuum, aligning with the functionality of the Welch 2522C-10 Vacuum Pump.
