sku: 3377710
1 In Stock
Ask a question
Condition : G (Good)
Warranty : 30-Day Warranty, 100% Parts and Labor
Region : US
$22,500.00
Apply For Finance
Make Offer
Enquiry Here
ADD TO CART
  • Make Teledyne
  • Hertz 50Hz/60Hz
  • Model CombiFlash NextGen 300+, EZ Prep.
  • Serial 222B01701
  • Weight 102.0 Lb
  • Voltage f3810cf7f1

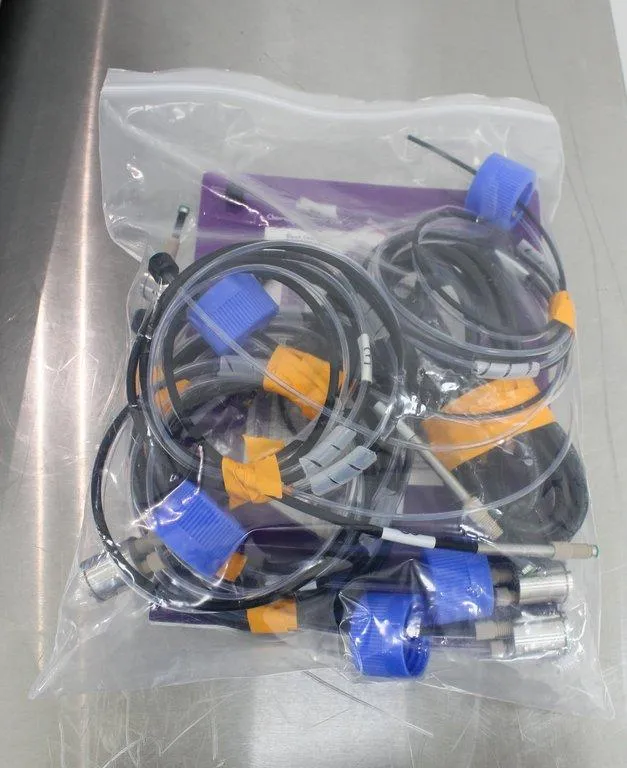

  • Includes Power cord included |
  • Warranty 30-Day Warranty, 100% Parts and Labor
  • Dimensions 24.0in x 20.0in x 34.0in
  • Shipping Type FedEx Ground
  • Item Condition G (Good)
  • Manufacturing Date Does Not Apply

Product Information

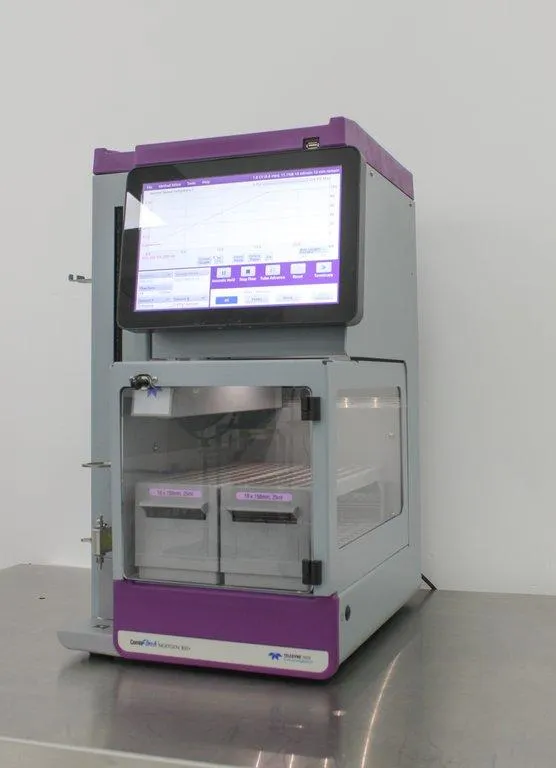

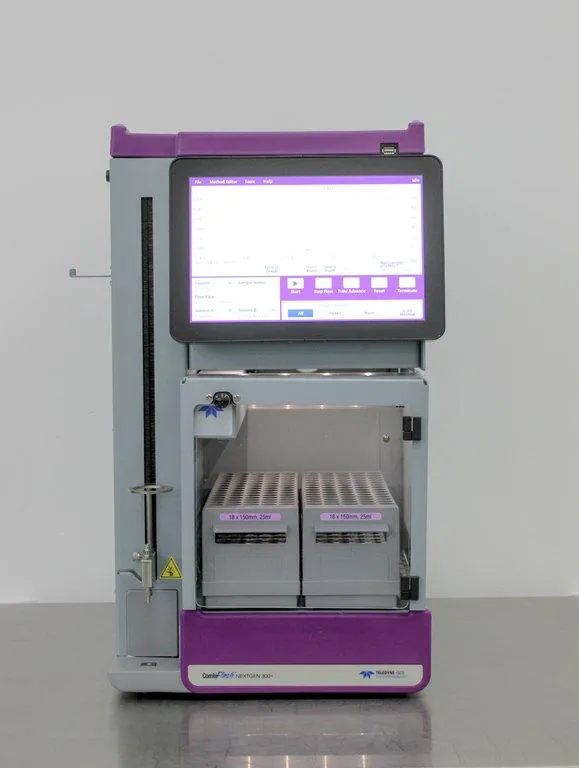

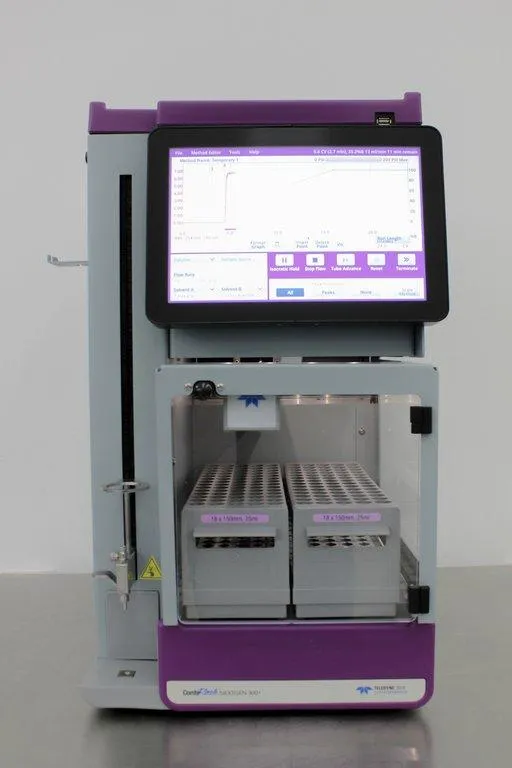

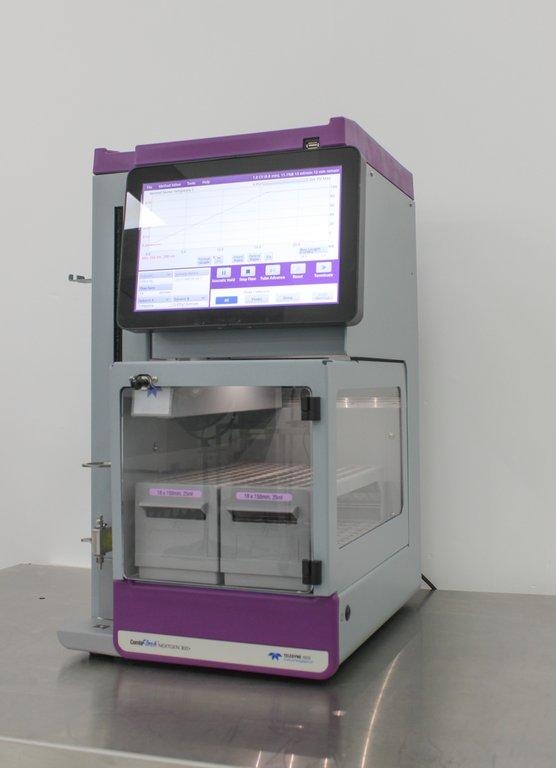

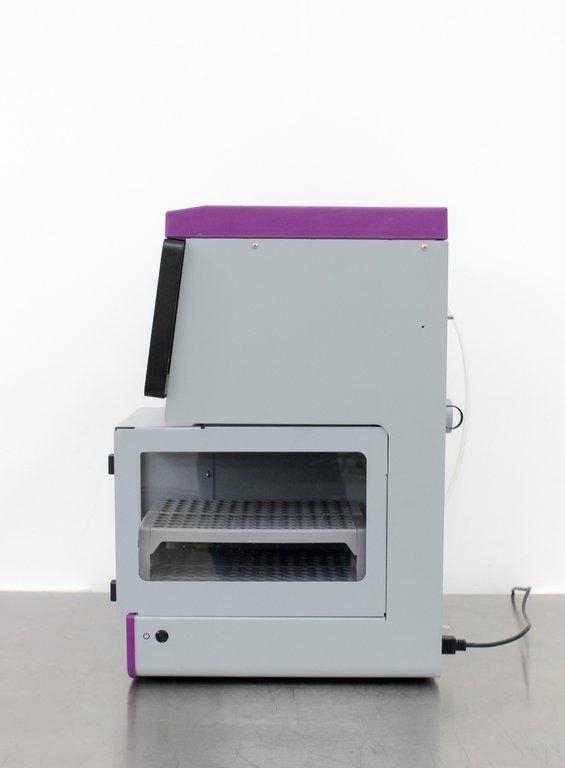

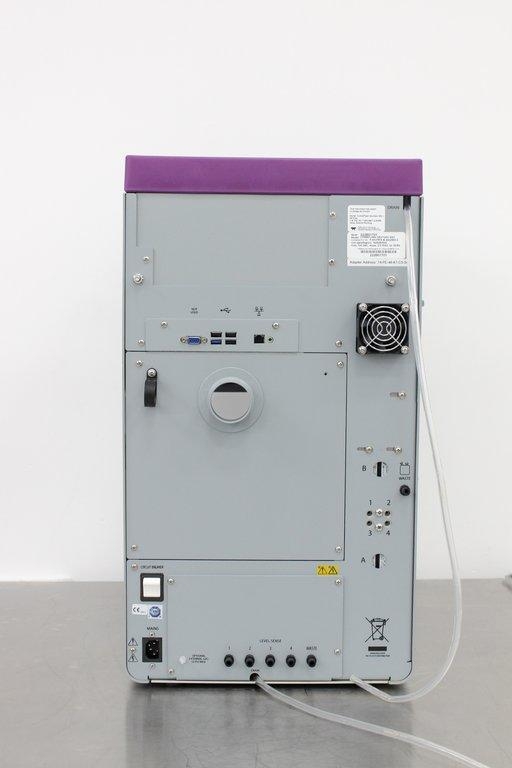

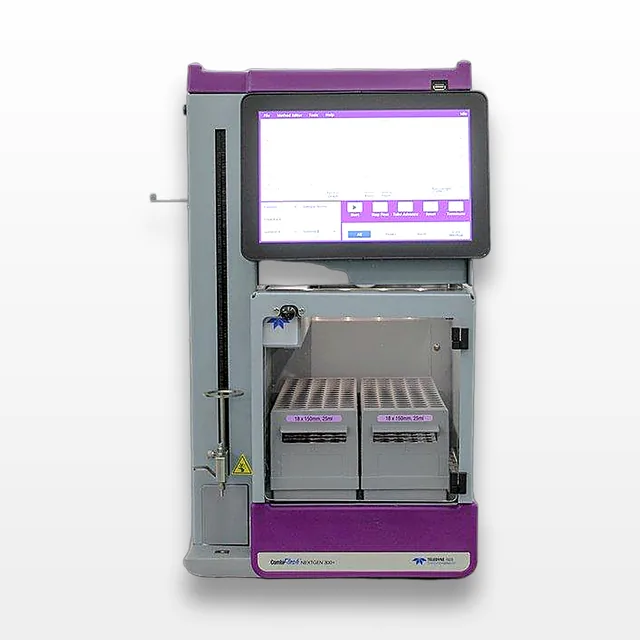

The Teledyne CombiFlash NextGen 300+ Fraction Collector is a high-performance flash chromatography system designed for flow rates from 1 to 300 mL/min and operating pressures up to 300 psi (20 bar). It is a reliable system known for its solid load injection valve, RFID technology for automatic column detection, and real-time UV detection. This unit is fully functional and comes with a 30-Day Warranty, 100% Parts and Labor. Typical applications include peptide purification, protein purification, and small molecule sample prep. Its unique features include active solvent and waste level sensing, internal vapor sensor, and a touchscreen interface with PeakTrak software for easy real-time method editing.


Technician comment

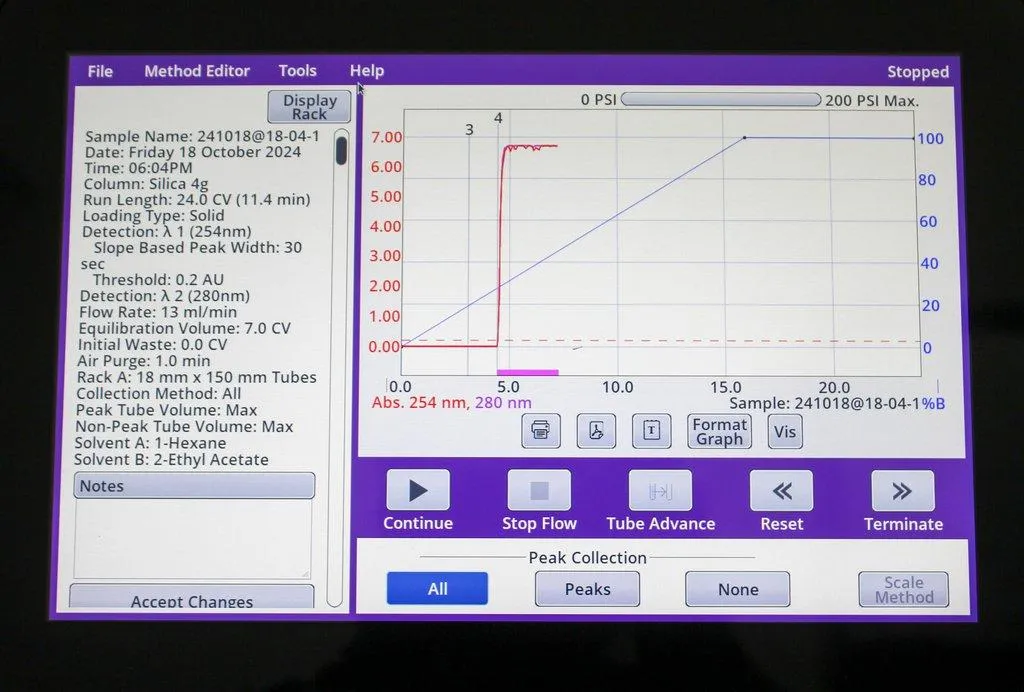

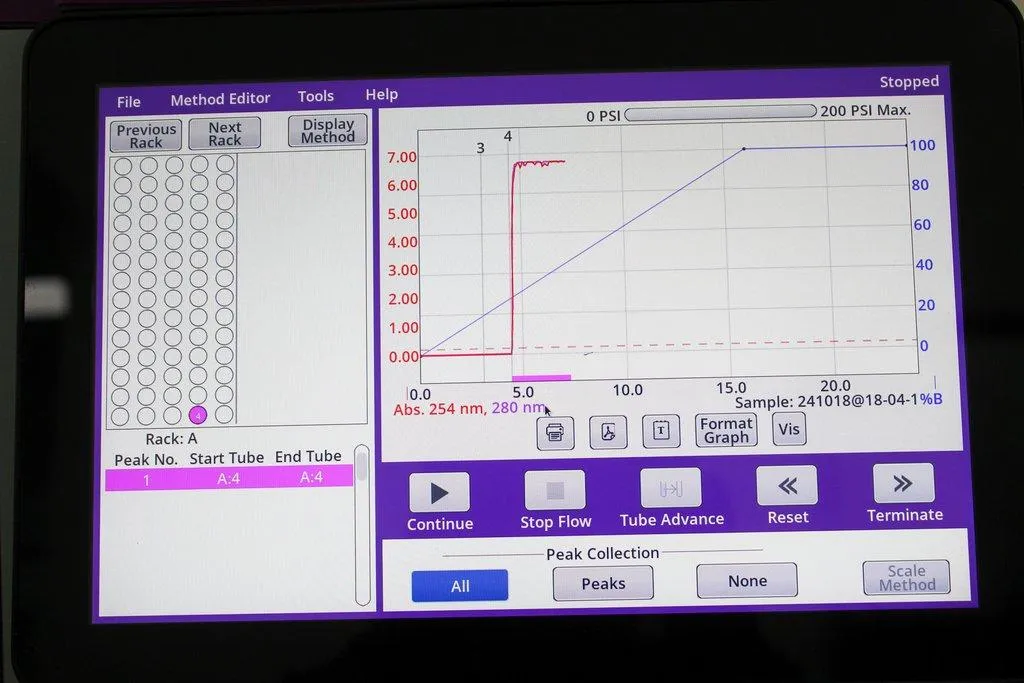

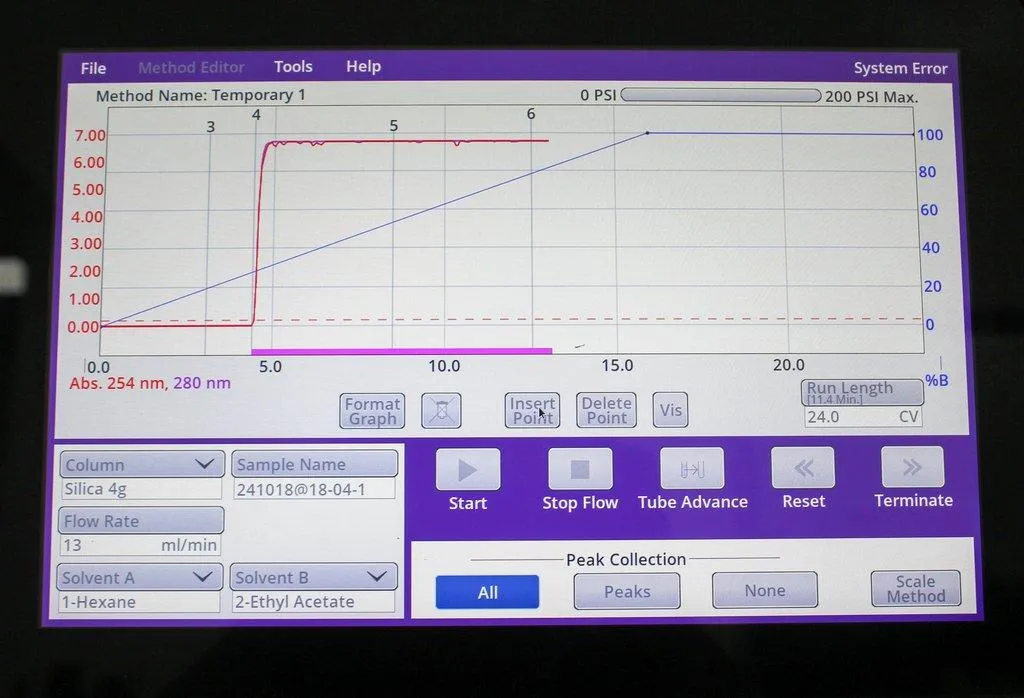

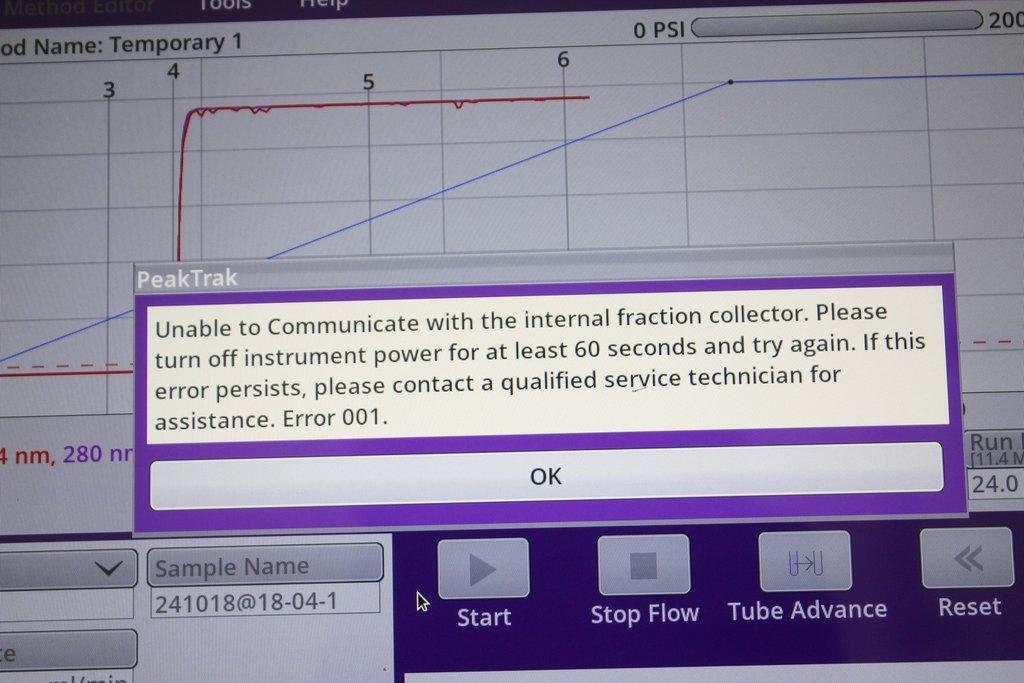

Unit need accessories and other components for full testing. Error message due to: Lamp has failed and Unable to communicate with internal fraction Collector. See pictures for details.


Key Features
  • Flash Chromatography System for flow rates from 1 to 300 mL/min
  • Solid load injection valve
  • RFID technology for automatic column detection
  • Real-time UV detection
  • Active solvent and waste level sensing
  • Internal vapor sensor

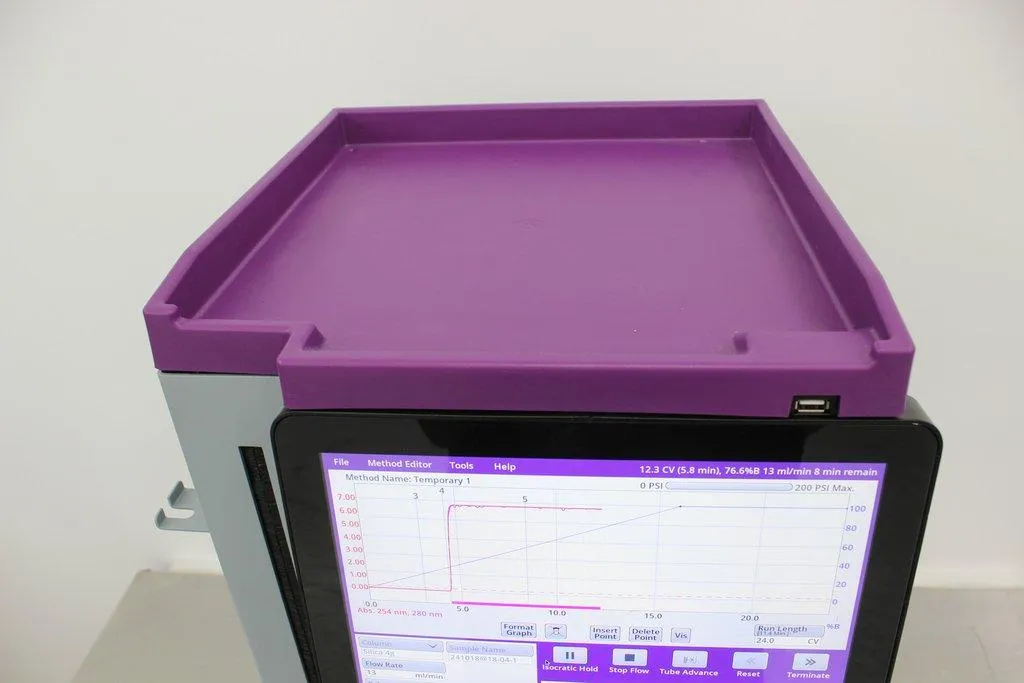

  • 12” capacitive touchscreen with PeakTrak software

Specifications
  • Flow Rate Range: 1–300 mL/min
  • Sample Loading: Liquid and Manual Solid (standard). Automated Solid (option at time of purchase)
  • Column Size Compatibility: 4 g to 330 g (750 g, 1.5 kg and 3.0 kg with Large Column Holder)
  • Maximum Pressure: Up to 300 psi (20 bar)
  • UV Detection: Variable UV 200–400 nm (PDA Technology)
  • Pump Type: Dual syringe
  • Number of Solvents: Binary gradient, 4 solvents
  • Gradient Accuracy: 1% typical
  • Touchscreen: 12” capacitive touchscreen
  • User Interface: PeakTrak software
  • Internal Vapor Sensor: Standard

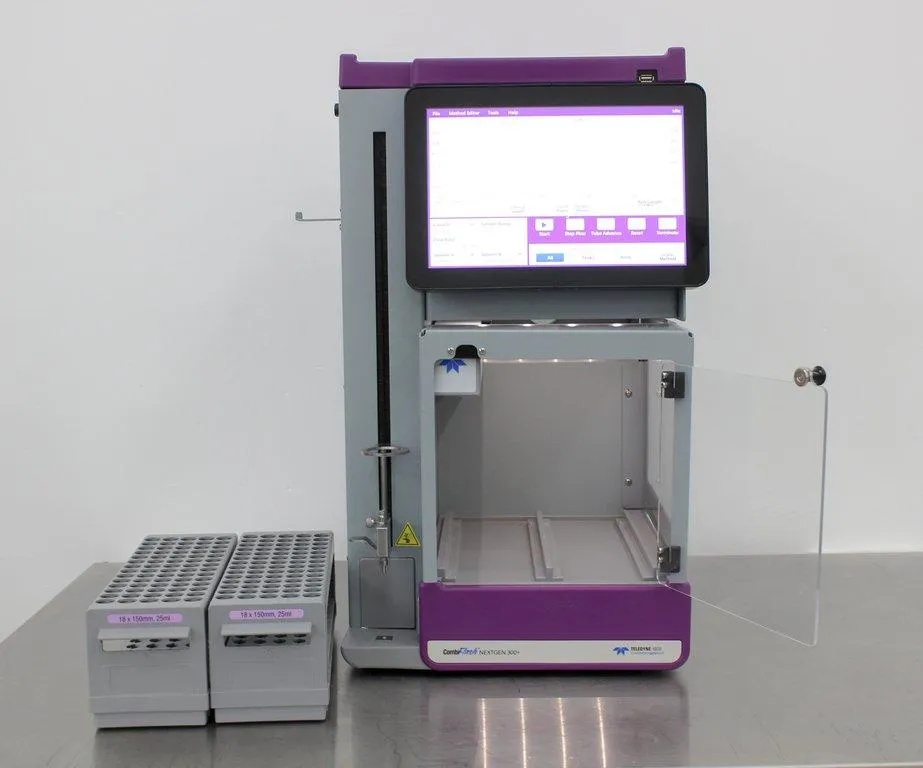

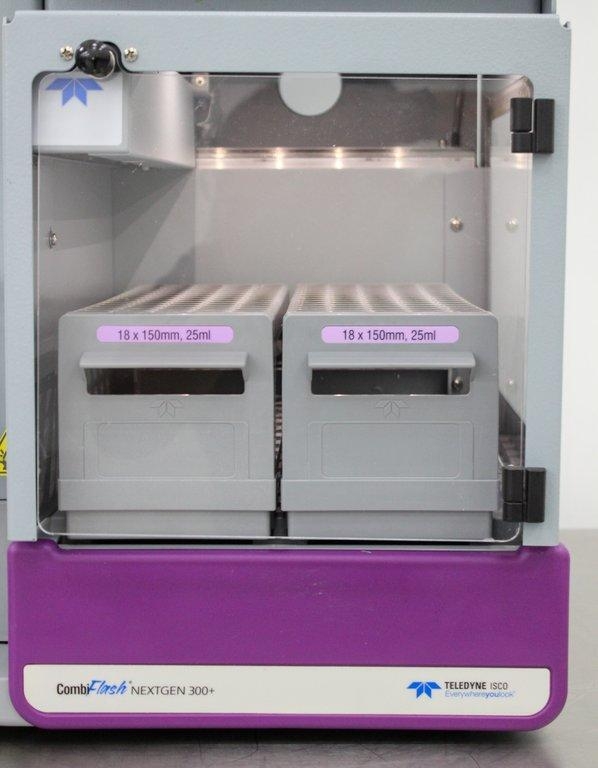

  • Fraction Collector: Two internal rack positions
  • Lighted Rack Area: Standard

Weight

Metric: 85 kg

Imperial: 187.39 lb


Dimensions

Metric: 20.0 cm x 17.0 cm x 28.0 cm
Imperial: 7.87 in x 6.69 in x 11.02 in


Harmonized Code

902720


Harmonized Code Details

902720 - Chromatographs and Electrophoresis Instruments: Used to separate, analyze, and purify individual components of a mixture based on differential partitioning between a mobile phase and a stationary phase. This code is suitable due to the flash chromatography nature of the product.
