MSD QuickPlex SQ120 Imager Immunoassay Analyzer 96-well Multiplexing
MSD Meso Scale Discovery
Details
-
CategoryAnalytical
-
Dimension24.0in x 14.0in x 21.0in
-

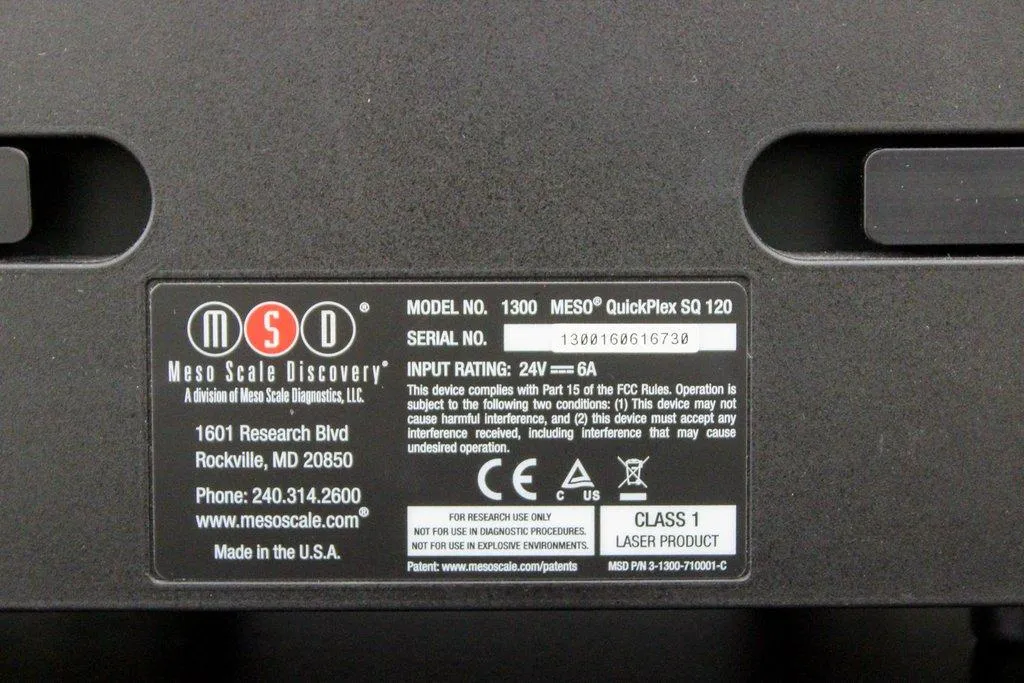

Serial1300160616730
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The MSD Meso Scale Discovery QuickPlex SQ120 is a high-sensitivity imager designed for use in laboratories conducting immunoassays. This model efficiently reads 96-well SECTOR and QUICKPLEX plates, offering a dynamic range that exceeds five logs. The QuickPlex SQ120 can handle multiplexing without affecting the plate read time, distinguishing SECTOR and QUICKPLEX plate types via barcode for automatic reading. Although in good condition with some cosmetic wear, it powers on and performs basic tests. The unit is equipped with a 120V power system and operates within a temperature range of 20° to 26°C and humidity range of 10% to 80% relative humidity. Plate read times are approximately 1 minute 30 seconds for SECTOR plates and 2 minutes 45 seconds for QUICKPLEX plates. It supports a plate standard read volume of 150 µL and is compatible with standard barcode formats. It is ideal for labs focused on high-throughput screening and multiplexed immunoassays.
Technician comment

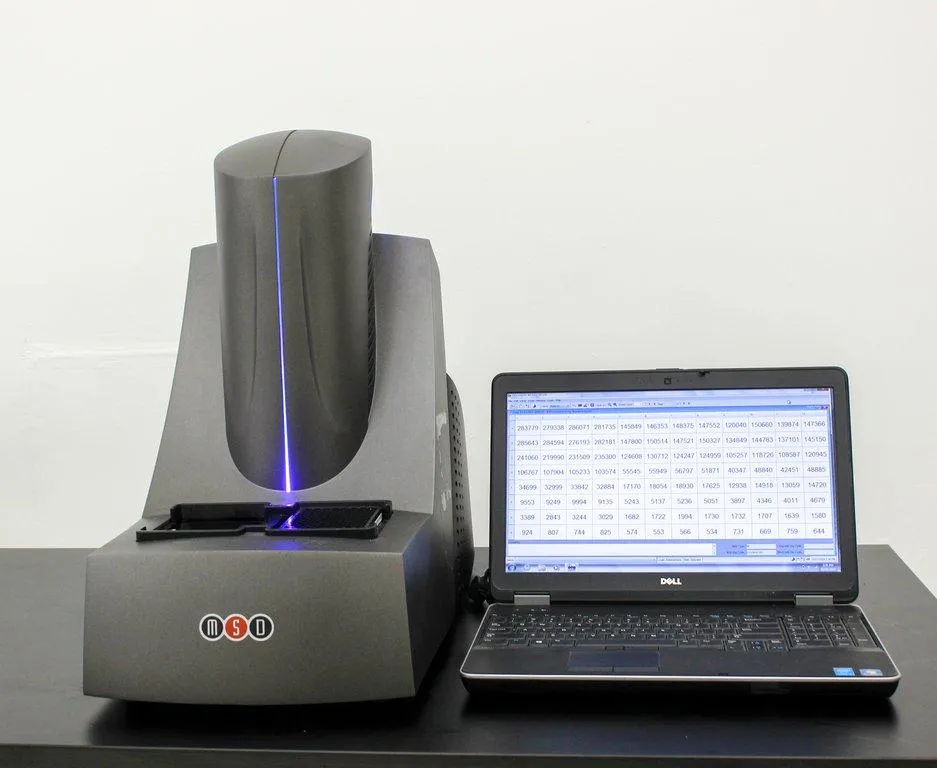

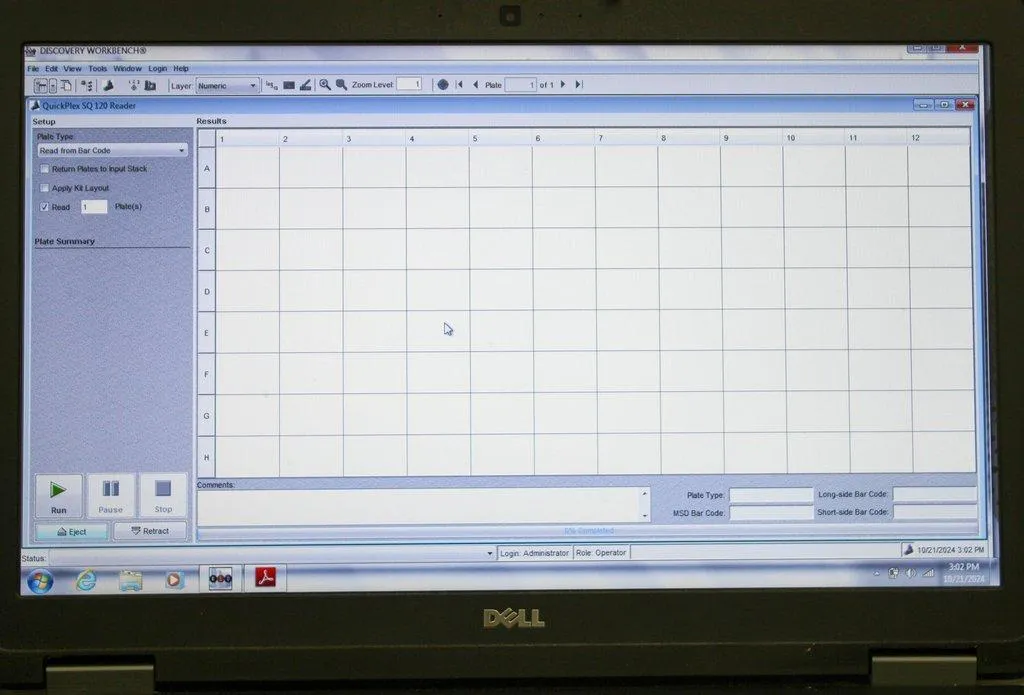

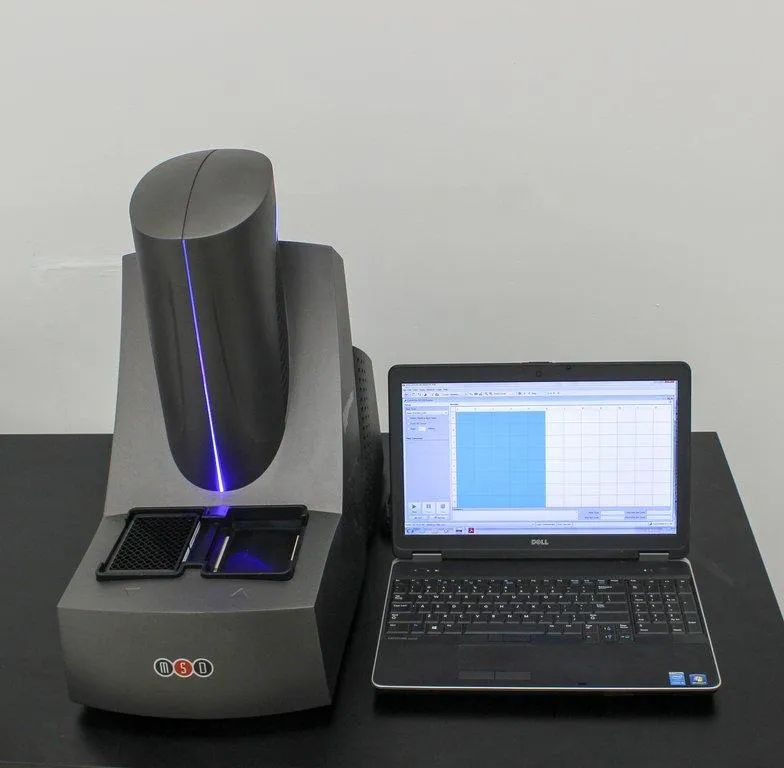

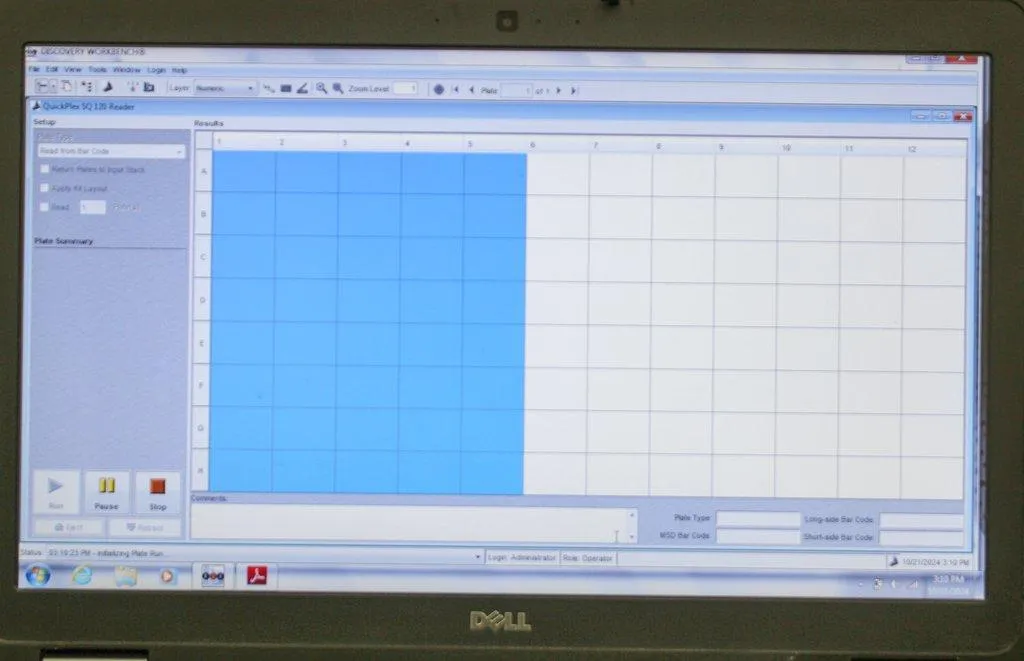

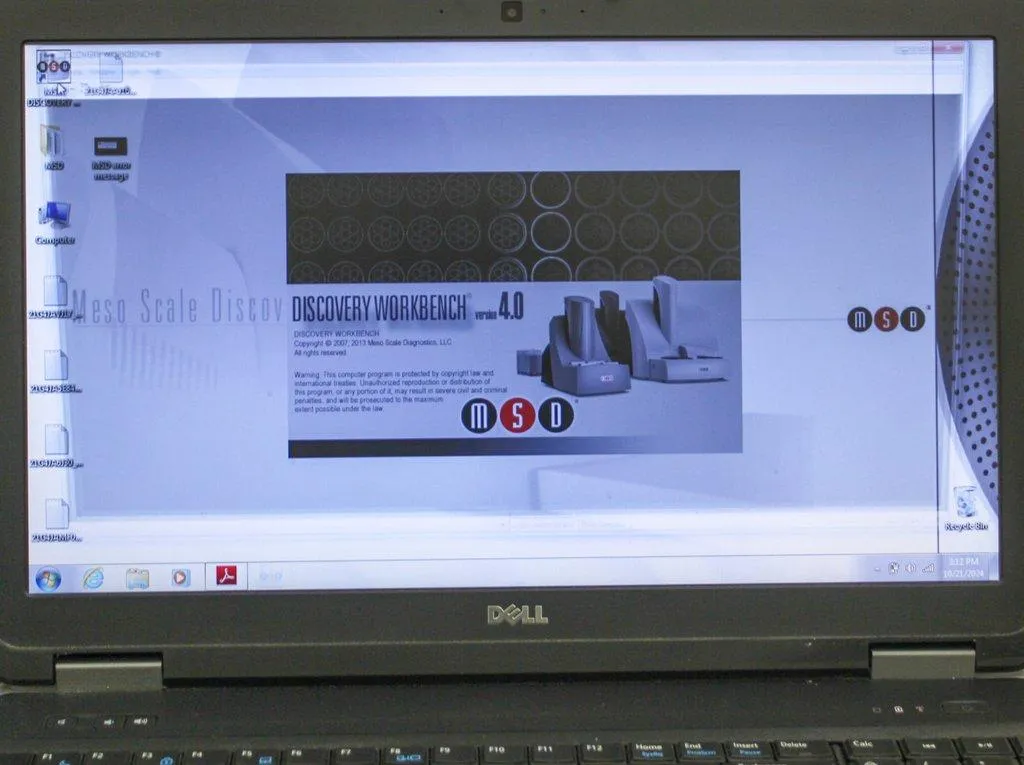

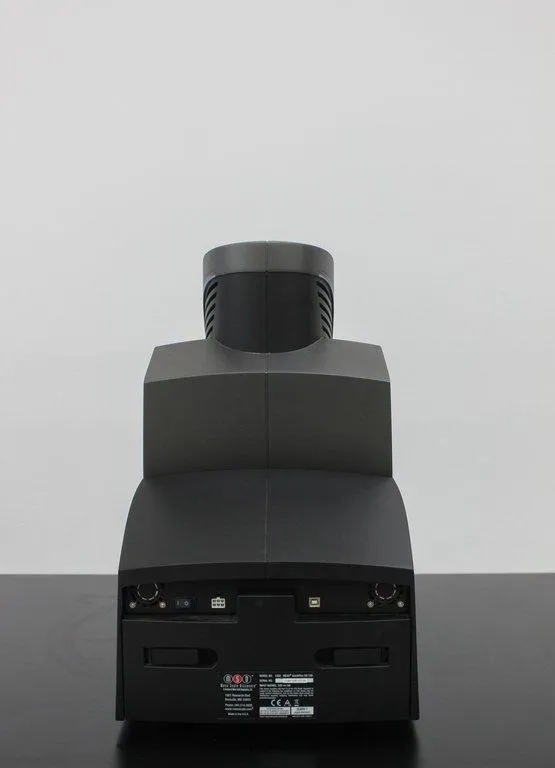

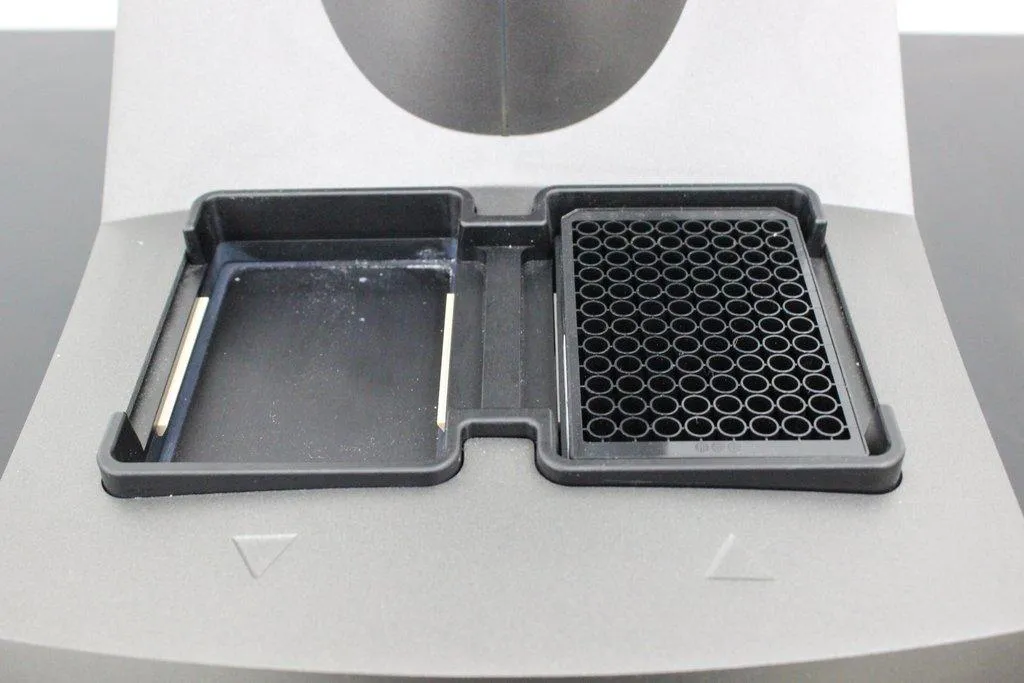

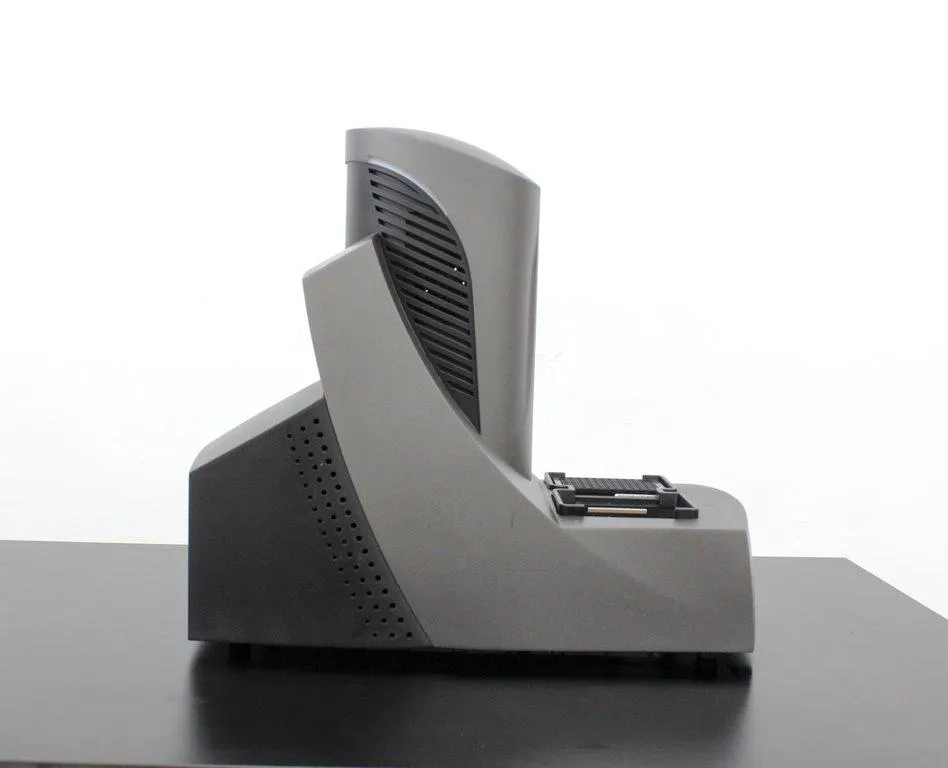

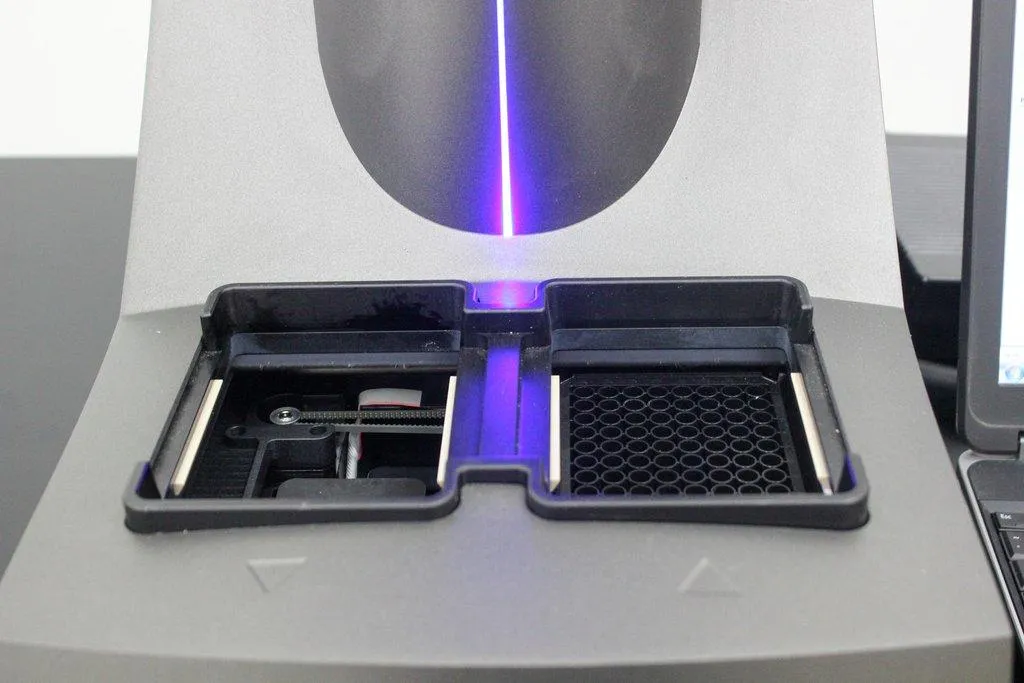

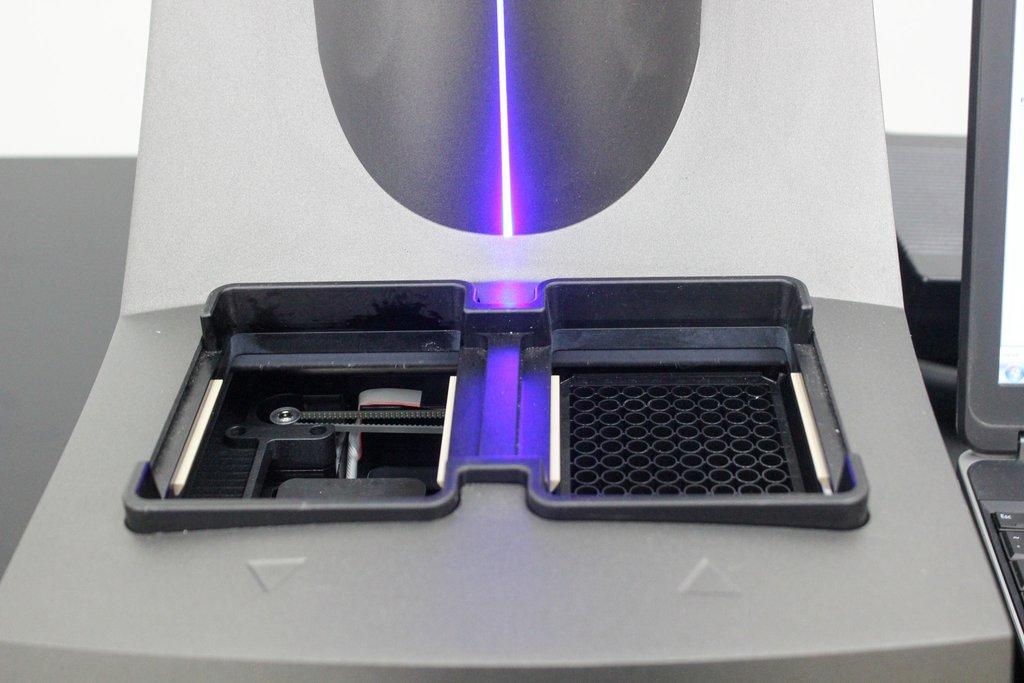

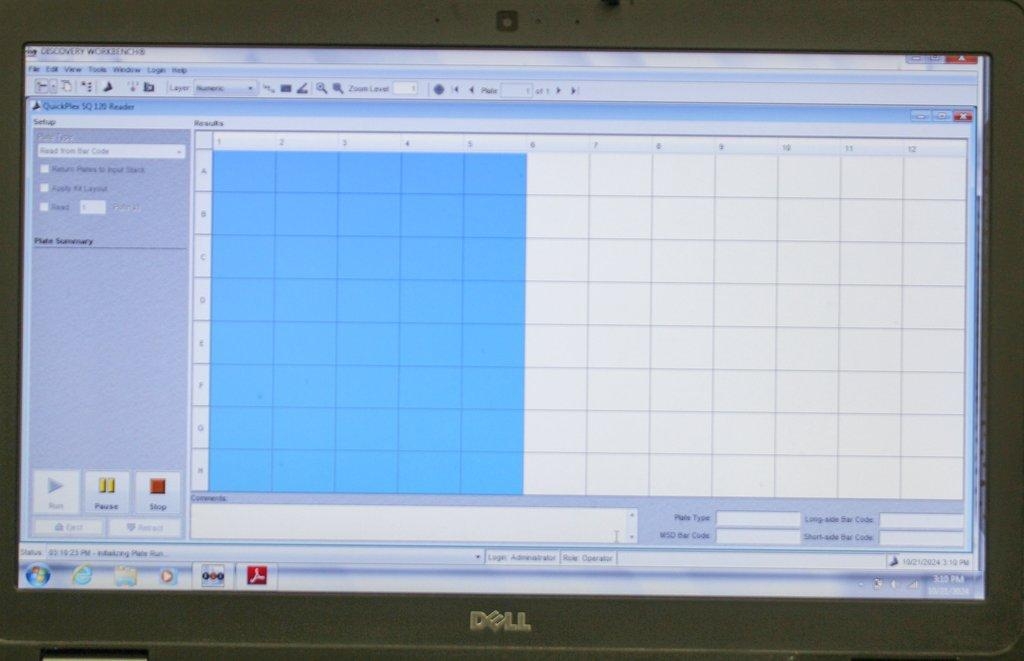

System looks in excellent condition. Computer/software included. Has slight cosmetic blemishes from normal use. See photos
Key Features

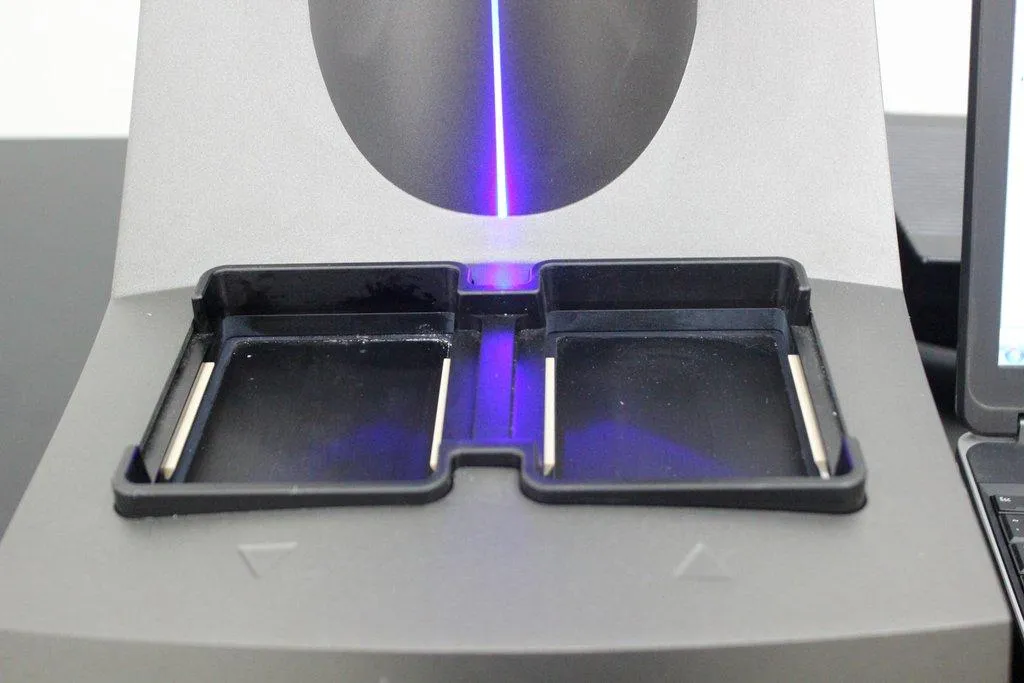

- Reads SECTOR and QUICKPLEX plates
- 96-well MULTI-ARRAY and MULTI-SPOT compatibility
- Dynamic range exceeding 5 logs
- Approx. read times: SECTOR - 1 min 30 sec, QUICKPLEX - 2 min 45 sec
- Compatible with standard barcodes (Code 39, Code 128)
- Operational within 20° to 26°C, 10% to 80% non-condensing humidity
Specifications
- Signals generated by Free TAG: 12,000–18,000 counts
- Signals generated by PQ Low Control: 25–100 counts
- Dynamic Range: >105
- Electronic Noise Standard Deviation of Dark Noise: 0–16 counts
- Power Requirements: Voltage 100–240 V~ 50/60 Hz, Current 1.5–0.6 A
- Power Consumption: 170W
- Ambient Light Requirements: <2000 lux, no direct sunlight
- Plate Standard Read Volume: 150 µL
Weight
Imperial: 72.0 Pounds
Metric: 32.66 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 16.8 lb x 25.2 lb
Metric: 73.15 cm x 42.67 cm x 64.01 cm
Harmonized Code
902750
Harmonized Code Details
902750: Photometers; spectrophotometers, and other instruments that measure or check quantities of light. Chosen because the QuickPlex SQ120 is an imaging device that reads light-generated signals for immunoassays, making it a spectrophotometry-related device.
