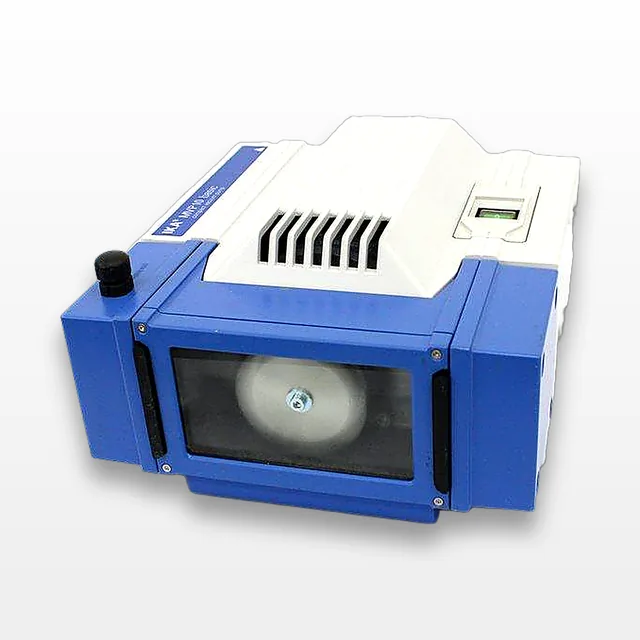

IKA MVP10 Basic Compact Vacuum Pump, Chemical Resistant, 1.7m³/h Capacity
IKA
Details
-
CategoryPump
-
Dimension11.0in x 13.0in x 7.0in
-
Serial08.101497
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The IKA MVP10 Basic Compact Vacuum Pump, crafted in the United States, is a reliable choice for dry, oil-free applications. This pump, in excellent condition, features a slimline and compact design, ensuring ease of maintenance and extended service life. Its diaphragm pump is highly resistant to a wide range of chemicals due to its construction with PTFE and PTFE compounds, providing robust performance. Tested and verified to meet specifications, this unit has minimal cosmetic wear typical of light use. With a maximum pump rate of 1.7 m³/h and the capacity to handle pressures from 7 to 1050 mbar, it is versatile for multiple laboratory applications. It incorporates automatic, manual, pump percentage, and program modes for flexible operation. Designed to operate at low noise levels (65 dB) and across voltages of 230 / 115 / 100V with a power input of 180W, the MVP10 is suitable for varied laboratory environments.
Key Features
- Compact design
- Chemical resistant PTFE pump
- Pump rate max 1.7m³/h
- Maximum pressure 1050 mbar
- Automatic and manual modes
- Low noise operation
Specifications
- Pump rate max. (50/60Hz) [m³/h]: 1.7
- Pump rate max. (50/60Hz) [l/min]: 28.3
- Final pressure without gas ballast [mbar]: 7
- Final pressure with gas ballast [mbar]: 15
- Suction levels: 2
- Cylinder: 2
- Connection diameter suction side [mm]: 10
- Connection diameter pressure side [mm]: 10
- Gas ballast valve: yes
- Input pressure [mbar]: 7 - 1050
- Speed (50Hz) [rpm]: 1380
- Speed (60Hz) [rpm]: 1680
- Noise at low pressure [dB(A)]: 65
- Operating modes: automatic, manual, pump %, program
- Permissible ambient temperature [°C]: 10 - 40
- Permissible relative humidity [%]: 80
- Protection class according to DIN EN 60529: IP 54
- Voltage [V]: 230 / 115 / 100
- Frequency [Hz]: 50/60
- Power input [W]: 180
Weight
Imperial: 39.6 Pounds
Metric: 17.96 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 15.6 lb x 8.4 lb
Metric: 33.53 cm x 39.62 cm x 21.34 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 - Air or vacuum pumps, hand or foot-operated. This code is suitable as it encompasses vacuum pumps that are relevant to the functionality and structure of the IKA MVP10.
